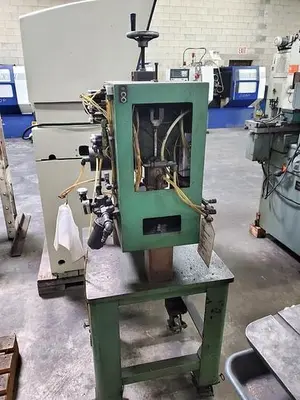

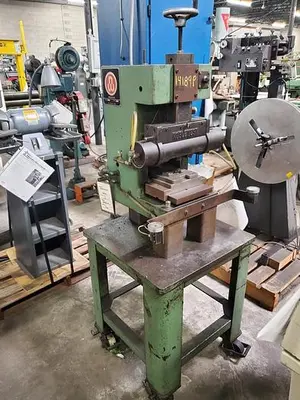

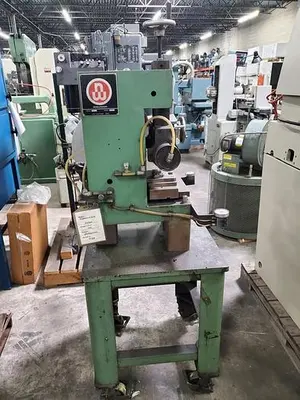

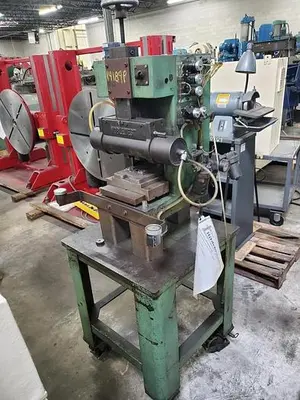

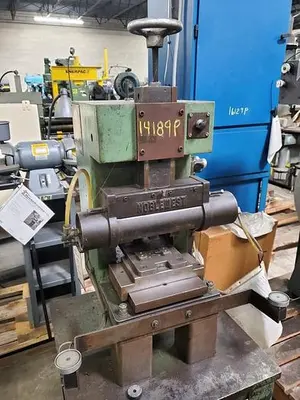

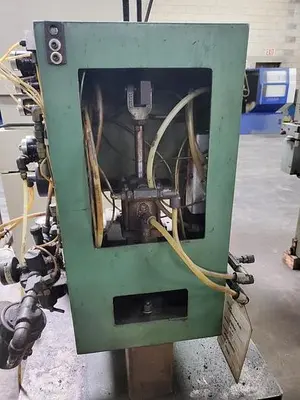

USED NOBLEWEST 9-509

NOBLEWEST ROLL MARKING MACHINE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $3,950.00

Stock # 14189-P

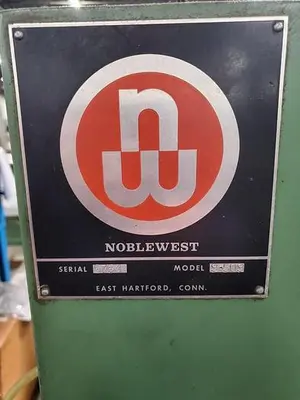

Serial # 6754
Model: 9-509

Catalogue Specification - May Not be 100% Accurate
Series 9
Ram Pressure: 1.45 Tons Maximum
Ram Stroke: 1/2" Maximum
Cross Slide Stroke: 3-1/2" Maximum
Die Space Height: 7-1/2"
Throat: 3-7/16" (Centerline of Marker to Frame)
Table Size: 8-1/2" x 6" Deep

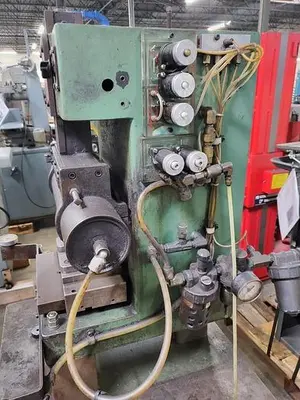

Working Air Pressure Required: 20 to 100 PSI

EQUIPPED WITH:
Manual Vertical Adjustment of Ram: Approx. 8"
NO Stencil i.e. Marking Holder Block
Machine is Mounted on a Custom Steel Table 24" x 24" x 30" High on Casters
6" High Riser Mounting Blocks Between Table and Machine
Dual Operation Palm Buttons
Overall Size: 24" x 24" x 69-1/2" High x 560 Lbs.
