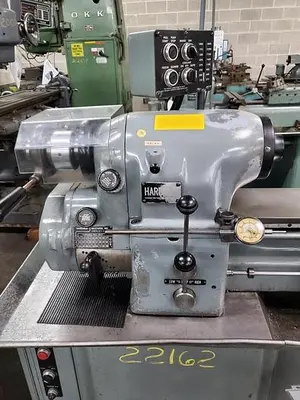

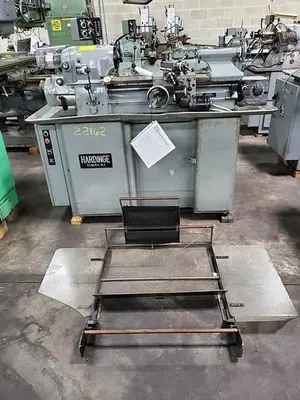

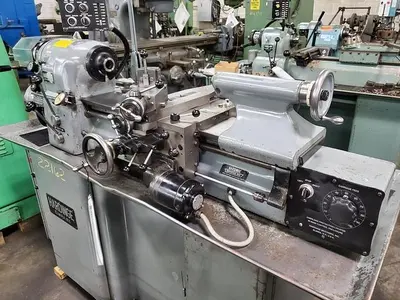

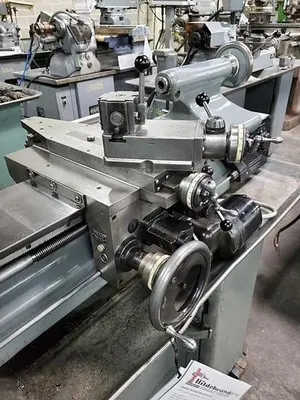

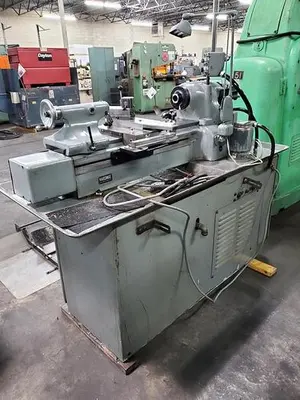

USED 1971 HARDINGE HLVH

HARDINGE PRECISION TOOL ROOM LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $12,500.00

HMC Stock # 22162
Machine Serial No.: HLVH-4827
Machine Model No.: HLVH
New Date: 1971

Swing Over Bed: 11"
Swing Over Carriage: 9"
Swing Over Cross Slide: 6"
Distance Between Centers: 18"
Hole Thru Spindle: 1-1/4"
Spindle Speeds: 125 to 3,000 RPM, Variable
Spindle Nose: External Hardinge Taper, 5C Internal Taper
Compound Slide Travel: 3"
Cross Slide Travel: 5-1/2"
Feed Range: 1/4 to 7 IPM, Variable
Collet Capacity: 1-1/16" Diameter, Round
Tailstock Quill Taper: #2 Morse
Tailstock Quill Travel: 3-3/4"
(27) Threads: 11 to 108 TPI

EQUIPPED WITH:
FIMS Quick Change Tool Post
Assorted FIMS Quick Change Holders
Taper Attachment
Follower Rest
Standard Hardinge Gear Banjo

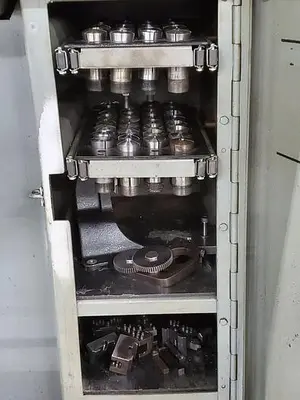

Assorted Hardinge 5C Collets
Rear Splash Guard
Work Light
Coolant Pump
1.5 HP Motor
Wired for 3 Phase, 60 Cycle, 220 Volts

Overall Size: 72" L-R x 30" F-B x 64" H x 1,875 Lbs.
