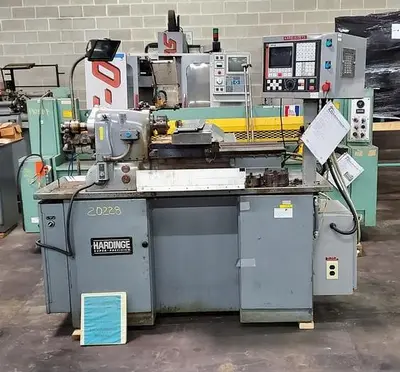

USED HARDINGE HC

HARDINGE CNC LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $6,950.00

HMC Stock # 20228
Machine Serial No.: HC-5849-T
Machine Model No.: HC
New Date: Unknown

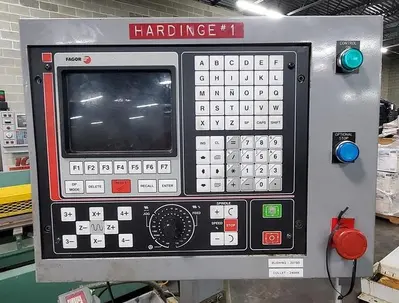

Retrofit with 2-Axis CNC Tool Slide with Fagor 8025 Control

Gang Type Tooling
Swing Over Ways: 8"
Approx. Travel of Cross Slide: 10"
Approx. Travel of Saddle: 6"
Maximum Distance Collet Chuck to Tool Slide: Approx. 9"
Spindle Speeds: 3,000 RPM Maximum

EQUIPPED WITH:
5C Pneumatic Collet Closure
Original Manual Collet Closure
5" 3-Jaw (Thread Mount)
5" 4-Jaw (Thread Mount)
6" 3-Jaw Flat Back with Threaded Adaptor Plate)
(1) New AHC-30 Invertible Tool Holder-Right
(1) New CC-13 Wedge Type Extension Tool Holder
(5) AHC-21 Single Bolt Drill & Shank Tools
(1) AHC-24 Extension Tool Bit Holder-Left
(1) AHC-29 Invertible Tool Holder-Left
(4) C-14 2" Extension Tool Holders
(3) C-15 3" Extension Tool Holders
(3) C-16 4" Extension Tool Holders
(1) C-17 5" Extension Tool Holder
(3) C-18 Drill & Shank Tool Holders
(1) CC-14 Wedge Type Extension Tool Holder
Work Light
Control Equipped with M Functions and Encoder on Spindle
RS 232 Port
Yaskawa AC Drive V1000
Fagor 8025/8030 Programming Manual
Coolant Pump and Piping
1-1/2 HP Main Motor
Wired for 3 Phase, 60 Cycle, 208/230 Volts

Overall Size: 80" LR x 48" FB x 70" High
