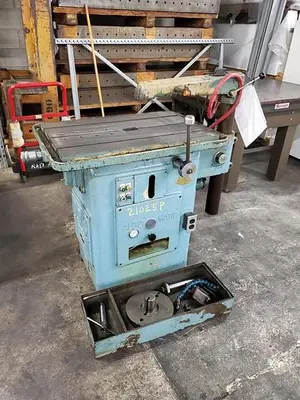

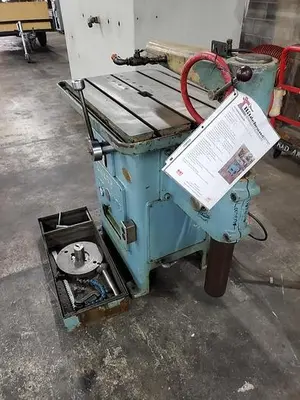

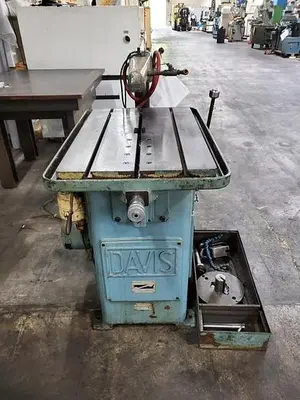

USED 1971 DAVIS 15

#15 DAVIS KEYSEATER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $9,500.00

HMC Stock # 21025- P
Machine Serial No.: 15-171
Machine Model No.: 15
New Date: 1971

Capacity in Steel: 1/16" to 1-1/2" Wide
Throat Depth from Face of Cutter Arm Post: 19"
Maximum Work Height from Table Surface: 12"
*Throat Depth of 22" & Work Height of 18" Can be Had
with Special Parts from Mfgr.
Maximum Length of Cut with 3/4" High Pushing Plate:
16" Long Cutter = 4" 24" Long Cutter = 12"
20" Long Cutter = 8" 30" Long Cutter = 18"

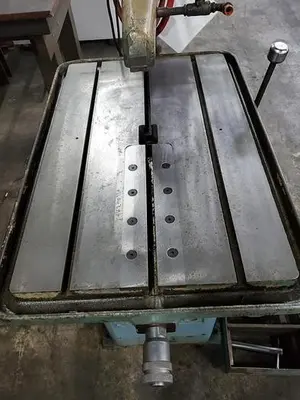

Table Size: 20" x 31" with (3) T-Slots & Coolant Trough
Table Movement: 1-1/2"
Cutter Stroke: 4-1/2"
Cutter Strokes Per Minute: Approximately 42

EQUIPPED WITH:
Air Operated Table Feed with Adjustable Pressure Control

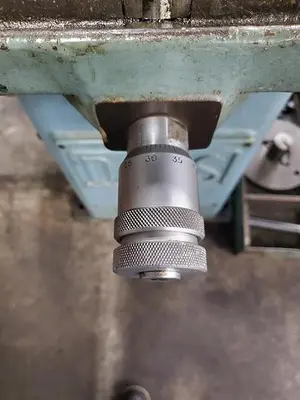

Micrometer Adjustable Table / Feed Stop
Control Switch for: Job - Hand - Auto Operation
Coolant Switch for: On - Off
Manual Table Movement Via Hand Lever

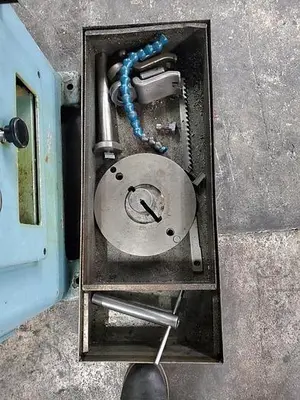

(1) Cutter Bushing
(1) Bushing Plate
(1) 5/16" Cutter
(1) Quick Clamp

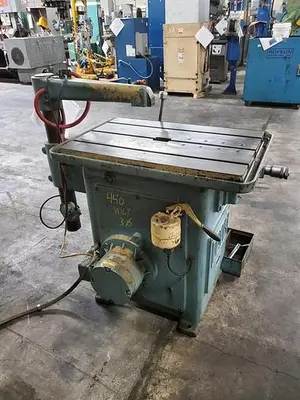

2 HP Motor, Wired for 3 Phase, 60 Cycle, 208-220-440 Volt Operation
Presently Wired for 3 Phase, 440 Volts
Coolant Pump and Pan

Overall Size Machine and Components:
Machine: 37" L-R x 56" F-B x 35" High (With Arm Down) x 1,250 Lbs.
