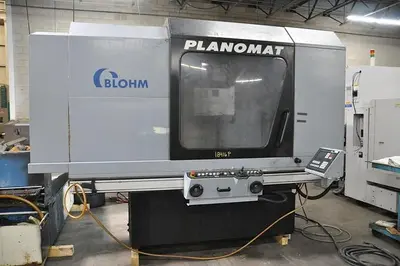

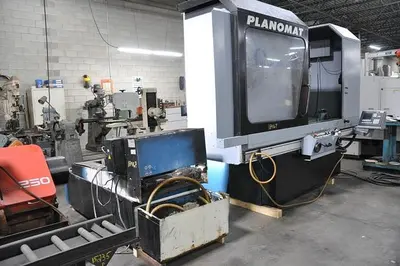

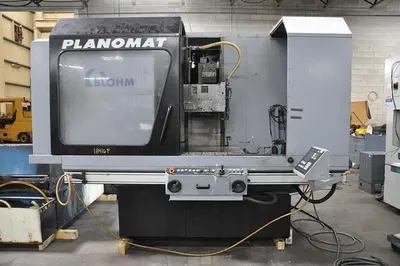

USED 2003 BLOHM PLANOMAT 608

24" x 31" BLOHM CNC SURFACE GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $32,500.00

HMC Stock No. 18416-P
Machine Serial No. 15162
Machine Model No. Planomat 608
New Date: 2003

WORKING RANGE:
Table Length: 31.54" (800 mm)
Table Width: 23.62" (600 mm)
Table Height Above Floor: 37.40" (950 mm)
Maximum Table Load: 1764 Lbs. (800 kg)

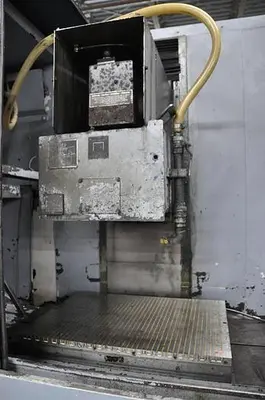

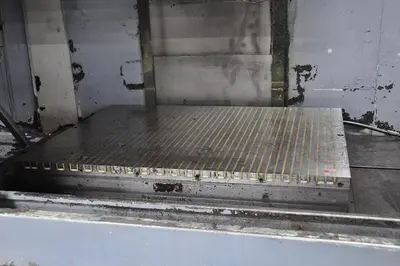

Chuck Size: 24" x 31-1/2"

TRAVERSING RANGES:
X-Stroke: 35.43" (900 mm)
Y-Stroke: 21.65" (550 mm)
Z-Stroke: 22.02" (560 mm)

TRAVERSING SPEEDS:
X-Speed: 1.18 to 1181.10 in/min (30 to 30000 mm/min)
Y-Speed: 0.15 to 147.63 in/min (4 to 3750 mm/min)
Z-Speed: 0.15 to 157.48 in/min (4 to 4000 mm/min)

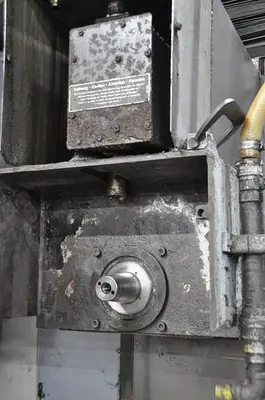

GRINDING SPINDLE DRIVE:
Grinding Spindle Speed: 1450 RPM
Output: 10 HP (7.5 kw)

GRINDING WHEEL DIMENSIONS:
Grinding Wheel Diameter: 15.74" (400 mm max.)
Grinding Wheel Diameter: 7.48" (190 mm min.)
Grinding Wheel Widths: 3.14" (30, 80 mm)
Standard Wheel Width: 1.96" (50 mm)
Grinding Wheel Hole Diameter: 5" (127 mm) 

EQUIPPED WITH:
Coolant System
Over The Wheel Straight Line Wheel Dresser

Overall Size: 135" LR x 100" FB x 102" High (on 4" blocks)
Machine Weight: 10,780 Lbs.
