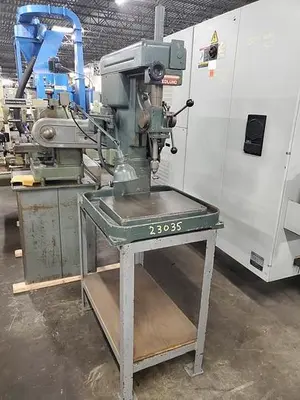

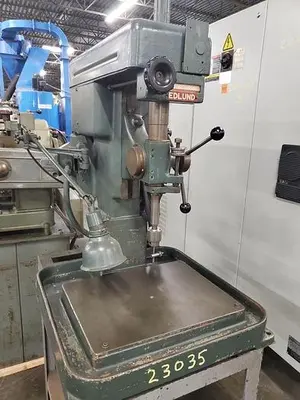

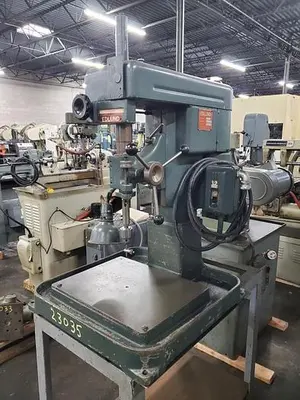

USED 1956 EDLUND 1F7

EDLUND SINGLE SPINDLE BENCH MODEL DRILL
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $695.00

HMC Stock # 23035

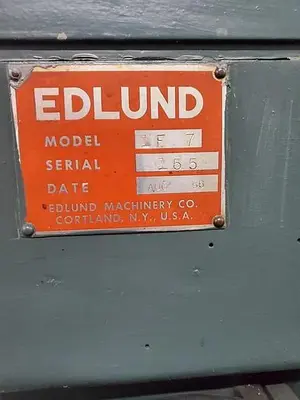

Machine Serial No.: 155
Machine Model No.: 1F7
New Date: August 1956

Table Work Area Size: 18" LR x 14" FB
Table Overall Size with Coolant Trough: 22-3/4" LR x 23" FB
Spindle Taper: #2 Morse
Quill Travel: 5"
Centerline of Spindle to Frame: 8"
Spindle Speeds: Variable 620 to 5000 RPM Via Hand Crank Knob
Approx. Maximum Distance Spindle Nose to Table: 10-1/4"

EQUIPPED WITH:
Machine Work Light
Adjustable Quill Depth Stop
(1) Jacobs Key Type Drill Chuck 0 - 3/8" with #2 Morse Taper and Key
Bolted to 35" High Angle Iron Stand
Vertical Adjustment of Spindle Bracket Carrier
1 HP Motor, 1730 RPM
Wired for 3 Phase, 60 Hz, 220 / 440 Volt Operation

Overall Size: Machine 23" LR x 33" FB x 36" High x ? Lbs.
Stand 23" LR x 35" FB x 35" High x ? Lbs.
