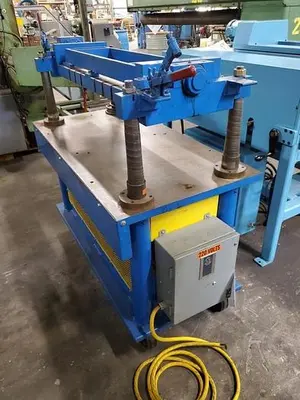

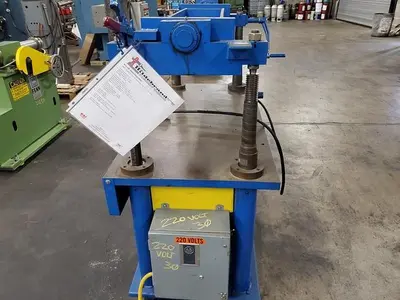

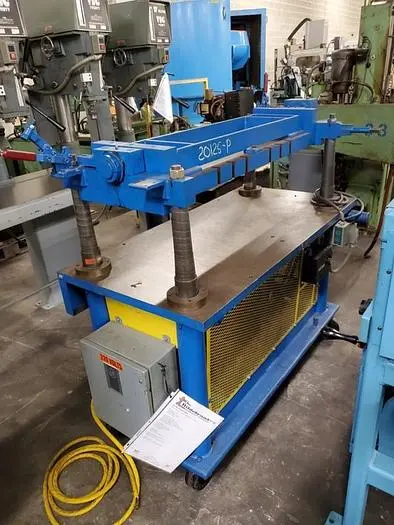

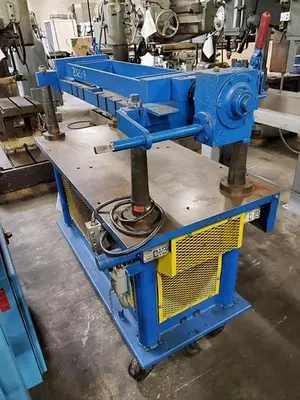

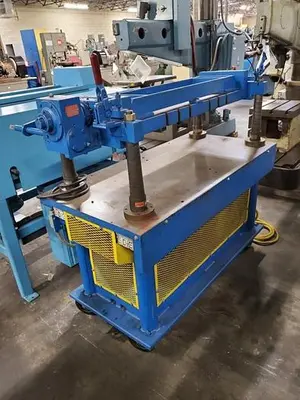

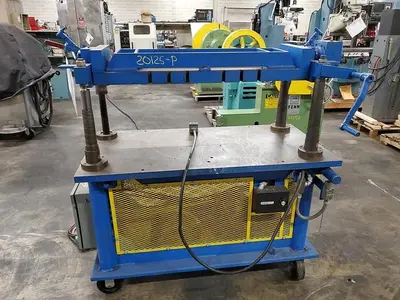

USED MTC E-4436

MTC DIE HANDLER/FLIPPER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $12,500.00

HMC Stock # 20125-P
Machine Serial No.: 27535
Machine Model No.: E-4436
New Date: Unknown

Load Capacity: 2,500 Lbs.

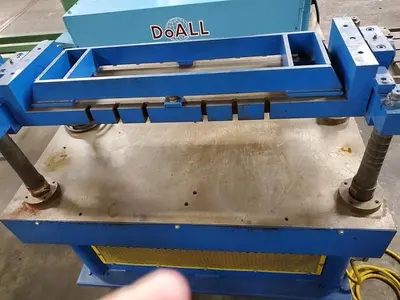

Working Area Upper Platen: 12" x 38"
Working Area Center Platen: 26" x 30-1/2"
Platen Clearance 0 Degrees: 9" Min. to 27" Max.
Platen Clearance 180 Degrees: 3-1/4" Min. to 24-1/4" Max.
Vertical Travel Upper Platen: 21"

Elevating Ratio:
Hand Crank/High Speed: 1/8 IPR
Hand Crank/Low Speed: 1/16 IPR
Center Platen to Floor: 32"
Caster Diameter: 6"

Equipped With:
Power Elevation
Electrics: 220 Volts, 3 Phase, 60 Cycle

Approx. Dimensions: 4' LR x 3' FB x 4' H
Approx. Weight: 1,650 Lbs.
Approx. Weight with Power Elevation: 1,900 Lbs.

Excellent Condition
Replacement Value New Today, Approx. $16,800
