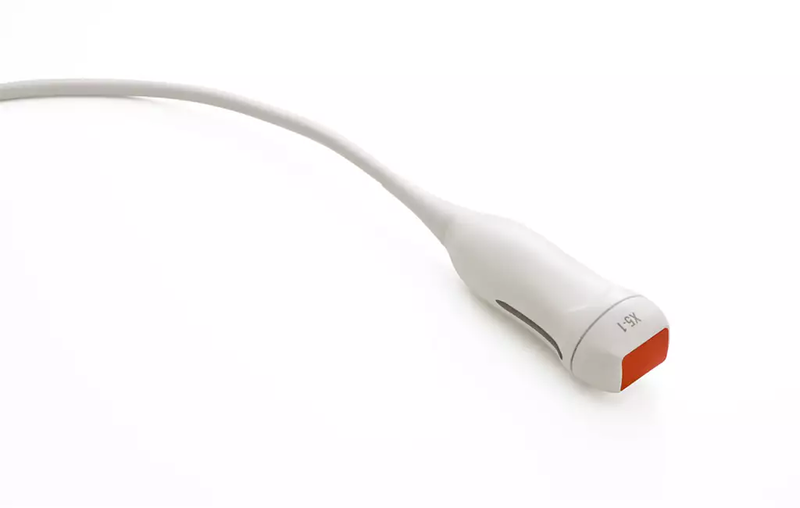

Philips X5‑1 Transducer (xMATRIX)

xMatrix Sector Array with PureWave Crystal Technology

The Philips X5-1 Transducer (xMATRIX) combines advanced xMatrix array technology
with PureWave crystal technology to deliver outstanding image clarity and performance for
adult and pediatric echocardiography. Operating across an extended 5 to 1 MHz
frequency range, this highly versatile probe supports a comprehensive range of imaging modes including
2D, Live 3D Volume, High Volume Rate (HVR),
one-beat, two-beat, and four-beat Live Volume, color flow,
Live 3D color, PW/CW Doppler, M-mode,
color M-mode, contrast imaging, Tissue Doppler,
and Live xPlane imaging.

With 3,040 micro-beamformed elements and iRotate electronic rotation
(0–180°), the X5-1 removes barriers to 3D imaging and allows clinicians to seamlessly switch between

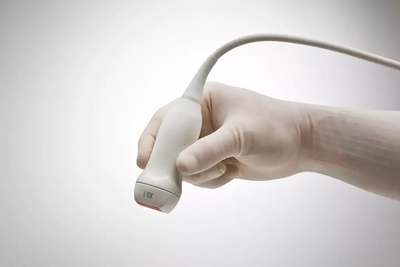

2D, 3D, or combined modes without disrupting workflow. Its ergonomic design and solid-state reliability
eliminate the need for complex liquid cooling systems, minimizing user fatigue while ensuring consistent
high-quality imaging. Measuring 9.2 × 3.9 × 2.9 cm
(3.6 × 1.5 × 1.1 in), this compact probe is Philips Green Label approved
for sustainability and energy efficiency.

This pre-owned unit delivers the same trusted Philips performance and versatility
at a significantly lower cost, making it an excellent choice for clinics and hospitals
seeking to expand their 3D echocardiography capabilities while maintaining budget control.

Technology
PureWave and xMatrix


Number of Elements
3,040


Frequency Range
5 – 1 MHz


Array Type
PureWave and xMatrix


Aperture
Proprietary


Field of View
90°


Volume of Field of View
98° × 98°


Applications
Adult/Pediatric Cardiac, Abdominal Vascular, TCD


Biopsy Capable
No


Image Fusion Navigation Capable
No
