CardioTech GT-105 Spirometer - NEW!

Fast and Intuitive

For modern professionals
Each function can be activated by a simple touch on the intuitive bar menu always present on the screen. ADD PAT PVC VG POST

Customizable Software Tool

Upgrade device firmware if required
Upload and save device in case of servicing
Generate device archive into a PDF report for each spirometry session

Features:

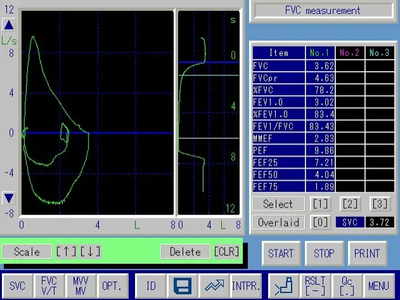

Large TFT display
Operational message
Internal battery
Challenge Test
300+ data storage
Flow Detection: Vary flow sensor
Flow Range: +/- 0.05 to +/- 14.0L/s
Flow Resolution: 0.01L/s
Flow Resistance: 1.5cmH20 up to 14L/s
Volume Detection: Flow integration
Volume Range: +/- 0.01 to +/- 10.0L/s
Volume Resolution: 0.01L/s
Volume Accuracy: +/- 3% or +/- 0.050L/s, whichever is greater
LCD Display: 8 inch TFT color display
LCD Dot pitch: 0.2535 x 0.2535mm
LCD Dots: (640 x RGB) x 480
Printer: Built-in thermal printer
Letter/paper width: 104mm/112mm
Maximum printing speed: 45mm/s
Data storage: 300 patients
Interface: USB, S-232C
Power requirement: AC100V - 240V, 50/60Hz
Dimensions: 310(W) x 280(D) x 95(H) mm
