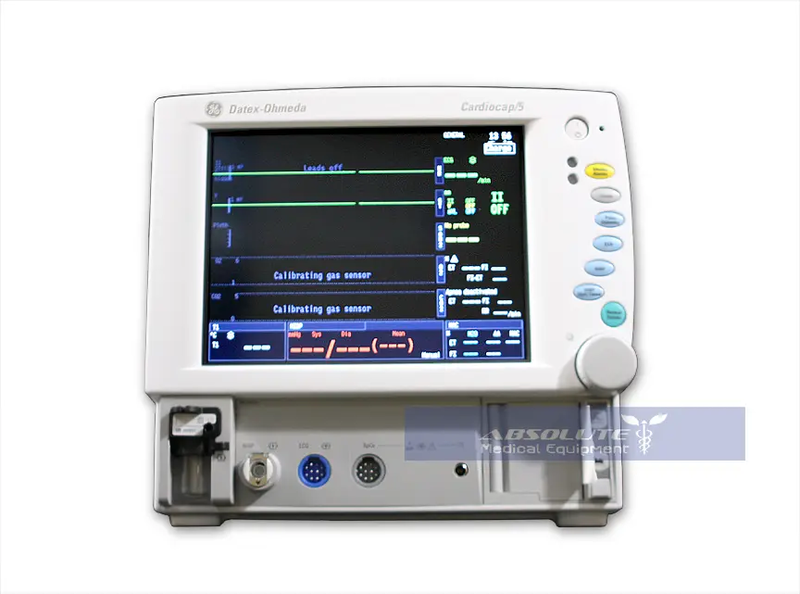

GE Datex Ohmeda Cardiocap/5 Anesthesia Monitor

The compact, all-in-one, anesthesia monitor

The Cardiocap/5 is a compact, all-in-one monitor designed for use in the operating room, ambulatory surgery unit, induction room and PACU. The Cardiocap/5 offers full vital signs monitoring capabilities from the monitoring of oxygenation and circulation to advanced airway gas analysis and ventilation measurement with Patient Spirometry.
Cardiocap/5 networking options extend the capabilities to centralized monitoring and arrhythmia analysis.

The Cardiocap/5 has an outstanding user interface, the trademark of all GE Healthcare monitors, making it easy use, easy to learn and the perfect partner for any anesthesia machine.
Features

Integrated, hemodynamic and airway gas monitor specifi cally designed for operating and recovery rooms
Proven intuitive user interface, including anesthesiadedicated menu logic and alarm philosophy, as in all Datex-Ohmeda monitors
Small and compact for places where space is a premium
Large numerics and waveforms provide excellent visibility from a distance
Built-in back-up battery to handle sudden power-down situation
The frame-integrated mounting piece allows quick and easy mounting on optional wall mount, roll stand and anesthesia machine mounting arms

Hemodynamics

ECG 5-lead with ST analysis
Impedance respiration
Pulse oximetry (SpO2)
NIBP
InvBP
Temperature

Airway Gases

CO2 (N2O)
Patient O2
N2O
Anesthetic agents with identification

Patient Spirometry

Tidal volume
Minute volume
Flow
Compliance
Airway resistance
Airway pressure

Relaxation

Neuromuscular transmission

Technical Data
General
Dimensions (WxDxH): 330 x 220 x 300 mm/ 13.0 x 8.7 x 11.8 in
Weight:

F-MXG: < 11.2 kg, (24.8 lb)
F-MX: < 10.2 kg, (22.6 lb)

Power: 100-240 V AC ±10 %, 60/50 Hz
Back-up battery: 15 min minimum, charging time typically 5h
Graphical trends: 20 min, 1, 2, 4, 6, 8, 10, 12 and 24h
Numerical trends: All parameters, sampled every 5 min and after NIBP measurement
Alarms: Adjustable high and low limit alarms
Operating temperature: +10° to +40 °C/50° to 104 °F
Storage and transport temperature: –10° to +50 °C/14° to 122
Relative humidity: 10 to 85 % noncondensing, in airway 0 to 100% condensing
Atmospheric pressure: 660 to 1060 hPa/ 500 to 800 mmHg
Recorder (optional): Thermal array, 3-channels, paper width 50 mm
Local printing: PCL-5 and later compatible laser printers
Mounting: Wall mount or roll stand available. See the accessory list or catalog to find more information.
Safety standards: IEC 60601-1 approved, CE marking according to MDD directive 93/42/EEC, CSA C 22.2.No. 601.1 approved, UL2601-1 approved

Display
Display size and type 10.4 inch LCD active matrix color
Number of traces Up to 6
Display resolution 640 x 480 pixels
ECG
Number of channels 3
Number of leads 3 or 5
ST analysis 3 channels, continuous
Heart rate
Measurement range 30 to 250 beats per min (bpm)
Accuracy ±5 % or ±5 bpm,
whichever is greater
Pacemaker
Pulse detection level 2 to 500 mV
Pulse duration 0.5 to 2 ms
Impedance Respiration
Measurement method Measurement uses ECG
electrodes to measure the
impedance changes as a result
of breathing
Measurement range 4 to 120 breaths/min
Accuracy ±5 % or ±5 resp/min
