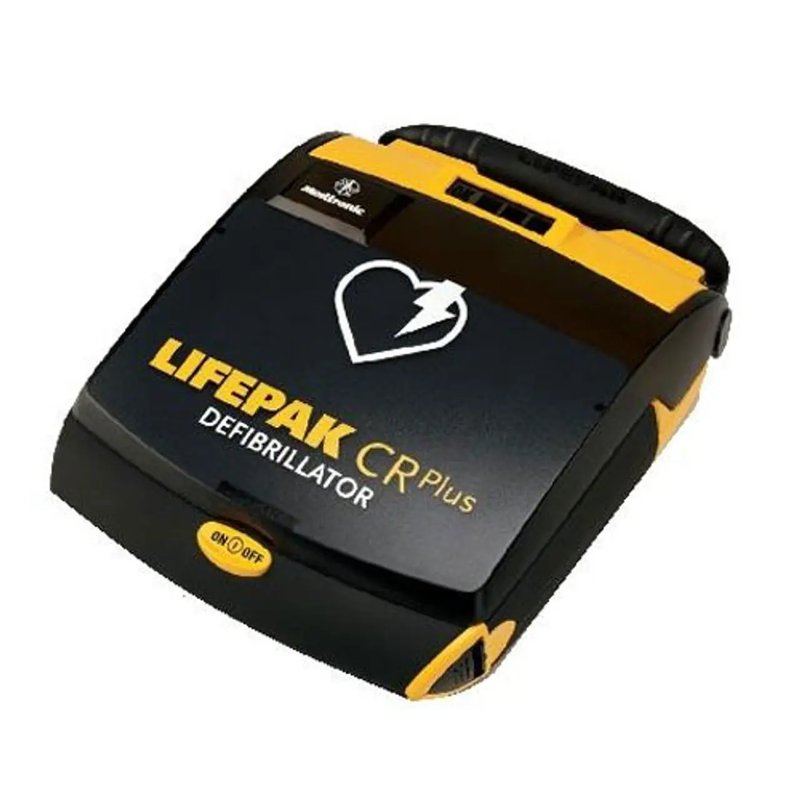

PhysioControl Lifepak CR Plus Defibrillator

Simple, Reliable Defibrillation for Public Access and First Responders

The Physio-Control LIFEPAK® CR Plus Defibrillator is a fully automatic
automated external defibrillator (AED) designed specifically for the first person
to respond to a victim of sudden cardiac arrest. Using the same advanced technology trusted by
professional rescuers, the CR Plus combines simple two-step operation with
biphasic truncated exponential (BTE) defibrillation and escalating energy up to
360 joules, helping deliver effective therapy when every second counts.

Operation is intentionally straightforward: Step 1 – turn the device on,
Step 2 – apply the electrode pads. The LIFEPAK CR Plus then analyzes the rhythm
and, in the fully automatic version, delivers a shock when appropriate—no shock button required.
Clear, calm ClearVoice™ voice prompts, tones, and on-screen graphics guide the responder
through each step, while the Shock Advisory System™ ensures a shock is only delivered when needed.

To support readiness, the CR Plus performs regular automatic self-tests and displays status
on a highly visible Readiness Display. The unique SafeGuard Power System™ pairs a
long-life internal battery with a replaceable CHARGE-PAK™ battery charger and synchronized
QUIK-PAK™ electrode set, simplifying maintenance and keeping the AED mission-ready. QUIK-PAK electrodes
are preconnected and compatible with other LIFEPAK defibrillators, allowing seamless transfer
of care when EMS arrives.

This pre-owned unit delivers the same proven LIFEPAK performance and compatibility at a
significantly lower cost, making it an excellent choice for offices, schools, fitness
centers, churches, industrial sites, and other public locations that want a simple, powerful AED program.

Key Features:

Fully automatic or semi-automatic AED operation with simple two-step use.

Biphasic truncated exponential waveform with escalating 200 J, 300 J, 360 J energy protocol.

ClearVoice™ prompts, audible tones, and graphic icons guide rescuers through each step.

Shock Advisory System™ analyzes ECG and charges only when a shock is appropriate.

SafeGuard Power System™ with CHARGE-PAK™ battery charger and synchronized QUIK-PAK™ electrodes.
Regular automatic self-tests and an easy-to-read Readiness Display for confidence in device status.

Compact and lightweight design with integrated handle for easy placement and transport.
Electrodes are compatible with professional LIFEPAK defibrillators for rapid handoff to EMS.

Physio-Control LIFEPAK CR Plus Defibrillator Specifications:

Device Type
Fully automatic or semi-automatic external defibrillator (AED)


Waveform
Biphasic truncated exponential with voltage and current duration compensation for patient impedance


Energy Output
Configurable multiple levels from 150–360 J; factory default sequence

200 J, 300 J, 360 J

Energy Accuracy
±10% into 50 Ω; ±15% into 25–100 Ω


Shock Advisory System™
ECG analysis system advises whether defibrillation is appropriate; device charges and shocks only

when a shockable rhythm is detected


Charge Time
< 9 s to 200 J; < 15 s to 360 J with fully charged device


Device Capacity
Typical: 30 full discharges or 210 minutes of “on time”;

Minimum: 20 full discharges or 140 minutes of “on time” (with fully charged device)


Power System

CHARGE-PAK™ battery charger (Li/SO2Cl2, 11.7 V, 1.4 Ah) maintaining internal battery;

CHARGE-PAK and QUIK-PAK electrodes replaced together (typical 2-year interval or after use)


Electrodes

QUIK-PAK™ preconnected adult electrodes, anterior–lateral placement, protected under top cover;

Optional infant/child reduced-energy electrodes for patients < 8 years or < 25 kg (55 lb)


Readiness & Indicators
Readiness Display with OK, CHARGE-PAK, Attention, and Service indicators;

Automatic self-tests: weekly, monthly, on power-up, and during operation


Data Storage
Internal digital memory; dual patient storage with minimum 20 minutes ECG for current patient and

summarized data for previous patient; minimum 200 time-stamped event markers; wireless transfer

to PC via infrared (IrDA)


Physical Dimensions (H × W × D)
10.7 × 20.3 × 24.1 cm (4.2 × 8.0 × 9.5 in), excluding handle


Weight
Approx. 2.0 kg (4.5 lb) with CHARGE-PAK and electrodes


Environmental
Operating temperature: 0–50 °C (32–122 °F);

Storage: −40–70 °C (−40–158 °F) with CHARGE-PAK and electrodes (max 1 week at extremes);

Humidity: 5–95% non-condensing; Altitude: 0–15,000 ft; Water resistance: IPX4 “splash proof”;

Shock and vibration tested to MIL-STD-810E.


Typical Applications
Offices, schools, airports, factories, churches, fitness centers, public buildings, and other

public-access AED programs for adult and pediatric sudden cardiac arrest victims.
