Samsung RS85 | General Imaging

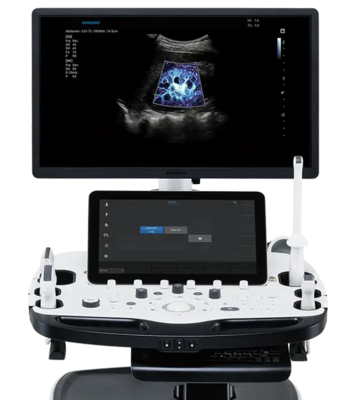

The Samsung RS85 Prestige is a premium general imaging ultrasound system built for
advanced diagnostic imaging, radiology, vascular, abdominal, MSK, breast, cardiac, OB/GYN, pediatric, small parts,
urology, and interventional applications. Powered by Samsung’s Crystal Architecture™, advanced
beamforming, and single-crystal transducer technology, the RS85 is designed to deliver clear image quality,
strong penetration, and sensitive Doppler performance across a wide range of clinical cases.

The system combines a large high-resolution display, a 14-inch capacitive touchscreen, intuitive workflow
tools, and advanced imaging features such as MV-Flow™, LumiFlow™, ShadowHDR™,
S-Shearwave Imaging™, S-Detect™, and S-Fusion™. With broad transducer support,
integrated SSD storage, DICOM connectivity, and ergonomic console design, the RS85 Prestige helps clinicians scan,
assess, document, and manage studies efficiently.

Key Features:

Premium general imaging platform for radiology, vascular, abdominal, MSK, breast, cardiac, OB/GYN, pediatric, small parts, urology, TCD, and interventional applications.

Crystal Architecture™ imaging engine with advanced beamforming and single-crystal transducer technology.

Large main display: 23.8-inch wide color LCD display, with optional 27-inch OLED monitor.

14-inch capacitive touchscreen with high-resolution control interface and customizable software display.

Advanced imaging modes: 2D, Color Doppler, Power Doppler, S-Flow™, PW Doppler, CW Doppler, M-Mode, Color M-Mode, Anatomical M-Mode, Harmonic Imaging, S-Harmonic™, TDI, and TDW.

Image enhancement tools: ClearVision, MultiVision, PureVision™, HQ-Vision™, ShadowHDR™, Advanced QuickScan™, QuickScan™ Live, and Color Auto Gain.

Advanced diagnostic tools: MV-Flow™, LumiFlow™, S-Shearwave Imaging™, QUS, S-Detect™ for Breast, S-Detect™ for Thyroid, S-Fusion™, Elastoscan+™, AutoIMT™, NeedleMate+™, and Panoramic+.

Storage and workflow: integrated 512 GB SSD, optional additional 512 GB SSD, DICOM support, Mobile Export option, and streamlined exam workflow tools.

Connectivity: Gigabit Ethernet, HDMI, VGA, S-Video, DICOM 3.0 compatibility, Worklist, Query/Retrieve, MPPS, Storage, Print, and secure data transmission options.

Ergonomic design: articulating monitor arm, height/tilt/swivel monitor adjustment, virtual TGC, trackball, functional hard keys, gel warmer, and multiple probe ports.

Samsung RS85 Prestige Ultrasound System Specifications:

System Type
Premium cart-based general imaging ultrasound system.


Clinical Applications
Abdominal, breast, cardiac, gynecology, MSK, neonatal, obstetrics, pediatrics, small parts, TCD, urology, and vascular.


Dimensions
Height: 55–67 in

Width: 22 in

Depth: 38.5 in


Weight
290 lb.


Main Display
23.8-inch wide color LCD flat display; 1920 × 1080 resolution; IPS technology.


Touchscreen
14-inch LED capacitive tilting touch panel; 1920 × 800 resolution.


Image Storage
Integrated 512 GB SSD; optional additional 512 GB SSD.


Depth Range
2–45 cm, depending on probe and preset.


Probe Ports
4 active probe ports + 1 storage port; optional pencil probe port.


Imaging Modes
2D, Color Doppler, Power Doppler, S-Flow™, PW Doppler, CW Doppler, M-Mode, Color M-Mode, Anatomical M-Mode, Harmonic Imaging, S-Harmonic™, TDI, and TDW.


Standard Imaging Features
Advanced QuickScan™, QuickScan™ Live, Color Auto Gain, ClearVision, MultiVision, PureVision™, HQ-Vision™, AutoIMT™, Elastoscan+™, EZ Exam+™, NeedleMate+™, ShadowHDR™, cardiac measurements, post-processing, DICOM, physical keyboard, and gel warmer.


Advanced / Optional Features
2D NT, ADV™, ArterialAnalysis™, BiometryAssist™, CEUS+, CrystalVue™, E-Breast™, E-Thyroid™, EzHRI™, EzNerveMeasure™, HDVI™, IOTA-ADNEX, LumiFlow™, MV-Flow™, NaturalVue™, NerveTrack™, Panoramic+, QUS, RealisticVue™, S-Detect™, S-Fusion™, S-Shearwave Imaging™, Smart 4D, SonoSync™, XI STIC, Strain+, StressEcho, and Mobile Export.


Data Management / DICOM
DICOM 3.0 compatible; Verification Service, Worklist, Query/Retrieve, Image Storage, MPPS, SR, PPS, SC, and Print.


Connectivity
1000BASE-T Gigabit Ethernet, HDMI, VGA, and S-Video outputs.


Cybersecurity
Windows 10, user management, Windows Defender antivirus, EMR/DICOM secure transmission with DICOM TLS, secure erase for PHI data, SSD encryption with BitLocker, and audit trails.


Ergonomics
Articulating monitor arm with ±360° swivel; height, tilt, and swivel monitor adjustment; virtual TGC on touch panel; digital TGC line memory; trackball and grouped hard keys with interactive backlighting; integrated stereo speakers.


Supported Transducer Categories
Convex array, linear array, phased array, volume, endocavity, continuous wave, and TEE transducers.


Example Transducers
CA1-7A, CA1-7S, CA3-10A, CA4-10M, LA2-14A, LA2-9S, L3-22, LA4-18A, L3-12A, LM2-18, LA3-22AI, PA1-5A, PA3-8B, PA4-12B, CV1-8A, EV2-10A, EA2-11AR, EA2-11AV, miniER7, CW6.0, DP2B, and MMPT3-7.


Power
100–240 V AC, 50/60 Hz, 1,000 VA.


Battery Option
Standby time approximately 65 minutes; scan time approximately 45 minutes minimum; charging time approximately 6 hours maximum.
