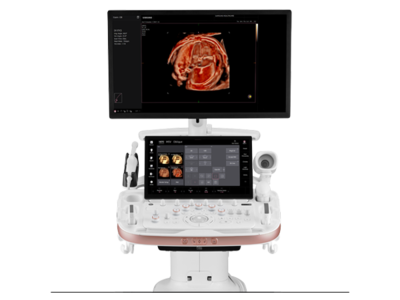

Samsung Z20 Women’s Health

The Samsung Z20 Women’s Health is a premium women’s health ultrasound system
designed to support confident imaging across routine and complex OB/GYN examinations. Built for
fertility care, fetal diagnosis, labor and delivery, breast, and gynecological imaging, the Z20 combines
advanced image clarity, AI-assisted workflow tools, and a highly ergonomic user experience.

Powered by Samsung’s next-generation Crystal Architecture™, the Z20 integrates
CrystalBeam™, CrystalLive™, and advanced S-Vue Transducer™
technology to deliver high-resolution imaging, deeper penetration, improved contrast, and enhanced
sensitivity. Advanced tools such as RealisticVue™, CrystalVue™,
MV-Flow™, and LumiFlow™ help clinicians visualize anatomy and blood flow
with exceptional detail.

Key Features:

Women’s health focused platform for fertility care, fetal diagnosis, labor and delivery, breast, and gynecology.

Crystal Architecture™ Next Generation with CrystalBeam™, CrystalLive™, and S-Vue Transducer™ technology.

Premium 3D/4D imaging tools: RealisticVue™, CrystalVue™, CrystalVue Flow™, and PortraitVue™.

High-sensitivity flow imaging: MV-Flow™, LumiFlow™, S-Flow™, and CrystalVue Flow™.

Advanced fetal assessment tools: 5D CNS+™, 5D Heart Color™, 5D Limb Vol.™, MPI+™, and QualityCheck™.

Gynecologic and breast tools: S-Detect™ for Breast, IOTA-ADNEX, IOTA-SRrisk, PelvicAssist™, IDEA, IETA, and EZPictogram™.

Personalized workflow with MyHERA™, allowing users to restore custom presets, touchscreen layouts, settings, and lighting preferences.

Ergonomic system design with adjustable positioning, 180° control panel swivel, 360° monitor rotation, and electronic wheel locks.

Remote collaboration with SonoSync™ real-time image sharing, voice, text, video conferencing, marking, and remote control support.

Samsung Z20 Women’s Health Ultrasound System Specifications:

System Type
Premium women’s health ultrasound system for OB/GYN, fetal imaging, fertility, breast, and gynecological applications.


Imaging Platform
Samsung Crystal Architecture™ Next Generation with CrystalBeam™, CrystalLive™, and S-Vue Transducer™ technology.


Main Monitor

27-inch OLED monitor with 360° rotation, depth adjustability, adjustable font size, and adjustable color settings.


Touchscreen

15.6-inch LCD touchscreen with 30° tilt for seated or standing operation.


User Customization
MyHERA™ user profiles for customized touchscreen layout, imaging presets, system settings, and preferred system lighting.


3D / Volume Imaging
RealisticVue™, CrystalVue™, CrystalVue Flow™, EzVolume™, PortraitVue™, and advanced 3D anatomy visualization.


Color / Flow Imaging
MV-Flow™, LumiFlow™, S-Flow™, and CrystalVue Flow™ for high-resolution and high-sensitivity vascular visualization.


Fertility Care Tools
2D Follicle™, 5D Follicle™, UterineAssist™, and UterineContour™.


Fetal Diagnosis Tools
5D CNS+™, 5D Heart Color™, Live ViewAssist™, HeartAssist™, 5D Limb Vol.™, MPI+™, BiometryAssist™, and QualityCheck™.


Labor & Delivery Tools
E-Cervix™ and LaborAssist™.


Gynecology / Breast Tools
S-Detect™ for Breast, IOTA-ADNEX, IOTA-SRrisk, PelvicAssist™, IDEA, IETA, and EZPictogram™.


Transducer Technology
S-Vue Transducer™ technology; includes support for the CMV1-10 matrix transducer for high-resolution 3D imaging and deeper penetration.


Ergonomics
System adjustments for users from the 5th to 95th percentile height range;

control panel swivels 180°;

ample knee space exceeds industry standards by up to 17%;

electronic wheel locks controllable from front or back.


Custom Controls

11 customizable buttons positioned within 3.5 inches of the trackball.


Comfort Features
Angled gel warmer with two adjustable heat settings, reduced heat and fan noise design, and ambient LED lighting for dark environments.
