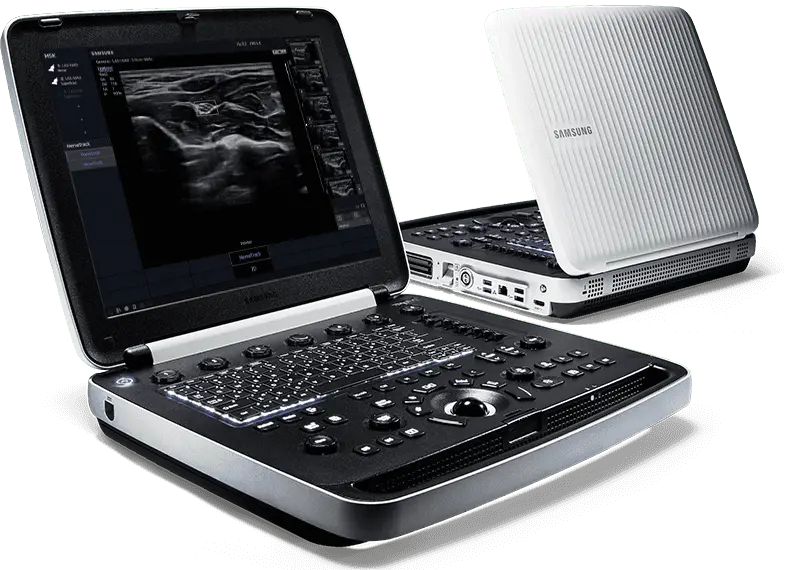

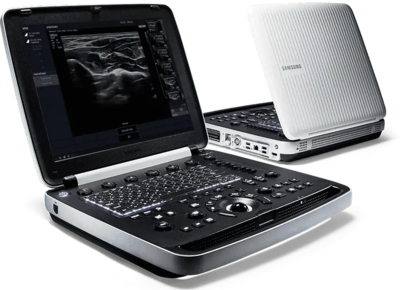

Samsung HM70 EVO Portable Ultrasound Machine

The Samsung HM70 EVO is a high-performance portable ultrasound machine designed for
mobile imaging across a wide range of clinical environments. Built in a laptop-style format with a
15-inch LED-backlit LCD monitor, the HM70 EVO combines streamlined workflow, durable construction,
and high-resolution imaging in a compact hand-carried system.

Adapted from Samsung’s high-end imaging platform, the HM70 EVO delivers clear 2D and color images with
technologies such as ClearVision™, HQ-Vision™, S-Harmonic™, and
S-Flow™. It supports applications including abdominal, OB/GYN, vascular, cardiac, small parts,
MSK, breast, pediatrics, emergency, and urology imaging, with optional advanced tools for 3D/4D,
needle visualization, elastography, panoramic imaging, stress echo, and automated measurements.

Key Features:

Portable laptop-style design with a 15-inch LED-backlit LCD monitor.

High-resolution imaging adapted from Samsung’s cart-based imaging platform.

Advanced image enhancement: ClearVision™, HQ-Vision™, S-Harmonic™, MultiVision™, and Full Spectrum Imaging.

Doppler support: Color Doppler, Power Doppler, S-Flow™, Pulsed Wave, TDI, TDW, and optional CW Doppler.

Wide clinical application range: abdominal, obstetrics, gynecology, urology, vascular, TCD, cardiac, small parts, MSK, breast, pediatrics, and emergency.

Workflow tools: QuickScan™, QuickSave, Full Screen Mode™, QuickPreset, BiometryAssist™, and optional EzExam+™.

Durable mobile construction with magnesium case, wave-pattern exterior, and honeycomb internal structure.

Battery operation: approximately 75 minutes standard battery life, or up to 7.5 hours with optional extended power pack.

Large internal storage: integrated 256 GB SSD.

DICOM and cybersecurity support: DICOM 3.0, DICOM TLS, BitLocker SSD encryption, audit trails, password control, Windows Defender Antivirus, and user management.

Samsung HM70 EVO Portable Ultrasound Machine Specifications:

System Type
Portable laptop-style hand-carried ultrasound system.


Monitor

15-inch LCD monitor with LED backlight.


Dimensions
Height: 2.5 in

Width: 15 in

Depth: 14 in

Weight

13.23 lbs.


Image Storage
Integrated 256 GB SSD.


Depth Range

2–38 cm, depending on the probe.


Clinical Applications
Abdominal, obstetrics, gynecology, urology, vascular, TCD, cardiac, small parts, MSK, breast, pediatrics, and emergency imaging.


Standard Imaging Modes
2D, Color Doppler, Power Doppler, S-Flow™, M-Mode, Pulsed Wave Doppler, TDI, TDW, Full Screen Mode™, S-Harmonic Imaging, and Pulse Inversion Harmonics.


Standard Imaging Features
BiometryAssist™, QuickScan™, ClearVision™, MultiVision™, HQ-Vision™, Full Spectrum Imaging, multi-frequency imaging, trapezoid imaging, beam steering for linear probes, barcode scanner support, and DICOM 3.0.


Optional Advanced Features
3D/4D, RealisticVue Lite™, 3DXI, XI STIC, 2D & 5D Follicle™, 2D NT™, LaborAssist™, CW Doppler, ECG, NeedleMate+™, EzExam+™, cardiac measurements, wireless connectivity, AutoIMT+™, Panoramic+, ElastoScan™, E-Strain™, Strain+, Stress Echo, foot switch, mobile export, cart, and extended power pack.


Battery Life
Standard battery: approximately 75 minutes

Optional extended power pack: up to approximately 7.5 hours

Startup / Sleep
Full bootup: up to 150 seconds

Sleep mode startup: up to 60 seconds

Input / Output Connections
HDMI port, Ethernet port, and 4 USB 2.0 / 3.0 ports with cart.


DICOM
DICOM Storage, Worklist, SR, PPS, Storage Commitment, and Print.


Cybersecurity
Windows 10, user management, Windows Defender Antivirus, DICOM TLS secure transmission, BitLocker SSD encryption, audit trails, and password control.


Electrical

100–240 V AC, 3.5 A, 50–60 Hz.


Ergonomics
Backlit keyboard and control panel, integrated speakers, interactive dynamic software menu, adjustable brightness, optional KeySkin, and optional durable cover.


Supported Transducer Categories
Convex array, linear array, phased array, endocavity, volume, CW, and specialty probes.


Example Transducers
CA1-7AD, CA2-8AD, CA4-10M, EVN4-9, LA2-9S, LA3-16AD, LN5-12, PA1-5, PN2-4, SP3-8, MMPT3-7, DP2B, VN4-8, and EV2-10A.
