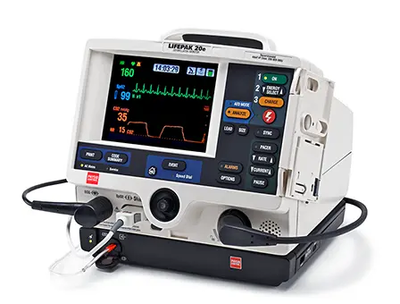

PhysioControl Lifepak 20e Defibrillator Monitor

Hospital-Grade Defibrillation and Monitoring for BLS and ALS Teams

The Physio-Control LIFEPAK® 20e Defibrillator/Monitor is a compact, crash-cart–ready
defibrillator designed to support both basic life support (BLS) and
advanced life support (ALS) responders. With its intuitive two-tier user interface,
the 20e can function as an easy-to-use AED for first responders and, with the door
opened, as a full-featured manual defibrillator/monitor for ALS teams. It delivers
up to 360 joules of biphasic energy for difficult-to-defibrillate patients and integrates
seamlessly into the Stryker Resuscitation Management System.

Designed specifically for in-hospital resuscitation, the LIFEPAK 20e supports
comprehensive monitoring with 3- or 5-lead ECG, optional SpO2,
noninvasive pacing, and waveform capnography to confirm airway placement
and assess CPR quality. A built-in CPR metronome helps maintain guideline-compliant
compression rates, while cprMAX™ Technology and the Shock Advisory System™ support
high-quality, protocol-driven resuscitation.

With the optional CodeManagement Module®, the LIFEPAK 20e can
wirelessly transmit patient and device data for post-event review in CODE-STAT™
software and for status monitoring through the LIFENET® system, helping hospitals improve readiness
and performance over time. Daily auto tests, on-screen battery status, and robust construction ensure
that the device is ready whenever a code is called.

This pre-owned unit offers the same trusted LIFEPAK technology and compatibility with
existing Physio-Control accessories at a significantly lower cost, making it an excellent
choice for hospitals seeking dependable, standardized defibrillation and monitoring across the facility.

Key Features:

Dual-mode operation: AED mode for BLS teams and manual mode for ALS providers.

Biphasic truncated exponential waveform with energy levels up to 360 J.
Integrated waveform capnography, ECG, SpO2, and pacing options.

CPR metronome and cprMAX™ setup options to support guideline-compliant CPR.
Optional CodeManagement Module® for wireless data transmission and device status monitoring.

Crash-cart–friendly footprint with ergonomic handle and stable design for transport.
Daily Auto Test mode, visual battery indicators, and service alerts to support readiness.

Physio-Control LIFEPAK 20e Defibrillator/Monitor Specifications:

Operating Modes
Manual mode (ALS): energy selection to 360 J, synchronized cardioversion, pacing.

AED mode (BLS): Shock Advisory System™ with shock/no-shock prompts and configurable AED display.


Waveform
Biphasic Truncated Exponential (BTE)


Energy Output
Manual: 2–360 J selectable; user-configurable sequences up to 360 J.

AED: protocol of three sequential shocks, 150–360 J (configurable).


Charge Time
< 5 s to 200 J; < 7 s to 360 J with fully charged battery


Defibrillation / Pacing
Manual and AED defibrillation using QUIK-COMBO® therapy electrodes or paddles;

External pacer: Demand or Non-Demand, 40–170 ppm, 0–200 mA (monophasic constant-current).


Monitoring Parameters
ECG via 3- or 5-lead cable, therapy electrodes, or paddles;

Optional Masimo SET® SpO2; optional Microstream® EtCO2 (with CodeManagement Module);

Heart rate 20–300 bpm digital display.


Display
4.53 in × 3.40 in (115.2 × 86.4 mm) color LCD, 320 × 240 resolution;

Minimum 3.7 s ECG display; 25 mm/s waveform sweep speed (ECG and SpO2).


Data Management
Internal memory stores CODE SUMMARY™ event records, alarms, and up to 45 minutes of continuous ECG;

Infrared (IrDA) data transfer; optional wireless transmission via LIFENET® network (with CodeManagement Module).


Power
AC: 100–120 V or 220–240 V, 50/60 Hz, < 120 VA (20e only) / < 150 VA (with CodeManagement Module).

Internal backup battery: provides up to ~210 min monitoring or ~140 shocks at 360 J before shutdown.


Dimensions (H × W × D)
LIFEPAK 20e: 21.3 × 26.2 × 26.2 cm (8.4 × 10.3 × 10.3 in).

With CodeManagement Module: approx. 25.4 × 26.2 × 29.7 cm (10.0 × 10.3 × 11.7 in).


Weight
Defibrillator/monitor only (with pacing, SpO2 and door): ~5.58 kg (12.3 lb);

Additional CodeManagement Module adds ~1.63 kg (3.6 lb).


Environmental
Operating temperature 5–40 °C (41–104 °F);

Relative humidity 5–95% non-condensing; drop-tested to 45.7 cm (18 in) onto steel; water resistance IPX1.


Typical Applications
In-hospital crash carts, emergency departments, cath labs, procedural areas, and step-down units;

Adult and pediatric defibrillation, cardioversion, pacing, and physiologic monitoring.
