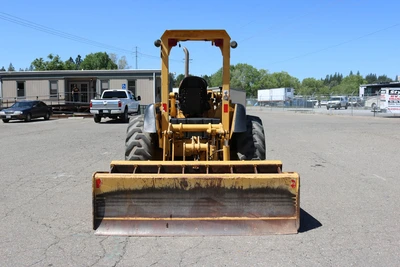

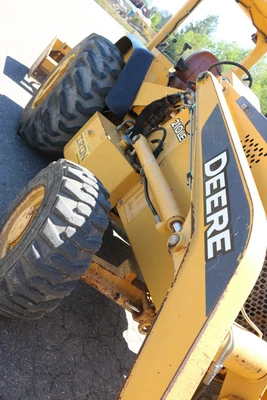

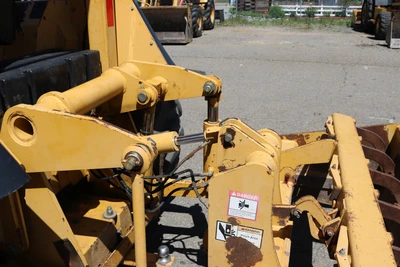

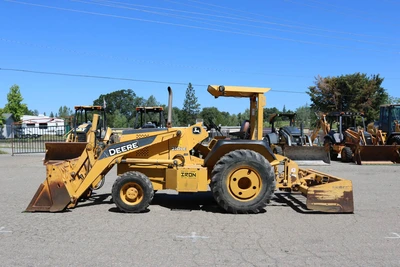

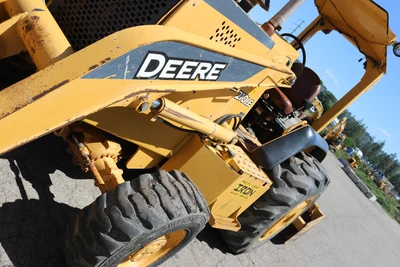

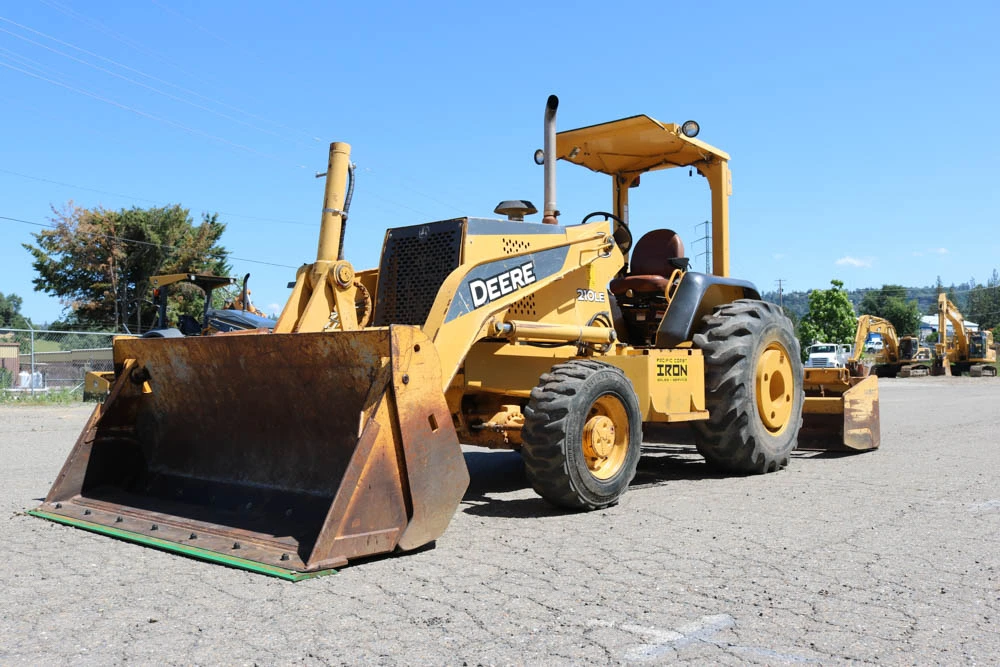

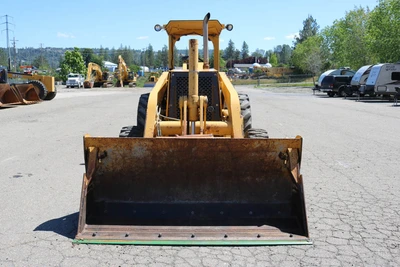

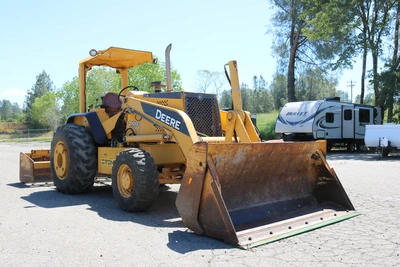

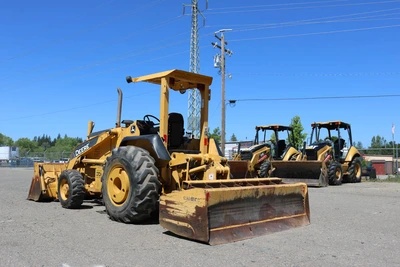

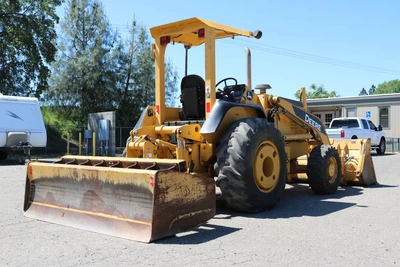

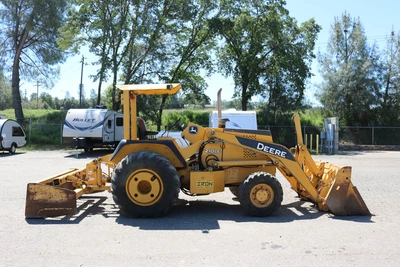

USED 2006 JOHN DEERE 210LE

2006 DEERE 210LE SKIP LOADER SPECS
Dimensions
A. LENGTH WITH BUCKET ON GROUND: 17.2 ft in 5230 mm
B. WIDTH OVER TIRES ft in mm
C. HEIGHT TO TOP OF CAB: 8.1 ft in 2479 mm
D. WHEELBASE: 6.9 ft in 2116 mm
E. GROUND CLEARANCE: 0.94 ft in 287 mm
F. HINGE PIN – MAX HEIGHT: 11.4 ft in 3470 mm
H. REACH AT MAX LIFT AND DUMP: 2.9 ft in 875 mm
Specification
Engine
MAKE John Deere
MODEL: 4045D
NET POWER: 73 hp 54.4 kw
GROSS POWER: 78 hp 58.2 kw
DISPLACEMENT: 276 cu in 4.5 L
MAX TORQUE: 220 lb ft 298.3 Nm
NUMBER OF CYLINDERS: 4
TORQUE RISE: 26 %
ASPIRATION Natural
Operational
OPERATING WEIGHT: 9129.3 lb 4141 kg
FUEL CAPACITY: 25.9 gal 98 L
HYDRAUILC SYSTEM FLUID CAPACITY: 14.4 gal 54.5 L
ENGINE OIL FLUID CAPACITY: 2.2 gal 8.5 L
COOLING SYSTEM FLUID CAPACITY: 4.2 gal 16 L
FRONT AXLE/DIFF FLUID CAPACITY gal L
REAR AXLE/DIFF FLUID CAPACITY: 3.4 gal 13 L
STATIC TIPPING WEIGHT lb kg
TURNING RADIUS ft in mm
OPERATING VOLTAGE V
ALTERNATOR SUPPLIED AMPERAGE amps
REAR AXLE OSCILLATION: 22 degrees
TIRE SIZE Front: 12-16.5 8PR NHS Rear 16.9-24 8PR R4
Transmission
TYPE synchronized
NUMBER OF FORWARD GEARS: 4
NUMBER OF REVERSE GEARS: 4
MAX SPEED – FORWARD: 20.5 mph 33 km/h
MAX SPEED – REVERSE: 20.5 mph 33 km/h
Hydraulic System
PUMP TYPE Gear
RELIEF VALVE PRESSURE: 2750 psi 18960.6 kPa
PUMP FLOW CAPACITY: 25 gal/min 94.6 L/min
RAISE TIME: 5.2 sec
DUMP TIME: 1.5 sec
LOWER TIME: 2.4 sec
Bucket
BREAKOUT FORCE: 7900 lb 35.1 kN
DUMP CLEARANCE AT MAX RAISE: 8.4 ft in 2560 mm
BUCKET WIDTH: 7.2 ft in 2180 mm
BUCKET CAPACITY – HEAPED: 1 yd3 0.76 m3
BUCKET CAPACITY – STRUCK yd3 m3
Dimensions
LENGTH WITH BUCKET ON GROUND: 17.2 ft in 5230 mm
WIDTH OVER TIRES ft in mm
HEIGHT TO TOP OF CAB: 8.1 ft in 2479 mm
GROUND CLEARANCE: 0.94 ft in 287 mm
WHEELBASE: 6.9 ft in 2116 mm
HINGE PIN – MAX HEIGHT: 11.4 ft in 3470 mm
REACH AT MAX LIFT AND DUMP: 2.9 ft in 875 mm
