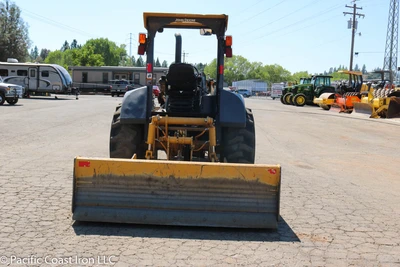

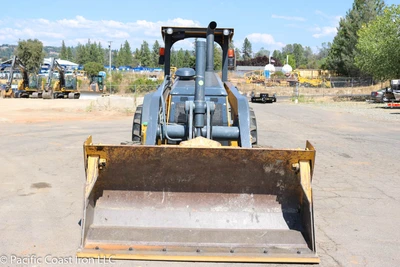

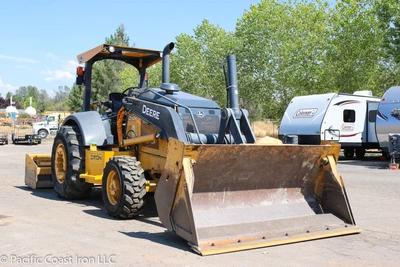

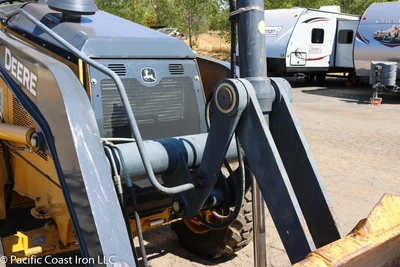

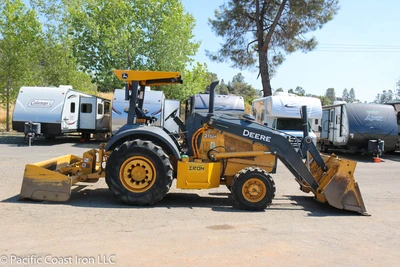

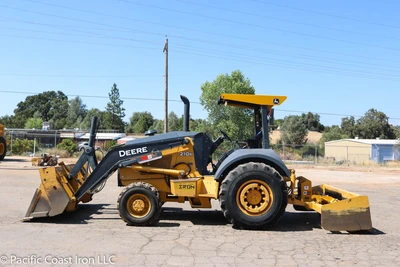

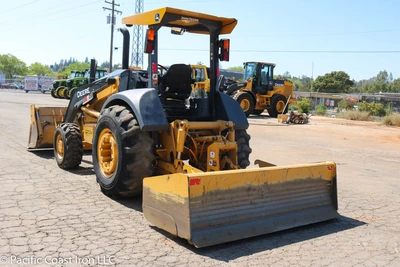

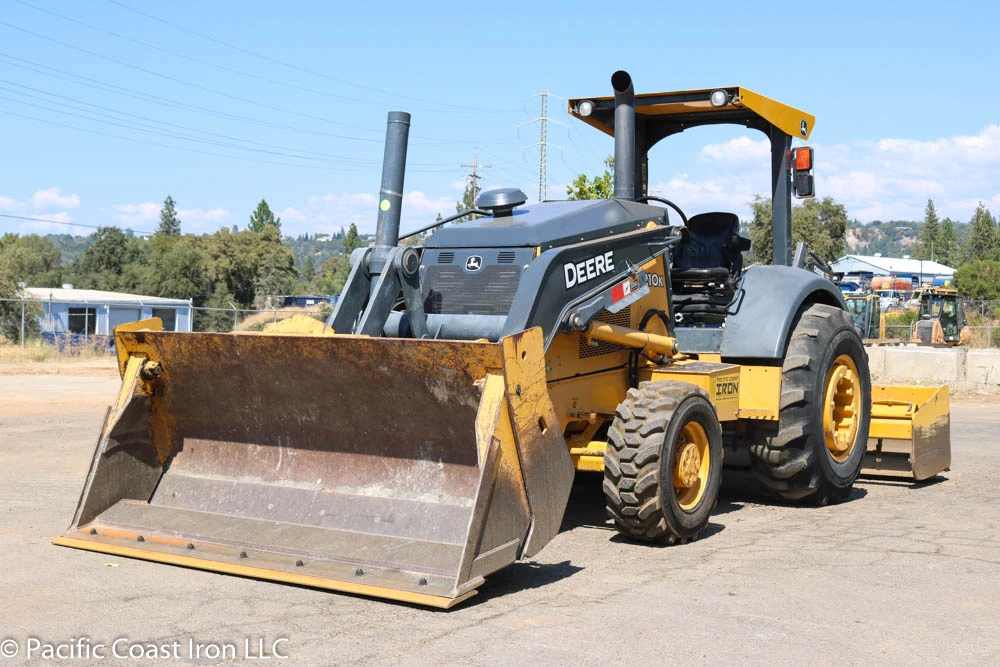

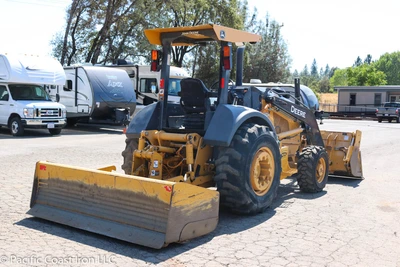

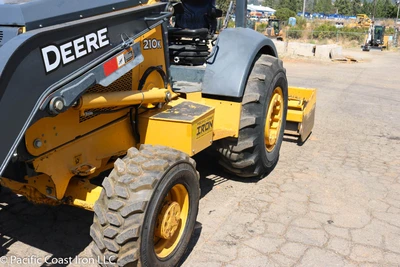

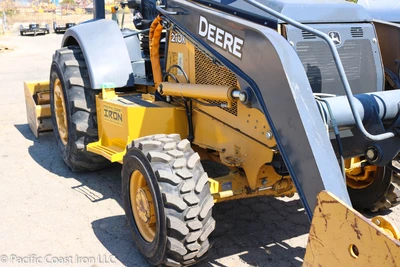

USED 2013 JOHN DEERE 210K

Manufacturer: John Deere
Model: 210K Interim Tier 4
DRIVELINE

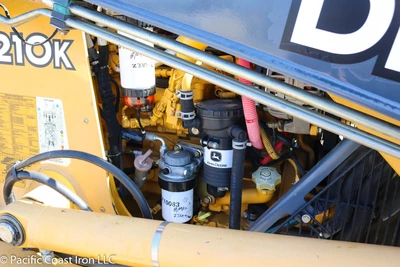

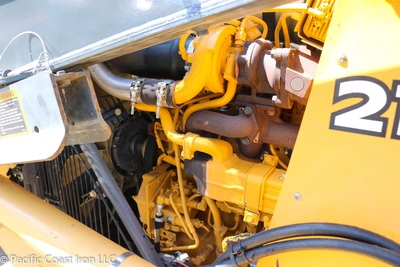

Engine manufacturer: John Deere
Engine model: PowerTech E 4045HT073
Emission rating: Interim Tier 4
Displacement, ltr (Inches³): 4.5 (276)
Rated speed, rpm: 2000
Net output, kW (hp): 66 (88)
Transmission type: Power Shift
Number of speeds – forward: 4
Number of speeds – reverse: 2
Front axle type: Mechanical FWD
Service type: Wet Multi Disc
Service actuation: Hydraulic w/Power Assist
DIMENSIONS
Overall length, mm (ft/in): 5230 (17 ft 2 in)
Minimum transport height, mm (ft/in): 2540 (8 ft 4 in)
Overall width, mm (ft/in): 2130 (7 ft )
Std shovel width, mm (inches): 2184 (86)
Dump Clearance @ 45 deg, mm (ft/in): 2670 (8 ft 9 in)
Dump Reach, mm (inches): 914 (36)
Bucket Hinge Pin – Max Height, mm (ft/in): 3340 (10 ft 11 in)
Coupler: Standard
CAPACITIES
Fuel tank capacity, ltr (gallons (US)): 102.2 (27)
Hydraulic tank capacity, ltr (gallons (US)): 37 (9.8)
Shovel cap SAE heaped, m³ (yd³): 0.77 (1)
Alternator capacity, Amp: 120
PERFORMANCE
Max. Forward Speed, kph (mph): 31.2 (19.4)
Max. Reverse Speed, kph (mph): 12.9 (8)
Lift Capacity to Full Height, kg (lbs): 2548 (5612)
Oscillation angle, ± °: 22
Power Take Off: Optional
PTO rated speed, rpm: 540
Breakout force std shovel, kN (lbf): 44.3 (9953)
System voltage, V: 12
Pump type: Gear
Pump flow, lt/min (gallons (US) / min): 96 (25.3)
System pressure, bar (PSI): 189.61 (2750)
WEIGHTS
Operating weight, kg (lbs): 4959 (10936)
