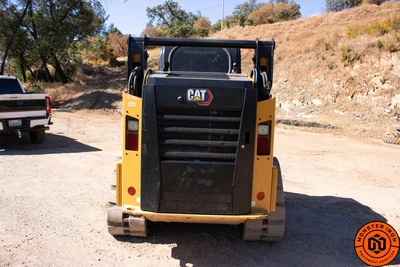

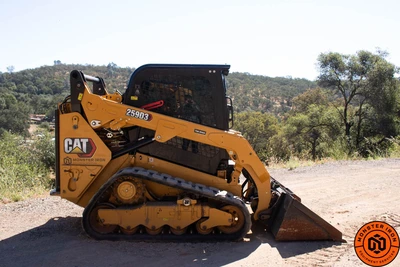

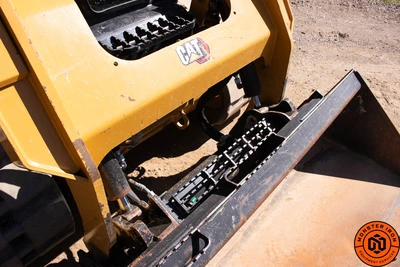

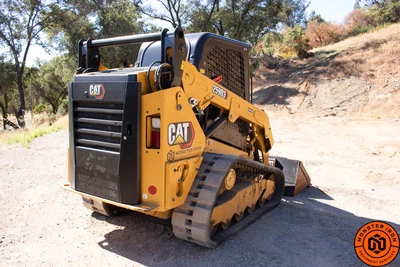

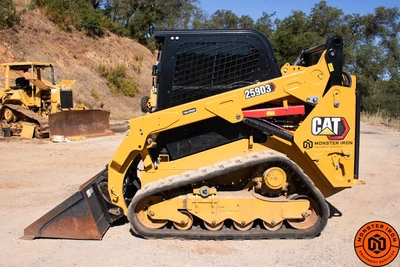

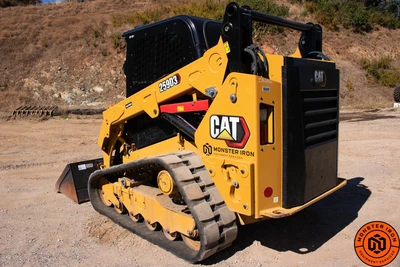

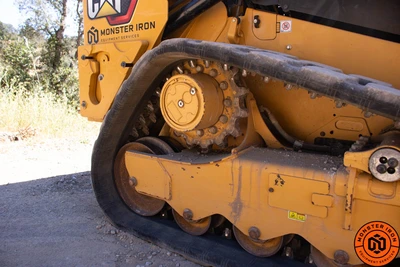

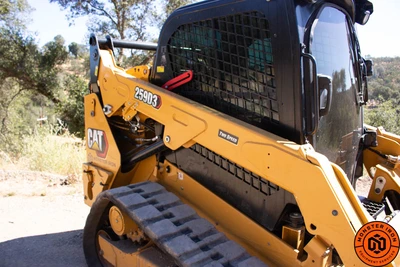

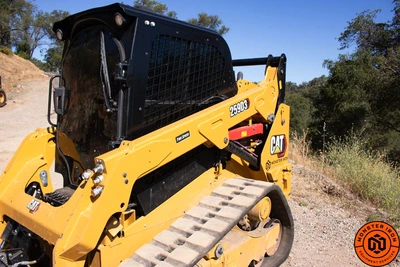

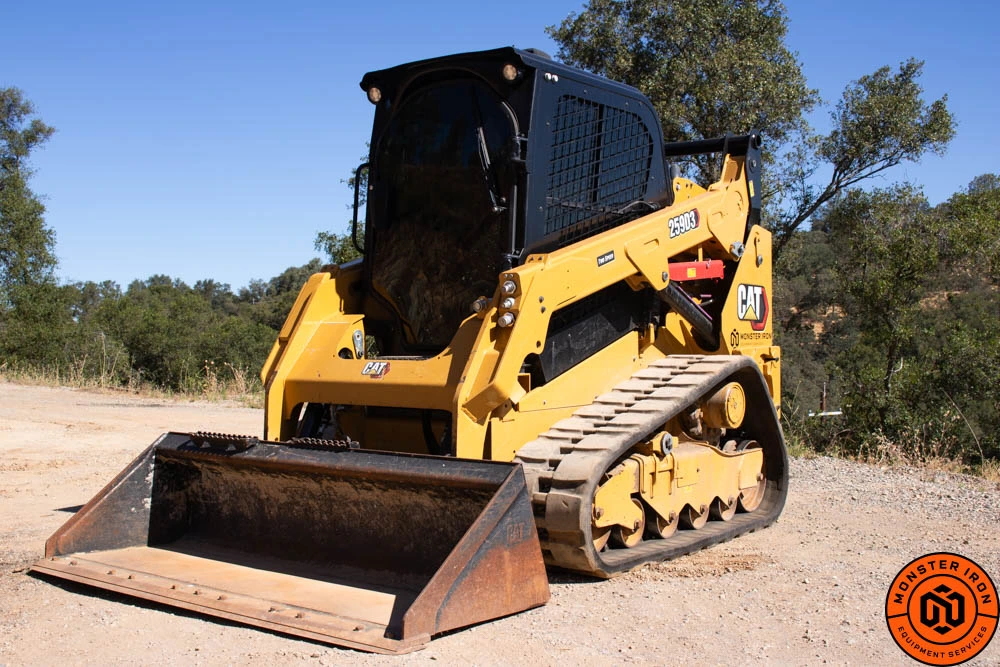

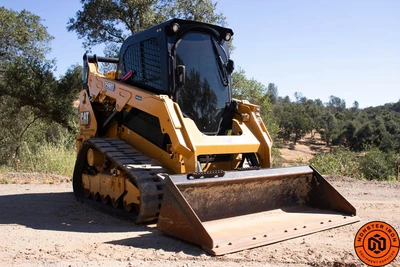

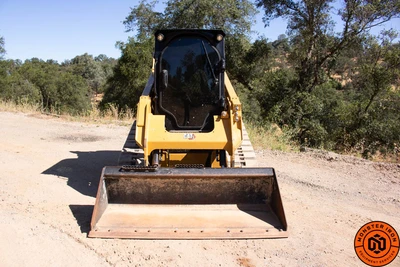

USED 2023 CATERPILLAR 259D3

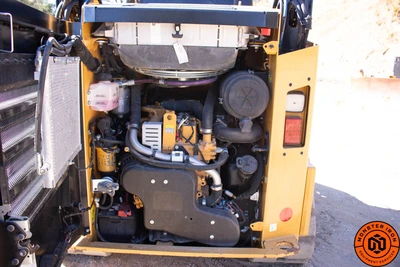

[Engine]
Engine Model: Cat C3.3B DIT turbo
Gross Power – SAE J1995: 55.4 kW / 74.3 hp
Net Power – SAE 1349: 53.8 kW / 72.1 hp
Net Power – ISO 9249: 54.3 kW / 72.8 hp
Peak Torque at 1,600 rpm – SAE J1995: 265 N·m / 195 lb-ft
Displacement: 3.3 L / 203 in³
Stroke: 120 mm / 4.7 in
Bore: 94 mm / 3.7 in
[Power Train]
Travel Speed – One Speed: 9.5 km/h / 5.9 mph
Travel Speed – Two Speed: 13.7 km/h / 8.5 mph
Transmission: Hydrostatic, two speed travel
[Hydraulic System]
Standard Flow – Loader Hydraulic Pressure: 23,000 kPa / 3,335 psi
Standard Flow – Loader Hydraulic Flow: 76 L/min / 20 gal/min
Standard Flow – Hydraulic Power: 29 kW / 39 hp
High Flow – Loader Hydraulic Pressure: 23,000 kPa / 3,335 psi
High Flow – Loader Hydraulic Flow: 112 L/min / 30 gal/min
High Flow – Hydraulic Power: 43 kW / 58 hp
[Weights]
Operating Weight: 4,076 kg / 8,987 lb
[Operating Specifications]
Rated Operating Capacity – 35% Tipping Load: 915 kg / 2,010 lb
Rated Operating Capacity – 50% Tipping Load: 1,305 kg / 2,870 lb
Rated Operating Capacity with Optional Counterweight: 1,390 kg / 3,060 lb
Tipping Load: 2,610 kg / 5,745 lb
Breakout Force – Tilt Cylinder: 2,252 kg / 4,965 lb
Ground Contact Area – 320 mm / 12.6 in Track: 0.96 m² / 1,483 in²
Ground Contact Area – 400 mm / 15.7 in Track: 1.19 m² / 1,848 in²
Ground Pressure – 320 mm / 12.6 in Track: 41.8 kPa / 6.1 psi
Ground Pressure – 400 mm / 15.7 in Track: 34.0 kPa / 4.9 psi
[Dimensions]
Length of Track on Ground: 1,499 mm / 59.0 in
Overall Length of Track: 1,999 mm / 78.7 in
Length without Bucket: 2,767 mm / 108.9 in
Length with Bucket on Ground: 3,486 mm / 137.3 in
Height to Top of Cab: 2,111 mm / 83.1 in
Maximum Overall Height: 3,915 mm / 154.1 in
Bucket Pin Height at Maximum Lift: 3,075 mm / 121.0 in
Bucket Pin Height at Carry Position: 198 mm / 7.8 in
Reach at Maximum Lift and Dump: 608 mm / 23.9 in
Clearance at Maximum Lift and Dump: 2,283 mm / 89.9 in
Ground Clearance: 226 mm / 8.9 in
Departure Angle: 35°
Maximum Dump Angle: 52°
Vehicle Width – 320 mm / 12.6 in Tracks: 1,676 mm / 66.0 in
Vehicle Width – 400 mm / 15.7 in Tracks: 1,755 mm / 69.0 in
Turning Radius from Center – Machine Rear: 1,561 mm / 61.5 in
Turning Radius from Center – Coupler: 1,392 mm / 54.8 in
Turning Radius from Center – Bucket: 2,184 mm / 86.0 in
Maximum Reach with Arms Parallel to Ground: 1,305 mm / 51.4 in
Rack Back Angle at Maximum Height: 87°
Bucket Pin Reach at Maximum Lift: 238 mm / 9.4 in

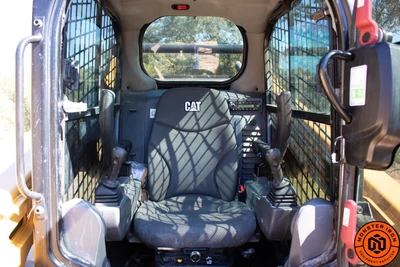

[Cab, Noise and A/C]
ROPS: ISO 3471:2008
FOPS: ISO 3449:2005 Level I
Inside Cab Noise Level: 83 dB(A)
Outside Cab Noise Level: 103 dB(A)
A/C Refrigerant: R134a
[Service Refill Capacities]
Cooling System: 14 L / 3.7 gal
Engine Crankcase: 11 L / 3.0 gal
Fuel Tank: 94 L / 24.8 gal
Hydraulic System: 50 L / 13.2 gal
Hydraulic Tank: 39 L / 10.3 gal
[Mandatory Equipment / Configurations]
Hydraulics: Standard Flow or High Flow
Quick Coupler: Mechanical or Powered
Seat Belt: High visibility 50 mm / 2 in or 75 mm / 3 in

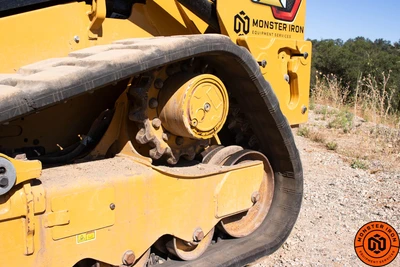

Tracks: Steel-embedded rubber tracks
Idler Configuration: Dual flange front / single flange rear or triple flange front/rear
[Performance Packages]
H1: Standard Flow Hydraulics
H2: Standard Flow Hydraulics
H3: High Flow Hydraulics
[Optional Equipment]
Hand-Foot Style Controls: Available
External Counterweights: Available
Rotating Beacon: Available
Engine Block Heater: 120V
Cold Operation Hydraulic Oil: Available
Custom Paint: Available
Product Link PL641: Cellular
Speed Sensitive Ride Control: Available
Bluetooth Radio: AM/FM/Weather Band receiver with USB, auxiliary input and microphone
