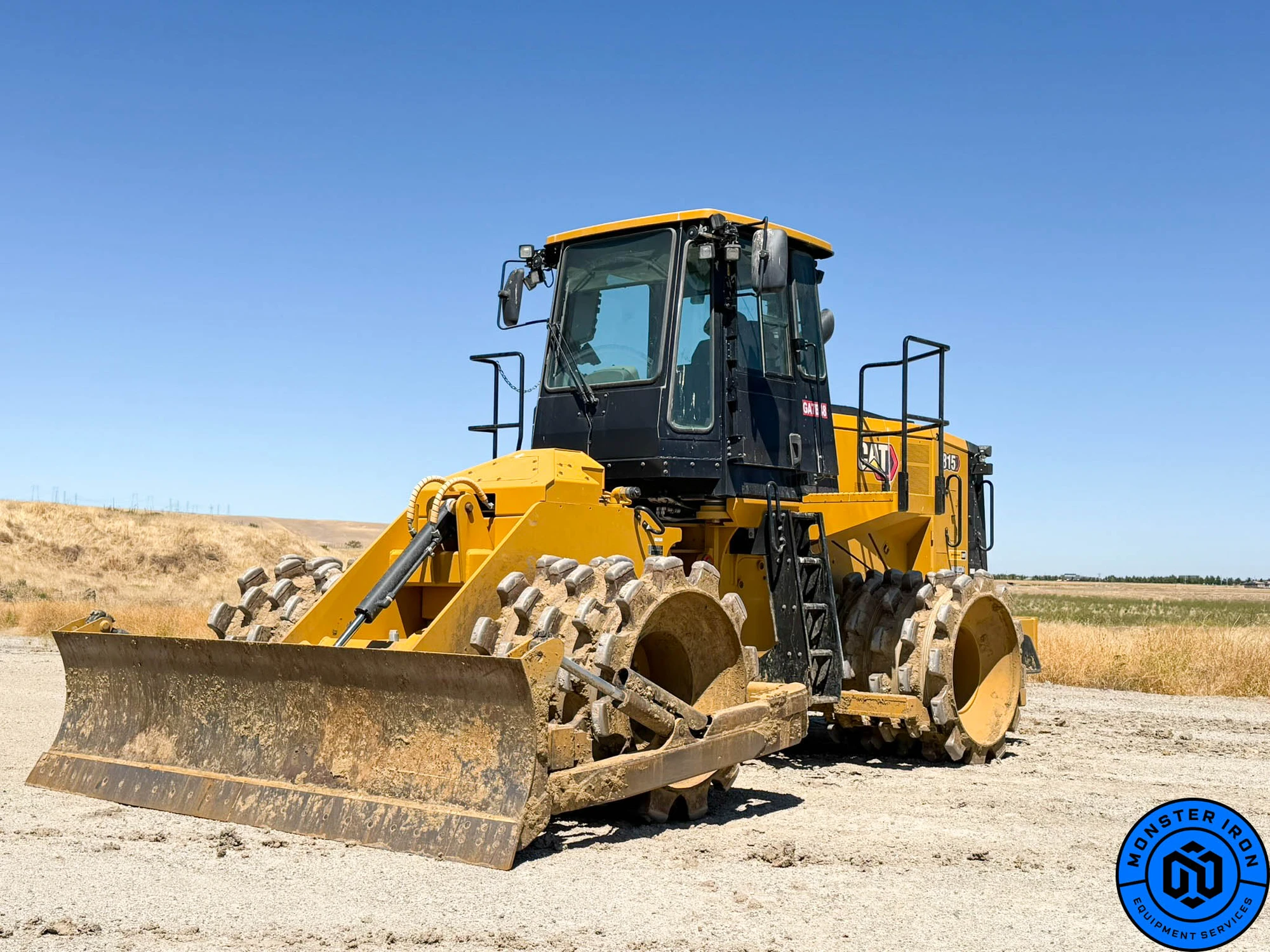

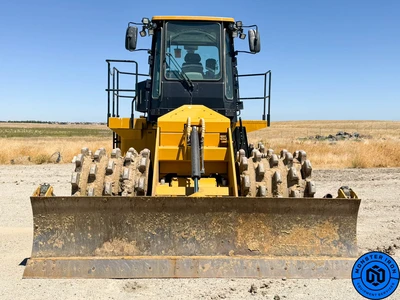

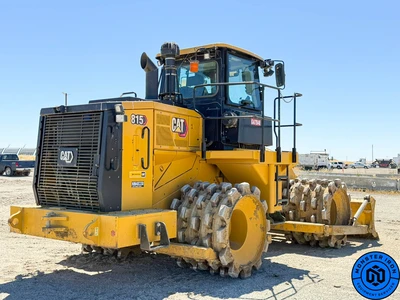

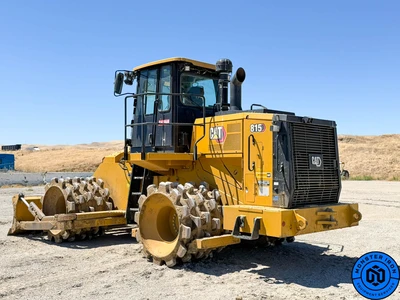

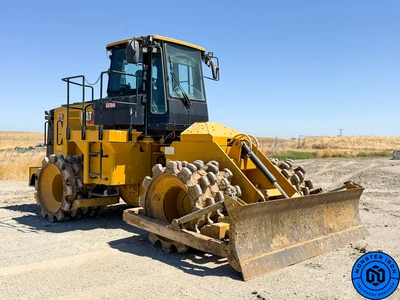

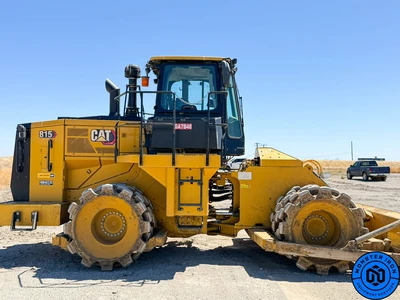

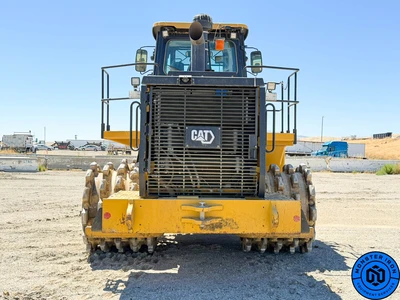

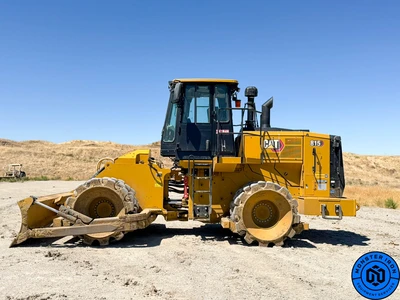

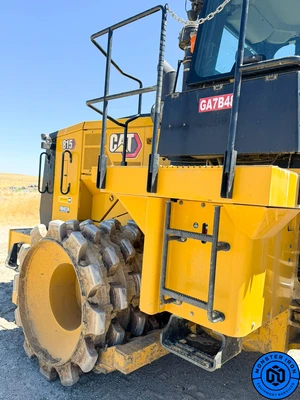

USED 2021 CATERPILLAR 815K

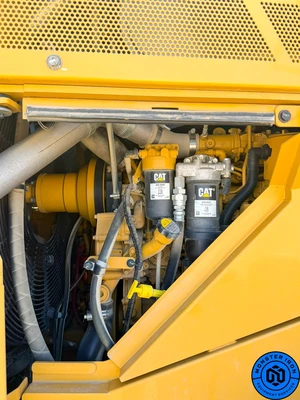

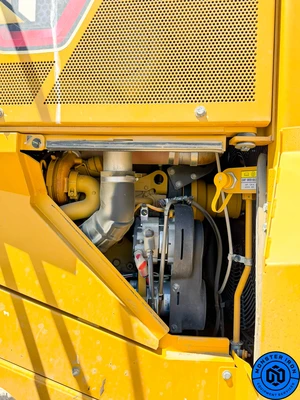

[Engine]
Engine Model: Cat C7.1 ACERT, configured for two emissions options
[Tier 4 Final / Stage IV]
Rated Power – SAE J1349: 185 kW
Rated Power – Net ISO 9249: 185 kW
Gross Power – SAE J1995: 212 kW
Gross Power – ISO 14396: 204 kW
Maximum Net Torque at 1,400 rpm: 1,219 N·m
Torque Rise: 52%
[Tier 3 / Stage IIIA Equivalent]
Rated Power – SAE J1349: 186 kW
Rated Power – Net ISO 9249: 186 kW
Gross Power – SAE J1995: 213 kW
Gross Power – ISO 14396: 205 kW
Maximum Net Torque at 1,400 rpm: 1,016 N·m
Torque Rise: 26%
[Both Engine Configurations]
Maximum Altitude Without Derating: 3,000 m
Bore: 105 mm
Stroke: 135 mm
Displacement: 7.01 L
[Transmission]
First: 6.7 km/h / 4.2 mph
Second: 12 km/h / 7.5 mph
Third: 21.2 km/h / 13.2 mph

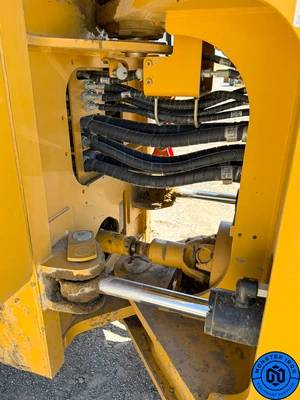

[Hydraulic and Steering System]
Main Relief Pressure: 22,000 kPa

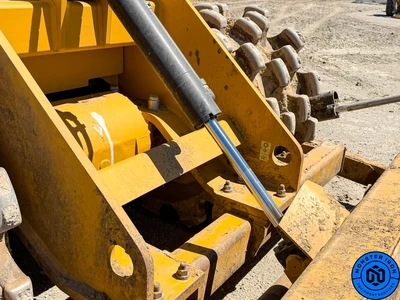

Lift Cylinder, Double-Acting – Bore and Stroke: 101.6 × 627 mm
Tilt Cylinder, Double-Acting – Bore and Stroke: 101.6 × 167 mm
Steering System Circuit: Closed-center load sensing
Vehicle Articulation Angle: 84°
[Axles]
Front Axle: Planetary – Fixed
Rear Axle: Planetary – Oscillating
Rear Oscillation Angle: ±10°

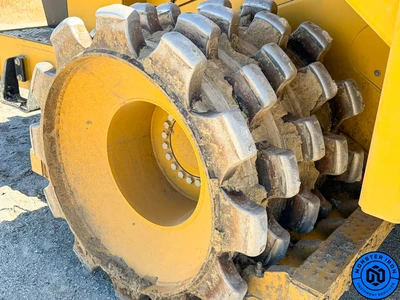

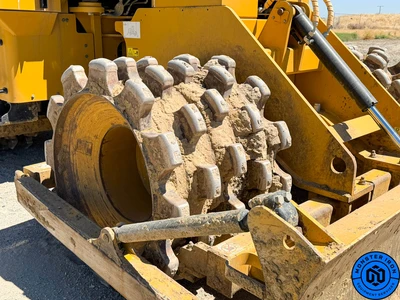

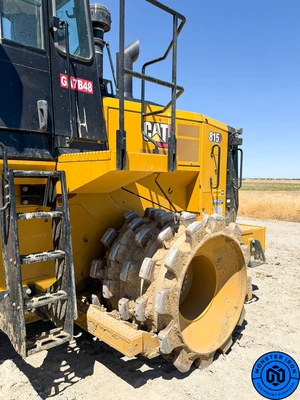

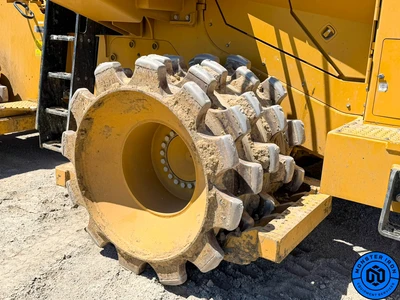

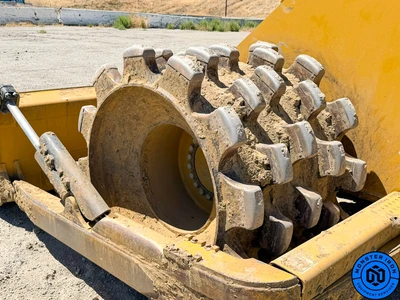

[Wheels and Compactor Tips]
Outside Diameter: 1,412 mm
Drum Diameter: 1,029 mm
Drum Width: 991 mm
[Service Refill Capacities]
Cooling System – Tier 4 Final / Stage IV: 81 L
Cooling System – Tier 3 / Stage IIIA Equivalent: 73 L
Engine Crankcase: 20 L
Transmission: 56 L
Fuel Tank: 500 L
Diesel Exhaust Fluid Tank – Tier 4 Final / Stage IV Only: 16 L
Differential and Final Drives – Front: 65 L
Differential and Final Drives – Rear: 65 L
Hydraulic Tank Only: 75 L
[Maximum Operating Weight]
Tier 4 Final / Stage IV: 22,386 kg
Tier 3 / Stage IIIA Equivalent: 22,108 kg
[Dimensions]
Height to Top of Beacon: 3,946 mm
Height to Top of Exhaust Pipe: 3,344 mm
Height to Top of Hood: 2,566 mm
Ground Clearance to Bumper: 665 mm
Center Line of Rear Axle to Bumper: 1,990 mm
Hitch to Center Line of Front Axle: 1,675 mm
Wheelbase: 3,350 mm
Length with Blade on Ground: 7,157 mm
Ground Clearance: 375 mm
Width Over Wheels: 3,243 mm
Height to Top of Cab Roof: 3,650 mm
Turning Radius – Inside of Push Arms: 2,520 mm
Width Over End Bits: 3,761 mm
Maximum Depth of Cut: 222 mm
Maximum Lift Above Ground: 802 mm
