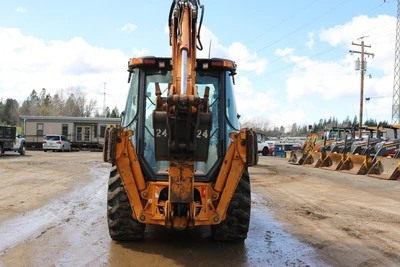

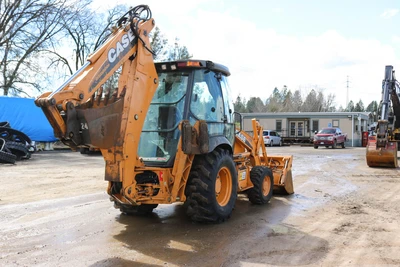

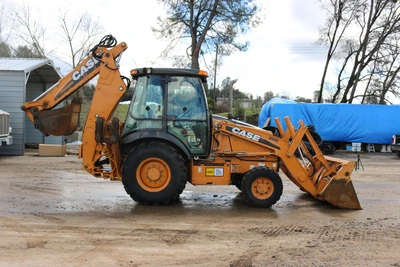

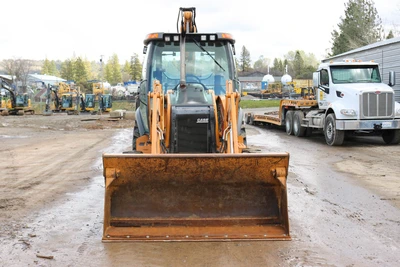

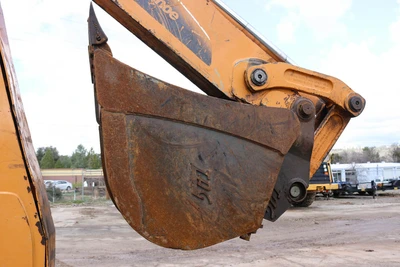

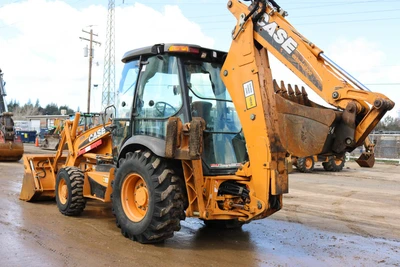

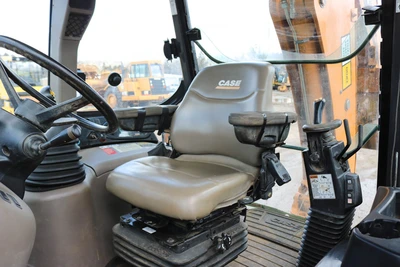

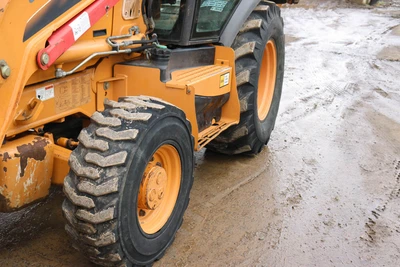

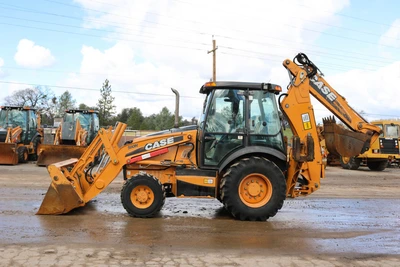

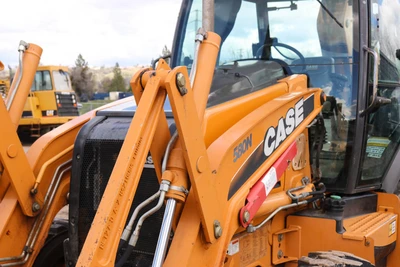

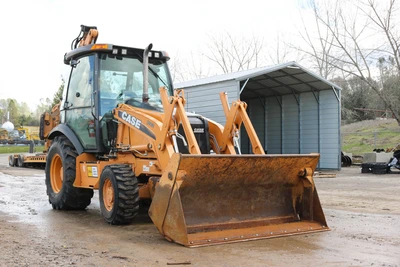

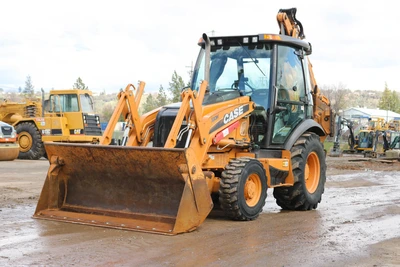

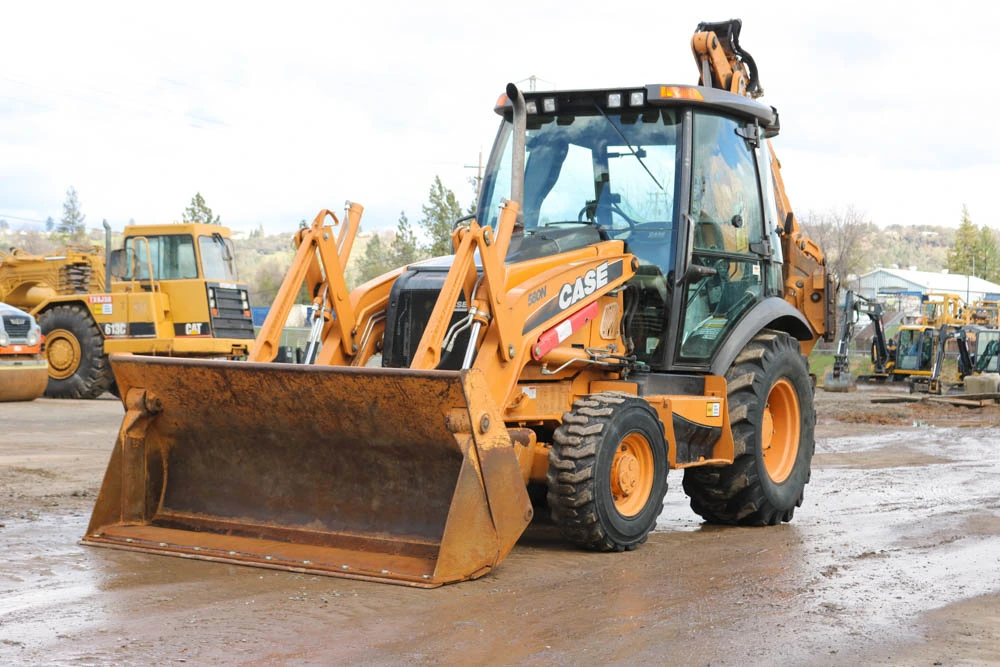

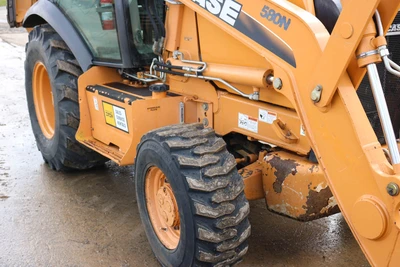

USED 2012 CASE 580N

[Backhoe]
J. Load Height – Std: 11.8 ft in
K. Reach From Swivel – Std: 18.3 ft in
L. Dig Depth – Std: 14.8 ft in
M. Reach at Load Height – Std: 6.7 ft in
[Dimensions]
A. Transport Length: 23.4 ft in
B. Transport Width: 6.8 ft in
C. Transport Height: 10.8 ft in
D. Wheelbase: 7 ft in
E. Ground Clearance: 1.2 ft in
F. Height to Top of Cab: 8.9 ft in
[Loader]
G. Clearance at Max Dump Height: 8.8 ft in
H. Reach at Max Dump Height: 2.6 ft in
I. Dig Depth: 6.1 in

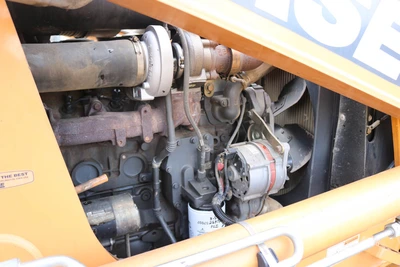

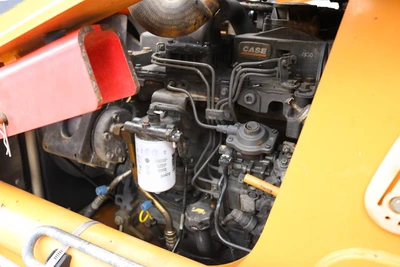

[Engine]
Make: Case
Model: 445T/M3
Net Power: 79 hp
Gross Power: 85 hp
Displacement: 274 cu in
Power Measured @: 2200 rpm
Torque Measured @: 1400 rpm
Number of Cylinders: 4
Net Max Torque: 270 lb ft
Aspiration: Turbocharged
[Operational]
Operating Weight 2wd: 14564 lb
Operating Weight 4wd: 15862 lb
Max Weight: 17454 lb
Fuel Capacity: 42 gal
Hydraulic System Fluid Capacity: 28 gal
Oil System Fluid Capacity: 3.6 gal
Cooling System Fluid Capacity: 4.4 gal
Transmission Fluid Capacity: 5 gal
Front Axle Fluid Capacity: 2 gal
Rear Axle Fluid Capacity: 3.6 gal
Turning Radius: 11.3 ft in
Tire Size Front – 2wd / 4wd: 11L x 16 / 12x 16.5
Rear Tires Size 2wd/4wd: 19.5L x 24
Operating Voltage: 12 V
Alternator Supplied Amperage: 120 amps
[Transmission]
Type: Power shuttle syncromesh
Number of Forward Gears: 4
Number of Reverse Gears: 4
Max Speed – Forward: 24.3 mph
Max Speed Reverse: 29.1 mph
[Backhoe]
Dig Depth – Std: 14.8 ft in
Dig Depth – Ext: 18.2 ft in
Reach From Swivel – Std: 18.3 ft in
Reach From Swivel – Ext: 21.7 ft in
Load Height – Std: 11.8 ft in
Load Height – Ext: 14.1 ft in
Reach at Load Height – Std: 6.7 ft in
Reach at Load Height – Ext: 9.3 ft in
[Loader]
Bucket Capacity: 0.88 yd3
Bucket Width: 82 in
Clearance at Max Dump Height: 8.8 ft in
Reach at Max Dump Height: 2.6 ft in
Dig Depth: 6.1 in
[Hydraulic]
Pump Type: Gear
Pump Flow Capacity: 28.5 gal/min
Relief Valve Pressure: 3350 psi
[Dimensions]
Transport Length: 23.4 ft in
Transport Width: 6.8 ft in
Transport Height: 10.8 ft in
Height to Top of Cab: 8.9 ft in
Wheelbase: 7 ft in
Ground Clearance: 1.2 ft in
