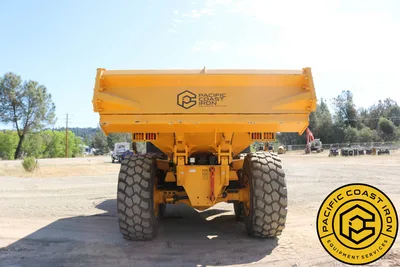

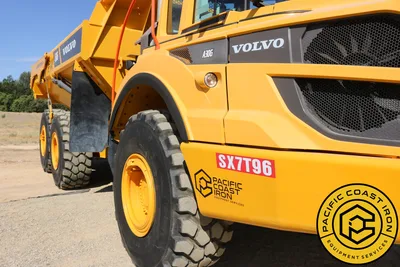

USED 2017 VOLVO A30G
Overview
2017 VOLVO A30G HAUL TRUCK FOR SALE
UNIT HAS BEEN PROFESSIONALLY MAINTAINED SINCE NEW AND IS READY TO GO TO WORK.
FEATURES:

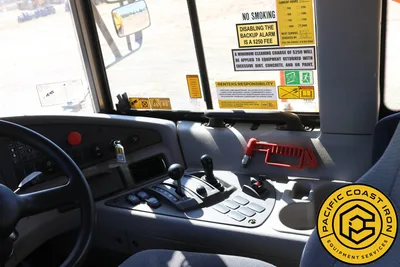

EROPS HEAT/AC
RETARDER
DIFF-LOCK
TIER 4 FINAL COMPLIANT
TAILGATE
BED LINER

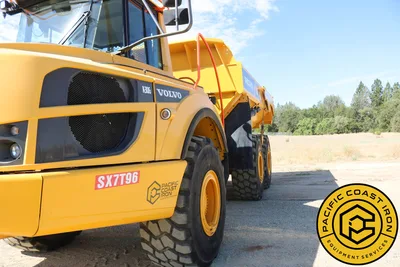

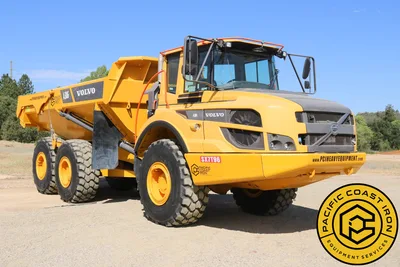

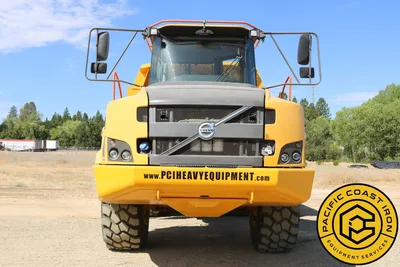

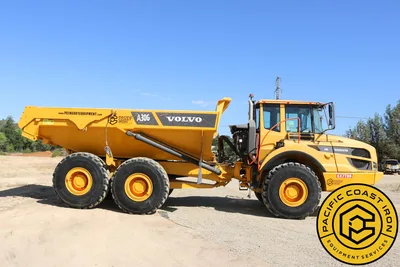

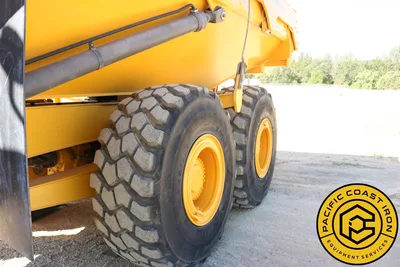

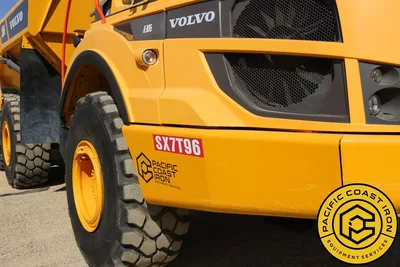

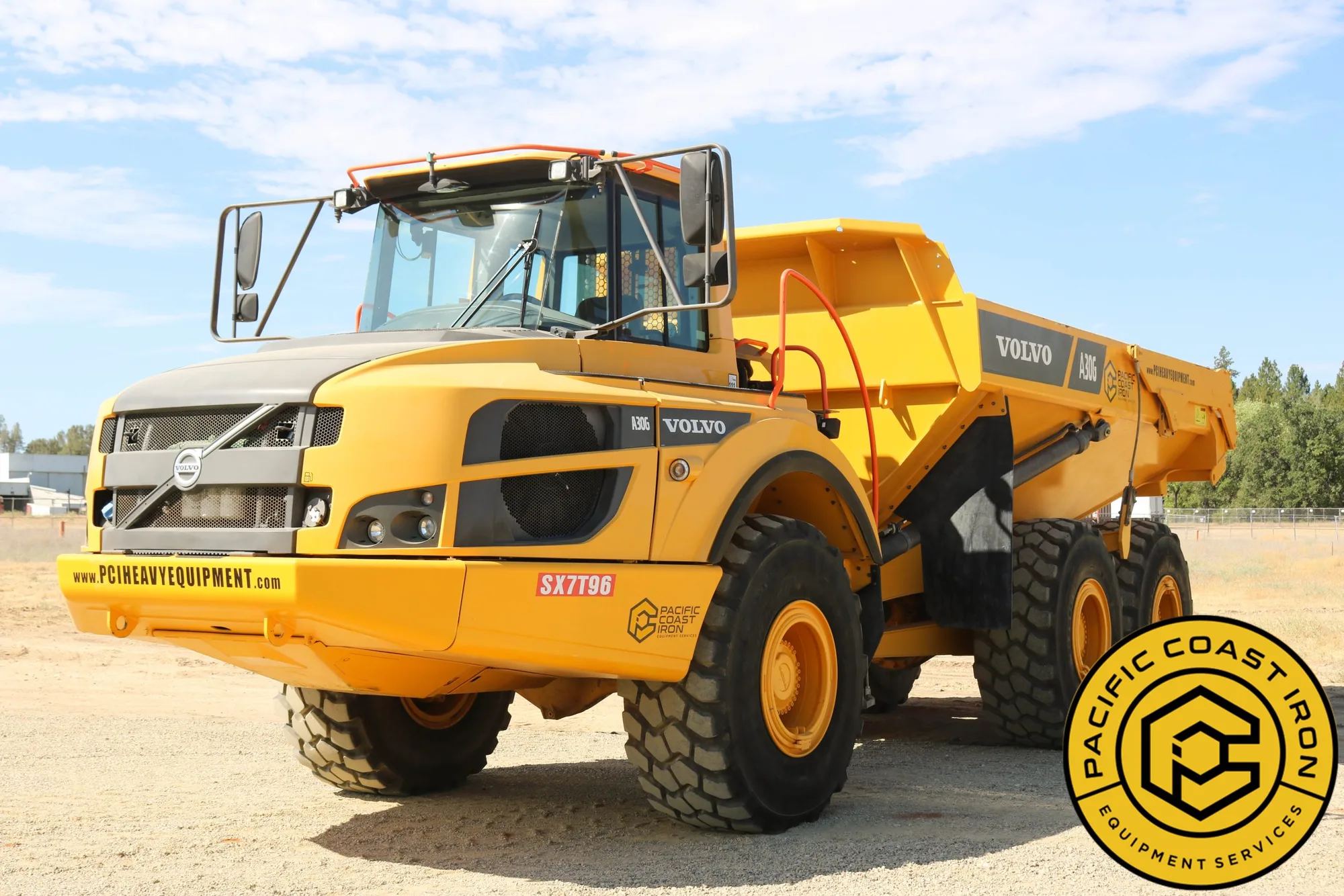

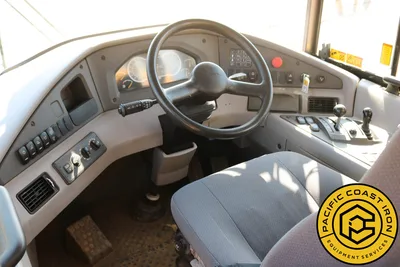

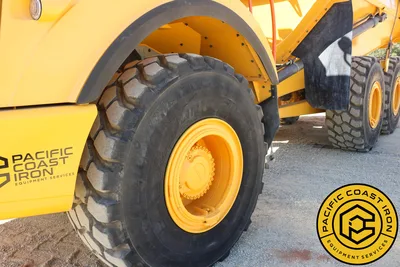

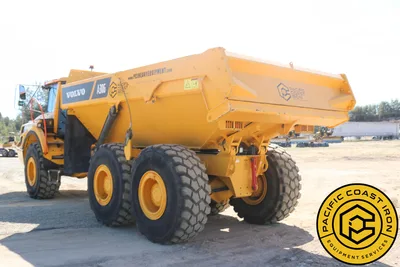

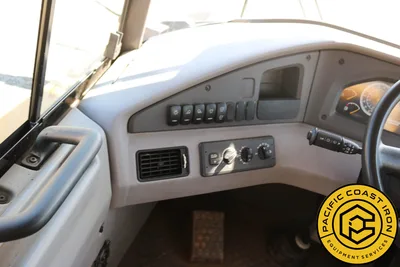

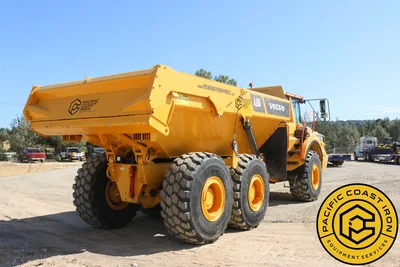

2017 VOLVO A30G ARTICULATING HAUL TRUCK
2017 VOLVO A30G HAUL TRUCK FOR SALE. UNIT HAS APPROX 3000HRS. FULL VOLVO POWERTRAIN AND HYDRAULIC WARRANTY UNTIL NOVEMBER 2023. UNIT IS EQUIPPED WITH DIFF-LOCK, TIER 4 FINAL ENGINE, HEATED SEAT, MICHELIN RADIAL TIRES, REAR CAMERA, RETARDER, TRACTION CONTROL, AND TAILGATE
Specs
Dimensions
A Overall Length: 33.78ft in
B Overall Width: 17.67ft in
C Overall Height: 11.05ft in
D Wheelbase: 9.07ft in
E Ground Clearance: 1.72ft in
F Dump Height: 21.53ft in
G Dump Ground Clearance: 2.26ft in
Dump
H Dump Angle: 70degrees
Lower Time: 10sec
Rated Payload: 31lb
Capacity – Struck: 18.19yd3
Raise Time: 22sec
Capacity – Heaped: 23.29yd3
Electrical System
Battery Capacity: 2×170
Alternator: 3.396/120
Voltage: 24V
Starter Motor: 9
Battery: 2×12
Body
Plate Thickness-Front: 0.3in
Plate Thickness-Sides: 0.4in
Plate Thickness-Bottom: 0.6in
Plate Thickness-Chute: 0.6in
Engine
Max Engine Speed: 2000
Engine Make: Volvo
Engine Model: D11L
Gross Power: 355hp
Net Power: 354hp
Max Torque: 1300lb ft
Torque Measured @: 1200rpm
Displacement: 659cu in
Drive Train
Torque Converter: 2.37:1
Dropbox: IL1 ATC
Axles: AHW64
Transmission: PT 2116
Capacities
Fuel Tank: 100.4gal
Hydraulic Tank: 36.2gal
Cooling System: 12.7gal
Def Tank: 10.4gal
Transmission: 10.9gal
Crankcase: 9.3gal
Brake Cooling System: 9.3gal
Dropbox: 2.4gal
Operational
Fuel Capacity: 100gal

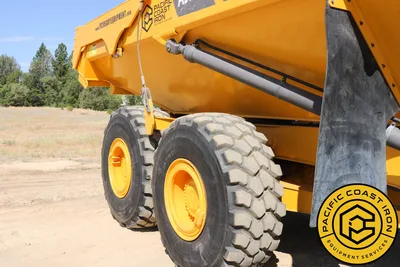

Tire Size: 23.5R25
Transmission
Transmission Type: Auto
Number Of Forward Gears: 6
Number Of Reverse Gears: 2
Max Speed: 32.8mph
Weights
Total Empty: 51367.8lb
Total Loaded: 115301.8lb
Hydraulic System
Maximum System Pressure: 3626psi
