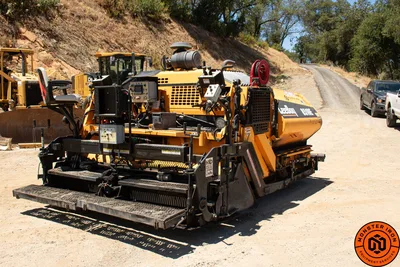

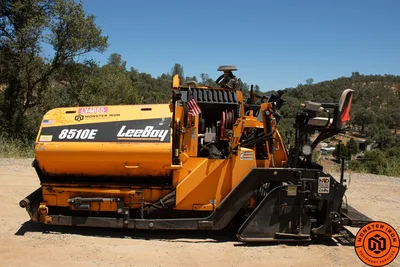

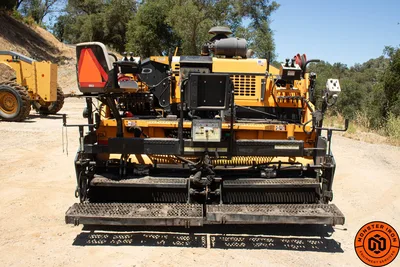

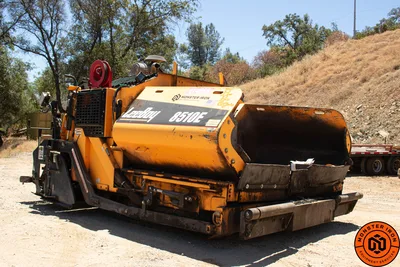

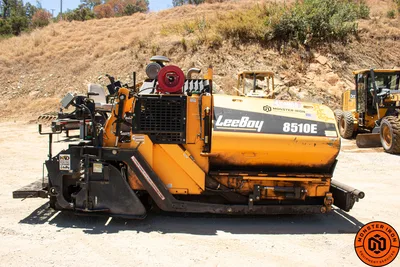

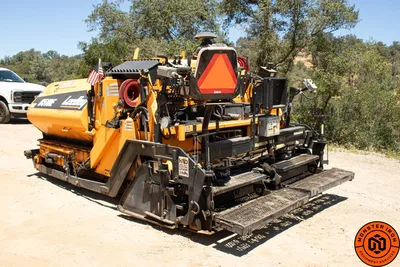

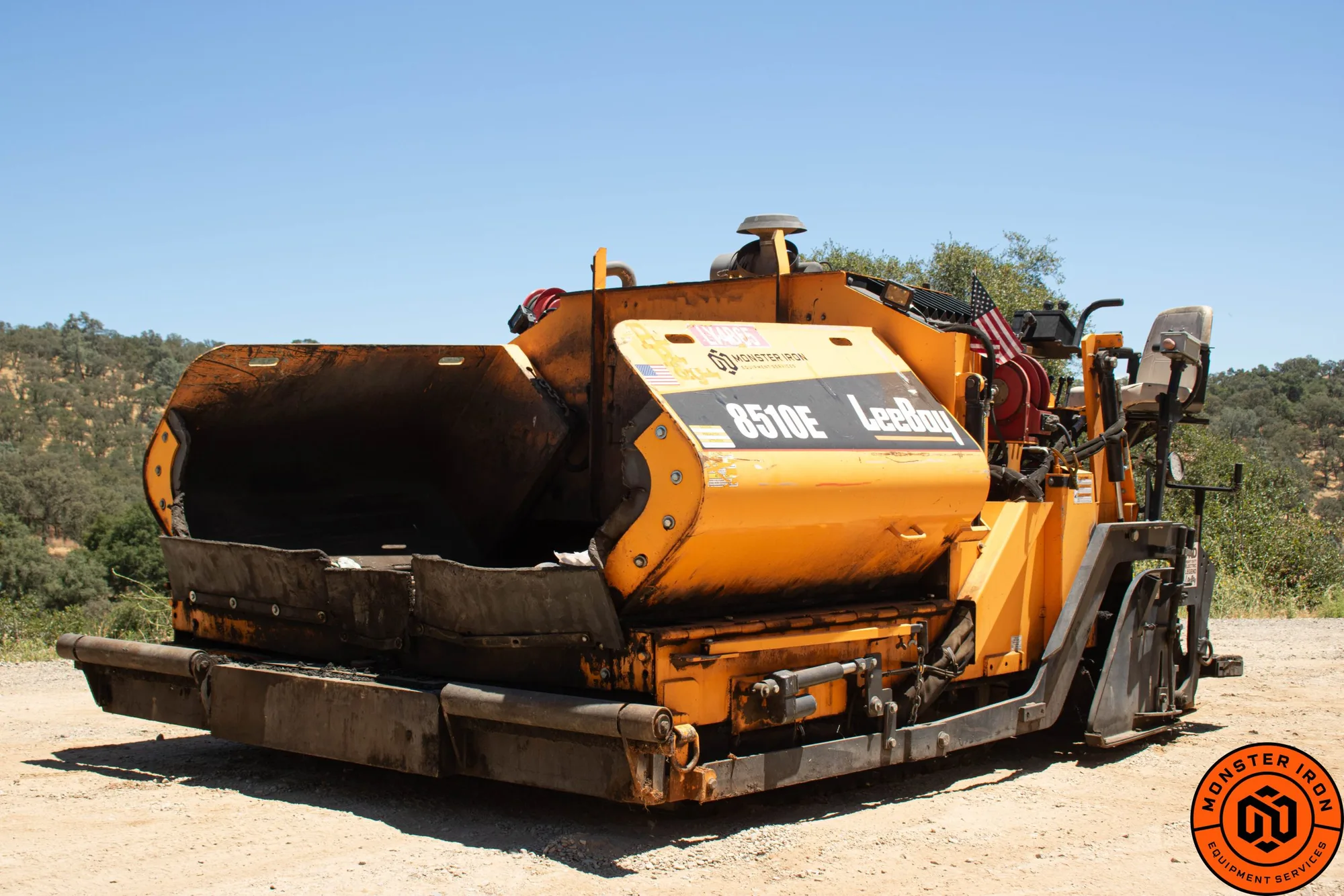

USED 2019 LEEBOY 8510E

[Dimensions and Weight]
Length: 13 ft 5 in
Transport Width: 8 ft 6 in
Width with Hopper Wings Down: 10 ft
Height: 8 ft
Total Weight with Screed: 18,300 lb

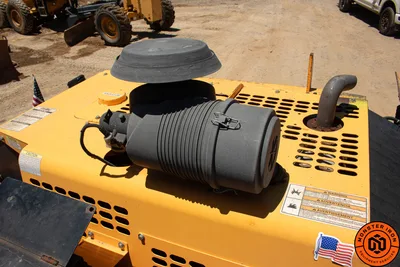

[Engine]
Engine: Kubota turbocharged diesel
Rated Power: 74 hp / 55.4 kW
[Capacities]
Fuel Tank: 19 gal
Hydraulic Reservoir: 19 gal
Washdown Tank: 7 gal

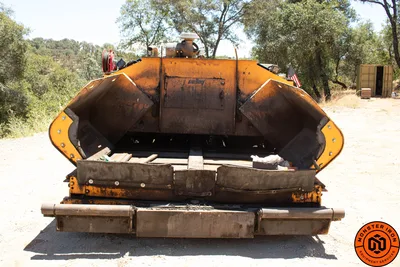

Hopper Capacity: 7.5 ton
Hopper Height: 23 in

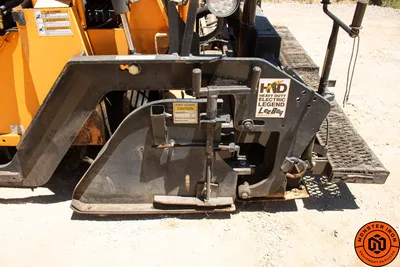

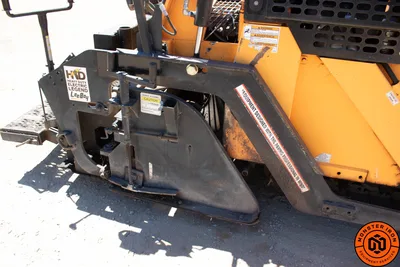

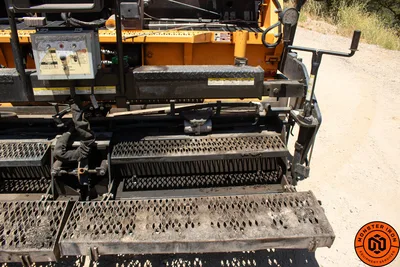

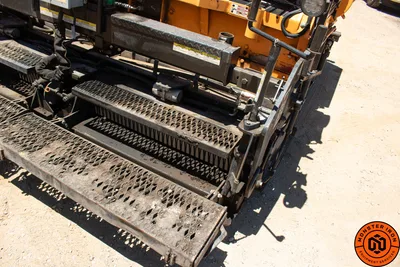

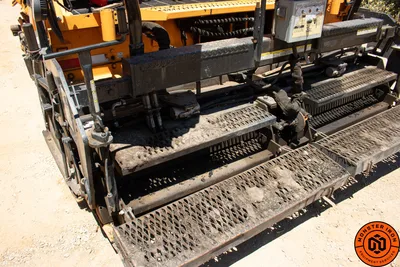

[Paving and Screed]
Maximum Paving Width: Up to 15 ft
Paving Depth: 0 to 6 in
Standard Screed: Legend Electric Screed
Available Heavy-Duty Screed: Legend HD Screed
Screed Heat: Electric
Heating Elements: 4 total
Screed Crown/Valley: Crown/invert adjustment
Tow Point Control: Electric

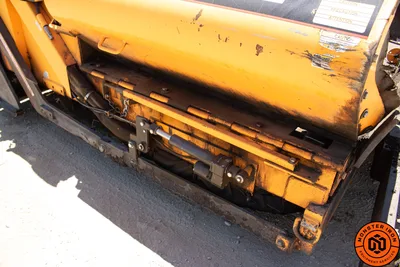

[Material Handling]
Under-Auger Cutoff Gates: Two independent hydraulic gates
Material Augers: Two independent hydraulic augers
Auger Diameter: 12 in
Auger Material: 0.625 in AR 4140 heat-treated steel
Auger Control: Automatic sonic control

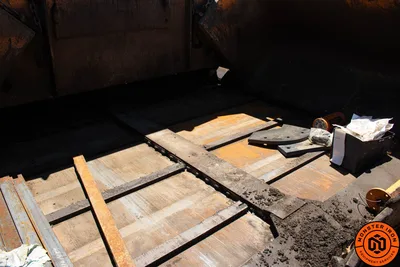

Feed Conveyors: Dual 36 in conveyors
Conveyor Service Access: Hydraulically raiseable

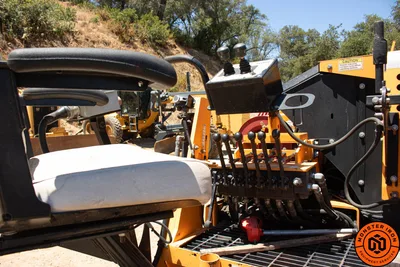

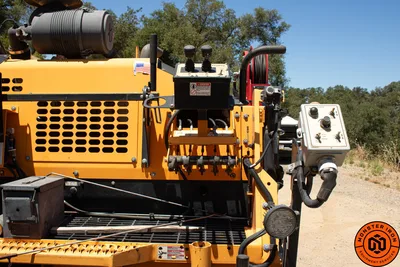

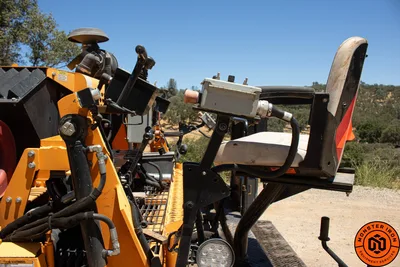

[Operator Platform and Controls]
Platform Configurations: High deck or low deck
Low Deck: Seats mounted on screed
High Deck: Full-width platform
Steering: Dual electronic joystick steering

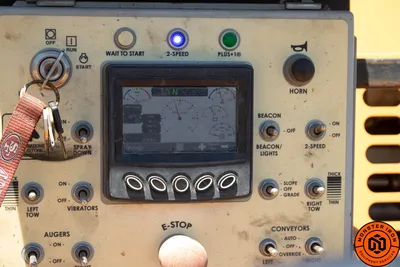

Control Screen: Color graphic display
Monitored Functions: Oil pressure, hour meter, fuel level, voltage, coolant temperature, engine rpm, hydraulic oil temperature and engine diagnostics

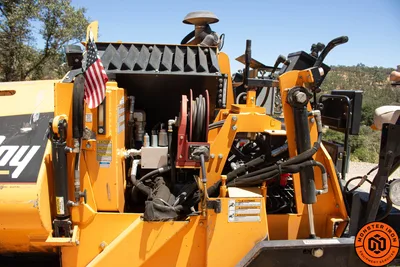

[Washdown and Push Rollers]
Washdown Pump: Heavy-duty electric

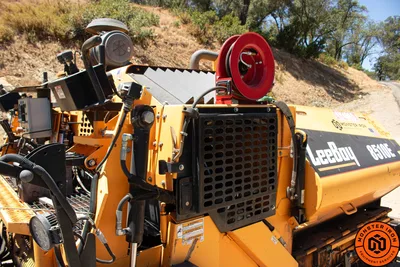

Washdown Hoses: Two 25 ft hose reels
Push Rollers: Two 3 in rollers
Push Roller Adjustment: 7 in vertical adjustment

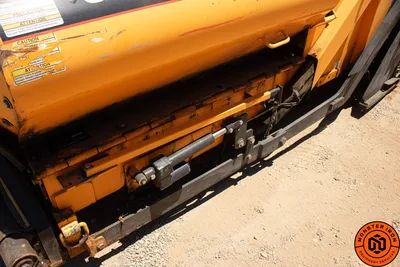

[Hydraulic and Track Drive System]
Drive Pumps: Variable-volume hydraulic pumps
Auxiliary Hydraulic Pumps: Constant-volume tandem pumps
Track Drive: Hydrostatic crawler type
Standard Track: 14 in × 77 in poly
Optional Rubber Track: 15.75 in × 77 in
Paving Speed: 0–135 ft/min
Travel Speed: 0–290 ft/min
