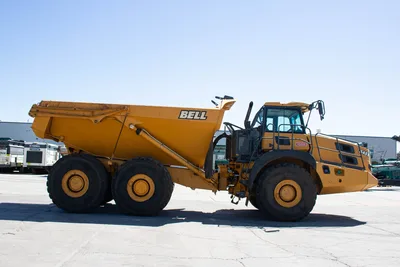

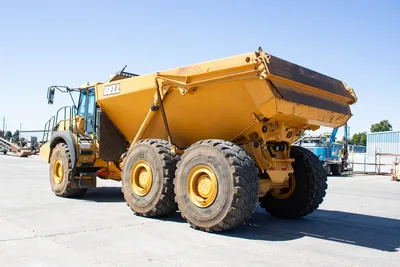

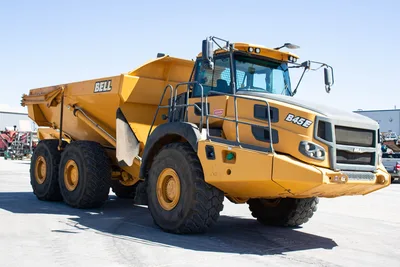

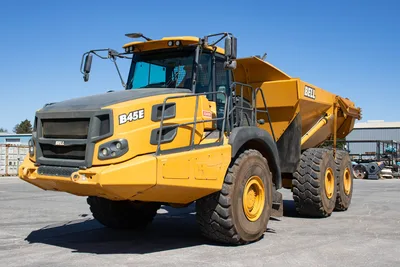

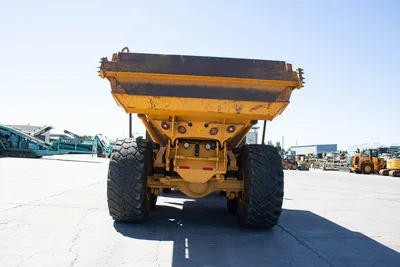

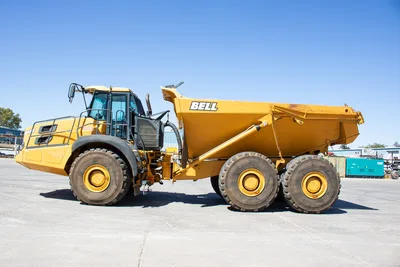

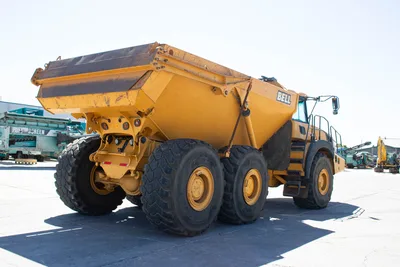

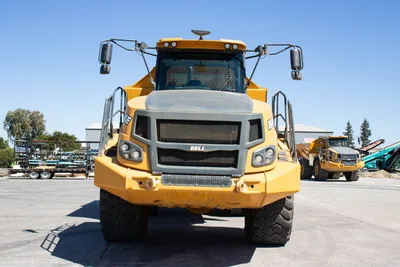

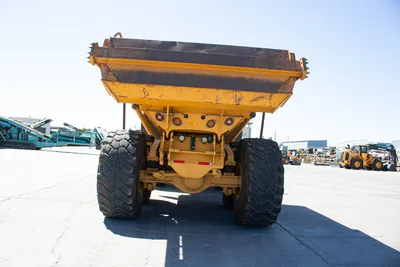

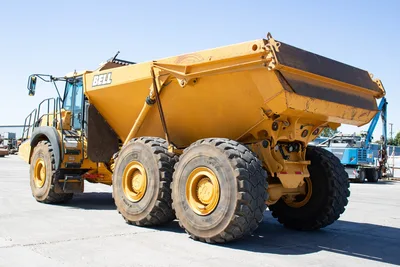

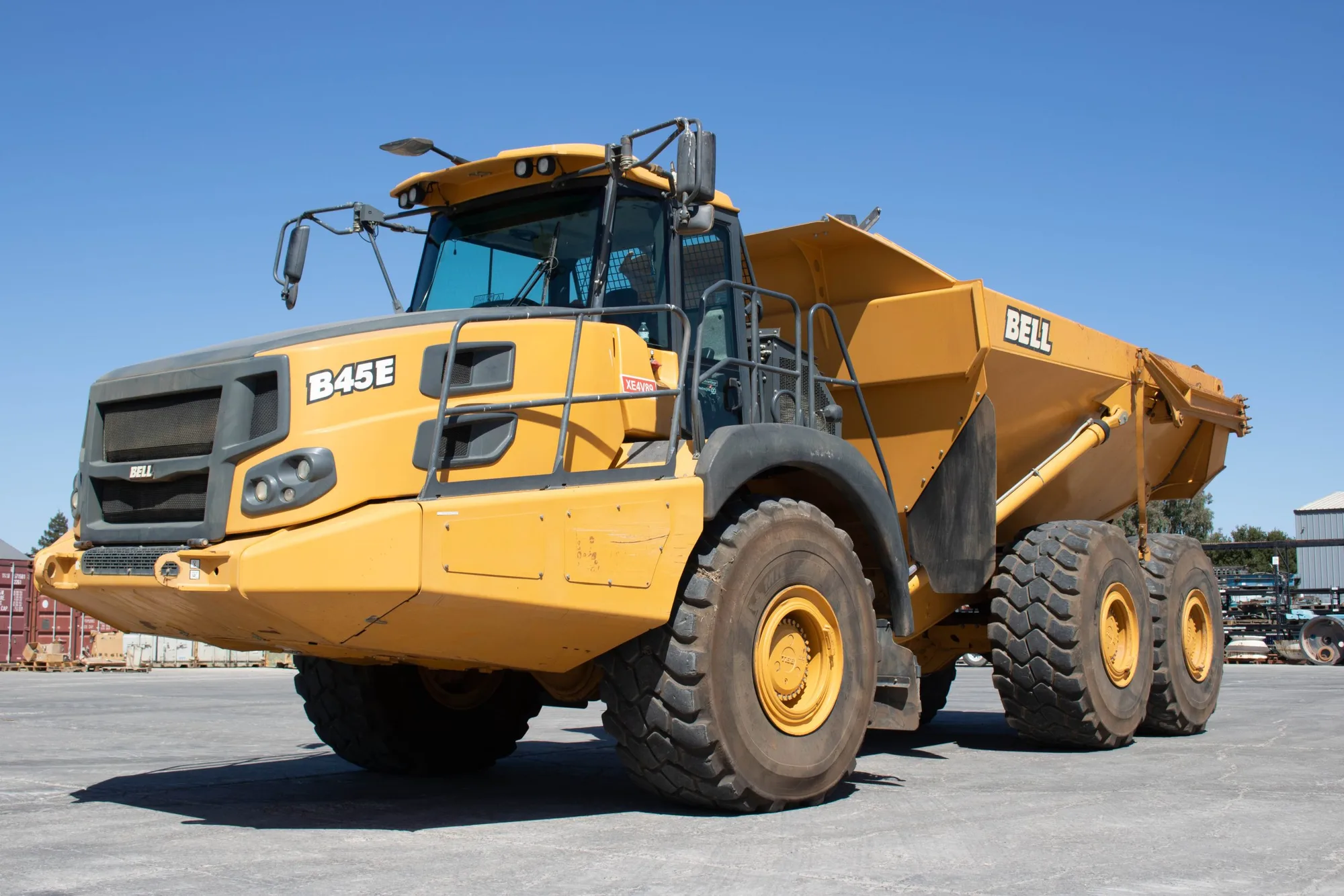

USED 2023 BELL B45E

[Engine]
Manufacturer: Mercedes Benz (MTU)
Model: OM471LA (MTU 6R 1300)
Configuration: Inline 6, turbocharged and intercooled
Gross Power: 390 kW / 523 hp @ 1,700 rpm
Net Power: 369 kW / 495 hp @ 1,700 rpm
Gross Torque: 2,460 Nm / 1,814 lb-ft @ 1,300 rpm
Displacement: 12.8 L / 781 cu in
Auxiliary Brake: Jacobs Engine Brake
Fuel Tank Capacity: 442 L / 117 US gal
AdBlue / DEF Tank Capacity: 40 L / 11 US gal
Certification: EPA Tier 4 Final emissions
[Operating Weight and Payload]
Rated Payload: 41,000 kg / 90,390 lb
Unladen Total: 32,326 kg / 71,267 lb
Laden Total: 73,326 kg / 161,656 lb
Unladen Axles: Front 16,984 kg / 37,443 lb; Middle 7,778 kg / 17,148 lb; Rear 7,564 kg / 16,676 lb
Laden Axles: Front 22,109 kg / 48,742 lb; Middle 25,715 kg / 56,692 lb; Rear 25,502 kg / 56,222 lb

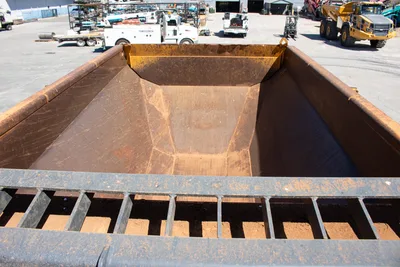

[Body Capacity]
Struck Capacity: 19.5 m³ / 25.5 yd³
SAE 2:1 Capacity: 25 m³ / 33 yd³
SAE 1:1 Capacity: 29.5 m³ / 38 yd³
SAE 2:1 Capacity with Tailgate: 26 m³ / 34 yd³
[Transmission]
Manufacturer: Allison
Model: 4700 ORS
Configuration: Fully automatic planetary transmission
Gears: 7 forward / 1 reverse
Torque Control: Hydrodynamic with lock-up in all gears
[Transfer Case and Axles]
Transfer Case: Kessler W2400, remote mounted
Output Differential: Interaxle 29/71 proportional differential with automatic inter-axle differential lock
Axles: Bell 30T
Differential: High input controlled traction differential with spiral bevel gears

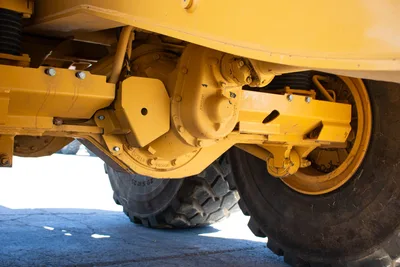

Final Drive: Outboard heavy-duty planetary on all axles
[Braking System]
Service Brake: Dual circuit, full hydraulic wet disc brakes on front and middle axles
Service Brake Maximum Force: 327 kN / 73,513 lbf
Park and Emergency Brake: Spring applied, air released driveline mounted disc
Park and Emergency Maximum Force: 218 kN / 49,008 lbf
Auxiliary Brake: Automatic Jacobs Engine Brake with automatic retardation through electronic wet brake activation
Total Retardation Power: 442 kW / 593 hp continuous; 854 kW / 1,145 hp maximum

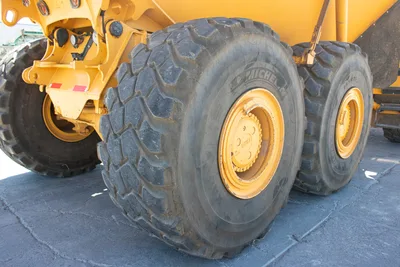

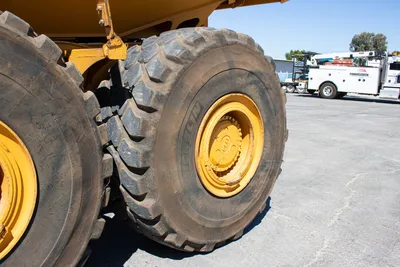

[Wheels, Suspension and Ground Pressure]

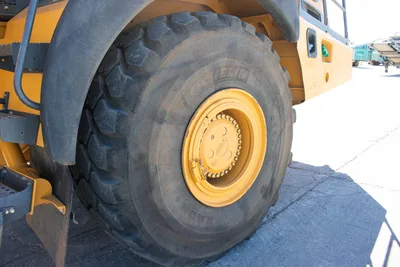

Wheel Type: Radial Earthmover

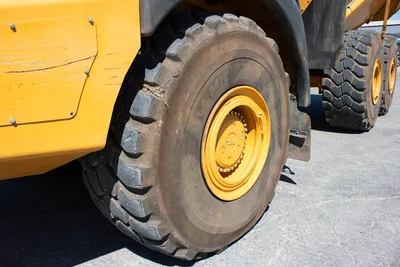

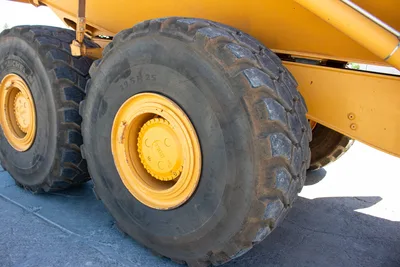

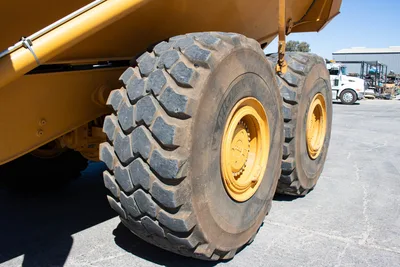

Tire: 29.5 R25 standard; 875/65 R29 optional
Front Suspension: Semi-independent leading A-frame with hydropneumatic suspension struts

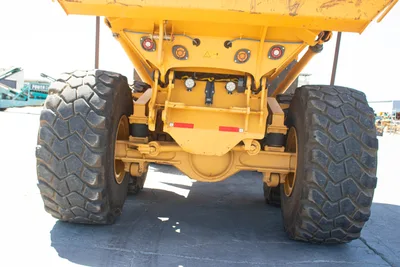

Rear Suspension: Pivoting walking beams with laminated rubber suspension blocks
Ground Pressure – 29.5 R25: Front 321 kPa / 47 psi; Mid & Rear 370 kPa / 54 psi
Ground Pressure – 875/65 R29: Front 294 kPa / 43 psi; Mid & Rear 331 kPa / 48 psi
[Hydraulic, Steering, Dumping and Pneumatic Systems]
Hydraulic System: Full load-sensing system serving steering, body tipping and brake functions
Pump Type: Variable displacement load-sensing piston
Hydraulic Flow: 330 L/min / 87 gal/min
Hydraulic Pressure: 315 bar / 4,569 psi
Hydraulic Filter: 5 microns
Steering System: Double-acting cylinders with ground-driven emergency steering pump
Lock-to-Lock Turns: 5
Steering Angle: 42°
Dump Cylinders: Two double-acting, single-stage dump cylinders
Raise / Lower Time: 11 seconds / 6 seconds
Tipping Angle: 70° standard or any lower angle programmable
Pneumatic System Pressure: 810 kPa / 117 psi
[Electrical, Speed and Cab]
Electrical System Voltage: 24 V
Battery Type: Two AGM batteries
Battery Capacity: 2 × 75 Ah
Alternator Rating: 28 V / 80 A
Max Speed – 1st: 4 km/h / 2.5 mph
Max Speed – 2nd: 9 km/h / 6 mph
Max Speed – 3rd: 17 km/h / 11 mph
Max Speed – 4th: 23 km/h / 14 mph
Max Speed – 5th: 33 km/h / 21 mph
Max Speed – 6th: 44 km/h / 27.3 mph
Max Speed – 7th: 51 km/h / 32 mph
Reverse Speed: 7 km/h / 4 mph

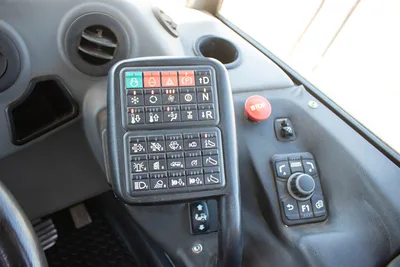

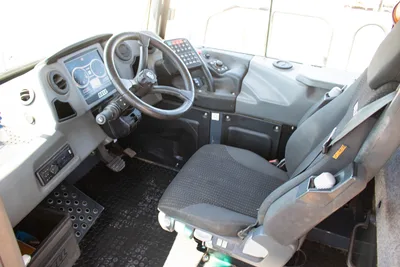

Cab: ROPS/FOPS certified
[Option Weights]
Bin Liner: 1,404 kg / 3,095 lb
Tailgate: 1,013 kg / 2,233 lb
875/65 R29 Tires: Add 1,182 kg / 2,606 lb per vehicle
Extra Wheelset – 29.5 R25: 800 kg / 1,764 lb
Extra Wheelset – 875/65 R29: 1,024 kg / 2,258 lb
[Dimensions]
Length – Transport with Tailgate: 11,184 mm / 36 ft 8 in
Length – Transport without Tailgate: 11,184 mm / 36 ft 8 in
Length – Bin Fully Tipped: 11,778 mm / 38 ft 8 in
Height – Transport without Rock Guard: 3,802 mm / 12 ft 6 in
Height – Transport with Rock Guard: 3,844 mm / 12 ft 7 in
Height – Rotating Beacon: 4,038 mm / 13 ft 3 in
Height – Load Light: 4,127 mm / 13 ft 6 in
Bin Height – Fully Tipped without Rock Guard: 7,340 mm / 24 ft 1 in
Bin Height – Fully Tipped with Rock Guard: 7,448 mm / 24 ft 5 in
Height – Cab: 3,802 mm / 12 ft 6 in
Width Over Mudguards: 3,495 mm / 11 ft 6 in
Width Over Tires – 875/65 R29: 3,656 mm / 12 ft
Width Over Tires – 29.5 R25: 3,487 mm / 11 ft 5 in
Width Over Bin: 3,448 mm / 11 ft 4 in
Width Over Tailgate: 3,738 mm / 12 ft 3 in
Width Over Mirrors: 3,614 mm / 11 ft 10 in
Ground Clearance – Articulation: 545 mm / 21.5 in
Ground Clearance – Front Axle: 543 mm / 21.3 in
Ground Clearance – Bin Fully Tipped: 880 mm / 34.7 in
Bin Lip Height – Transport: 2,521 mm / 8 ft 3 in
Bin Length: 5,753 mm / 18 ft 10 in
Load Over Height: 3,316 mm / 10 ft 11 in
Approach Angle: 24°
Maximum Bin Tip Angle: 70°

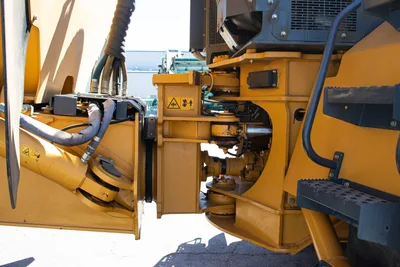

Maximum Articulation Angle: 42°
Inner Turning Circle Radius – 875/65 R29: 4,782 mm / 15 ft 8 in
Inner Turning Circle Radius – 29.5 R25: 4,866 mm / 16 ft
Outer Turning Circle Radius – 875/65 R29: 9,320 mm / 30 ft 7 in
Outer Turning Circle Radius – 29.5 R25: 9,235 mm / 30 ft 4 in
