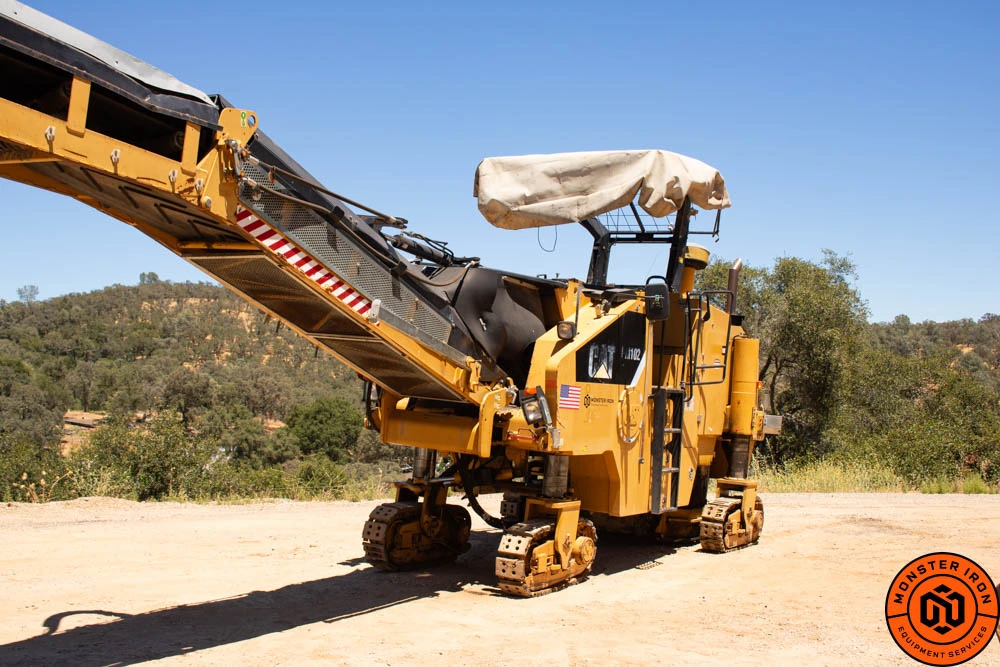

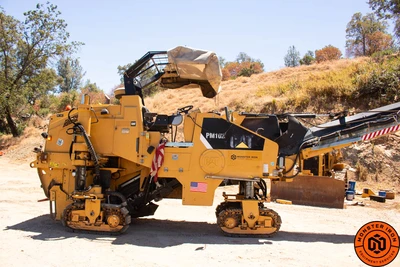

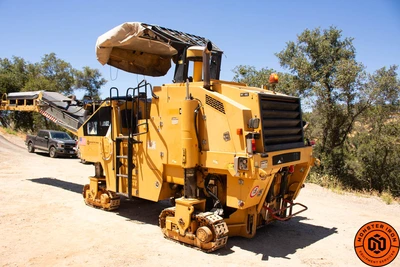

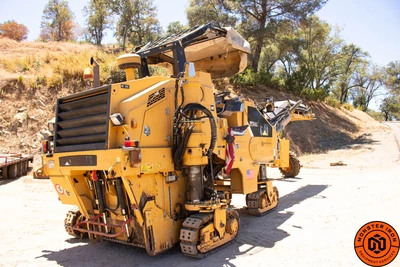

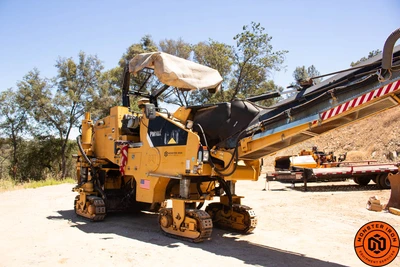

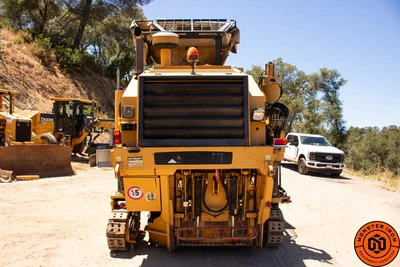

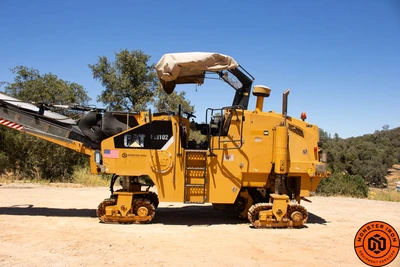

USED 2011 CATERPILLAR PM102

[Operating Dimensions and Weights]
Operating Weight – Track Undercarriage: 17,600 kg / 38,810 lb
Operating Weight – Wheel Undercarriage: 17,100 kg / 37,705 lb
Overall Length: 10.7 m / 35 ft 1 in
Maximum Width – Track: 2.5 m / 8 ft 2 in
Maximum Width – Wheel: 2.4 m / 7 ft 9 in
Width with Right Rear Leg Tucked – Track: 1.98 m / 6 ft 5 in
Width with Right Rear Leg Tucked – Wheel: 2.0 m / 6 ft 6 in
Maximum Height with Canopy: 3.4 m / 11 ft 2 in
Inside Turning Radius – Track: 3.45 m / 11 ft 3 in
Inside Turning Radius – Wheel: 3.45 m / 11 ft 3 in

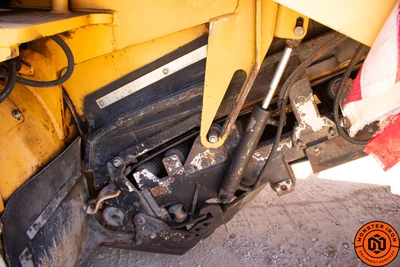

[Cutting System]
Cutting Width: 1,000 mm / 40 in
Maximum Cutting Depth: 305 mm / 12 in

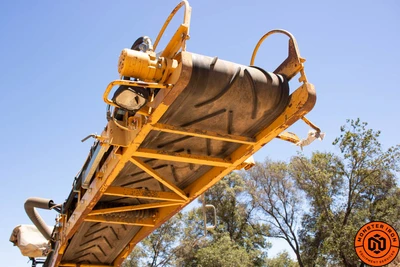

Conveyor Swing: 41° left or right of center
Tool Holder: Exclusive quick-release conical tool holder
Rotor Protection: Automatic disengagement at low rotor rpm

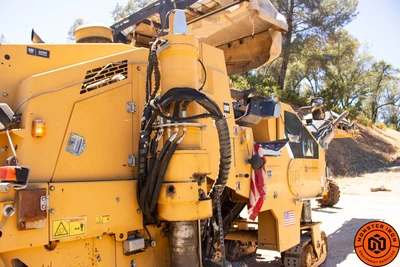

[Engine and Performance]
Engine: Cat C7 with ACERT Technology
Rated Power: 168 kW / 225 hp
Operating Speed – Track: 27 m/min / 89 ft/min
Operating Speed – Wheel: 46 m/min / 151 ft/min
Travel Speed – Track: 4.1 km/h / 2.5 mph
Travel Speed – Wheel: 6.4 km/h / 3.9 mph
[Shipping Dimensions and Weights]
Shipping Weight – Track: 17,100 kg / 37,705 lb
Shipping Weight – Wheel: 16,400 kg / 36,160 lb
Shipping Length with Conveyor Folded: 8.5 m / 27 ft 8 in
Shipping Height with Canopy Folded: 3.1 m / 10 ft 1 in
[Capacities]
Fuel Tank: 400 L / 105 gal
Water Spray System: 1,060 L / 280 gal

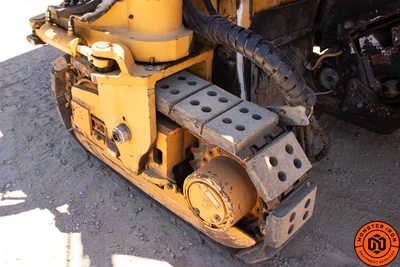

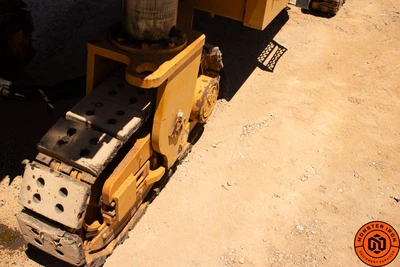

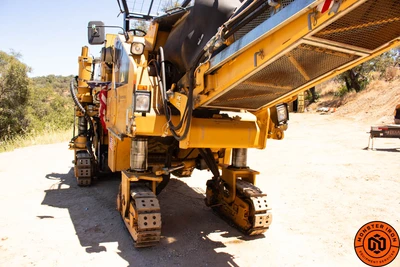

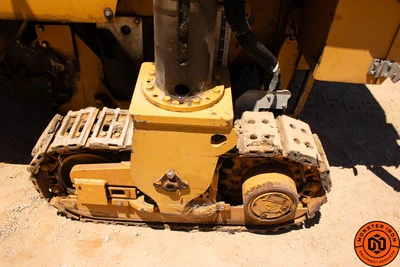

[Undercarriage and Mobility]

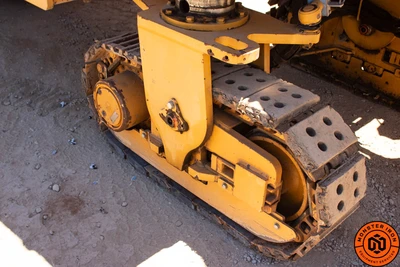

Available Undercarriage: Track or wheel
Flush Cutting: Wheel-undercarriage configuration
Rear Camera: Optional
