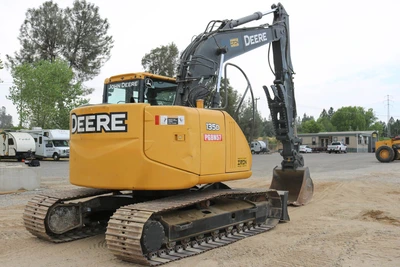

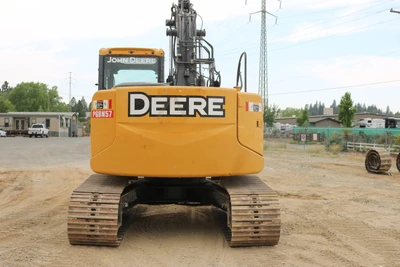

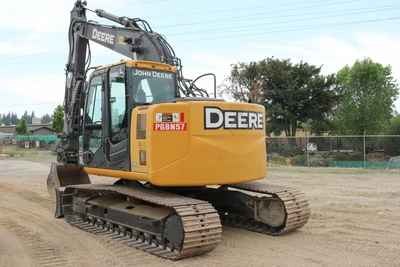

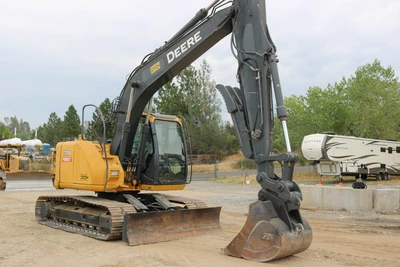

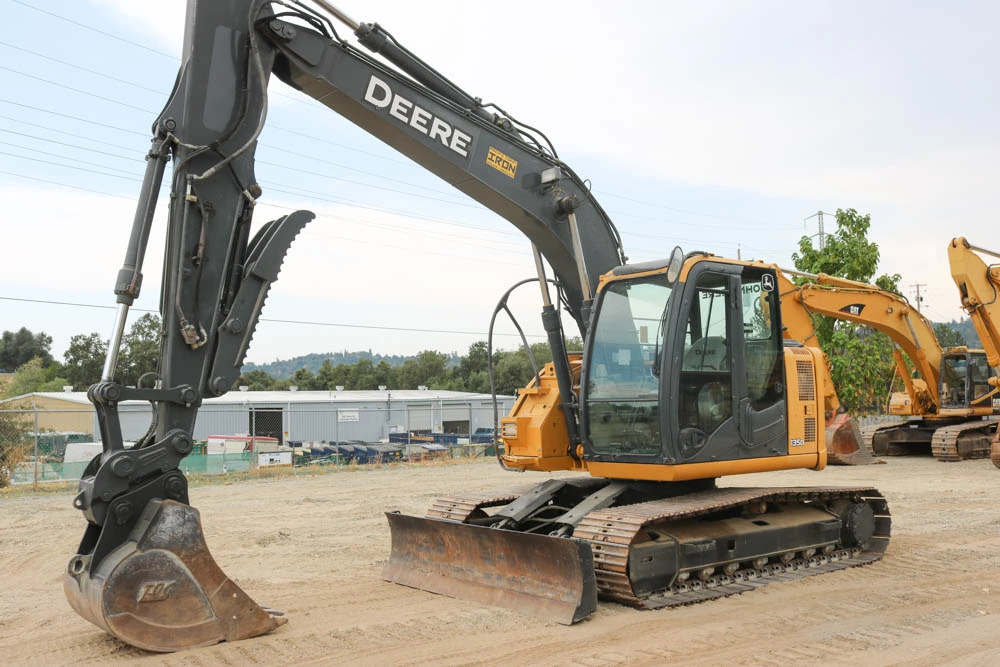

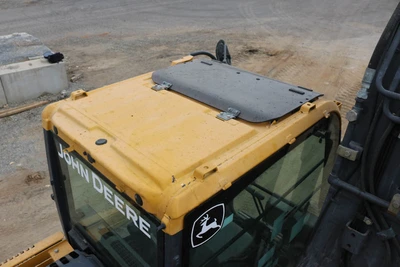

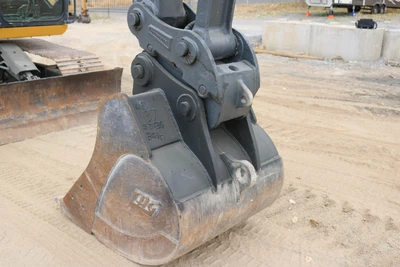

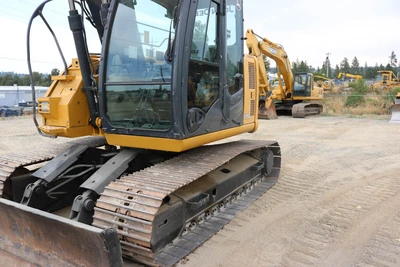

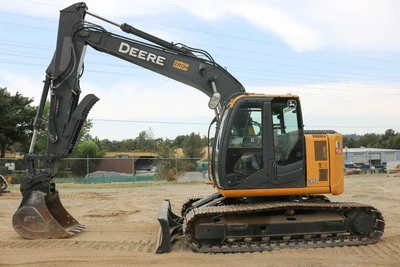

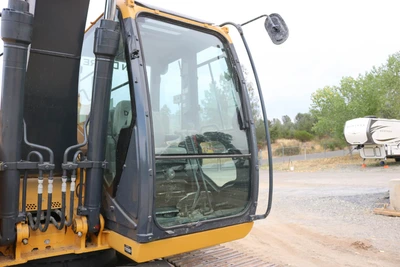

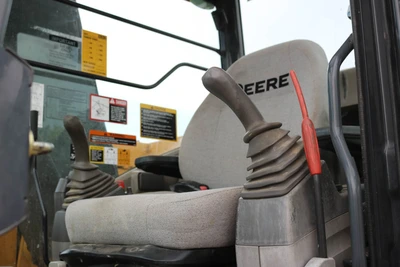

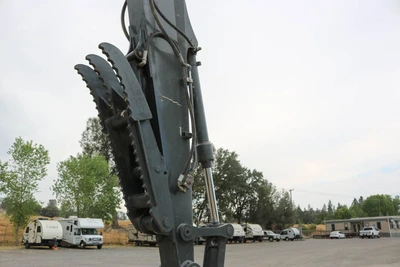

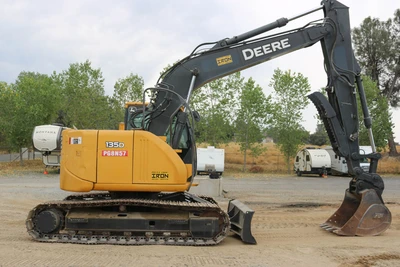

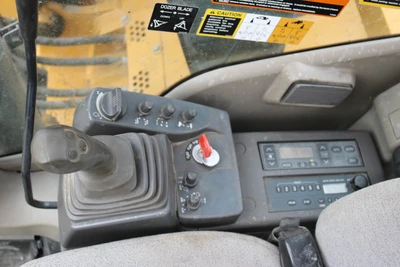

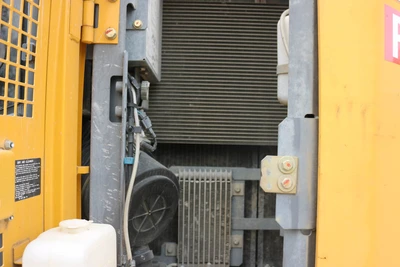

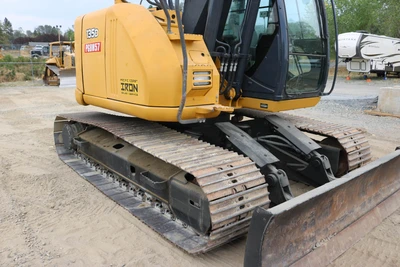

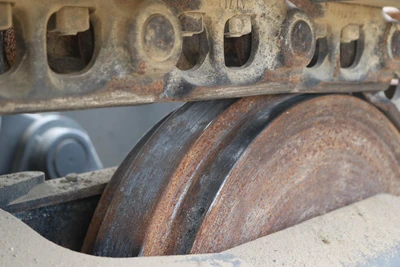

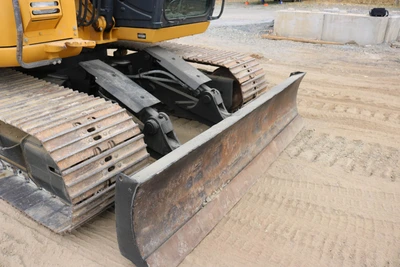

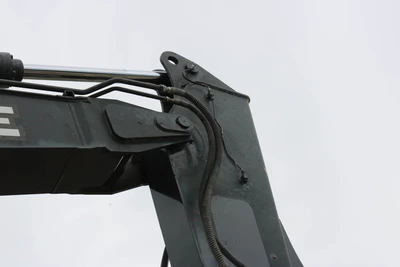

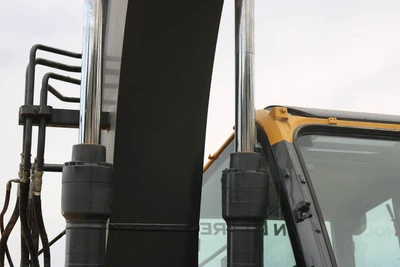

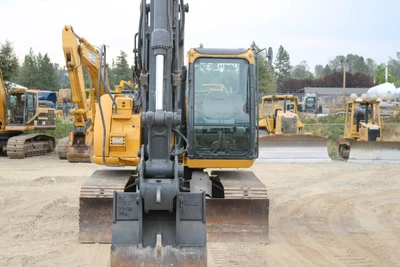

USED 2013 JOHN DEERE 135D

2011 Deere 135D Specs
A. SHIPPING LENGTH OF UNIT: 24.2 ft in 7370 mm
C. SHIPPING HEIGHT OF UNIT: 9.1 ft in 2780 mm
I. MAX CUTTING HEIGHT: 30.3 ft in 9240 mm
J. MAX LOADING HEIGHT: 22.2 ft in 6780 mm
K. MAX REACH ALONG GROUND: 27.1 ft in 8250 mm
L. MAX VERTICAL WALL DIGGING DEPTH: 16.4 ft in 5010 mm
M. MAX DIGGING DEPTH: 18.1 ft in 5530 mm
Dimensions
B. WIDTH TO OUTSIDE OF TRACKS: 8.5 ft in 2590 mm
D. LENGTH OF TRACK ON GROUND: 9.4 ft in 2880 mm
E. GROUND CLEARANCE: 1.4 ft in 430 mm
G. HEIGHT TO TOP OF CAB: 9 ft in 2740 mm
H. TAIL SWING RADIUS: 4.9 ft in 1480 mm
O. COUNTERWEIGHT CLEARANCE: 2.9 ft in 870 mm

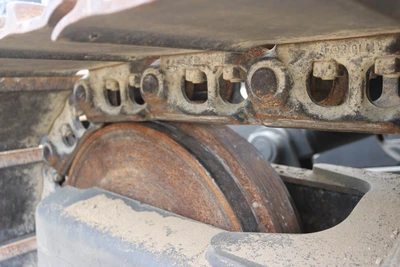

Undercarriage
F. TRACK GAUGE: 6.5 ft in 1990 mm
N. SHOE SIZE: 23.6 in 600 mm
Engine
MAKE Isuzu
MODEL: 4JJ1X, Tier III certified
NET POWER: 93 hp 69.4 kw
POWER MEASURED @: 2000 rpm
DISPLACEMENT: 183 cu in 3 L
TORQUE MEASURED @ rpm
MAX TORQUE lb ft Nm
NUMBER OF CYLINDERS: 4
ASPIRATION Turbocharged air-to-air charge air cooler
Operational
OPERATING WEIGHT: 30736.8 lb 13942 kg
FUEL CAPACITY: 58.1 gal 220 L
COOLING SYSTEM FLUID CAPACITY: 4.2 gal 16 L
HYDRAUILC SYSTEM FLUID CAPACITY gal L
ENGINE OIL CAPACITY: 4.5 gal 17 L
SWING DRIVE FLUID CAPACITY: 0.85 gal 3.2 L
OPERATING VOLTAGE: 24 V
ALTERNATOR SUPPLIED AMPERAGE: 50 amps
HYDRAULIC SYSTEM RELIEF VALVE PRESSURE: 4980 psi 34335.9 kPa
HYDRAULIC PUMP FLOW CAPACITY: 55.5 gal/min 210 L/min
Swing Mechanism
SWING SPEED: 13.7 rpm
SWING TORQUE: 25077 lb ft 33999.8 Nm

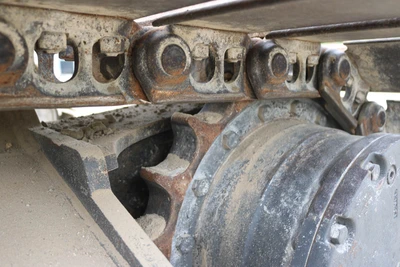

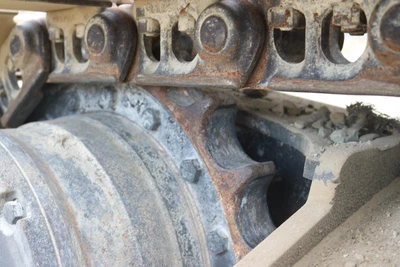

Undercarriage
NUMBER OF SHOES PER SIDE: 44
SHOE SIZE: 23.6 in 600 mm
