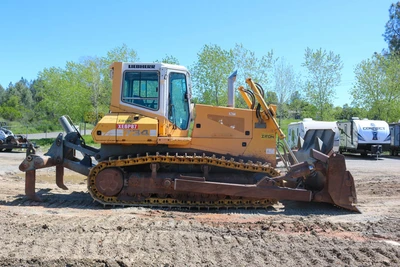

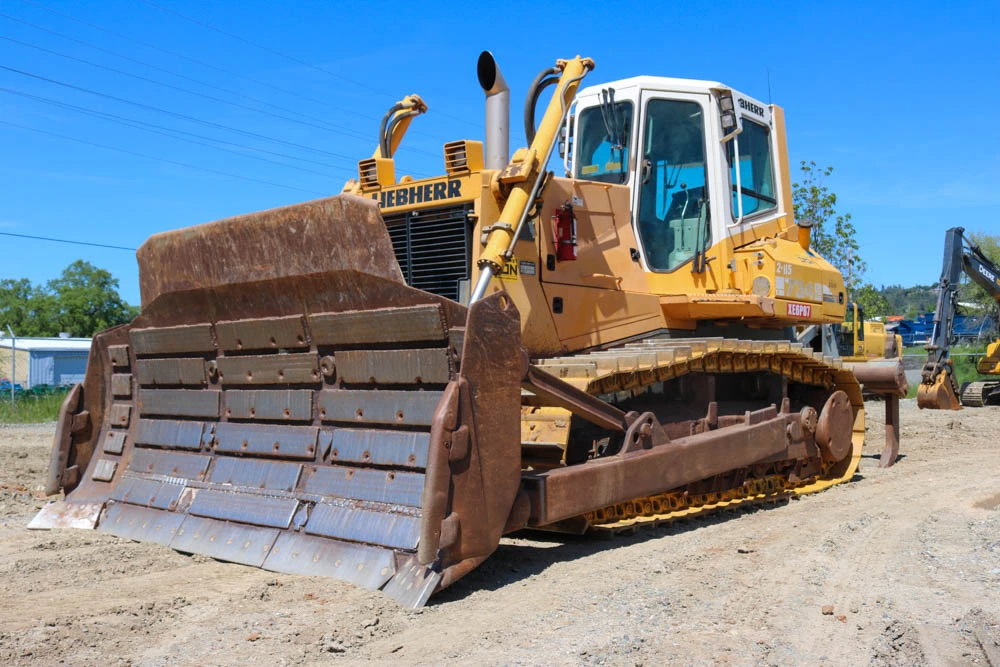

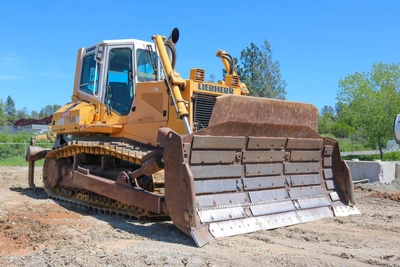

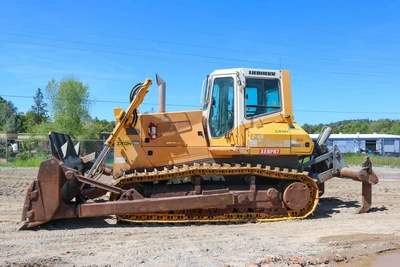

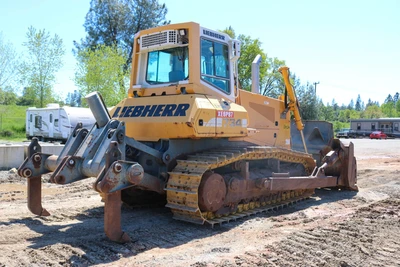

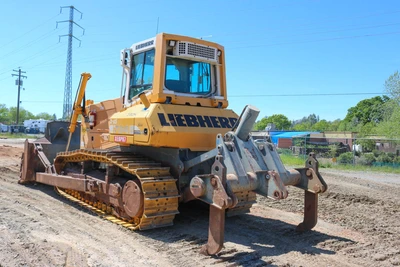

USED 2009 LIEBHERR 734XL

[Dimensions]
A. Length w/ Blade: 19.5 ft in
B. Width Over Tracks: 8.9 ft in
C. Height to Top of Cab: 10.7 ft in
D. Length of Track on Ground: 10.6 ft in
E. Ground Clearance: 1.6 ft in
F. Length w/o Blade: 14.1 ft in
[Undercarriage]
H. Standard Shoe Size: 24 in

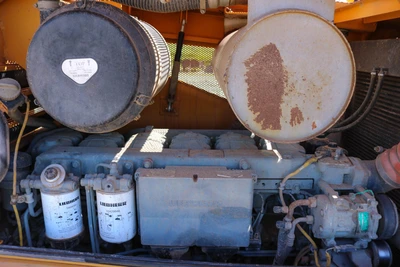

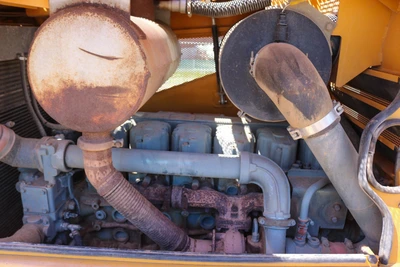

[Engine]
Make: Liebherr
Model: D 926 TI-E
Gross Power: 200 hp
Net Power: 197 hp
Power Measured @: 1800 rpm
Displacement: 610 cu in
Number of Cylinders: 6
Aspiration: Direct injection turbo-charged
[Operational]
Operating Weight: 47406 lb
Fuel Capacity: 116.2 gal
Cooling System Fluid Capacity: 11.4 gal
Engine Oil Capacity: 5.8 gal
Hydraulic Fluid Capacity: 42.8 gal
Final Drives Fluid Capacity: 3.7 gal
Operating Voltage: 24 V
Alternator Supplied Amperage: 55 amps
[Transmission]
Type: Hydrostatic travel drive and control
Number of Forward Gears: 3
Number of Reverse Gears: 2
Max Speed – Forward: 6.8 mph
Max Speed – Reverse: 4.8 mph

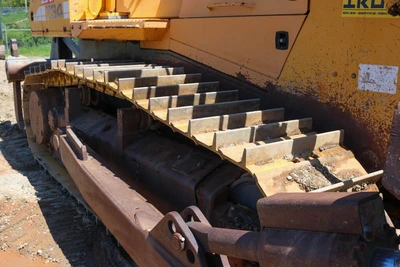

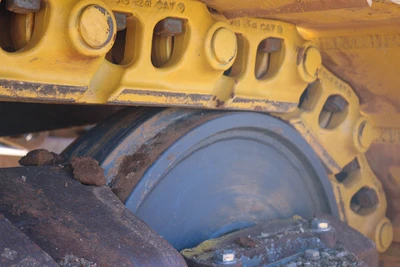

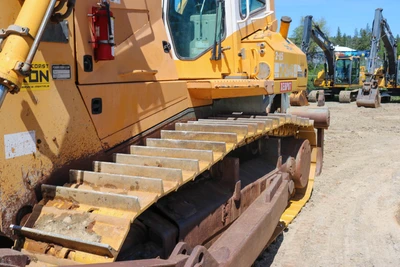

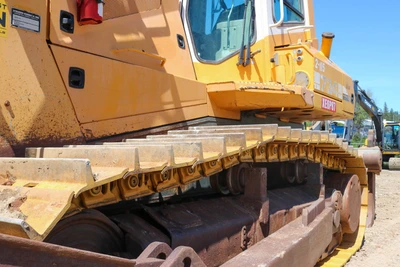

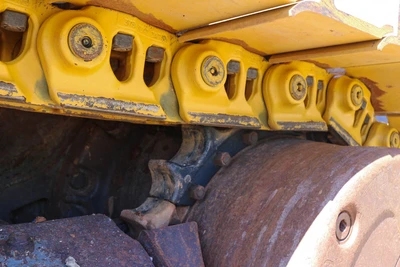

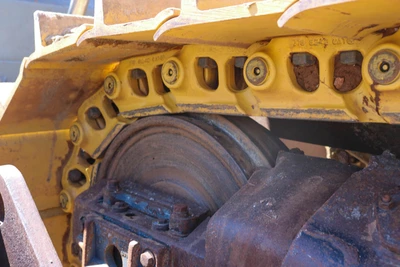

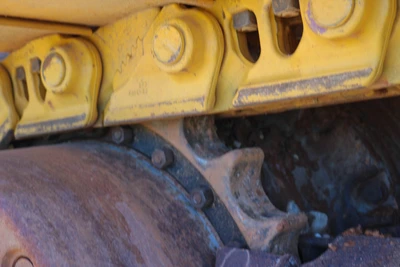

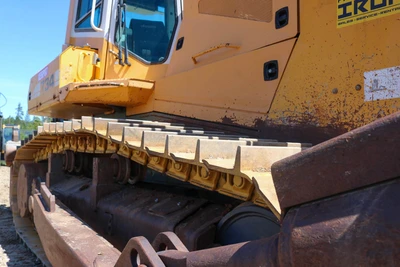

[Undercarriage]
Ground Pressure: 7.7 psi
Standard Shoe Size: 24 in
Number of Track Rollers per Side: 8
[Hydraulic System]
Pump type: swash plate piston pump
Relief Valve Pressure: 2900 psi
Pump Flow Capacity: 55.2 gal/min

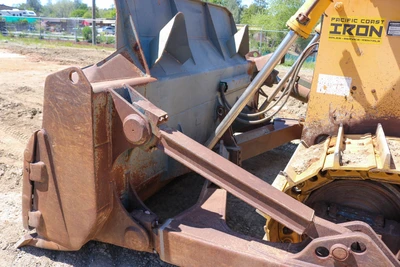

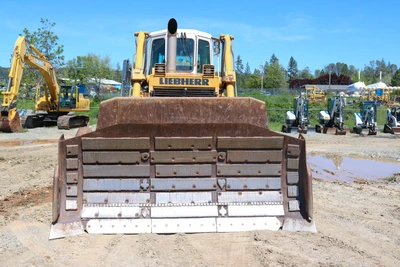

[Standard Blade]
Width: 11 ft in
Height: 55.1 in
Capacity: 7.7 yd3
Blade Angle (both directions): degrees
Cutting Depth: 22 in
[Dimensions]
Length w/o Blade: 14.1 ft in
Length w/ Blade: 19.5 ft in
Width Over Tracks: 8.9 ft in
Height to Top of Cab: 10.7 ft in
Length of Track on Ground: 10.6 ft in
Ground Clearance: 1.6 ft in
