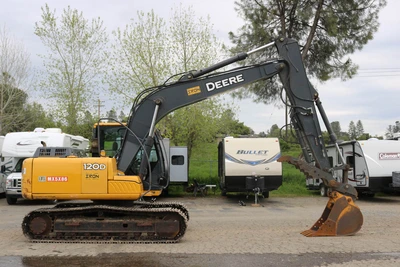

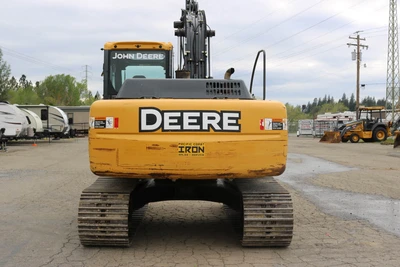

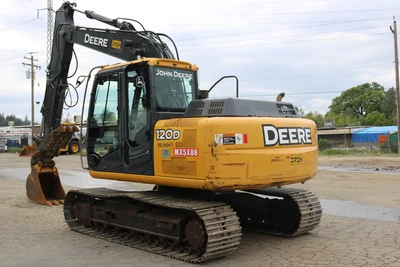

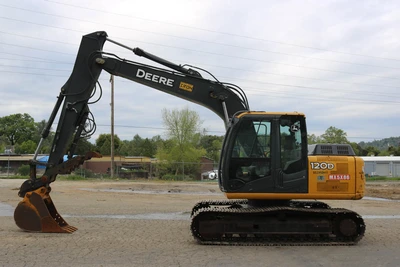

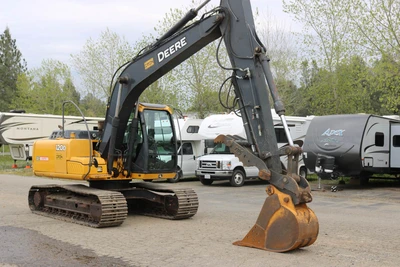

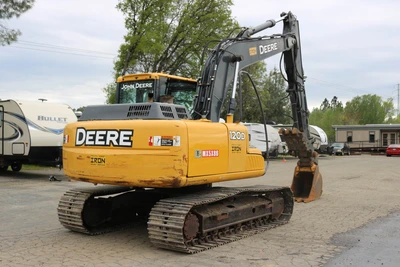

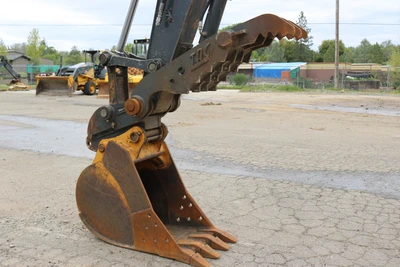

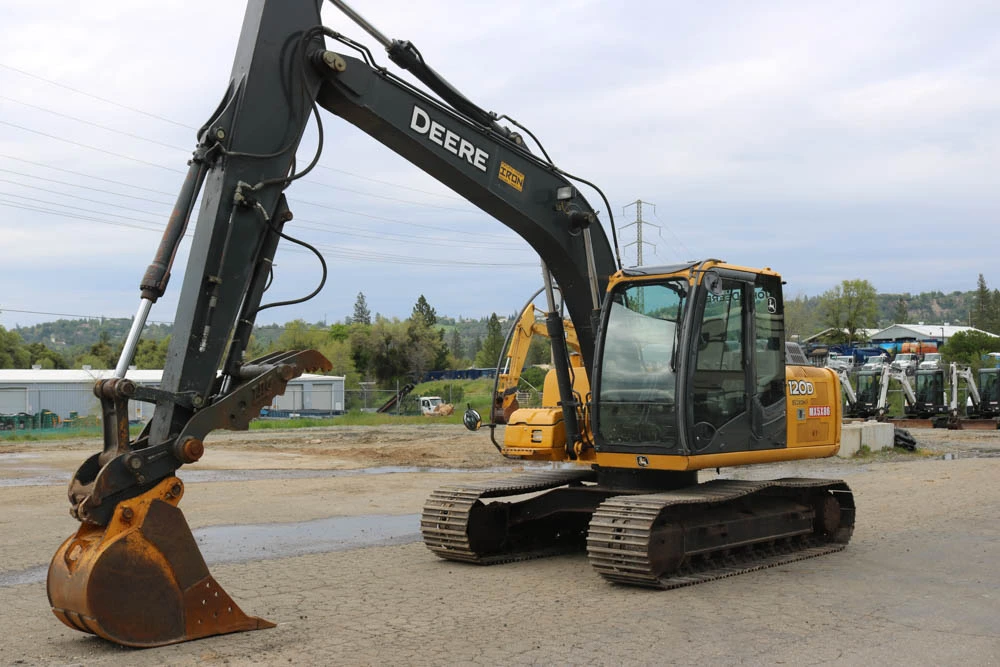

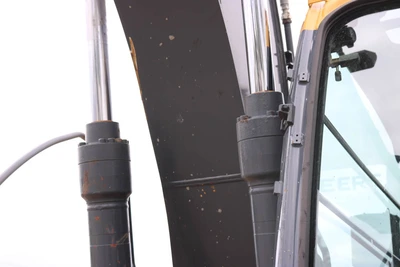

USED 2012 JOHN DEERE 120D

[Boom/Stick Option Boom/Stick Option (HEX) 1Boom/Stick Option (HEX) 2]
A. Shipping Length of Unit: 25.1 ft in
C. Shipping Height of Unit: 9 ft in
I. Max Cutting Height: 28.1 ft in
J. Max Loading Height: 20.2 ft in
K. Max Reach Along Ground: 26.9 ft in
L. Max Vertical Wall Digging Depth: 16.5 ft in
M. Max Digging Depth: 18.3 ft in
A. Shipping Length of Unit: 25.2 ft in
C. Shipping Height of Unit: 9 ft in
I. Max Cutting Height: 29.2 ft in
J. Max Loading Height: 21.3 ft in
K. Max Reach Along Ground: 28.4 ft in
L. Max Vertical Wall Digging Depth: 18 ft in
M. Max Digging Depth: 19.9 ft in
[Dimensions]
B. Width to Outside of Tracks: 8.5 ft in
D. Length of Track on Ground: 9.4 ft in
E. Ground Clearance: 1.4 ft in
G. Height to Top of Cab: 9 ft in
H. Tail Swing Radius: 7 ft in
O. Counterweight Clearance: 2.9 ft in
[Undercarriage]
F. Track Gauge: 6.5 ft in
N. Shoe Size: 23.6 in

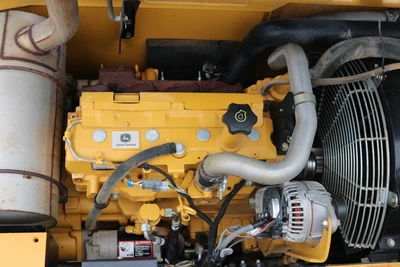

[Engine]
Make: John Deere
Model: 4045H, tier III certified
Net Power: 93 hp
Power Measured @: 2000 rpm
Displacement: 276 cu in
Torque Measured @: rpm
Max Torque: lb ft
Aspiration: Turbocharged air-to-air charge air cooler
Number of Cylinders: 4
[Operational]
Operating Weight: 30481.1 lb
Fuel Capacity: 66 gal
Cooling System Fluid Capacity: 5.3 gal
Hydrauilc System Fluid Capacity: 35 gal
Engine Oil Capacity: 3.7 gal
Swing Drive Fluid Capacity: gal
Operating Voltage: 24 V
Alternator Supplied Amperage: 80 amps
Hydraulic System Relief Valve Pressure: 4980 psi
Hydraulic Pump Flow Capacity: 55.5 gal/min
[Swing Mechanism]
Swing Speed: 13.3 rpm
Swing Torque: 25077 lb ft

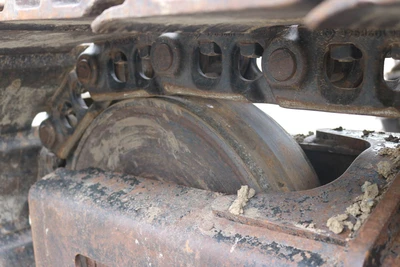

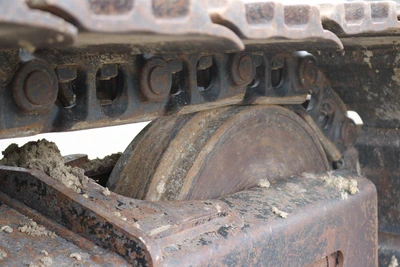

[Undercarriage]
Number of Shoes per Side: 44
Shoe Size: 23.6 in

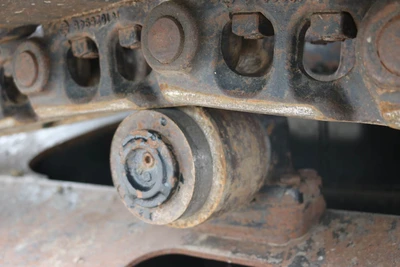

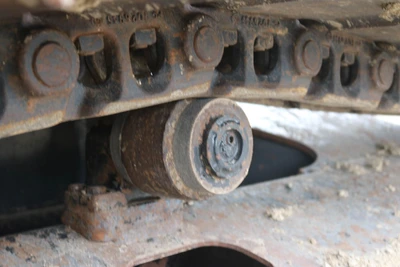

Number of Carrier Rollers per Side: 1
Number of Track Rollers per Side: 7
Ground Pressure: 5.4 psi
Max Travel Speed: 3.4 mph
Drawbar Pull: 24729 lb
Track Gauge: 6.5 ft in
[Buckets]
Reference Bucket Capacity: 0.78 yd3
Minimum Bucket Capacity: 0.5 yd3
Maximum Bucket Capacity: 1 yd3
[Boom/Stick Option (HEX) 1]
Boom/Stick Option (HEX) 1: 8’3″ (2520mm) stick
Shipping Height of Unit: 9 ft in
Shipping Length of Unit: 25.1 ft in
Max Digging Depth: 18.3 ft in
Max Reach Along Ground: 26.9 ft in
Max Cutting Height: 28.1 ft in
Max Loading Height: 20.2 ft in
Max Vertical Wall Digging Depth: 16.5 ft in
[Boom/Stick Option (HEX) 2]
Boom/Stick Option (HEX) 2: 9’11” (3010mm) stick
Shipping Height of Unit: 9 ft in
Shipping Length of Unit: 25.2 ft in
Max Digging Depth: 19.9 ft in
Max Reach Along Ground: 28.4 ft in
Max Cutting Height: 29.2 ft in
Max Loading Height: 21.3 ft in
Max Vertical Wall Digging Depth: 18 ft in
[Dimensions]
Width to Outside of Tracks: 8.5 ft in
Height to Top of Cab: 9 ft in
Ground Clearance: 1.4 ft in
Counterweight Clearance: 2.9 ft in
Tail Swing Radius: 7 ft in
Length of Track on Ground: 9.4 ft in
