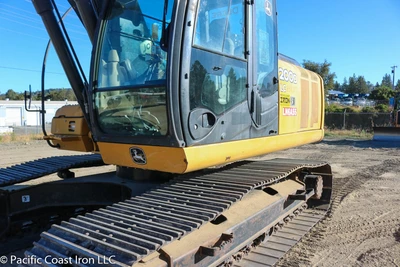

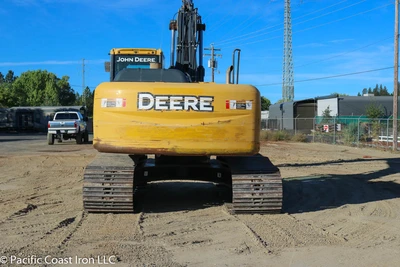

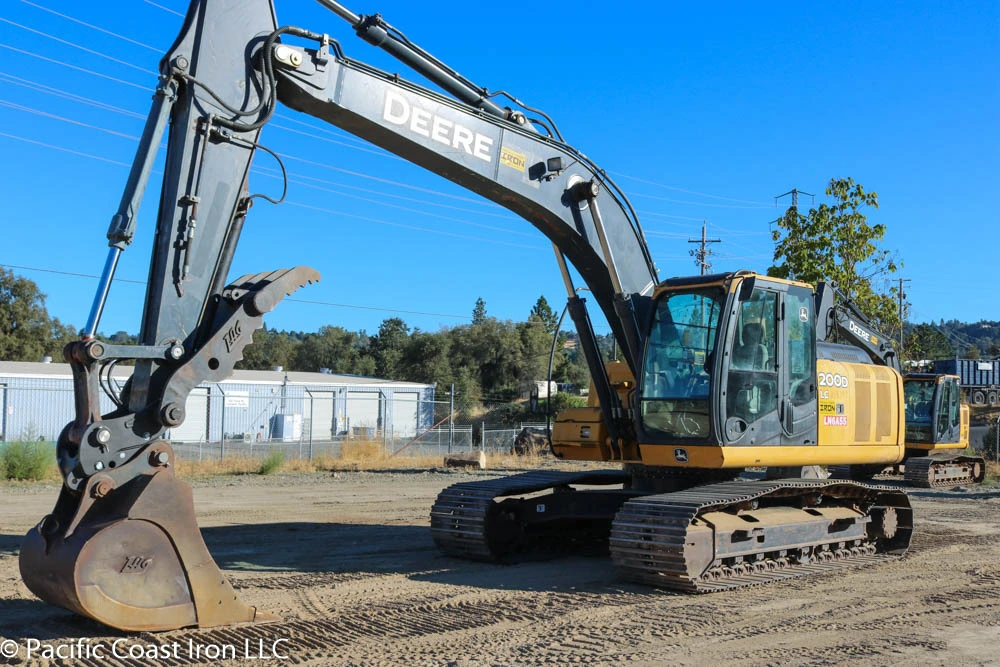

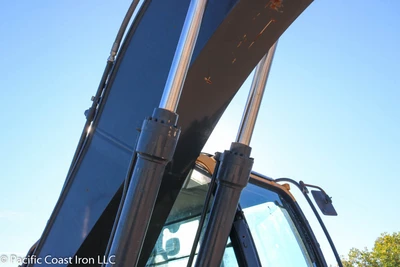

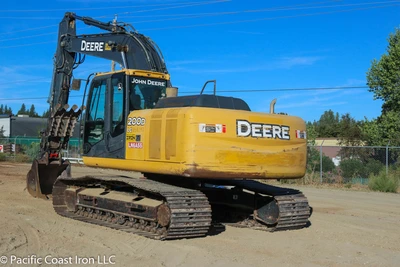

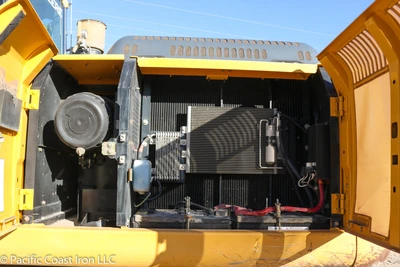

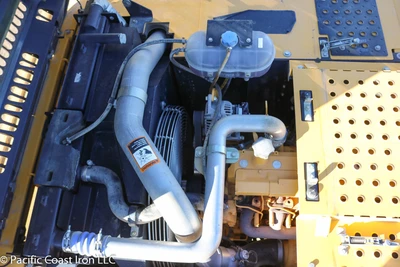

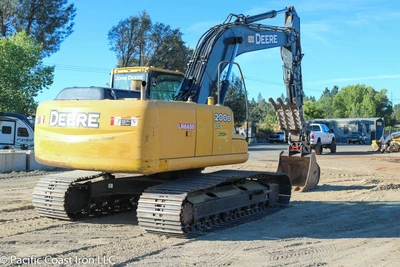

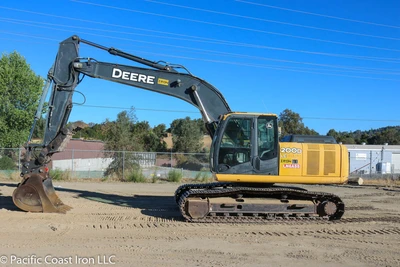

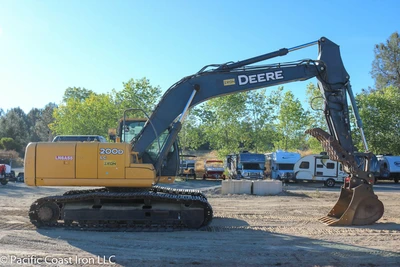

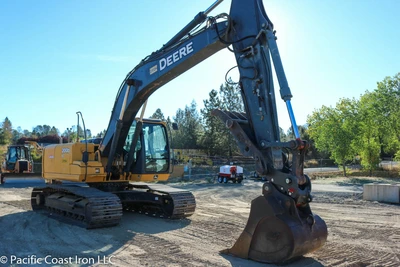

USED 2012 JOHN DEERE 200D

[Boom/Stick Option Boom/Stick Option (HEX) 1Boom/Stick Option (HEX) 2]
A. Shipping Length of Unit: 31.3 ft in
C. Shipping Height of Unit: 9.7 ft in
I. Max Cutting Height: 32.9 ft in
J. Max Loading Height: 23.6 ft in
K. Max Reach Along Ground: 32 ft in
L. Max Vertical Wall Digging Depth: 19.7 ft in
M. Max Digging Depth: 21.9 ft in
A. Shipping Length of Unit: 31.5 ft in
C. Shipping Height of Unit: 10.4 ft in
I. Max Cutting Height: 31.7 ft in
J. Max Loading Height: 22.4 ft in
K. Max Reach Along Ground: 30.3 ft in
L. Max Vertical Wall Digging Depth: 17.4 ft in
M. Max Digging Depth: 20.3 ft in
[Dimensions]
B. Width to Outside of Tracks: 10.5 ft in
D. Length of Track on Ground: 12 ft in
E. Ground Clearance: 1.5 ft in
G. Height to Top of Cab: 9.7 ft in
H. Tail Swing Radius: 9 ft in
O. Counterweight Clearance: 3.4 ft in
[Undercarriage]
F. Track Gauge: 7.8 ft in
N. Shoe Size: 31.5 in
[Engine]
Make: John Deere
Model: 6068H
Net Power: 159 hp
Power Measured @: 2000 rpm
Displacement: 414 cu in
Aspiration: Turbocharged air to air charge cooler
Number of Cylinders: 6
[Operational]
Operating Weight: 49985.4 lb
Fuel Capacity: 105.7 gal
Cooling System Fluid Capacity: 6.9 gal
Hydrauilc System Fluid Capacity: 63.4 gal
Engine Oil Capacity: 6.1 gal
Swing Drive Fluid Capacity: 1.6 gal
Operating Voltage: 24 V
Alternator Supplied Amperage: 80 amps
Hydraulic System Relief Valve Pressure: 4980 psi
Hydraulic Pump Flow Capacity: 112 gal/min
[Swing Mechanism]
Swing Speed: 13.3 rpm
Swing Torque: 50662 lb ft

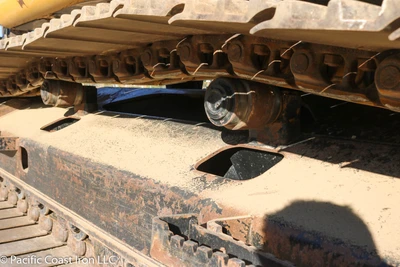

[Undercarriage]
Number of Shoes per Side: 49
Shoe Size: 31.5 in
Number of Carrier Rollers per Side: 2
Number of Track Rollers per Side: 8
Ground Pressure: 5.3 psi
Max Travel Speed: 3.4 mph
Drawbar Pull: 45620 lb
Track Gauge: 7.8 ft in

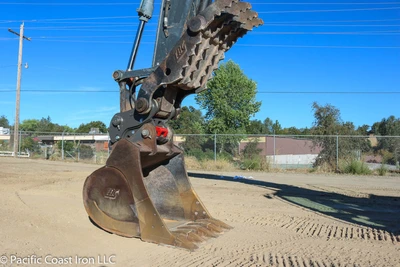

[Buckets]
Reference Bucket Capacity: 1.2 yd3
Minimum Bucket Capacity: 0.78 yd3
Maximum Bucket Capacity: 1.4 yd3
[Boom/Stick Option (HEX) 1]
Boom/Stick Option (HEX) 1: 9’7″ (2910mm) stick
Shipping Height of Unit: 9.7 ft in
Shipping Length of Unit: 31.3 ft in
Max Digging Depth: 21.9 ft in
Max Reach Along Ground: 32 ft in
Max Cutting Height: 32.9 ft in
Max Loading Height: 23.6 ft in
Max Vertical Wall Digging Depth: 19.7 ft in
[Boom/Stick Option (HEX) 2]
Boom/Stick Option (HEX) 2: 7’11” (2420mm) stick
Shipping Height of Unit: 10.4 ft in
Shipping Length of Unit: 31.5 ft in
Max Digging Depth: 20.3 ft in
Max Reach Along Ground: 30.3 ft in
Max Cutting Height: 31.7 ft in
Max Loading Height: 22.4 ft in
Max Vertical Wall Digging Depth: 17.4 ft in
[Dimensions]
Width to Outside of Tracks: 10.5 ft in
Height to Top of Cab: 9.7 ft in
Ground Clearance: 1.5 ft in
Counterweight Clearance: 3.4 ft in
Tail Swing Radius: 9 ft in
Length of Track on Ground: 12 ft in
