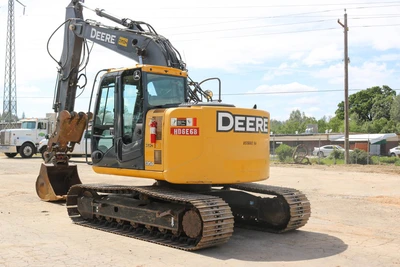

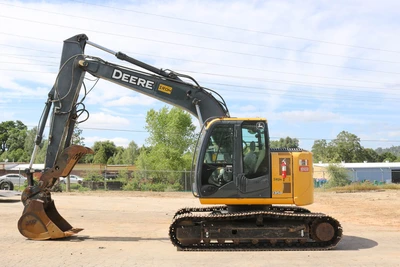

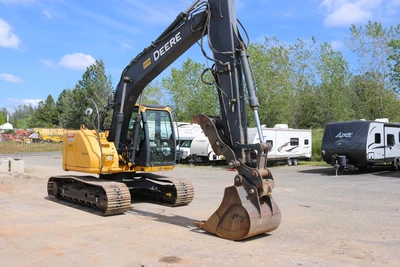

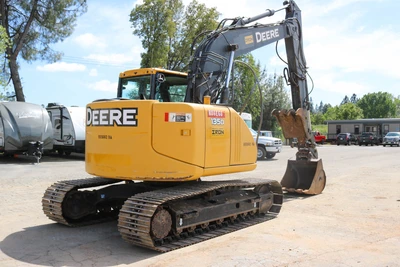

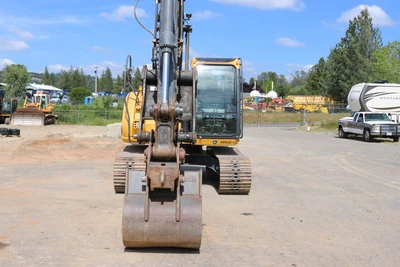

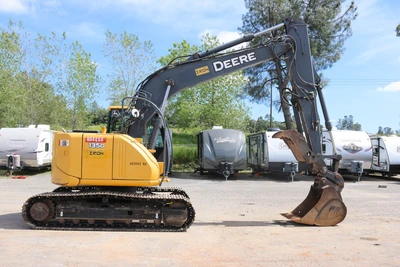

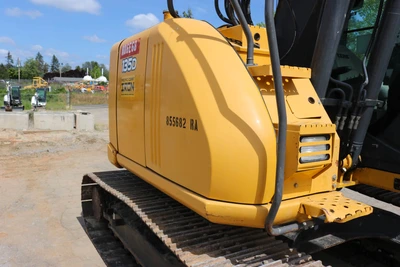

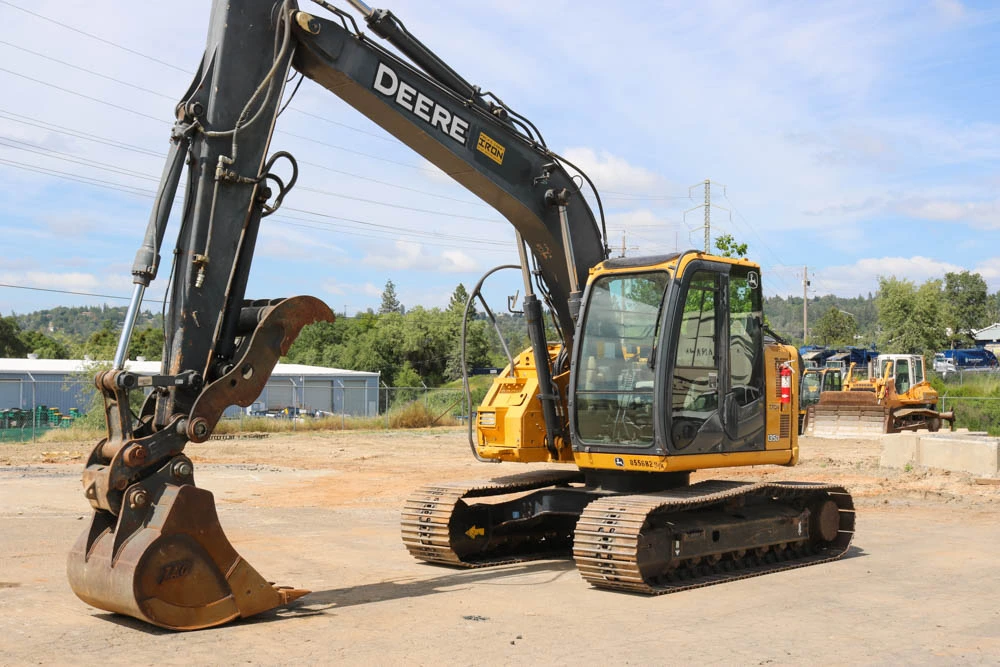

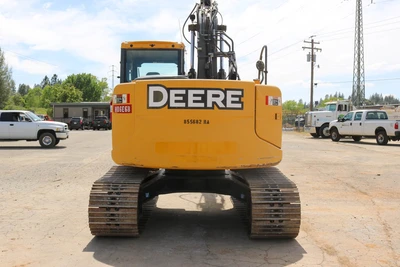

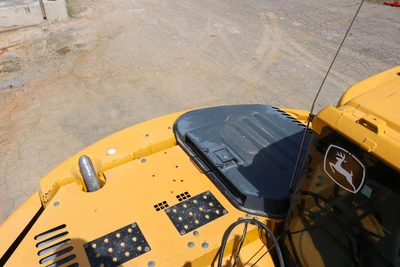

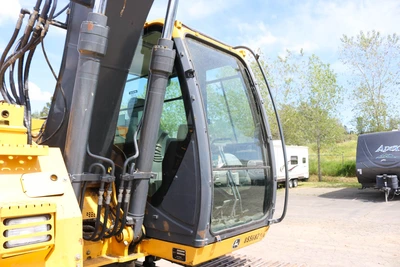

USED 2012 JOHN DEERE 135D

[Boom/Stick Option Boom/Stick Option (HEX) 1Boom/Stick Option (HEX) 2]
A. Shipping Length of Unit: 24.2 ft in
C. Shipping Height of Unit: 9.1 ft in
I. Max Cutting Height: 30.3 ft in
J. Max Loading Height: 22.2 ft in
K. Max Reach Along Ground: 27.1 ft in
L. Max Vertical Wall Digging Depth: 16.4 ft in
M. Max Digging Depth: 18.1 ft in
A. Shipping Length of Unit: 24.2 ft in
C. Shipping Height of Unit: 9.1 ft in
I. Max Cutting Height: 31.6 ft in
J. Max Loading Height: 23.6 ft in
K. Max Reach Along Ground: 28.6 ft in
L. Max Vertical Wall Digging Depth: 16.5 ft in
M. Max Digging Depth: 19.8 ft in
[Dimensions]
B. Width to Outside of Tracks: 8.5 ft in
D. Length of Track on Ground: 9.4 ft in
E. Ground Clearance: 1.4 ft in
G. Height to Top of Cab: 9 ft in
H. Tail Swing Radius: 4.9 ft in
O. Counterweight Clearance: 2.9 ft in
[Undercarriage]
F. Track Gauge: 6.5 ft in
N. Shoe Size: 23.6 in

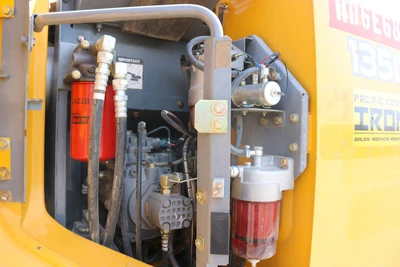

[Engine]
Make: Isuzu
Model: 4JJ1X, Tier III certified
Net Power: 93 hp
Power Measured @: 2000 rpm
Displacement: 183 cu in
Torque Measured @: rpm
Max Torque: lb ft
Number of Cylinders: 4
Aspiration: Turbocharged air-to-air charge air cooler
[Operational]
Operating Weight: 30736.8 lb
Fuel Capacity: 58.1 gal
Cooling System Fluid Capacity: 4.2 gal
Hydrauilc System Fluid Capacity: gal
Engine Oil Capacity: 4.5 gal
Swing Drive Fluid Capacity: 0.85 gal
Operating Voltage: 24 V
Alternator Supplied Amperage: 50 amps
Hydraulic System Relief Valve Pressure: 4980 psi
Hydraulic Pump Flow Capacity: 55.5 gal/min
[Swing Mechanism]
Swing Speed: 13.7 rpm
Swing Torque: 25077 lb ft

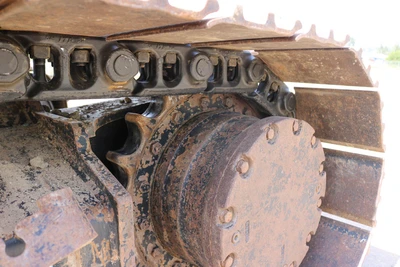

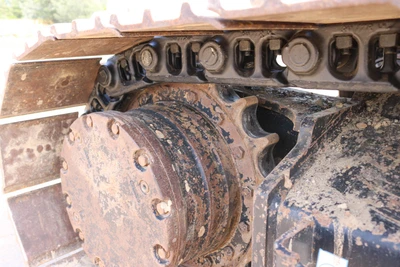

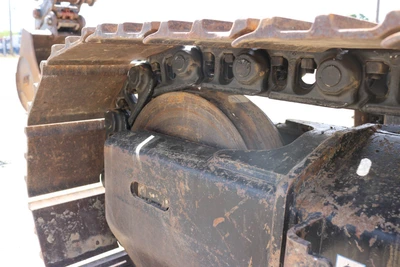

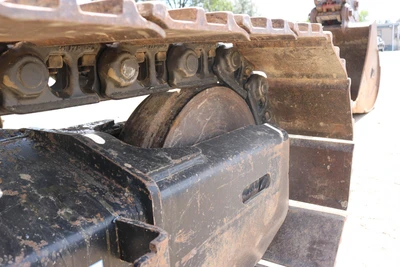

[Undercarriage]
Number of Shoes per Side: 44
Shoe Size: 23.6 in
Number of Carrier Rollers per Side: 1
Number of Track Rollers per Side: 7
Ground Pressure: 5.8 psi
Max Travel Speed: 3.4 mph
Drawbar Pull: 26303 lb
Track Gauge: 6.5 ft in

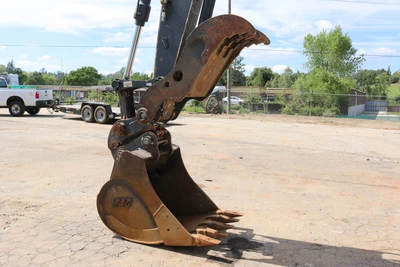

[Buckets]
Reference Bucket Capacity: 0.65 yd3
Minimum Bucket Capacity: 0.5 yd3
Maximum Bucket Capacity: 1 yd3
[Boom/Stick Option (HEX) 1]
Boom/Stick Option (HEX) 1: 8’3″ (2520mm) stick
Shipping Height of Unit: 9.1 ft in
Shipping Length of Unit: 24.2 ft in
Max Digging Depth: 18.1 ft in
Max Reach Along Ground: 27.1 ft in
Max Cutting Height: 30.3 ft in
Max Loading Height: 22.2 ft in
Max Vertical Wall Digging Depth: 16.4 ft in
[Boom/Stick Option (HEX) 2]
Boom/Stick Option (HEX) 2: 9’11” (3010mm) stick
Shipping Height of Unit: 9.1 ft in
Shipping Length of Unit: 24.2 ft in
Max Digging Depth: 19.8 ft in
Max Reach Along Ground: 28.6 ft in
Max Cutting Height: 31.6 ft in
Max Loading Height: 23.6 ft in
Max Vertical Wall Digging Depth: 16.5 ft in
[Dimensions]
Width to Outside of Tracks: 8.5 ft in
Height to Top of Cab: 9 ft in
Ground Clearance: 1.4 ft in
Counterweight Clearance: 2.9 ft in
Tail Swing Radius: 4.9 ft in
Length of Track on Ground: 9.4 ft in
