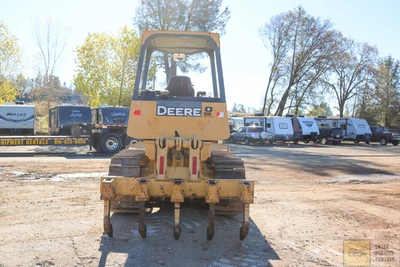

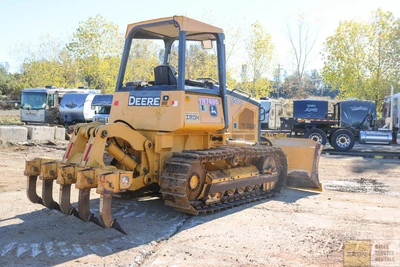

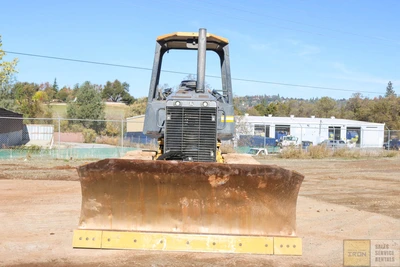

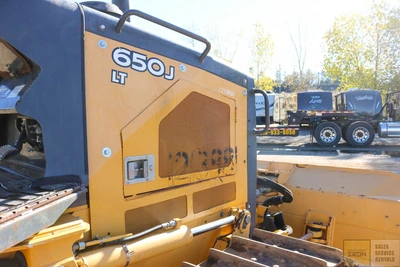

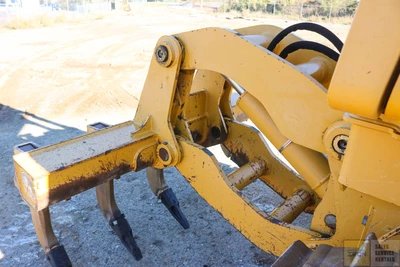

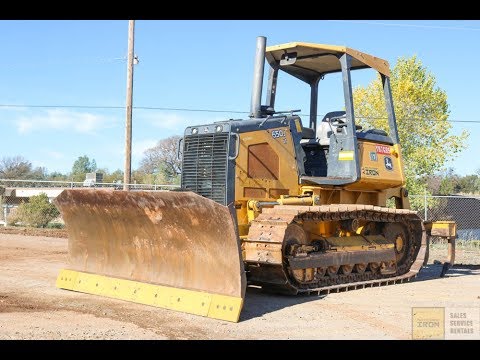

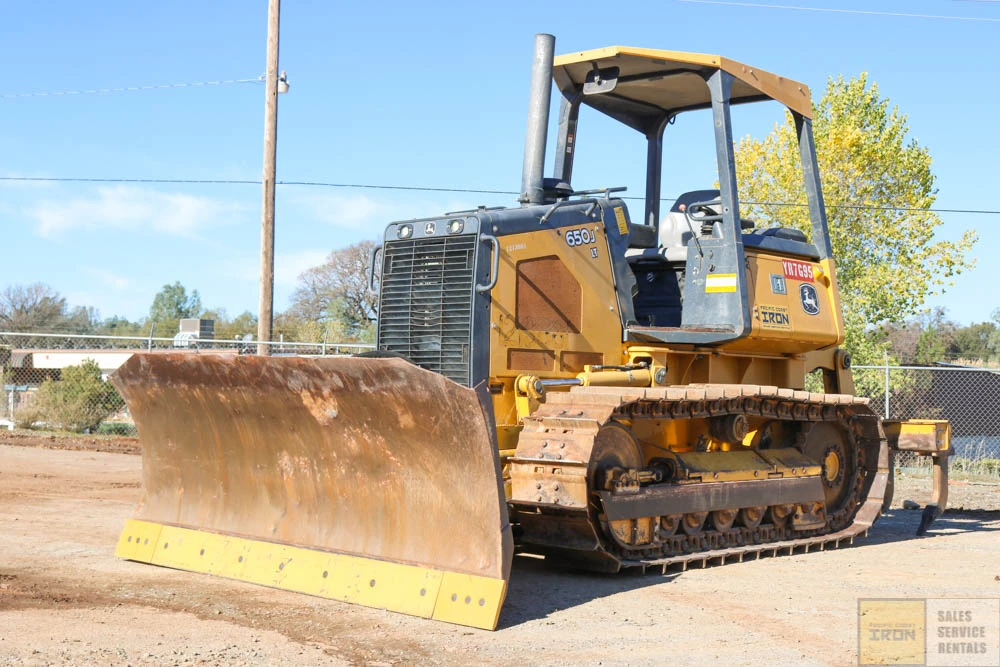

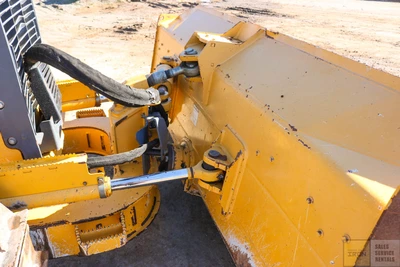

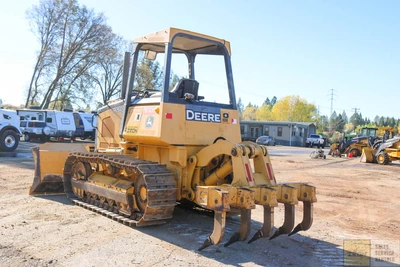

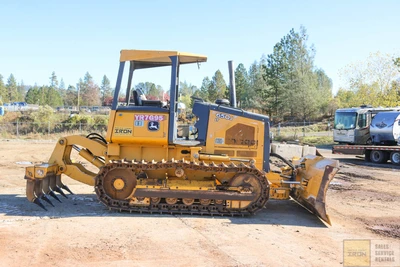

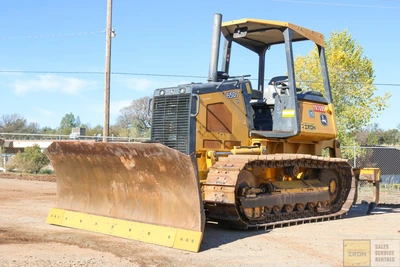

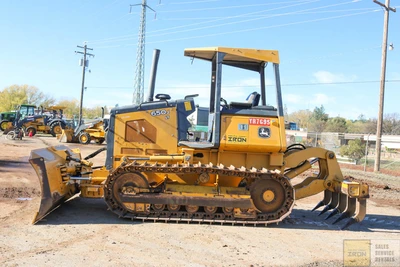

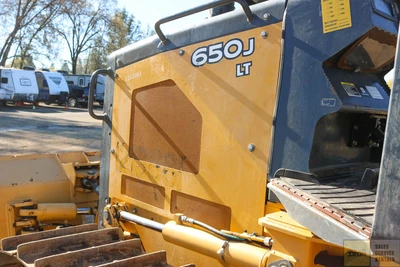

USED 2011 JOHN DEERE 650J

Specifications:
Dimensions
A. LENGTH W/ BLADE: 14 ft in 4254 mm
B. WIDTH OVER TRACKS: 6.6 ft in 2006 mm
C. HEIGHT TO TOP OF CAB: 9.1 ft in 2768 mm
D. LENGTH OF TRACK ON GROUND: 7.7 ft in 2337 mm
E. GROUND CLEARANCE: 1.2 ft in 363 mm

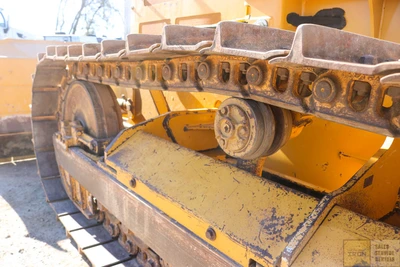

Undercarriage
G. TRACK GAUGE: 5.1 ft in 1550 mm
H. STANDARD SHOE SIZE: 18 in 457 mm
Specification

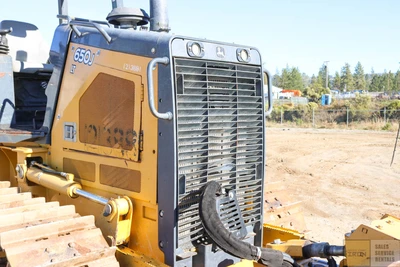

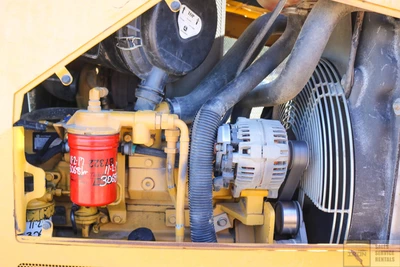

Engine
MAKE John Deere
MODEL: 4045T
NET POWER: 90 hp 67 kw
POWER MEASURED @: 2200 rpm
MAX TORQUE: 306 lb ft 414 Nm
DISPLACEMENT: 276 cu in 4.5 L
TORQUE MEASURED @: 1200 rpm
NUMBER OF CYLINDERS: 4
ASPIRATION Altitude-compensating turbocharger
Operational
OPERATING WEIGHT: 18640.1 lb 8455 kg
FUEL CAPACITY: 47 gal 178 L
COOLING SYSTEM FLUID CAPACITY: 4.2 gal 16 L
ENGINE OIL CAPACITY: 3.7 gal 14 L
HYDRAULIC FLUID CAPACITY: 8.5 gal 32.2 L
POWERTRAIN FLUID CAPACITY: 11.3 gal 42.7 L
FINAL DRIVES FLUID CAPACITY: 1.7 gal 6.6 L
OPERATING VOLTAGE: 12 V
ALTERNATOR SUPPLIED AMPERAGE: 65 amps
Transmission
TYPE Hydrostatic
MAX SPEED – FORWARD: 5 mph 8 km/h
MAX SPEED – REVERSE: 5 mph 8 km/h

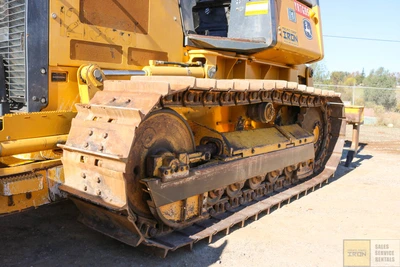

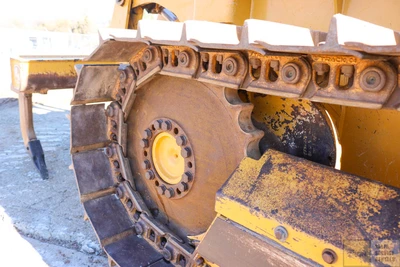

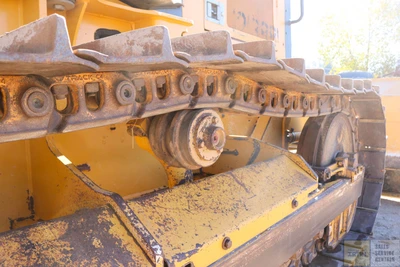

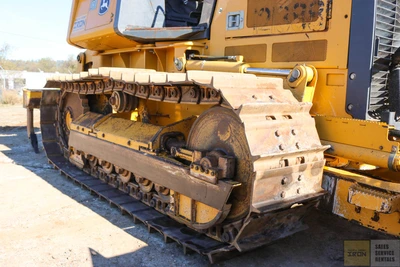

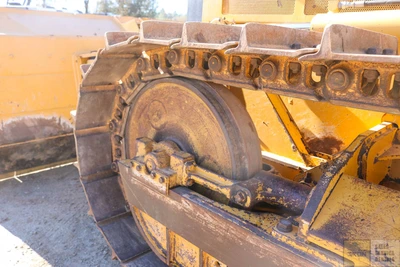

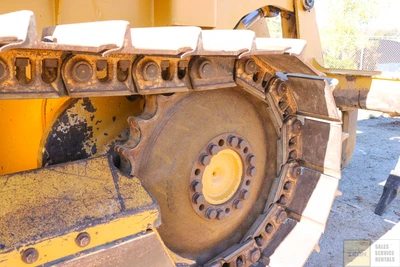

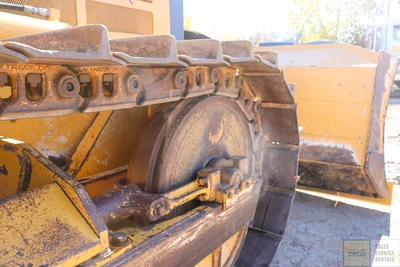

Undercarriage
GROUND PRESSURE: 5.6 psi 38.6 kPa
GROUND CONTACT AREA: 3312 in2 2.1 m2
STANDARD SHOE SIZE: 18 in 457 mm
NUMBER OF SHOES PER SIDE: 40
NUMBER OF TRACK ROLLERS PER SIDE: 7
TRACK PITCH: 6.7 in 170 mm
TRACK GAUGE: 5.1 ft in 1550 mm

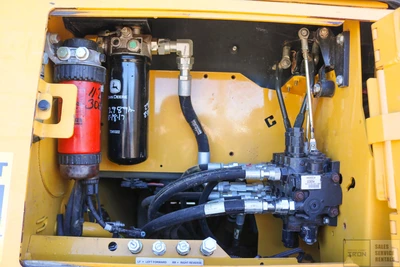

Hydraulic System
PUMP TYPE Gear
RELIEF VALVE PRESSURE: 3000 psi 20670 kPa
PUMP FLOW CAPACITY: 15 gal/min 57 L/min

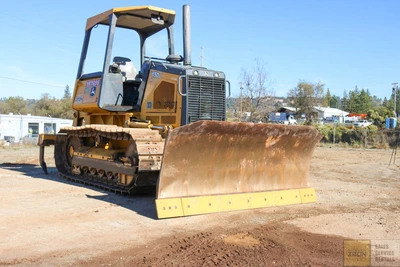

Standard Blade
WIDTH: 8.8 ft in 2667 mm
HEIGHT: 36.7 in 933 mm
CAPACITY: 2.6 yd3 2 m3
BLADE ANGLE (BOTH DIRECTIONS): 22.2 degrees
CUTTING DEPTH: 19.7 in 500 mm
Dimensions
LENGTH W/ BLADE: 14 ft in 4254 mm
WIDTH OVER TRACKS: 6.6 ft in 2006 mm
HEIGHT TO TOP OF CAB: 9.1 ft in 2768 mm
LENGTH OF TRACK ON GROUND: 7.7 ft in 2337 mm
GROUND CLEARANCE: 1.2 ft in 363 mm
