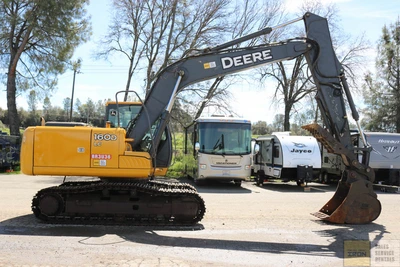

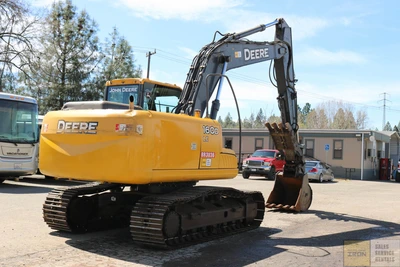

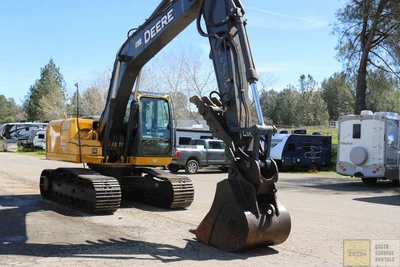

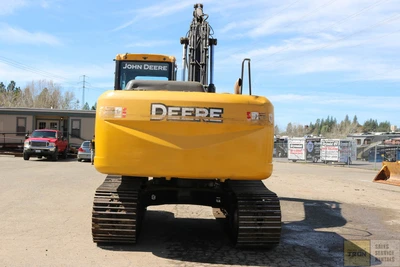

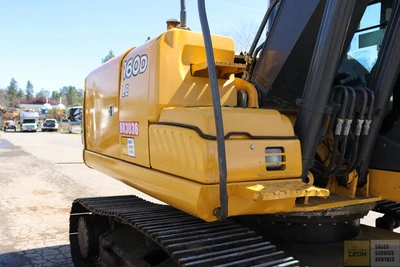

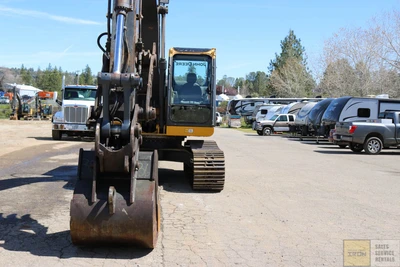

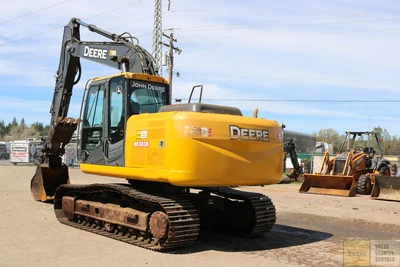

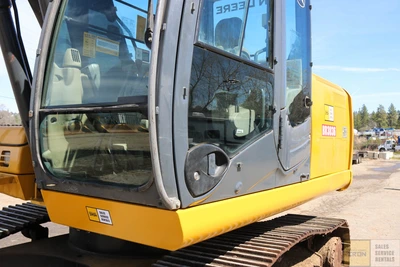

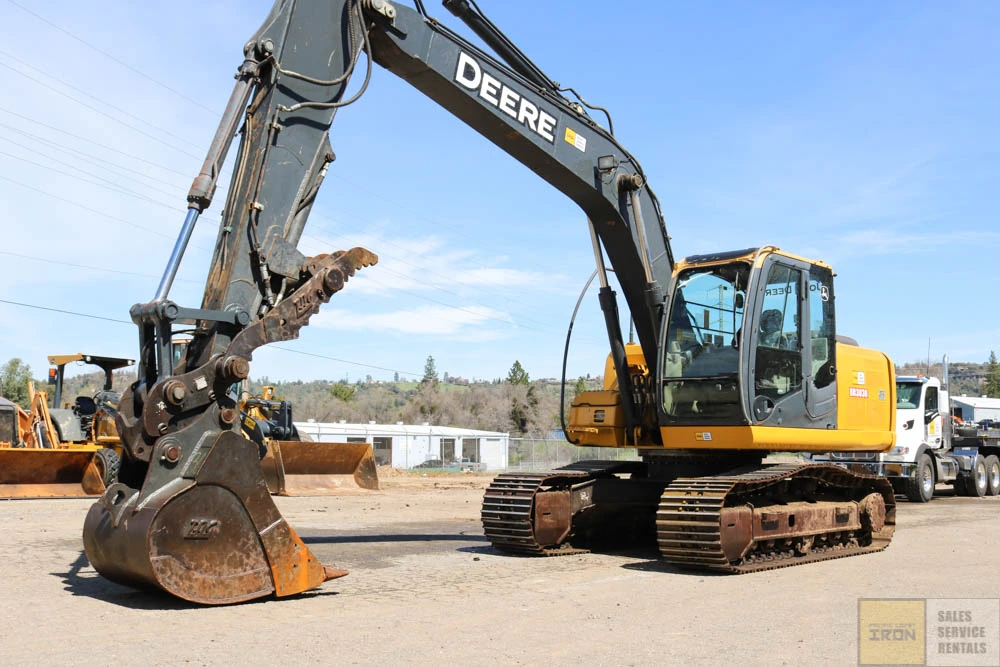

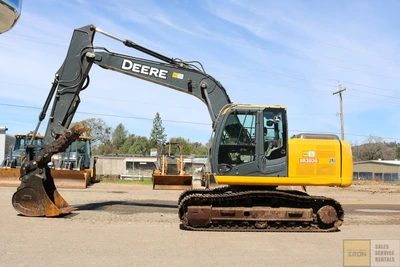

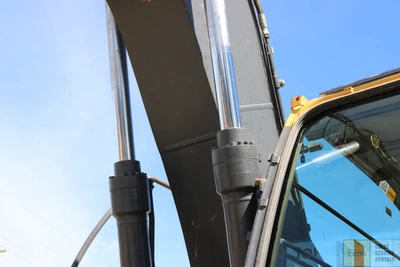

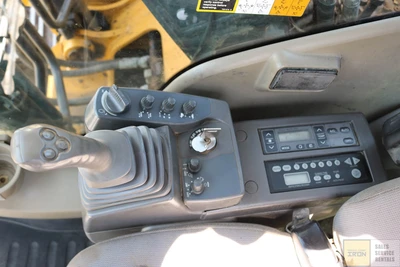

USED 2012 JOHN DEERE 160D

[Boom/Stick Option Boom/Stick Option (HEX) 1Boom/Stick Option (HEX) 2]
A. Shipping Length of Unit: 28.1 ft in
C. Shipping Height of Unit: 9.4 ft in
I. Max Cutting Height: 29.1 ft in
J. Max Loading Height: 20.2 ft in
K. Max Reach Along Ground: 28.5 ft in
L. Max Vertical Wall Digging Depth: 16.9 ft in
M. Max Digging Depth: 19.6 ft in
[Dimensions]
B. Width to Outside of Tracks: 8.5 ft in
D. Length of Track on Ground: 10.2 ft in
E. Ground Clearance: 1.5 ft in

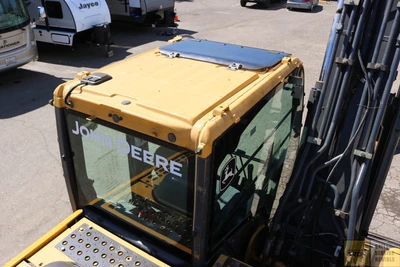

G. Height to Top of Cab: 9.7 ft in
H. Tail Swing Radius: 8.2 ft in
O. Counterweight Clearance: 3.3 ft in

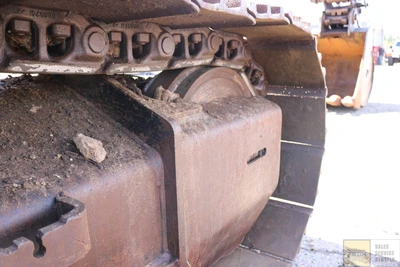

[Undercarriage]
F. Track Gauge: 8.5 ft in
N. Shoe Size: 23.6 in

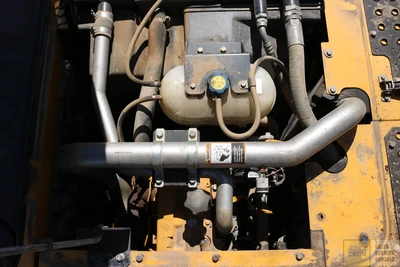

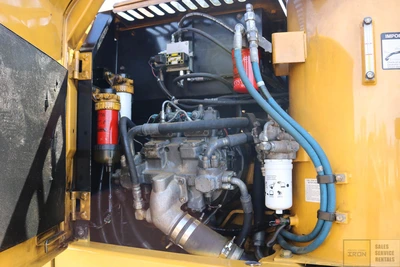

[Engine]
Make: John Deere
Model: 4045H
Net Power: 121 hp
Power Measured @: 2200 rpm
Displacement: 276 cu in
Aspiration: Turbocharged, air-to-air charge air cooler
Number of Cylinders: 4
[Operational]
Operating Weight: 39508 lb
Fuel Capacity: 84.5 gal
Cooling System Fluid Capacity: 5.8 gal
Hydrauilc System Fluid Capacity: 52 gal
Engine Oil Capacity: 4 gal
Swing Drive Fluid Capacity: 1.5 gal
Operating Voltage: 24 V
Alternator Supplied Amperage: 80 amps
Hydraulic System Relief Valve Pressure: 4980 psi
Hydraulic Pump Flow Capacity: 100.9 gal/min
[Swing Mechanism]
Swing Speed: 13.3 rpm
Swing Torque: 32353 lb ft

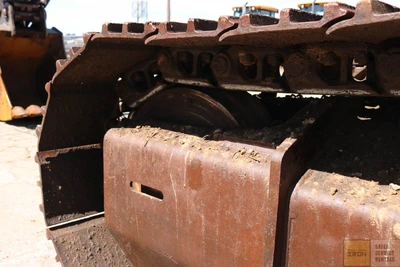

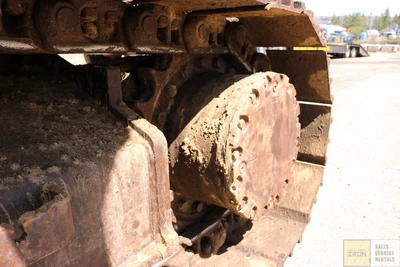

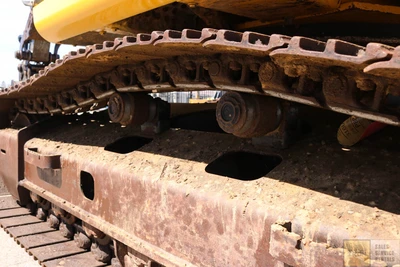

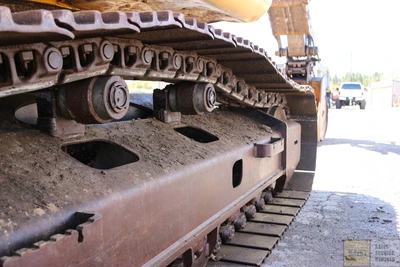

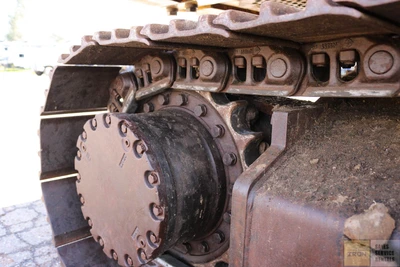

[Undercarriage]
Number of Shoes per Side: 43
Shoe Size: 23.6 in
Number of Carrier Rollers per Side: 2
Number of Track Rollers per Side: 7
Ground Pressure: 6.2 psi
Max Travel Speed: 3.3 mph
Drawbar Pull: 38030 lb
Track Gauge: 8.5 ft in

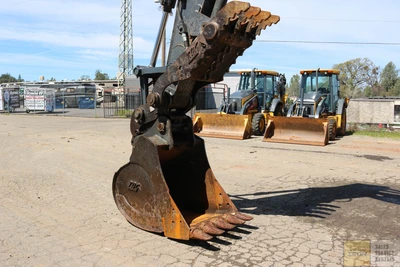

[Buckets]
Reference Bucket Capacity: 0.81 yd3
Minimum Bucket Capacity: 0.54 yd3
Maximum Bucket Capacity: 1.1 yd3
[Boom/Stick Option (HEX) 1]
Boom/Stick Option (HEX) 1: 8’6″ (2600mm) stick
Shipping Height of Unit: 9.4 ft in
Shipping Length of Unit: 28.1 ft in
Max Digging Depth: 19.6 ft in
Max Reach Along Ground: 28.5 ft in
Max Cutting Height: 29.1 ft in
Max Loading Height: 20.2 ft in
Max Vertical Wall Digging Depth: 16.9 ft in
[Boom/Stick Option (HEX) 2]
Boom/Stick Option (HEX) 2: 10’2″ (3010mm) stick
Shipping Height of Unit: 10.2 ft in
Shipping Length of Unit: 28.1 ft in
Max Digging Depth: 21.3 ft in
Max Reach Along Ground: 30.1 ft in
Max Cutting Height: 30 ft in
Max Loading Height: 21 ft in
Max Vertical Wall Digging Depth: 18.7 ft in
[Dimensions]
Width to Outside of Tracks: 8.5 ft in
Height to Top of Cab: 9.7 ft in
Ground Clearance: 1.5 ft in
Counterweight Clearance: 3.3 ft in
Tail Swing Radius: 8.2 ft in
Length of Track on Ground: 10.2 ft in
