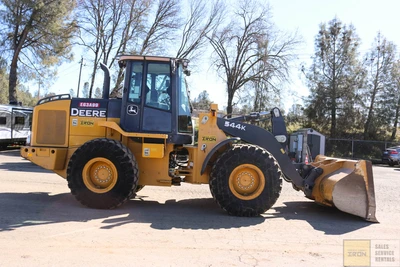

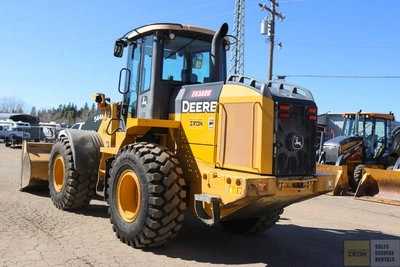

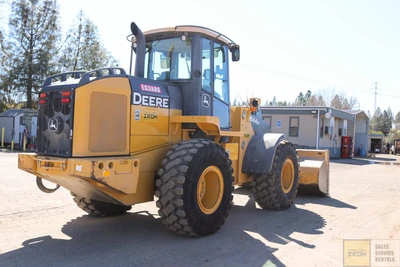

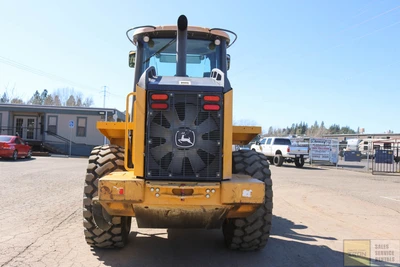

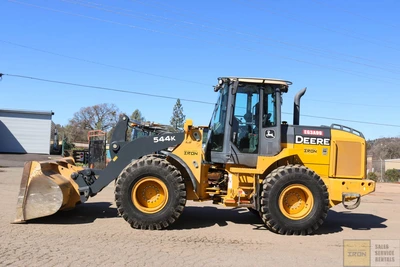

USED 2013 JOHN DEERE 544K

[Bucket]
G. Dump Clearance at Max Raise: 10.2 ft in
[Dimensions]
A. Length with Bucket on Ground: 25.4 ft in
B. Width Over Tires: 8.4 ft in
C. Height to Top of Cab: 10.6 ft in
D. Wheelbase: 9.6 ft in
E. Ground Clearance: 1.3 ft in
F. Hinge Pin – Max Height: 13.7 ft in
H. Reach at Max Lift and Dump: 3.2 ft in
[Engine]
Make: John Deere
Model: E 6068H, Tier III certified
Net Power: 167 hp
Power Measured @: 1900 rpm
Displacement: 414 cu in
Torque Measured @: 1600 rpm
Number of Cylinders: 6
Max Torque: 496 lb ft
Torque Rise: 38 %
Aspiration: Turbocharged charge air cooled
[Operational]
Operating Weight: 28463.9 lb
Fuel Capacity: 85.9 gal
Hydrauilc System Fluid Capacity: 24 gal
Engine Oil Fluid Capacity: 5 gal
Cooling System Fluid Capacity: 6.1 gal
Transmission Fluid Capacity: 4.9 gal
Front Axle/Diff Fluid Capacity: 4.5 gal
Rear Axle/Diff Fluid Capacity: 4.5 gal
Static Tipping Weight: 20480.9 lb
Turning Radius: 16.4 ft in
Operating Voltage: 24 V
Alternator Supplied Amperage: 80 amps
Rear Axle Oscillation: 24 degrees

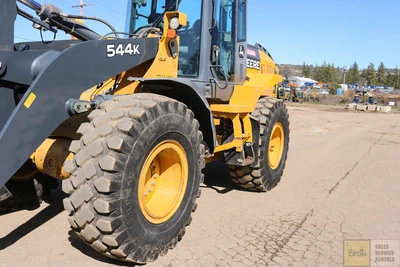

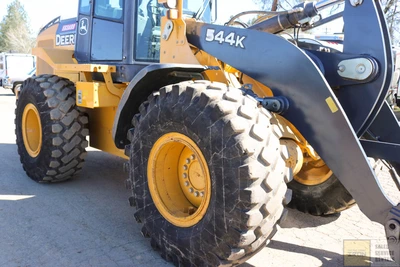

Tire Size: 20.5 R 25
[Transmission]
Type: Countershaft, powershift
Number of Forward Gears: 4
Number of Reverse Gears: 3
Max Speed – Forward: 22.2 mph
Max Speed – Reverse: 15 mph

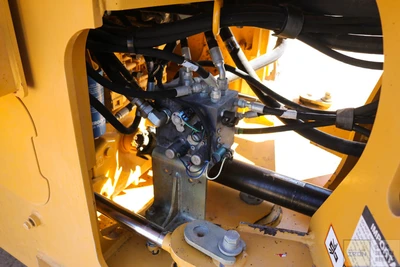

[Hydraulic System]
Pump Type: variable displacement, axial piston
Relief Valve Pressure: 3650 psi
Pump Flow Capacity: 49.9 gal/min
Raise Time: 5.8 sec
Dump Time: 1.2 sec
Lower Time: 3.2 sec

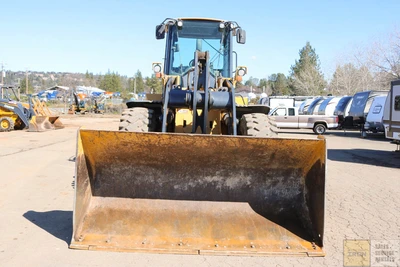

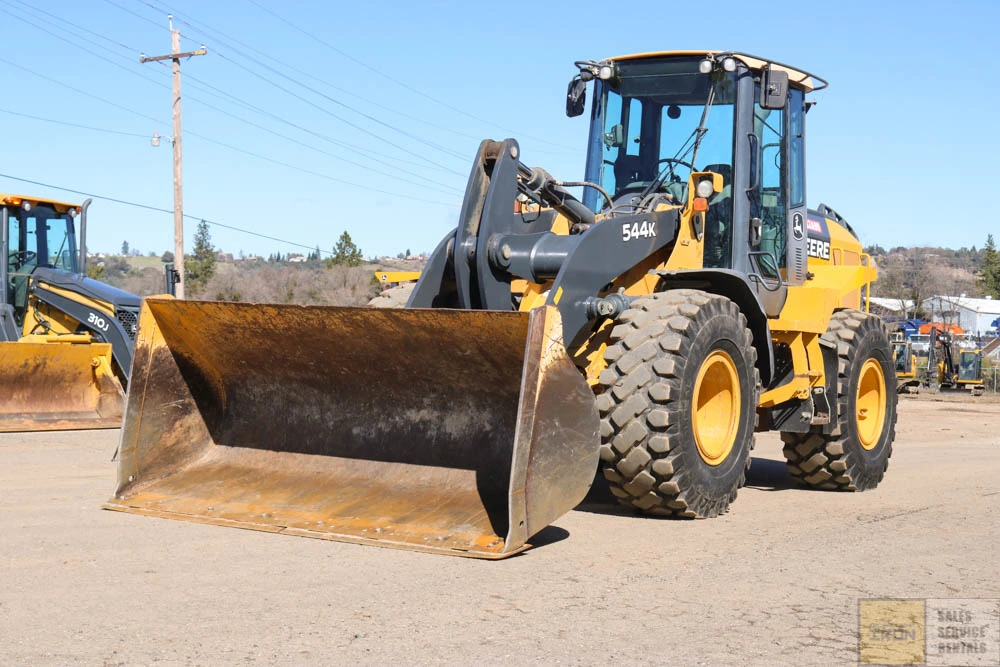

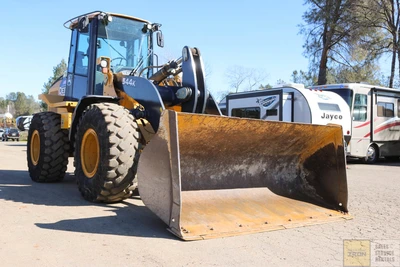

[Bucket]
Breakout Force: 20940 lb
Dump Clearance at Max Raise: 10.2 ft in
Bucket Width: 8.3 ft in
Bucket Capacity – heaped: 3 yd3
Bucket Capacity – struck: 2.6 yd3
[Dimensions]
Length with Bucket on Ground: 25.4 ft in
Width Over Tires: 8.4 ft in
Height to Top of Cab: 10.6 ft in
Ground Clearance: 1.3 ft in
Wheelbase: 9.6 ft in
Hinge Pin – Max Height: 13.7 ft in
Reach at Max Lift and Dump: 3.2 ft in
