USED 2013 JOHN DEERE 650K

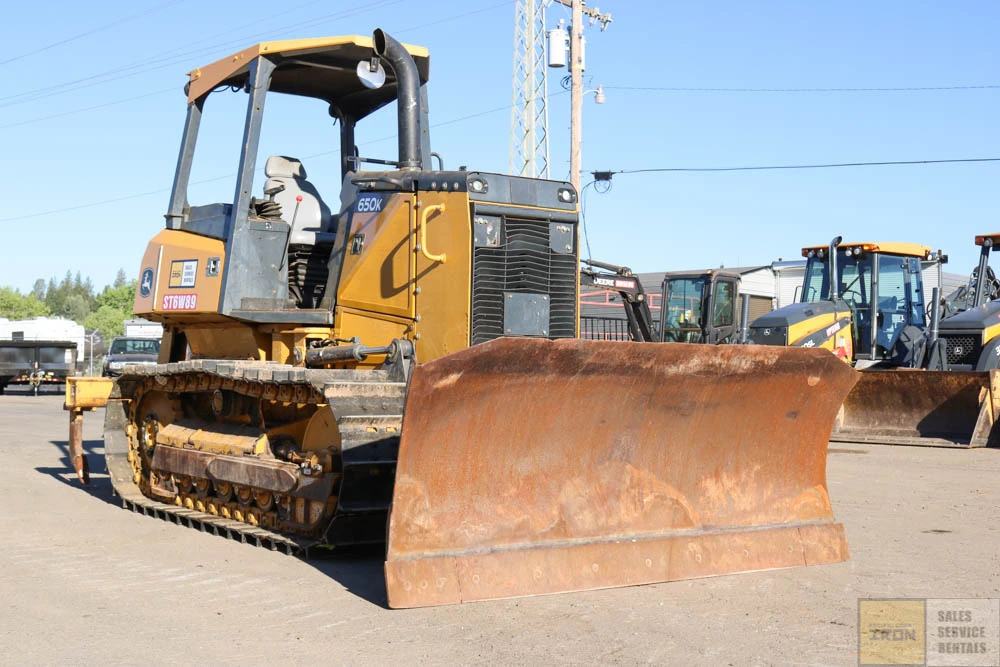

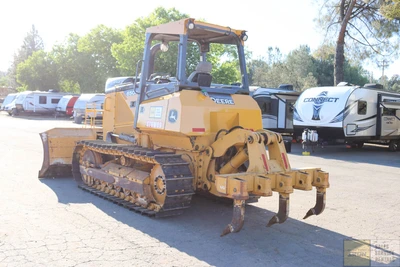

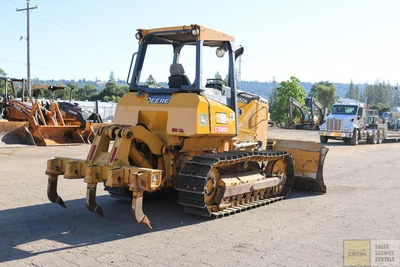

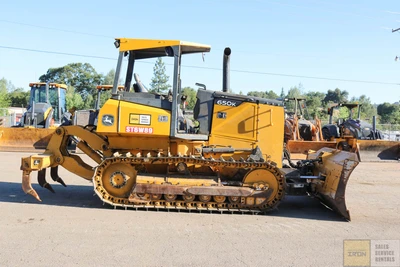

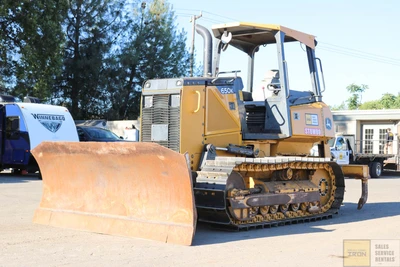

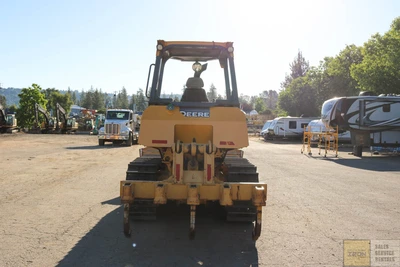

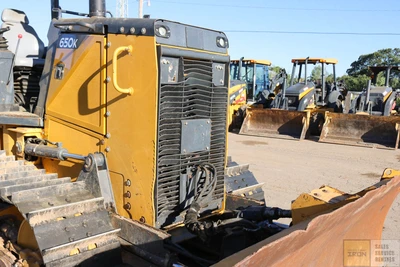

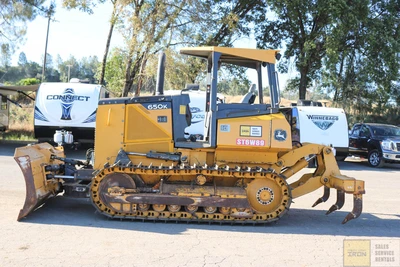

: John Deere 650K Crawler Dozer
[DRIVELINE]

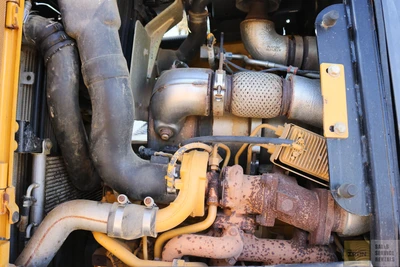

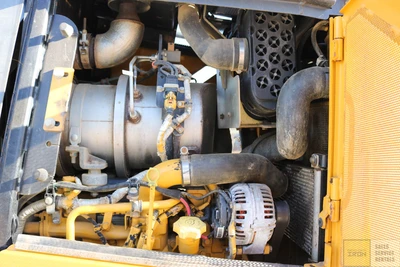

Engine Manufacturer: John Deere
Engine Model: PowerTech PWS 4045
Displacement, ltr (Inches�): 4.5 (276)
Rated Speed, rpm: 2200
Engine Output – Net, kW (hp): 78 (104)
Transmission Type: Hydrostatic
Speeds Mode 1 – Forward: 1
Speeds Mode 1 – Reverse: 1

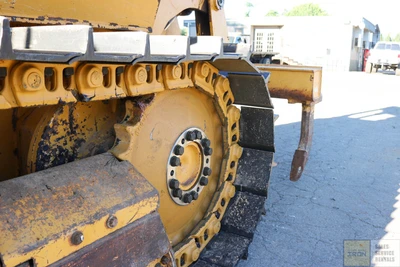

Final Drive: Triple Reduction – Planetary

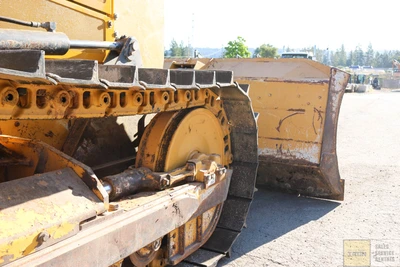

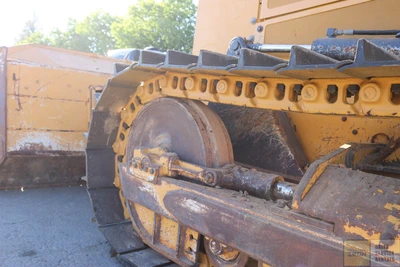

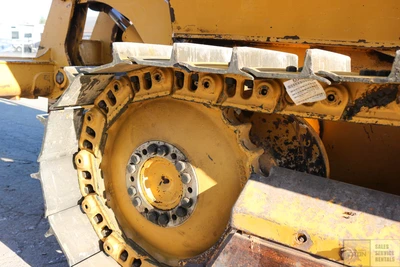

Track Rollers: 7
Shoe – Pitch, mm (inches): 171 (6.7)
Shoe – Type: Single Grouser – Moderate Service
Ground Contact Area, cm� (Inches�): 33412 (5179)
Number Of Shoes: 40
[DIMENSIONS]
Height – Max, mm (ft/in): 2762 (9 ft 1 in)
Ground Clearance, mm (inches): 341 (13.5)
Track Length – On Ground, mm (ft/in): 2349 (7 ft 8 in)
Length – PAT Blade Straight, mm (ft/in): 4255 (14 ft )
Track Gauge, mm (ft/in): 1750 (5 ft 9 in)

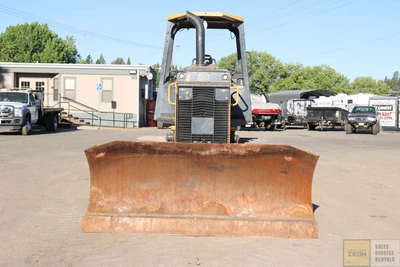

Blade – Width, mm (ft/in): 2921 (9 ft 7 in)
Blade – Dig Depth, mm (inches): 500 (19.7)
Blade – Tilt, mm (ft/in): 399 (1 ft 4 in)
Steering – Differential: No
[CAPACITIES]
Fuel Tank, ltr (gallons (US)): 202 (53.45)
Hydraulic Tank, ltr (gallons (US)): 100 (26.42)
Blade – Capacity, m� (yd�): 2 (2.6)
[PERFORMANCE]
Speed – Forward Maximum, kph (mph): 8 (5)
Speed – Reverse Maximum, kph (mph): 8 (5)
Ground Bearing Pressure, kPa (PSI): 29.6 (4.3)

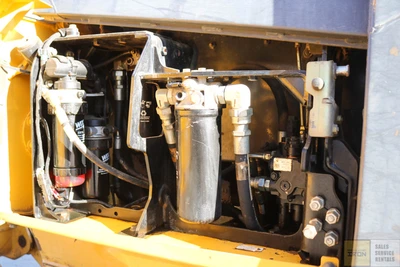

Implement Pump – Type: Gear
Implement Pump – Flow, lt/min (gallons (US) / min): 80 (21)
Implement Pump – Pressure, bar (PSI): 206.84 (3000)
[WEIGHTS]
Operating Weight, kg (lbs): 10156 (22343)
