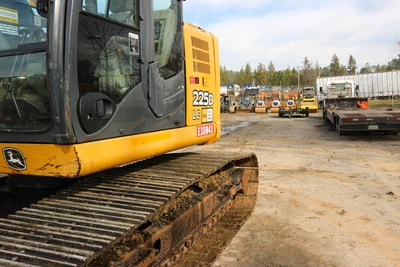

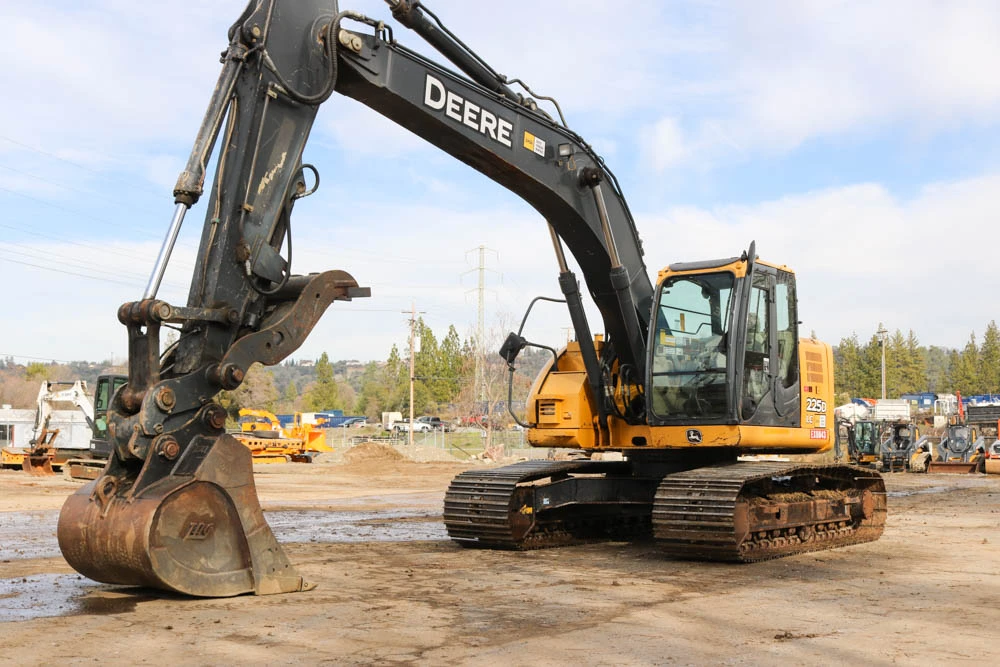

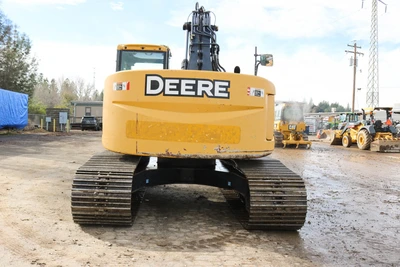

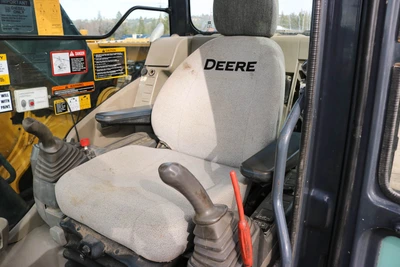

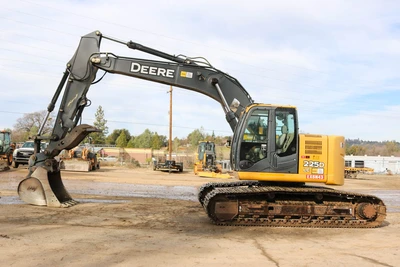

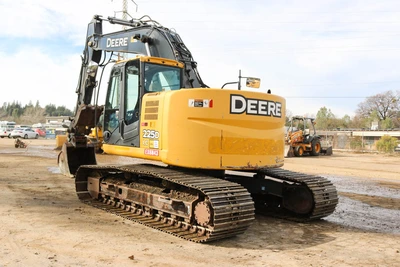

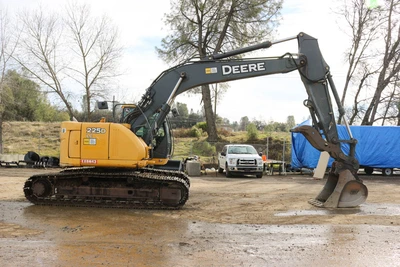

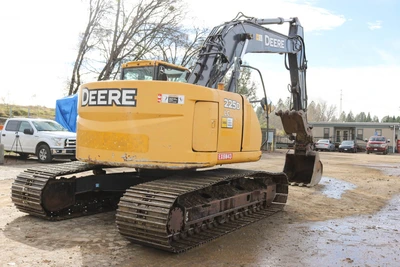

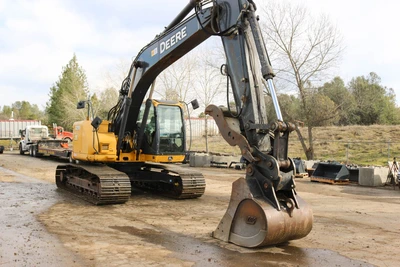

USED 2012 JOHN DEERE 225D

A. Shipping Length of Unit: 32 ft in
C. Shipping Height of Unit: 10.5 ft in
I. Max Cutting Height: 34.7 ft in
J. Max Loading Height: 25.1 ft in
K. Max Reach Along Ground: 30.6 ft in
L. Max Vertical Wall Digging Depth: 17.2 ft in
M. Max Digging Depth: 20.4 ft in
A. Shipping Length of Unit: 31.6 ft in
C. Shipping Height of Unit: 9.8 ft in
I. Max Cutting Height: 36 ft in
J. Max Loading Height: 26.4 ft in
K. Max Reach Along Ground: 32.3 ft in
L. Max Vertical Wall Digging Depth: 19.4 ft in
M. Max Digging Depth: 22 ft in
[Dimensions]
B. Width to Outside of Tracks: 10.5 ft in
D. Length of Track on Ground: 12 ft in
E. Ground Clearance: 1.5 ft in
G. Height to Top of Cab: 9.8 ft in
H. Tail Swing Radius: 5.5 ft in
O. Counterweight Clearance: 3.2 ft in
[Undercarriage]
F. Track Gauge: 9.2 ft in
N. Shoe Size: 32 in

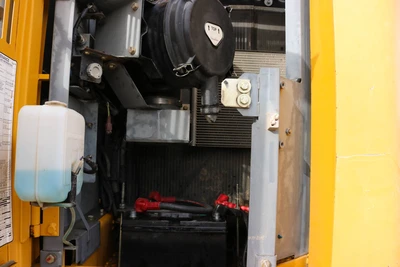

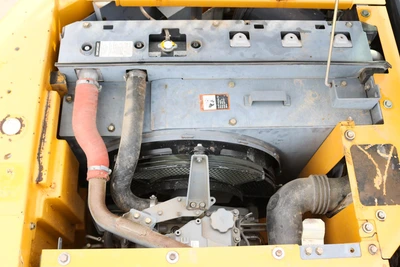

[Engine]
Make: Isuzu
Model: AI-4HK1XYSA-02
Net Power: 159 hp
Power Measured @: 2000 rpm
Displacement: 325 cu in
Aspiration: Turbocharged and intercooled
Number of Cylinders: 4
[Operational]
Operating Weight: 53936 lb
Fuel Capacity: 84.5 gal
Cooling System Fluid Capacity: 6.9 gal
Hydrauilc System Fluid Capacity: 60.8 gal
Engine Oil Capacity: 6.1 gal
Swing Drive Fluid Capacity: 1.8 gal
Operating Voltage: 24 V
Alternator Supplied Amperage: 50 amps
Hydraulic System Relief Valve Pressure: 4980 psi
Hydraulic Pump Flow Capacity: 112 gal/min
[Swing Mechanism]
Swing Speed: 13.3 rpm
Swing Torque: 50662 lb ft

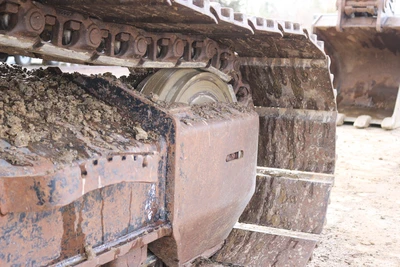

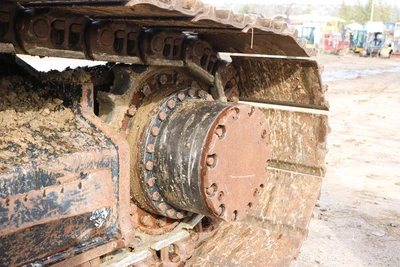

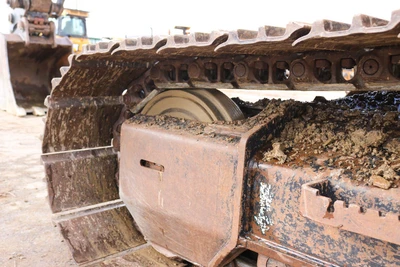

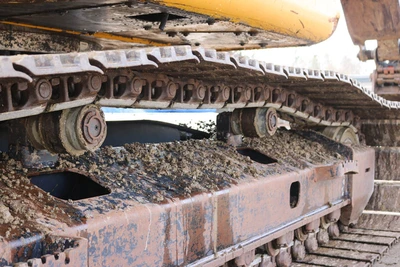

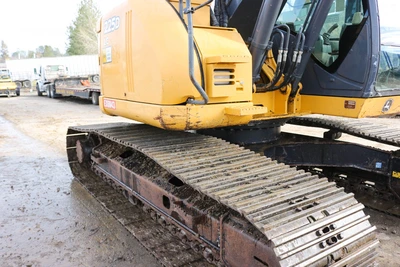

[Undercarriage]
Number of Shoes per Side: 49
Shoe Size: 32 in
Number of Carrier Rollers per Side: 2
Number of Track Rollers per Side: 8
Ground Pressure: 5.5 psi
Max Travel Speed: 3.4 mph
Drawbar Pull: 45636 lb
Track Gauge: 9.2 ft in

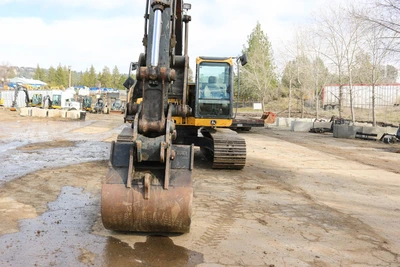

[Buckets]
Reference Bucket Capacity: 1.1 yd3
Minimum Bucket Capacity: 0.78 yd3
Maximum Bucket Capacity: 1.4 yd3

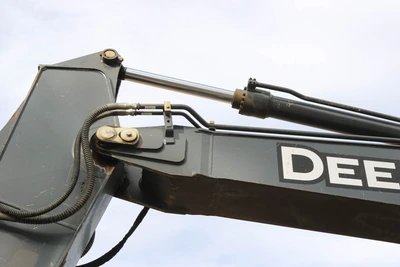

[Boom/Stick Option (HEX) 1]
Boom/Stick Option (HEX) 1: Arm Length 7ft. 11in. 2.42m
Shipping Height of Unit: 10.5 ft in
Shipping Length of Unit: 32 ft in
Max Digging Depth: 20.4 ft in
Max Reach Along Ground: 30.6 ft in
Max Cutting Height: 34.7 ft in
Max Loading Height: 25.1 ft in
Max Vertical Wall Digging Depth: 17.2 ft in
[Boom/Stick Option (HEX) 2]
Boom/Stick Option (HEX) 2: Arm Length 9ft.7in. 2.91m
Shipping Height of Unit: 9.8 ft in
Shipping Length of Unit: 31.6 ft in
Max Digging Depth: 22 ft in
Max Reach Along Ground: 32.3 ft in
Max Cutting Height: 36 ft in
Max Loading Height: 26.4 ft in
Max Vertical Wall Digging Depth: 19.4 ft in
[Dimensions]
Width to Outside of Tracks: 10.5 ft in
Height to Top of Cab: 9.8 ft in
Ground Clearance: 1.5 ft in
Counterweight Clearance: 3.2 ft in
Tail Swing Radius: 5.5 ft in
Length of Track on Ground: 12 ft in
