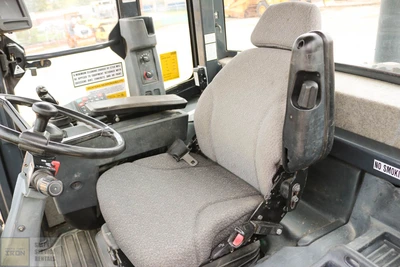

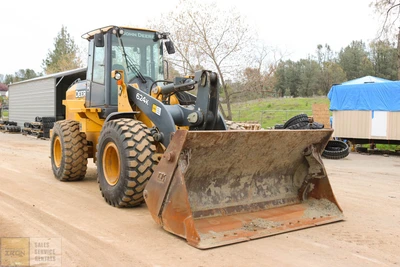

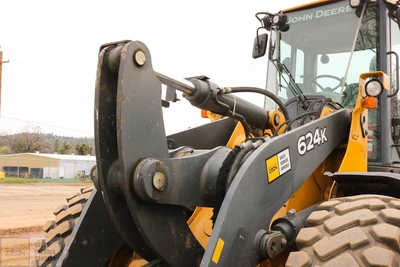

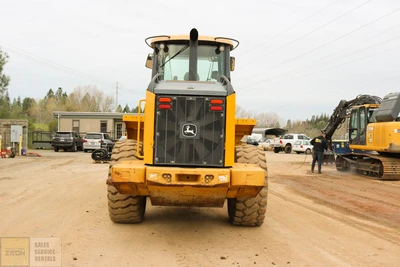

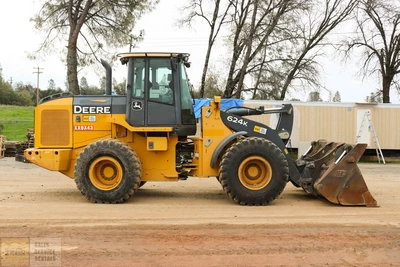

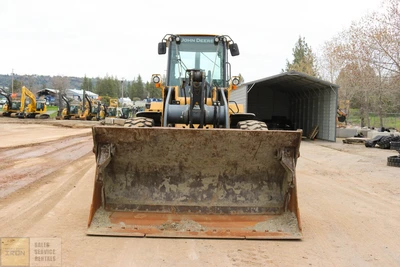

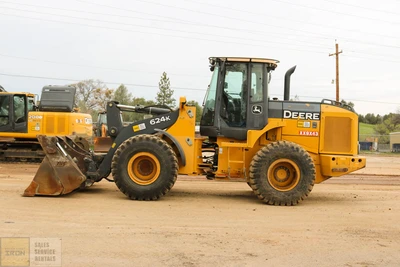

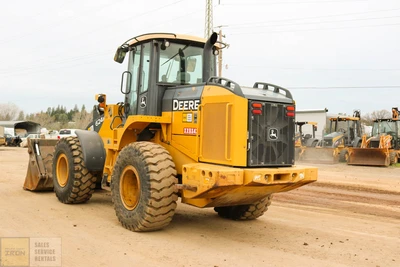

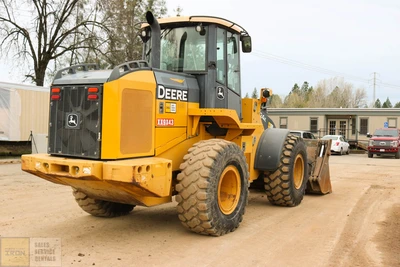

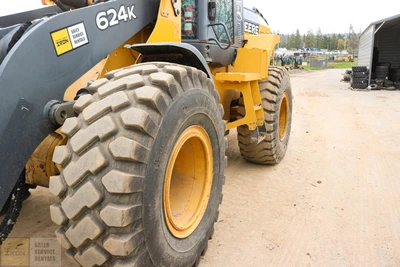

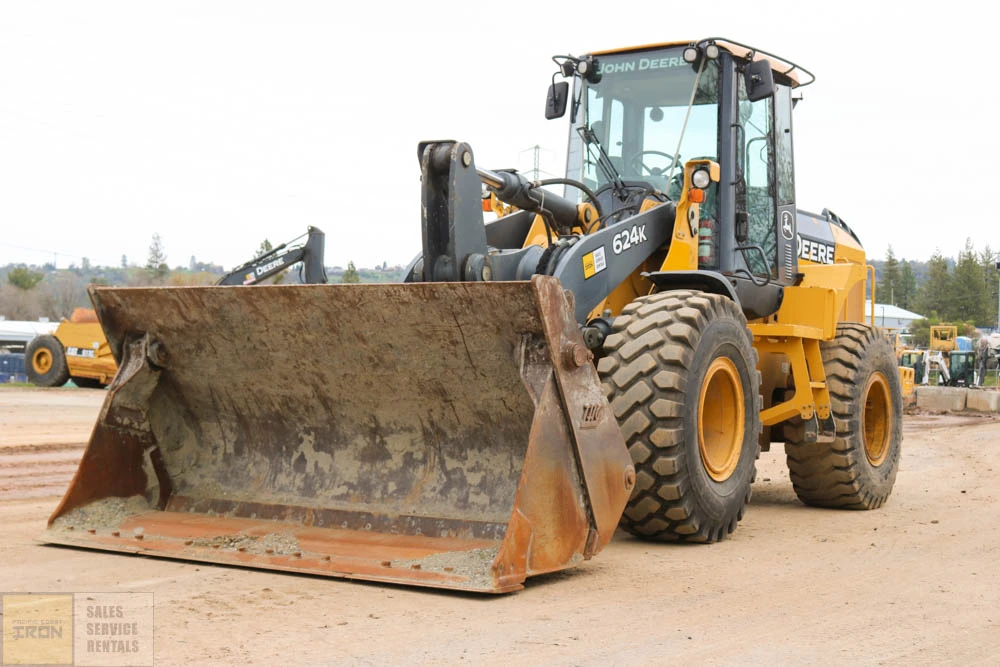

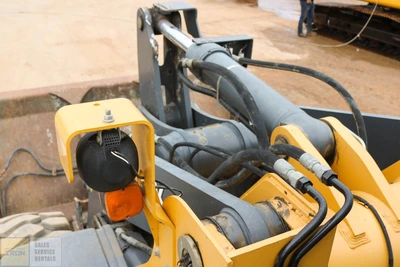

USED 2013 JOHN DEERE 624K

Bucket
G Dump Clearance at Max Raise: 10.6 ft in
Dimensions
A Length with Bucket on Ground: 26.81 ft in
B Width Over Tires: 8.72 ft in
C Height to Top of Cab: 10.9 ft in
D Wheelbase: 10.14 ft in
E Ground Clearance: 1.26 ft in
F Hinge Pin – Max Height: 14.11 ft in
H Reach at Max Lift and Dump: 3.65 ft in

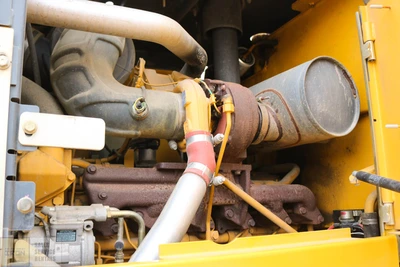

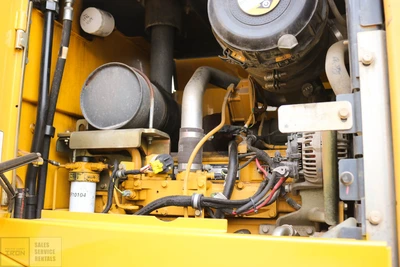

Engine
Number of Cylinders: 6
Engine Make: 2240
Engine Model: 6068H, Tier III certified
Net Power: 198 hp
Power Measured @: 1800 rpm
Displacement: 414 cu in
Torque Measured @: 1600 rpm
Max Torque: 617
Torque Rise: 55 %
Aspiration: Turbocharged charge air cooled
Operational
Operating Weight: 33772.7 lb
Fuel Capacity: 93 gal
Hydraulic System Fluid Capacity: 29.1 gal
Engine Oil Fluid Capacity: 5.1 gal
Cooling System Fluid Capacity: 7.2 gal
Transmission Fluid Capacity: 5.6 gal
Front Axle/Diff Fluid Capacity: 5.9 gal
Rear Axle/Diff Fluid Capacity: 4.5 gal
Static Tipping Weight: 25483.3 lb
Turning Radius: 17.3 ft in
Operating Voltage: 24 V
Alternator Supplied Amperage: 80 amps
Rear Axle Oscillation: 24 degrees

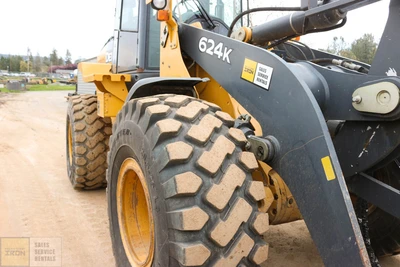

Tire Size: 20.5 R 25
Transmission
Transmission Type: Countershaft, powershift
Number of Forward Gears: 4
Number of Reverse Gears: 3
Max Speed – Forward: 24.6 mph
Max Speed – Reverse: 16 mph

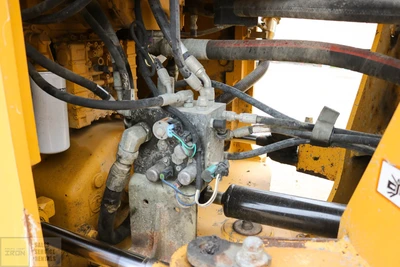

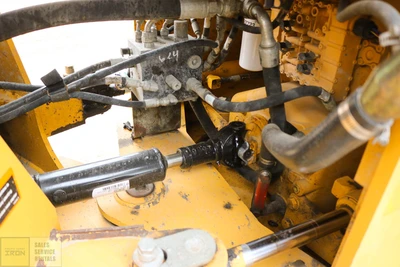

Hydraulic System
Pump Type: variable displacement, axial piston
Relief Valve Setting: 3675
Pump Flow Capacity: 59 gal/min
Raise Time: 5.9 sec
Dump Time: 1.3 sec
Lower Time: 2.7 sec

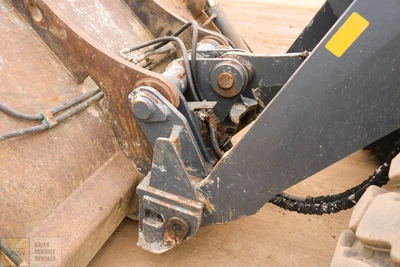

Bucket
Breakout Force: 25884 lb
Dump Clearance at Max Raise: 10.6 ft in
Bucket Width: 8.9 ft in
Bucket Capacity – heaped: 3.6 yd3
Bucket Capacity – struck: 3.1 yd3
Dimensions
Length with Bucket on Ground: 26.9 ft in
Width Over Tires: 8.8 ft in
Height to Top of Cab: 10.9 ft in
Ground Clearance: 1.3 ft in
Wheelbase: 10.2 ft in
Hinge Pin – Max Height: 14.2 ft in
Reach at Max Lift and Dump: 3.7 ft in
