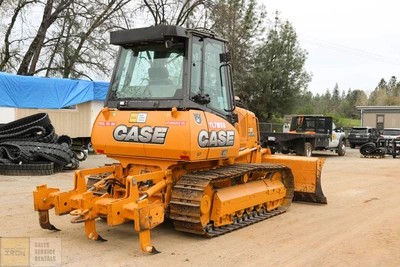

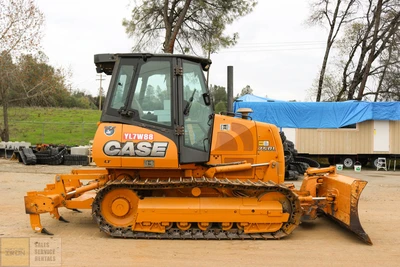

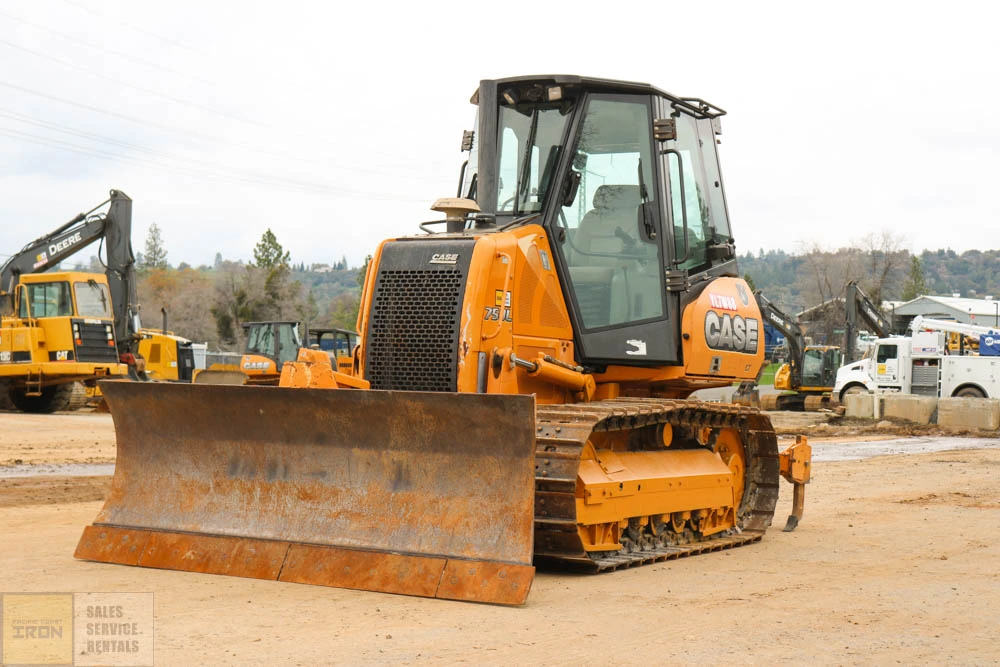

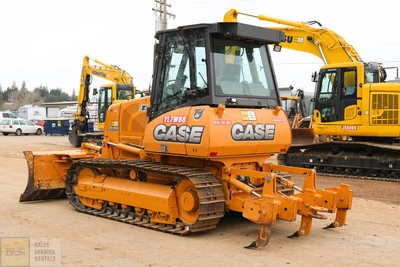

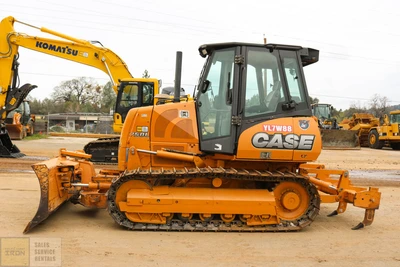

USED 2012 CASE 750L

[Dimensions]
A. Length w/ Blade: 14.2 ft in
B. Width Over Tracks: 6.7 ft in
C. Height to Top of Cab: 9.1 ft in
D. Length of Track on Ground: 7.4 ft in
E. Ground Clearance: 1.2 ft in
[Undercarriage]
G. Track Gauge: 5.2 ft in
H. Standard Shoe Size: 18 in

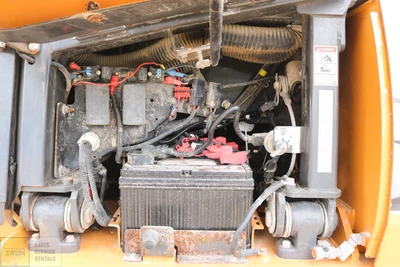

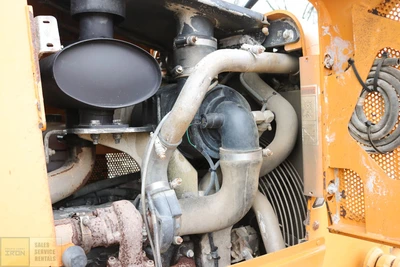

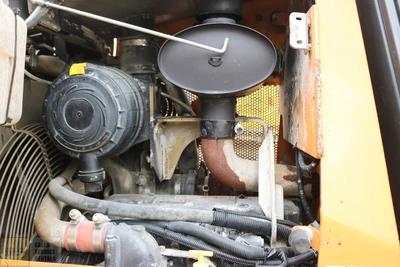

[Engine]
Make: Case
Model: Family IV, 445TA/E66 Tier III
Gross Power: 90 hp
Net Power: 84 hp
Power Measured @: 2000 rpm
Max Torque: 288 lb ft
Displacement: 274.6 cu in
Torque Measured @: 1400 rpm
Number of Cylinders: 4
[Operational]
Operating Weight: 18891.4 lb
Fuel Capacity: 50 gal
Cooling System Fluid Capacity: 5.9 gal
Engine Oil Capacity: 3 gal
Hydraulic Fluid Capacity: 20 gal
Final Drives Fluid Capacity: 3.8 gal
Operating Voltage: 12 V
Alternator Supplied Amperage: 90 amps
[Transmission]
Type: hydrostatic
Number of Forward Gears: 4
Number of Reverse Gears: 4
Max Speed – Forward: 6 mph
Max Speed – Reverse: 6 mph

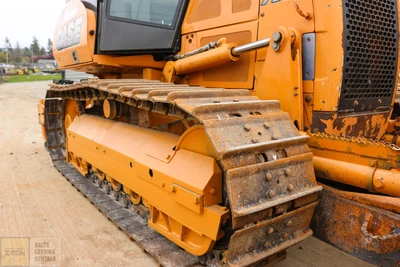

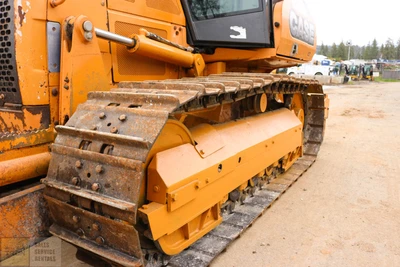

[Undercarriage]
Ground Pressure: 5.3 psi
Ground Contact Area: 3211 in2
Standard Shoe Size: 18 in
Number of Shoes per Side: 39
Number of Track Rollers per Side: 6
Number of Carrier Rollers per Side: 1
Track Pitch: 6.7 in
Track Gauge: 5.2 ft in

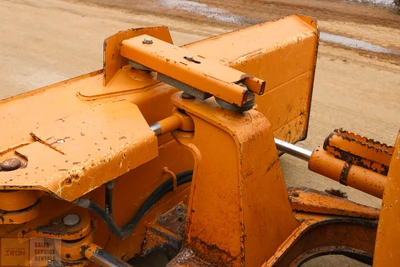

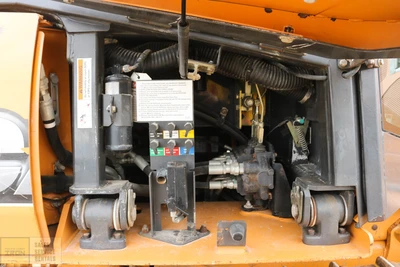

[Hydraulic System]
Relief Valve Pressure: 3000 psi
Pump Flow Capacity: 20.3 gal/min

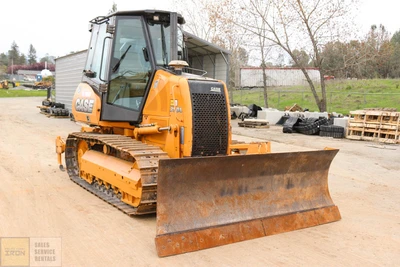

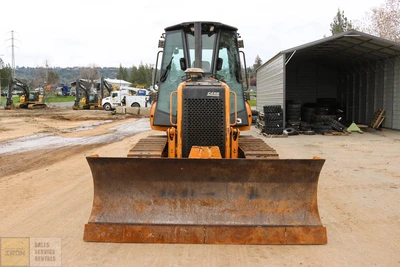

[Standard Blade]
Width: 8.7 ft in
Height: 36 in
Capacity: 2.2 yd3
Blade Angle (both directions): 25 degrees
Cutting Depth: 19 in
[Dimensions]
Length w/ Blade: 14.2 ft in
Width Over Tracks: 6.7 ft in
Height to Top of Cab: 9.1 ft in
Length of Track on Ground: 7.4 ft in
Ground Clearance: 1.2 ft in
