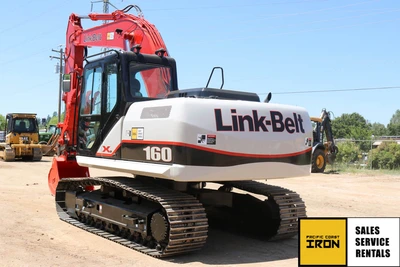

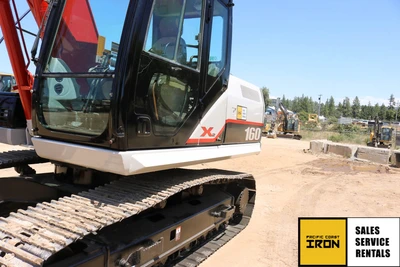

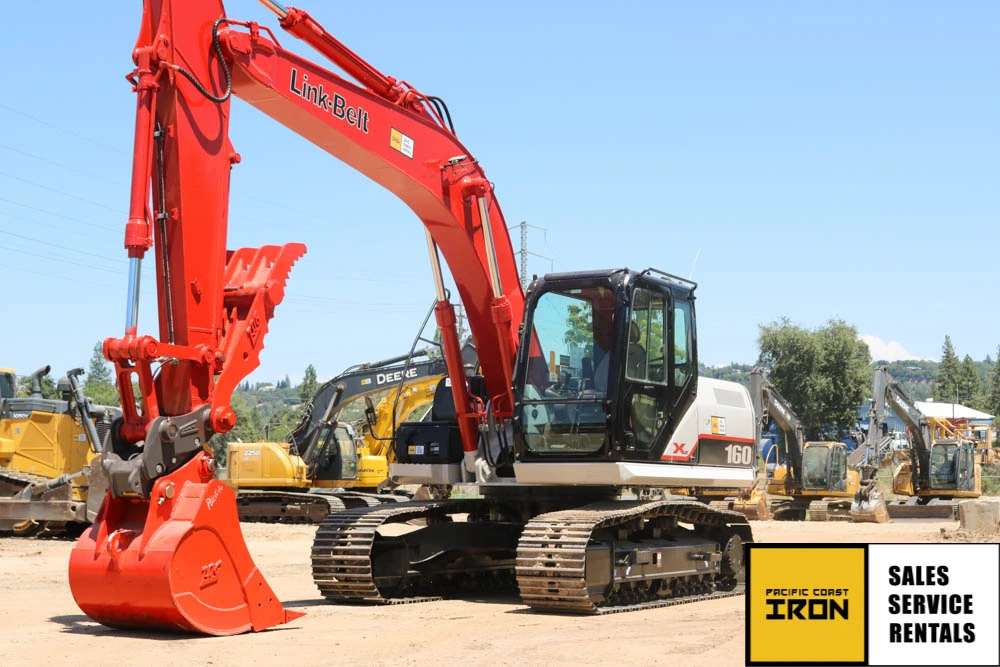

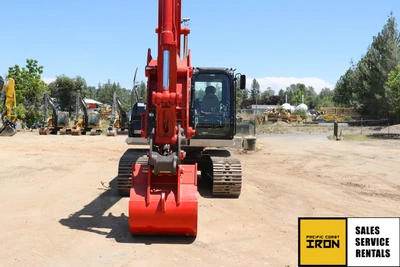

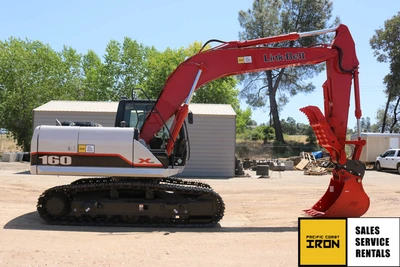

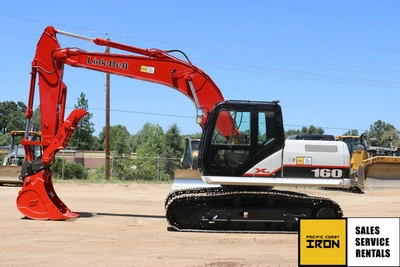

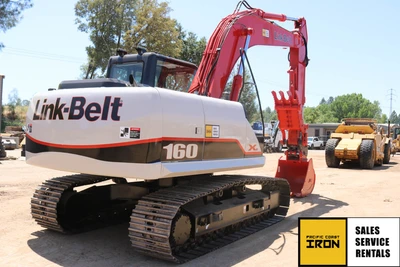

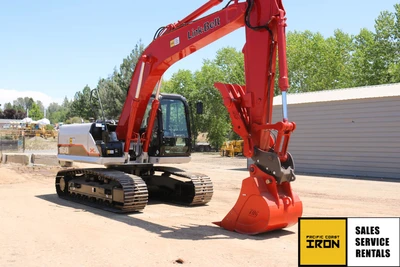

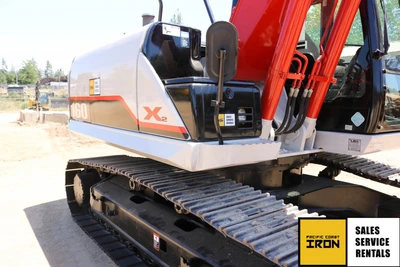

USED 2013 LINK-BELT 160X2

Boom/Stick Option (HEX) 1
A Shipping Length of Unit: 27.7ft in
C Shipping Height of Unit: 9.91ft in
I Max Cutting Height: 30.32ft in
J Max Loading Height: 21.69ft in
K Max Reach Along Ground: 29.11ft in
L Max Vertical Wall Digging Depth: 16.67ft in
M Max Digging Depth: 19.89ft in
Boom/Stick Option (HEX) 2
A Shipping Length of Unit: 27.96ft in
C Shipping Height of Unit: 10.27ft in
I Max Cutting Height: 30.48ft in
J Max Loading Height: 21.95ft in
K Max Reach Along Ground: 30.25ft in
L Max Vertical Wall Digging Depth: 17.13ft in
M Max Digging Depth: 21.3ft in
Dimensions
B Width to Outside of Tracks: 8.47ft in
D Length of Track on Ground: 10.47ft in
E Ground Clearance: 1.45ft in
G Height to Top of Cab: 9.91ft in
H Tail Swing Radius: 7.91ft in

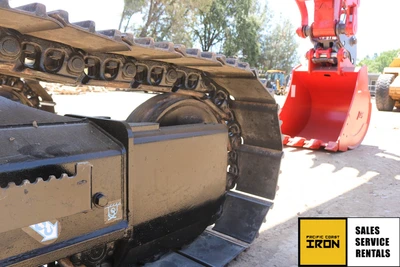

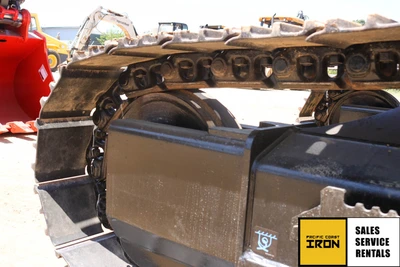

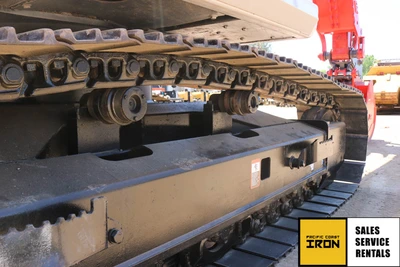

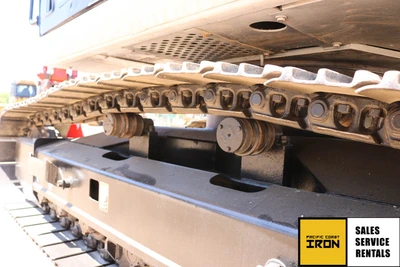

Undercarriage
F Track Gauge: 6.53ft in
N Shoe Size: 23.63in

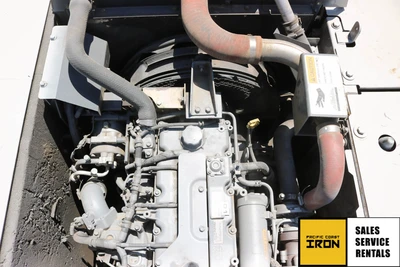

Engine
Number of Cylinders: 4
Engine Make: 2353
Engine Model: AI-4JJ1X
Net Power: 120hp
Power Measured @: 2200rpm
Displacement: 183.1cu in
Max Torque: 288lb ft
Torque Measured @: 1800rpm
Aspiration: Turbocharged
Operational
Operating Weight: 37700lb
Fuel Capacity: 79.3gal
Cooling System Fluid Capacity: 4gal
Hydraulic System Fluid Capacity: 43.6gal
Engine Oil Capacity: 4.5gal
Swing Drive Fluid Capacity: 1.4gal
Operating Voltage: 24V
Alternator Supplied Amperage: 50amps
Hydraulic System Relief Valve Pressure: 4970psi
Hydraulic Pump Flow Capacity: 75gal/min
Swing Mechanism
Swing Speed: 11.5rpm
Swing Torque: 33264lb ft
Undercarriage
Number of Shoes per Side: 44
Shoe Size: 23.7in
Number of Carrier Rollers per Side: 2
Number of Track Rollers per Side: 7
Ground Pressure: 5.8psi
Max Travel Speed: 3.4mph
Track Gauge: 6.6ft in

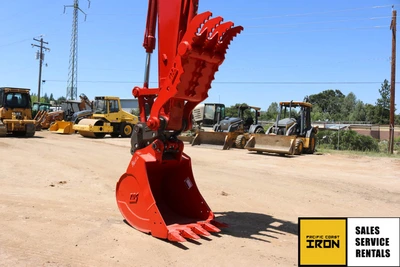

Buckets
Reference Bucket Capacity: 1yd3
Minimum Bucket Capacity: 0.5yd3
Maximum Bucket Capacity: 1.2yd3
Boom/Stick Option (HEX) 1
Boom/Stick Option (HEX) 1: Boom 16\’11\” (5150mm) / Stick 8\’7\” (2620mm)
Shipping Height of Unit: 10ft in
Shipping Length of Unit: 27.7ft in
Max Digging Depth: 19.9ft in
Max Reach Along Ground: 29.2ft in
Max Cutting Height: 30.4ft in
Max Loading Height: 21.7ft in
Max Vertical Wall Digging Depth: 16.7ft in
Boom/Stick Option (HEX) 2
Boom/Stick Option (HEX) 2: Boom 16\’11\” (5150mm) / Stick 10\’0\” (3050mm)
Shipping Height of Unit: 10.3ft in
Shipping Length of Unit: 28ft in
Max Digging Depth: 21.3ft in
Max Reach Along Ground: 30.3ft in
Max Cutting Height: 30.5ft in
Max Loading Height: 22ft in
Max Vertical Wall Digging Depth: 17.2ft in
Dimensions
Width to Outside of Tracks: 8.5ft in
Height to Top of Cab: 10ft in
Ground Clearance: 1.5ft in
Removal Counterweight Clearance: 3.4ft in
Tail Swing Radius: 8ft in
Length of Track on Ground: 10.5ft in
