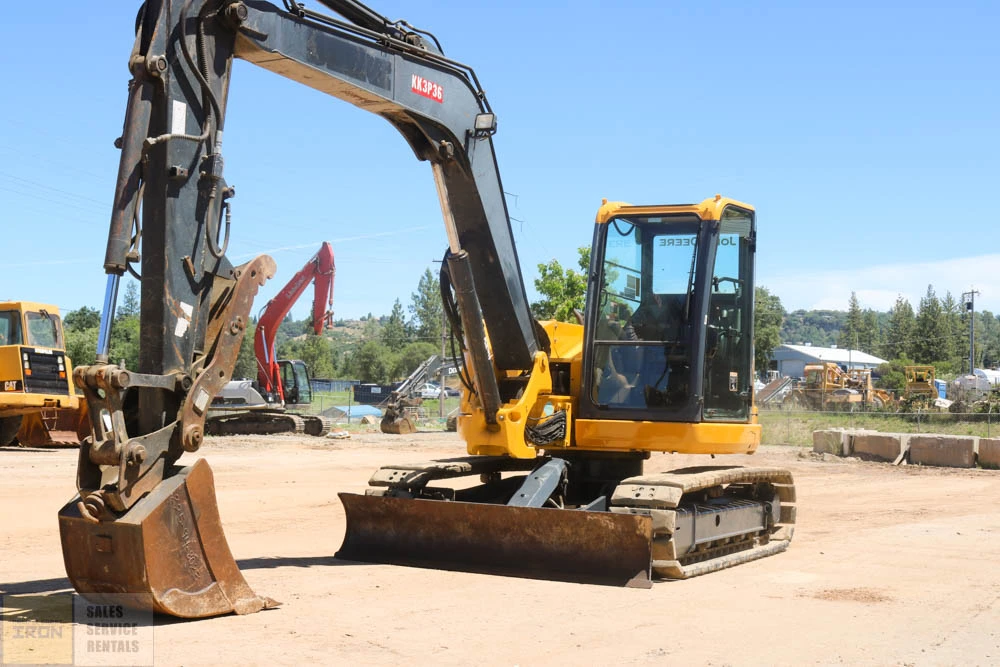

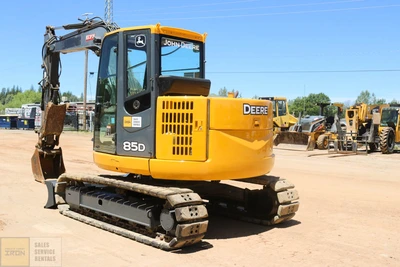

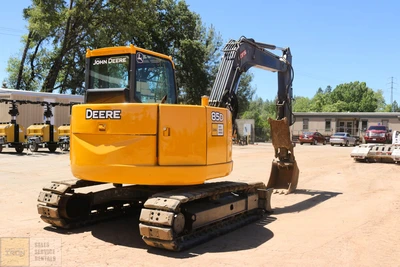

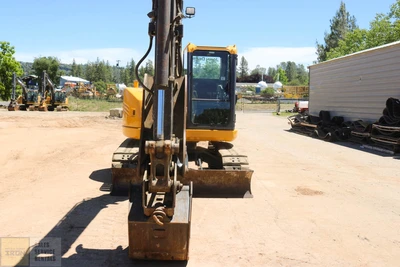

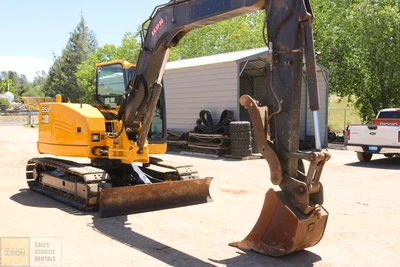

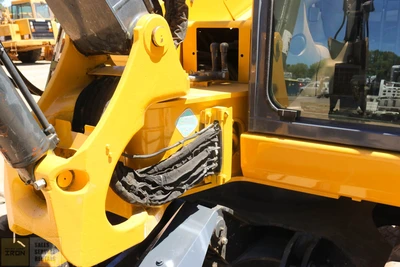

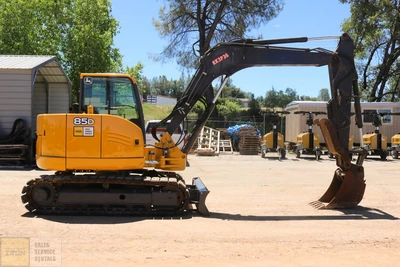

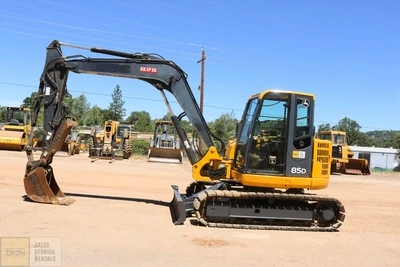

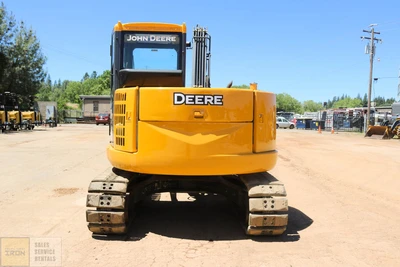

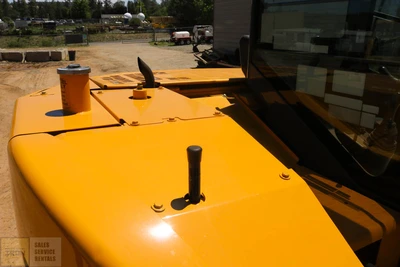

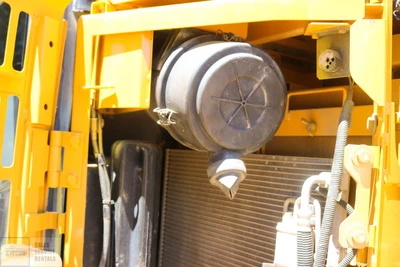

USED 2013 JOHN DEERE 85D

Boom/Stick Option (HEX) 1
A Shipping Length of Unit: 21.99ft in
C Shipping Height of Unit: 8.83ft in
I Max Cutting Height: 22.35ft in
J Max Loading Height: 15.72ft in
K Max Reach Along Ground: 23.13ft in
L Max Vertical Wall Digging Depth: 11.32ft in
M Max Digging Depth: 13.03ft in
Boom/Stick Option (HEX) 2
A Shipping Length of Unit: 22.35ft in
C Shipping Height of Unit: 8.83ft in
I Max Cutting Height: 23.56ft in
J Max Loading Height: 16.87ft in
K Max Reach Along Ground: 24.78ft in
L Max Vertical Wall Digging Depth: 13.23ft in
M Max Digging Depth: 14.67ft in
Dimensions
B Width to Outside of Tracks: 8.11ft in
D Length of Track on Ground: 7.52ft in
E Ground Clearance: 1.19ft in
G Height to Top of Cab: 8.83ft in
H Tail Swing Radius: 4.89ft in

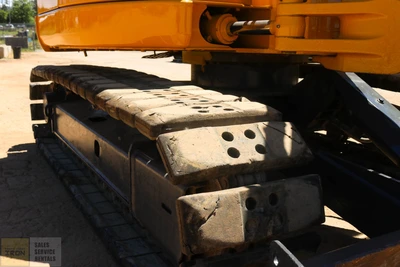

Undercarriage
F Track Gauge: 6.14ft in
N Shoe Size: 23.63in
Engine
Number of Cylinders: 4
Engine Make: 2353
Engine Model: 4LE2X, Tier IIII certified
Net Power: 54hp
Power Measured @: 2000rpm
Displacement: 133cu in
Aspiration: turbocharged, intercooler
Operational
Operating Weight: 18820.9lb
Fuel Capacity: 35.7gal
Cooling System Fluid Capacity: 2.8gal
Hydraulic System Fluid Capacity: 27.3gal
Engine Oil Capacity: 3.2gal
Operating Voltage: 24V
Alternator Supplied Amperage: 50amps
Hydraulic System Relief Valve Pressure: 4554psi
Hydraulic Pump Flow Capacity: 58.2gal/min
Swing Mechanism
Swing Speed: 10.5rpm
Swing Torque: 12244lb ft

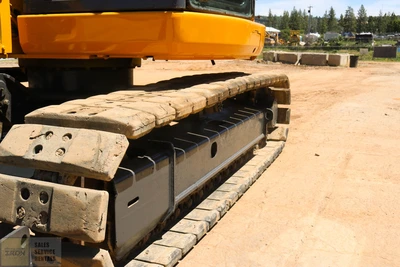

Undercarriage
Number of Shoes per Side: 40
Shoe Size: 23.7in
Number of Carrier Rollers per Side: 1
Number of Track Rollers per Side: 5
Ground Pressure: 3.7psi
Max Travel Speed: 3.2mph
Drawbar Pull: 14661lb
Track Gauge: 6.2ft in
Buckets
Reference Bucket Capacity: 0.6yd3
Minimum Bucket Capacity: 0.5yd3
Maximum Bucket Capacity: 0.7yd3
Boom/Stick Option (HEX) 1
Boom/Stick Option (HEX) 1: Boom 12\\\’2\” (3670mm) / stick 5\\\’4\\\” (1620mm)
Shipping Height of Unit: 8.9ft in
Shipping Length of Unit: 22ft in
Max Digging Depth: 13.1ft in
Max Reach Along Ground: 23.2ft in
Max Cutting Height: 22.4ft in
Max Loading Height: 15.8ft in
Max Vertical Wall Digging Depth: 11.4ft in
Boom/Stick Option (HEX) 2
Boom/Stick Option (HEX) 2: Boom 12\\\’2\\\” (3670mm) / stick 6\\\’11\\\” (2120mm)
Shipping Height of Unit: 8.9ft in
Shipping Length of Unit: 22.4ft in
Max Digging Depth: 14.7ft in
Max Reach Along Ground: 24.8ft in
Max Cutting Height: 23.6ft in
Max Loading Height: 16.9ft in
Max Vertical Wall Digging Depth: 13.3ft in
Dimensions
Width to Outside of Tracks: 8.2ft in
Height to Top of Cab: 8.9ft in
Ground Clearance: 1.2ft in
Removal Counterweight Clearance: 2.5ft in
Tail Swing Radius: 4.9ft in
Length of Track on Ground: 7.6ft in
