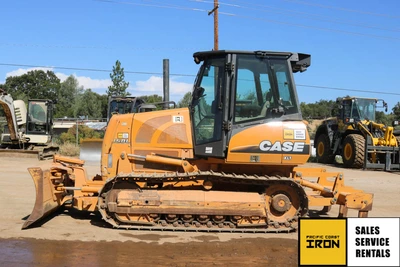

USED 2013 CASE 850L
Overview
UNIT HAS BEEN FLEET MAINTAINED SINCE NEW! READY TO GO TO WORK.
FEATURES:

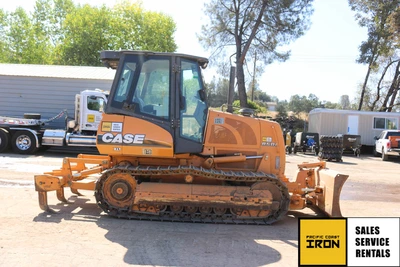

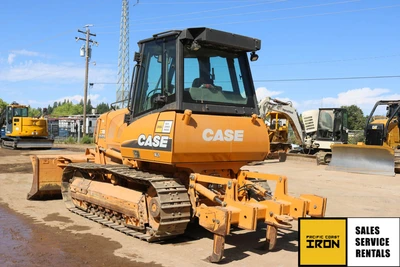

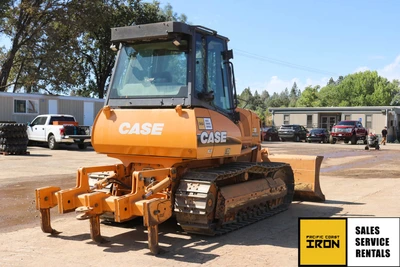

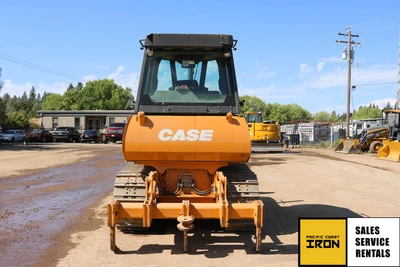

MS RIPPER
PAT BLADE

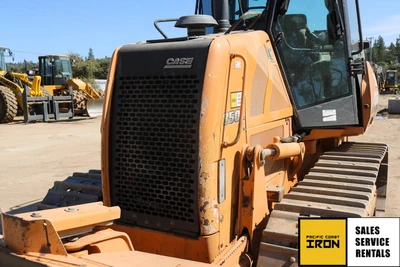

TIER 3 DEERE ENGINE

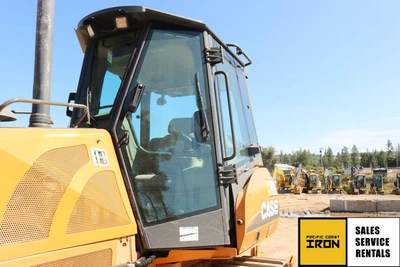

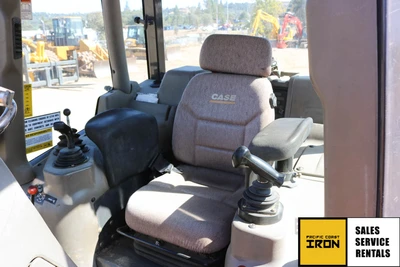

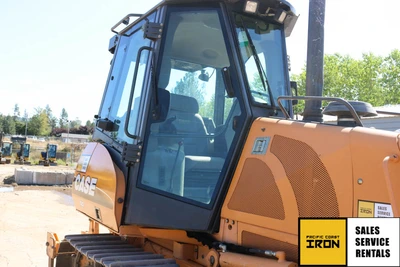

CAB WITH HEAT/AC

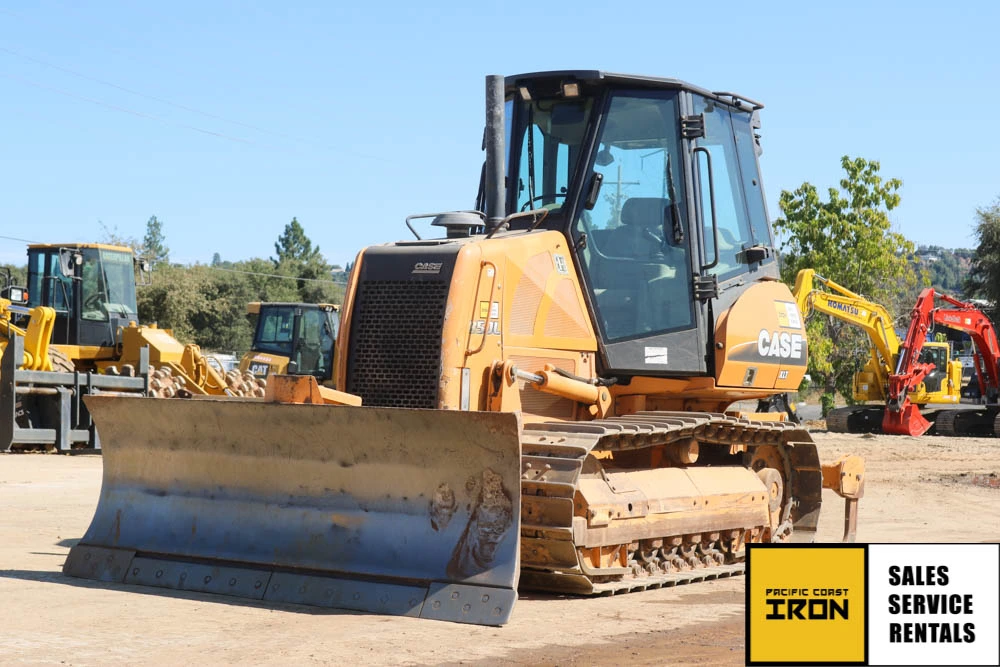

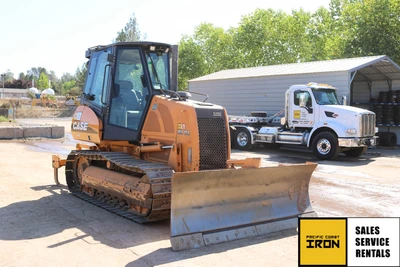

2013 CASE 850L XLT DOZER
2013 CASE 850L XLT DOZER WITH 1800HRS! UNIT IS EQUIPPED WITH PAT BLADE, MS RIPPER, AND CAB WITH HEAT/AC. JUST SERVICED! UC IS AT 70%. PROFESSIONALLY MAINTAINED SINCE NEW. READY TO GO TO WORK!
Specs
Dimensions
A Length w/ Blade: 14.47ft in
B Width Over Tracks: 6.67ft in
C Height to Top of Cab: 9.1ft in
D Length of Track on Ground: 7.71ft in
E Ground Clearance: 1.25ft in

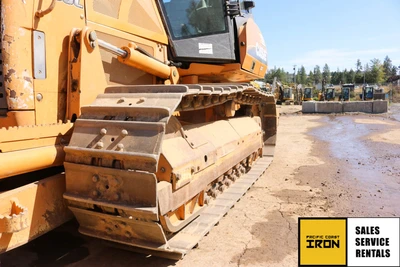

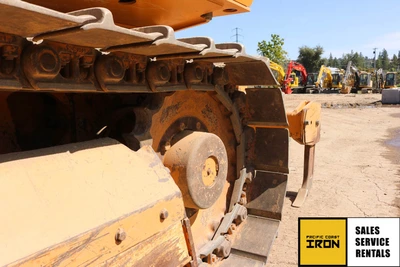

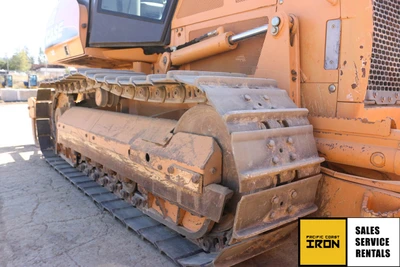

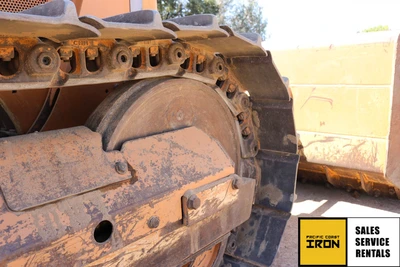

Undercarriage
G Track Gauge: 5.16ft in
H Standard Shoe Size: 20in

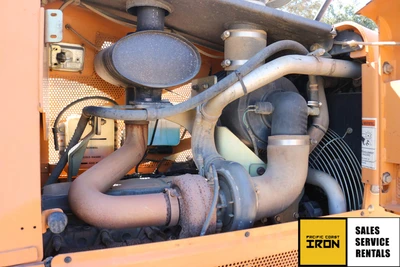

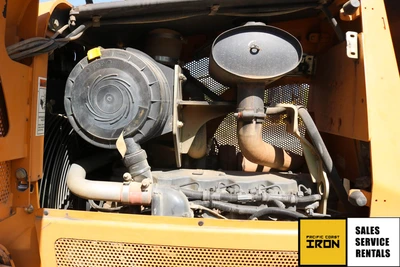

Engine
Number of Cylinders: 6
Engine Make: 2239
Engine Model: Family IV 667TA/E66 Tier III
Gross Power: 99.3hp
Net Power: 96.6hp
Power Measured @: 2000rpm
Max Torque: 321lb ft
Displacement: 408.9cu in
Torque Measured @: 1400rpm
Operational
Operating Weight: 19621.2lb
Fuel Capacity: 50.1gal
Cooling System Fluid Capacity: 7.1gal
Engine Oil Capacity: 4gal
Hydraulic Fluid Capacity: 20gal
Final Drives Fluid Capacity: 3.8gal

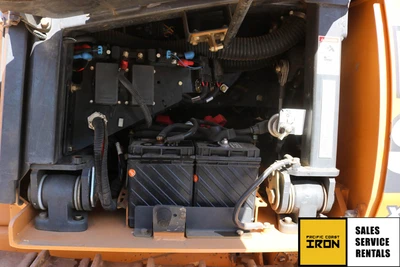

Operating Voltage: 12V
Alternator Supplied Amperage: 90amps
Transmission
Transmission Type: Hydrostatic
Number of Forward Gears: 4
Number of Reverse Gears: 4
Max Speed – Forward: 6.1mph
Max Speed – Reverse: 6.1mph

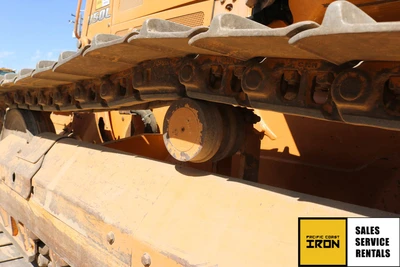

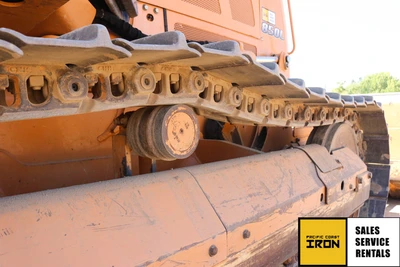

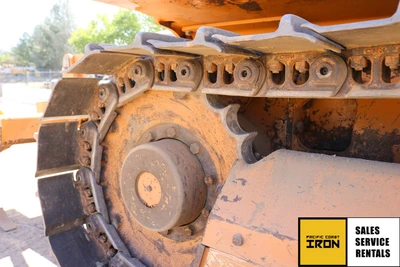

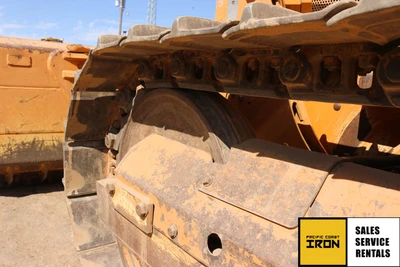

Undercarriage
Ground Pressure: 5.9psi
Ground Contact Area: 3689.1in2
Standard Shoe Size: 20in
Number of Shoes per Side: 40
Number of Track Rollers per Side: 7
Number of Carrier Rollers per Side: 1
Track Pitch: 6.8in
Track Gauge: 5.2ft in

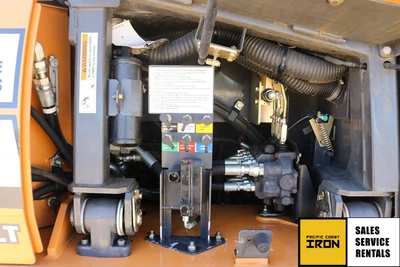

Hydraulic System
Relief Valve Pressure: 3000psi
Pump Flow Capacity: 20.3gal/min

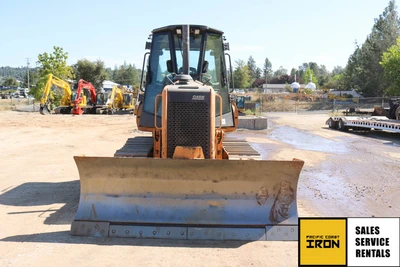

Standard Blade
Width: 8.7ft in
Height: 36in
Capacity: 2.2yd3
Blade Angle (both directions): 25degrees
Cutting Depth: 19.1in
Dimensions
Length w/ Blade: 14.5ft in
Width Over Tracks: 6.7ft in
Height to Top of Cab: 9.1ft in
Length of Track on Ground: 7.8ft in
Ground Clearance: 1.3ft in
