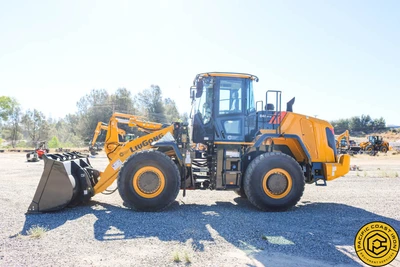

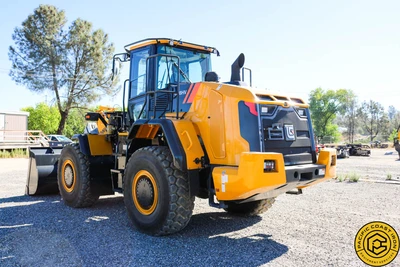

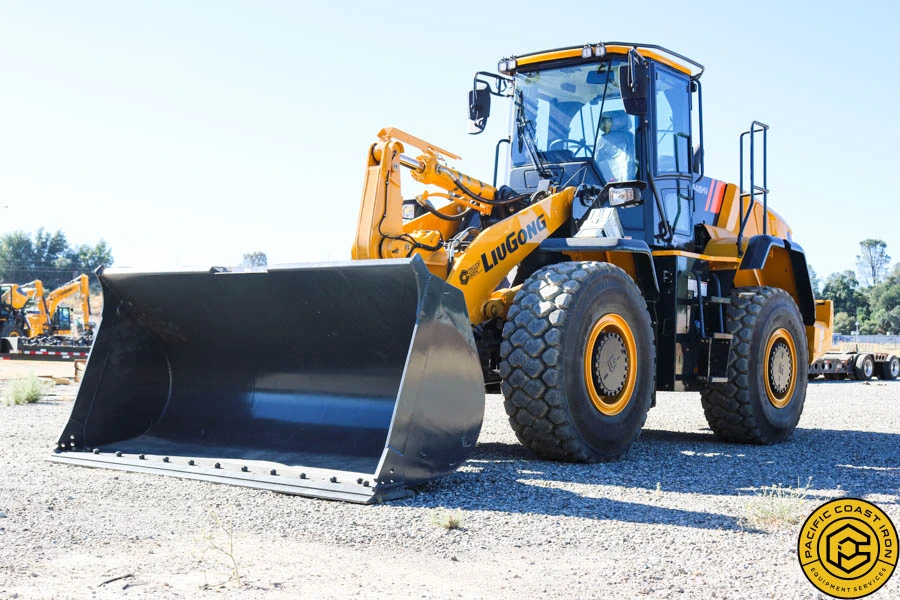

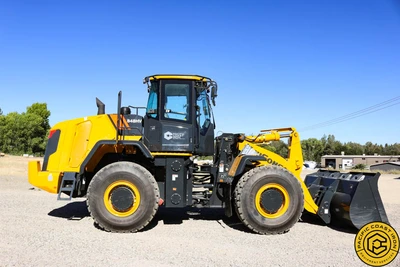

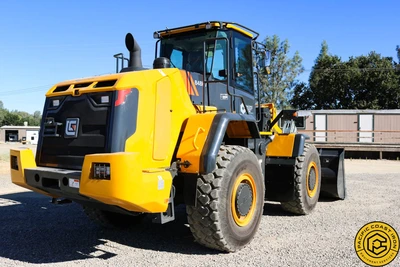

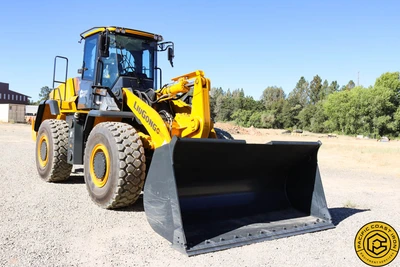

NEW 2024 LIUGONG 848H

ENGINE
Emissions regulation: Tier 4 Final / Stage IV
Make: Cummins
Model: QSB6.7
Max gross power: 175 hp (129 kW) @ 2,100 rpm
Max net power: 167 hp (123 kW) @ 2,100 rpm
Peak torque: 620 lb-ft (841 N-m) @ 1,400 rpm
Displacement: 409 in3 (6.7 L)
Number of cylinders: 6
Aspiration: Turbocharged & air-to-air intercooled
TRANSMISSION STANDARD: Bucket rollback at maximum height
Maximum dump angle at full height: 45O
Transmission type: Countershaft, power shift
Torque converter: Single-stage, three-element
Maximum travel speed, fwd: 27.5 mph (44.3 km/h)
Maximum travel speed, rev: 15.7 mph (25.3 km/h)
Number of speeds, fwd.: 4
Number of speeds, rev: 3
AXLES: Cab height
Differential front type: Limited slip
Differential rear type: Limited slip
Axle oscillation: ±12°
Turn angle, either side: 38O
STEERING: Rear angle of departure
Steering configuration: Articulated
Steering pressure: 2,611 psi (18 MPa)
BRAKES: Width over bucket
Service brake type: Wet discs, two independent circuits
Service brake actuation: Hydraulic
Parking brake type: Manual electronic control
Parking brake actuation: Hydraulic
HYDRAULIC SYSTEM: Operating weight
Main pump type: Piston
Pressure: 3,002 psi (20.7 MPa)
Raise: 5.5 s
Dump time: 1.6 s
Float down time: 3.0 s
Total cycle time: 10.1 s
[Axles, each]
[DEF tank | 5.0 gal (19 L)]
