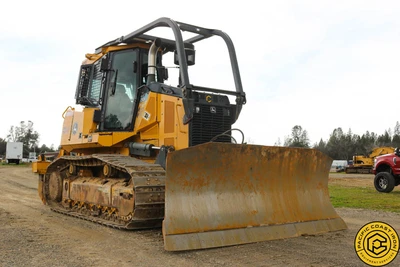

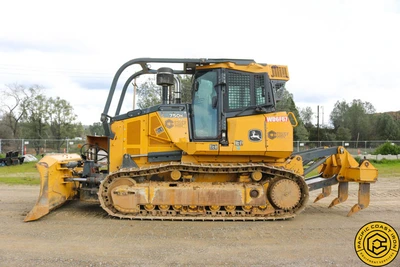

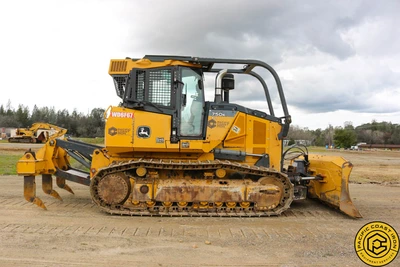

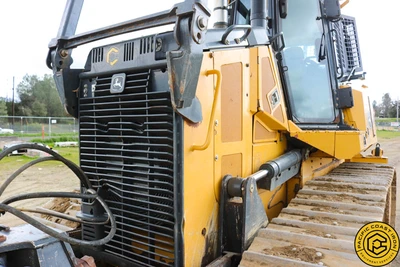

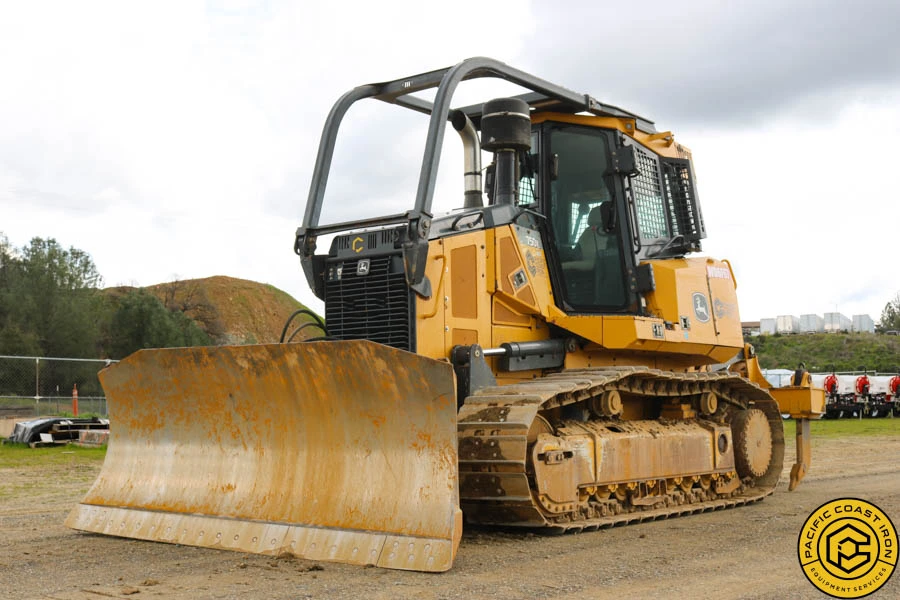

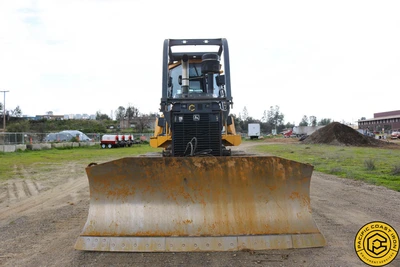

USED 2017 JOHN DEERE 750K

[Engine | 750K XLT]
[Blade Type | Power/Angle/Tilt (PAT)]
[Manufacturer and Model | John Deere PowerTech™ PVX 6068]
[Non-Road Emissions Standard | EPA Interim Tier 4/EU Stage IIIB]
[Displacement | 6.8 L (414 cu. in.)]
[SAE Net Rated Power | 116 kW (155 hp) at 1,800 rpm]
[Net Peak Torque | 720 Nm (531 lb.-ft.) at 1,400 rpm]
[Aspiration | Turbocharged with charge air cooler]
[Air Cleaner | Vacuum-aspirated dual-element dry canister]
[Cooling | 750K XLT / 750K LGP / 750K]
[Type Variable-speed suction fan with automatic reversing]
[Engine Coolant Rating | –37 deg. C (–34 deg. F)]
[Engine Radiator | 10 Ɵns per in.]
[Powertrain | 750K XLT]
[Transmission Automatic, dual-path, hydrostatic drive; load-sensing feature automatically adjusts speed and power to match changing load conditions; each individually controlled track is powered by a variable-displacement piston pump and motor combi- nation; ground-speed selection buttons on single-lever steering and direction control; independently selectable reverse speed ratios of 100% ,115%, or 130% of forward ground speed; decelerator pedal controls ground speed to stop]
[System Relief Pressure 45 850 kPa (6,650 psi) 45 850 kPa (6,650 psi)]
[Travel Speeds]
[Forward and Reverse 9.7 km/h (6.0 mph) 9.7 km/h (6.0 mph)]
[Maximum (optional) 11.0 km/h (6.8 mph) 11.0 km/h (6.8 mph)]
[Steering Single-lever steering, speed, direction control, and counterrotation; full power turns and inƟnitely variable track speeds provide unlimited maneuverability and optimum control; hydrostatic steering eliminates steering clutches and brakes]

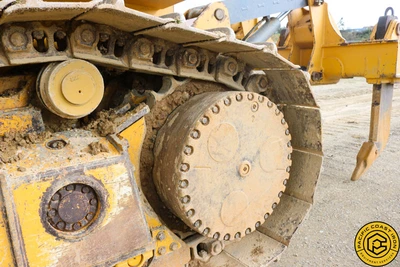

[Final Drives Double-reduction, planetary Ɵnal drives mounted independently of track frames and dozer push frames for isolation from shock loads]
[Total Ratio 46.41 to 1 46.41 to 1]
[Drawbar Pull]
[Maximum 245 kN (55,000 lb.) 245 kN (55,000 lb.)]
[At 1.9 km/h (1.2 mph) 147 kN (33,000 lb.) 156 kN (35,000 lb.)]
[At 3.2 km/h (2.0 mph) 93 kN (21,000 lb.) 98 kN (22,000 lb.)]
[Powertrain (continued) 750K XLT / 750K LGP / 750K]
[Brakes]
[Service Hydrostatic (dynamic) braking stops the machine whenever the direction-control lever is moved to neutral or the decelerator is depressed to the detent]
[Parking Exclusive spring-applied, hydraulically released park brake feature engages wet, multiple-disc brakes automatically whenever the engine stops, the operator depresses the decelerator pedal to the brake position, the unit is in neutral for 3 seconds (with detected motion), or the park-lock lever is in the park position; machine cannot be driven with brake applied, minimizing wear- out or need for adjustment]
[Hydraulics 750K XLT / 750K LGP 750K]
[Blade Type PAT OSD]
[Type Load sense hydraulic system with variable-displacement piston pump Load sense hydraulic system with variable-displacement piston pump]
[Pump Displacement 63 cc 63 cc]
[System Relief Pressure 24 993 kPa (3,625 psi) 24 993 kPa (3,625 psi)]
[Differential Pressure 1896 kPa (275 psi) 1896 kPa (275 psi)]
[Maximum Flow at Unloaded High Idle 138 L/m (36 gpm) 138 L/m (36 gpm)]
[Control 3-function hydraulic-pilot T-bar joystick with push-button angle function 2-function hydraulic-pilot T-bar joystick]

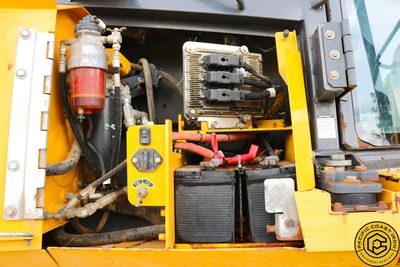

[Electrical 750K XLT / 750K LGP / 750K]
[Voltage 24 volts]
[Battery Capacity 950 CCA]
[Reserve Capacity 190 min.]
[Alternator Rating]
[Cab 130 amp]
[Canopy 100 amp]
[Lights Grille mounted (2), rear mounted (2), engine compartment (1), and rear reƠectors (2)]

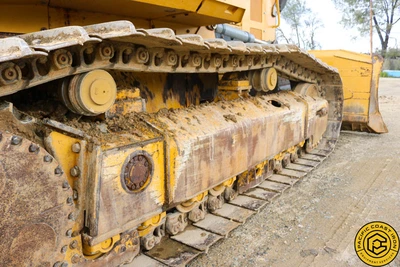

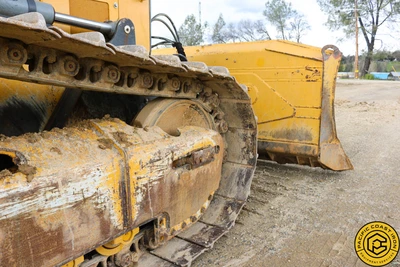

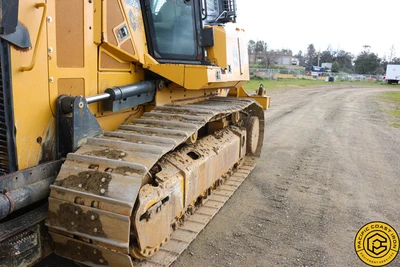

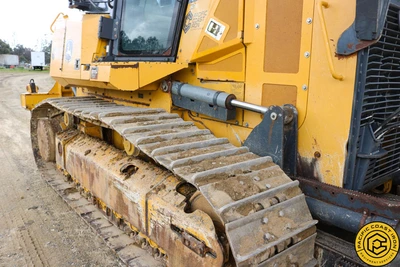

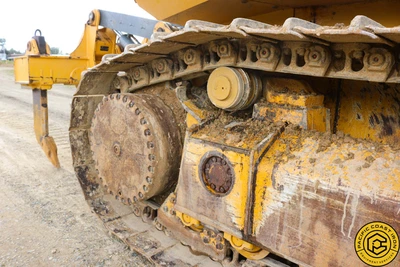

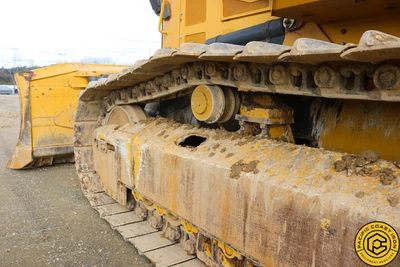

[Undercarriage 750K XLT 750K LGP 750K]
[Blade Type PAT PAT OSD]
[Tracks John Deere Dura-Trax™ features large deep-heat-treated, sealed, and lubricated track links and through-hardened, sealed, and lubricated rollers for maximum wear resistance; sprockets are segmented; extreme-duty shoes are available (on some models) for severe applications]
[Track Gauge 1880 mm (74 in.) 2134 mm (84 in.) 1880 mm (74 in.)]
[Grouser Width 560 mm (22 in.) 865 mm (34 in.) 560 mm (22 in.)]
[Chain Sealed and lubricated Sealed and lubricated Sealed and lubricated]
[Shoes, Each Side 45 45 40]
[Track Rollers, Each Side 8 8 7]
[Track Length On Ground 3073 mm (121 in.) 3073 mm (121 in.) 2591 mm (102 in.)]
[Ground Contact Area 34 344 cm2 (5,323 sq. in.) 53 077 cm2 (8,227 sq. in.) 28 957 cm2 (4,488 sq. in.)]
[Ground Pressure 44.5 kPa (6.46 psi) 31.5 kPa (4.57 psi) 52.9 kPa (7.67 psi)]
[Track Pitch 191 mm (7.5 in.) 191 mm (7.5 in.) 191 mm (7.5 in.)]
[Oscillation at Front Roller]

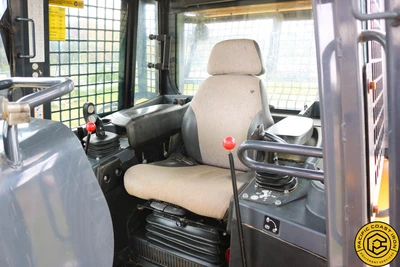

[Operator Station]
[ROPS (ISO 3471 – 2008) and FOPS (ISO 3449 – 2005)]
[Serviceability]
[ReƟll Capacities]
[Fuel Tank with Lockable Cap 356 L (94 gal.)]
[Cooling System with Recovery Tank 36.4 L (9.6 gal.)]
[Engine Oil with Filter 24.6 L (6.5 gal.)]
[Transmission Reservoir with Filter 106 L (28 gal.)]
[Hydraulic Reservoir and Filter 106 L (28 gal.)]
[22 23]
[22 23]
[Operating Weights | 750K XLT]
[Blade Type | PAT]
[Base Weight (with standard equipment, rollover protective structure [ROPS], full fuel tank, and 79-kg [175 lb.] operator) | 15 593 kg (34,377 lb.)]
[Optional Components]
[Cab with Pressurizer and Heater/Air Conditioner | 337 kg (743 lb.)]
[Heater (ROPS canopy) | 39 kg (85 lb.)]
[Front and Door Screens]
[ROPS Canopy | 84 kg (186 lb.)]
[Cab with Air Conditioner | 79 kg (175 lb.)]
[Rear Screen]
[ROPS Canopy | 23 kg (50 lb.)]
[Cab with Air Conditioner | 34 kg (75 lb.)]
[Side Screens]
[ROPS Canopy | 44 kg (98 lb.)]
[Cab with Air Conditioner | 54 kg (120 lb.)]
[Condenser Guard (cab with air conditioner) | 55 kg (121 lb.)]
[Limb Risers (ROPS canopy and cab) | 261 kg (575 lb.)]
[Heavy-Duty Grille | 28 kg (62 lb.)]
[Lift-Cylinder Hose Guards | 42 kg (93 lb.)]
[Tank Guards | 323 kg (712 lb.)]
[Rear Counterweight | 326 kg (720 lb.)]
[Retrieval Hitch | 37 kg (81 lb.)]
[Drawbar, Extended Rigid | 130 kg (286 lb.)]
[Blade Brush Guard | 87 kg (192 lb.)]
[Center Chain Guides | 61 kg (135 lb.)]
[Full-Length Rock Guards | 154 kg (340 lb.)]
[Track Shoes]
[560-mm (22 in.) Moderate Duty | In base]
[560-mm (22 in.) Extreme Duty | 134 kg (296 lb.)]
[610-mm (24 in.) Moderate Duty | 140 kg (309 lb.)]
[610-mm (24 in.) Extreme Duty | 289 kg (637 lb.)]
[710-mm (28 in.) Moderate Duty | —]
[865-mm (34 in.) Moderate Duty — In base —]
[Machine Dimensions]
[Blade Type PAT PAT OSD]
[A Overall Height to Roof 3077 mm (10 ft. 1 in.) 3077 mm (10 ft. 1 in.) 3077 mm (10 ft. 1 in.)]
[B Tread Depth with Single-Bar Grouser]
[Moderate Duty 56 mm (2.2 in.) 56 mm (2.2 in.) 56 mm (2.2 in.)]
[Extreme Duty 69 mm (2.7 in.) 69 mm (2.7 in.) 69 mm (2.7 in.)]
[C Ground Clearance in Dirt 356 mm (14 in.) 356 mm (14 in.) 356 mm (14 in.)]
[D Overall Length 4921 mm (16 ft. 5 in.) 5246 mm (17 ft. 3 in.) 4937 mm (16 ft. 2 in.)]
[E Length with Extended Drawbar 5210 mm (17 ft. 1 in.) 5535 mm (18 ft. 2 in.) 5226 mm (17 ft. 2 in.)]
[F Blade Lift Height 1025 mm (40.3 in.) 1025 mm (40.3 in.) 1050 mm (41.3 in.) H Blade Cutting-Edge Angle, Adjustable 55.2 to 60.1 deg. 55.2 to 60.1 deg. 50.5 to 60.0 deg.]
[G Blade Digging Depth 650 mm (25.6 in.) 650 mm (25.6 in.) 575 mm (22.6 in.)]
[G Blade Digging Depth 650 mm (25.6 in.) 650 mm (25.6 in.) 575 mm (22.6 in.)]
[Machine Dimensions (continued) | 750K XLT]
[Blade Type | PAT]
[Blade Type]
[Semi-U]
[I Blade Width — — 3251 mm (128 in.) (10 ft. 8 in.)]
[J Blade Height — — 1240 mm (48.8 in.) (4 ft. 8 in.)]
[SAE Capacity — — 4.3 m3 (5.6 cu. yd.)]
[Weight — — 1163 kg (2,564 lb.)]
[Push-Beam Assembly Weight (without blade)]
[M Blade Tilt — — 711 mm (28 in.)]
[O Width Over Track — — 2438 mm (96 in.) (8 ft. 0 in.)]
[Straight]
[I Blade Width | 3296 mm (130 in.) (10 ft. 10 in.)]
[J Blade Height | 1194 mm (47 in.) (3 ft. 11 in.)]
[SAE Capacity | 2.2 m3 (4.2 cu. yd.)]
[Weight | 937 kg (2,066 lb.)]
[C-Frame Assembly Weight (without blade) | 1318 kg (2,905 lb.)]
[K Blade Angle | 23.5 deg.]
[L Overall Width with Blade Angled | 3020 mm (118.9 in.) (9 ft. 10.9 in.)]
[M Blade Tilt (uses tilt jack) | 437 mm (17.2 in.)]
[N Cut Reach | 108 mm (4.3 in.)]
[O Width Over Track | 2438 mm (96 in.) (8 ft. 0 in.)]
[P Cast Reach | 224 mm (8.8 in.)]

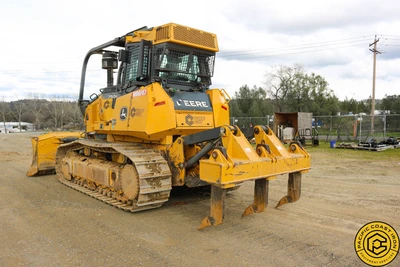

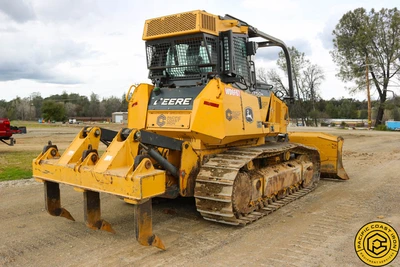

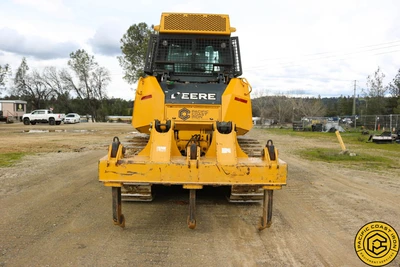

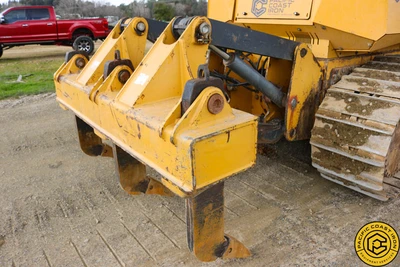

[Rear Ripper | 750K XLT / 750K LGP / 750K]
[Multi-shank (3) parallelogram ripper with hydraulic pitch adjustment and ESCO® ripper tips]
[Weight 1690 kg (3,725 lb.)]
[Q Maximum Penetration 686 mm (27 in.)]
[R Maximum Clearance Under Tip 686 mm (27 in.)]
[S Overall Length, Lowered Position 1689 mm (67 in.)]
[S| Overall Length, Raised Position 1448 mm (57 in.)]
[T Overall Beam Width 2134 mm (7 ft. 0 in.)]
[U Slope Angle (full raise) 22 deg.]
[V Ripping Width 1880 mm (6 ft. 2 in.)]
[W Distance Between Shanks 902 mm (36 in.)]
[W Distance Between Shanks 902 mm (36 in.)]
