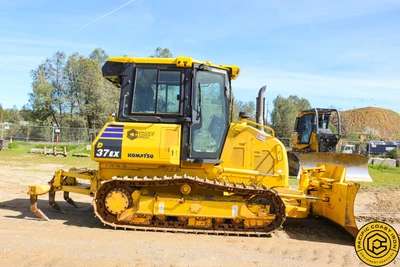

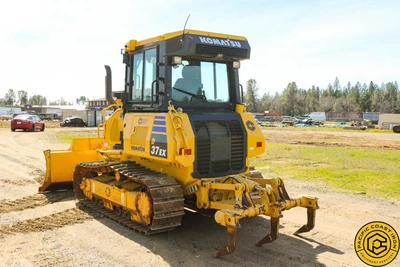

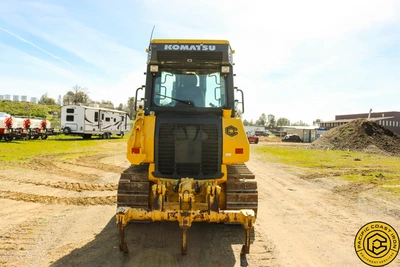

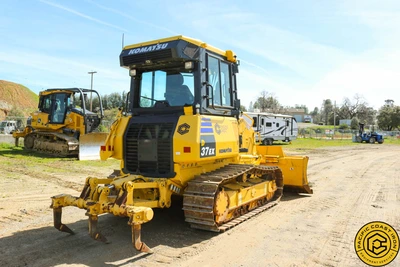

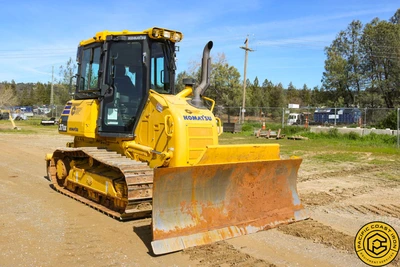

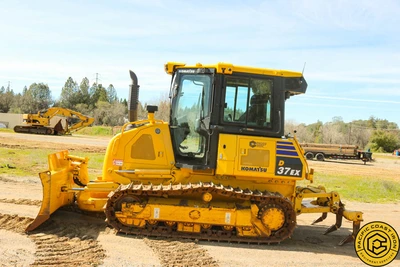

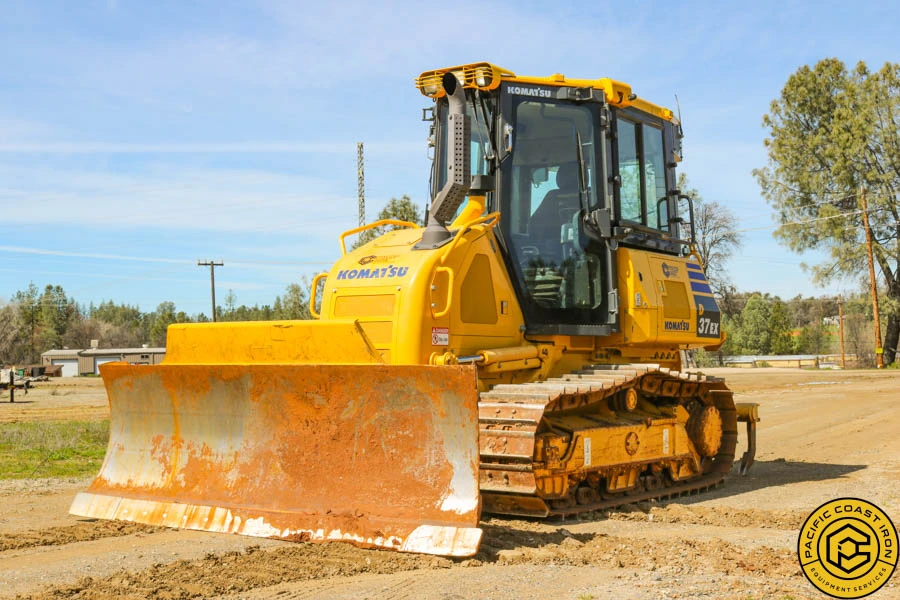

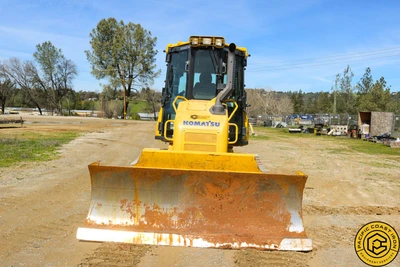

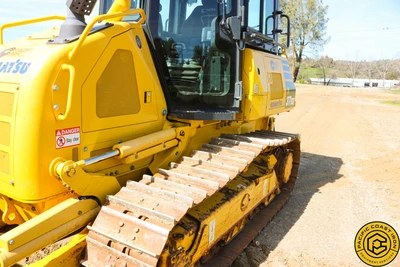

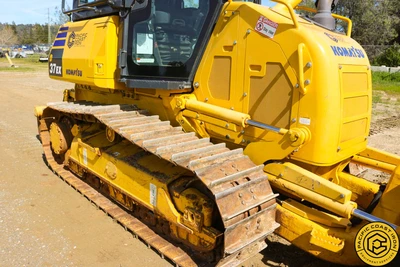

USED 2021 KOMATSU D37EX-24

A Length W/ Blade: 13.7ft in
B Width Over Tracks: 6.27ft in
C Height To Top Of Cab: 9.06ft in
D Length Of Track On Ground: 7.17ft in
E Ground Clearance: 1.04ft in

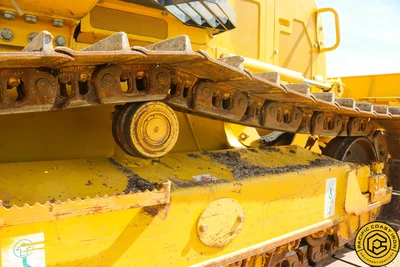

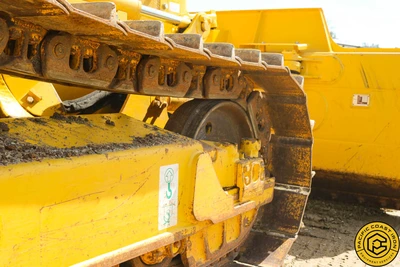

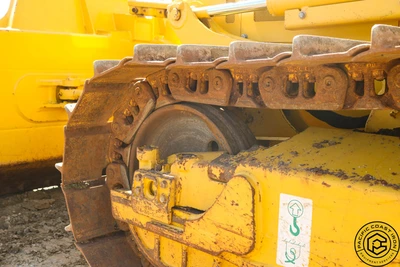

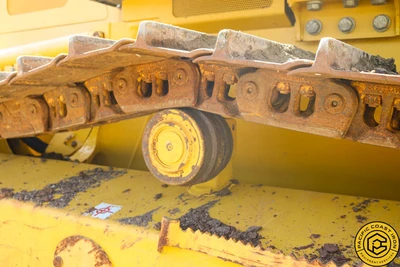

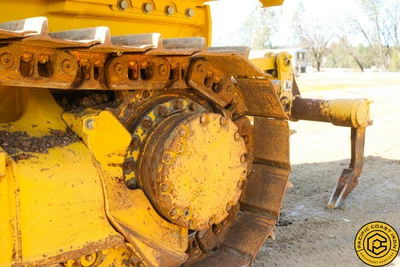

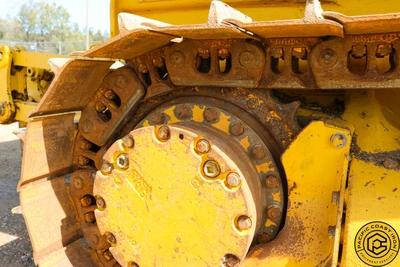

Undercarriage
G Track Gauge: 4.96ft in
H Standard Shoe Size: 15.75in
Number Of Track Rollers(Each Side): 6
Ground Contact Area: 2.78in2
Shoe Width (Standard): 15.75in
Suspension: Rigid type
Track Rollerframe: Monochoque,large Section
Type Of Shoes(Standard): Single grouser
Rollers And Idlers: Lubricated track rollers
Ground Pressure: 6.68psi
Grouser Height: 1.86in
Length Of Track Ground: 86.03in
Number Of Shoes (Each Side): 41
Steering System
Minimum Turning Radius: 6.6ft in

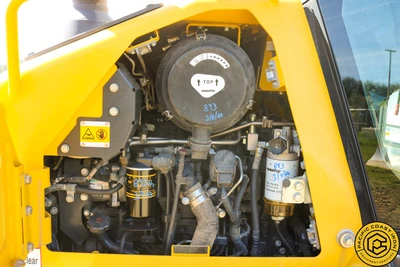

Engine
Hydraulic Fan At Maximum Speed: 79.2hp
Lubrication Method: Gear pump ,Force Lubrication
Filter: Full Flow
Epa: Tier -3 Emission certified
Number Of Cylinders: 4
Piston Displacement: 199cu in
Engine Make: 2238
Engine Model: SAA4D95LE-5
Engine Type: 4-Cycle,water-Cooled,Direct injection
Gross Power: 80hp
Governor: All-speed Electronic
Net Power: 78hp
Power Measured @: 2200rpm
Displacement: 199cu in
Aspiration: Turbocharged, air-to-air aftercooled
Bore: 3.8in
Stroke: 4.6in
Horse Power: Sae J1995: 91.2hp
Horse Power: Iso 9249 / Sae J1349: 88.6hp
Fan Drive Type: Hydraulic (Reversible for cleaning)
Capacities
Fuel Tank – Diesel: 51.6gal
Hydraulic Tank: 15.9gal
Final Drive: 1gal
Engine Oil: 3gal
Coolant: 4.8gal
Operational
Blade Capacity: 2.4yd3
Blade Type: PAT
Blade Length: 106.7in
Blade Height: 33.9in
Blade Cut Depth: 15.8in
Ripper Type: Fixed
Ripper Depth: 13.4in
Transmission
Transmission Type: dual-path, hydrostatic
Number Of Forward Gears: 3
Number Of Reverse Gears: 3
Max Speed – Forward: 5.3mph
Max Speed – Reverse: 5.3mph
Weights
Tractor Weight – Rops Canopy: 14793.1lb
Tractor Weight – Rops Cab: 15697lb
Operating Weight – Rops Canopy: 17394.5lb
Operating Weight – Rops Cab: 18298.4lb

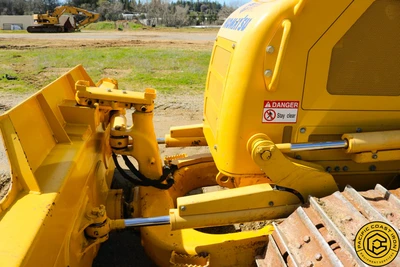

Hydraulic System
Blade Lift(No.Of.Cylinders): 2
Blade-Tilit(No.Of.Cylinders): 1
Blade Angle(No.Of.Cylinders): 2
Blade Lift(Bore): 0.3ft in
Blade-Tilit(Bore): 0.3ft in
Blade Angle(Bore): 0.3ft in
Hydraulic Oil Capacity(Power Angle Tilt Dozer): 15.9gal
Relief Valve Pressure: 3983psi
Pump Flow Capacity: 26.2gal/min
Standard Blade
Width: 8.4ft in
Height: 33.1in
Capacity: 2.2yd3
Blade Angle (Both Directions): 25degrees
Cutting Depth: 15.4in
