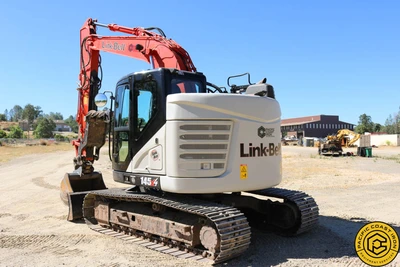

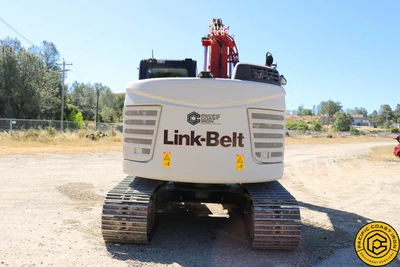

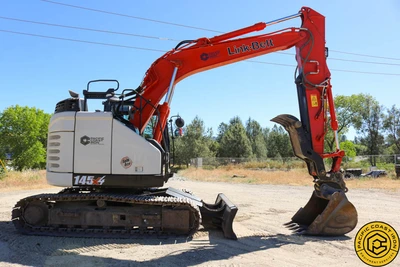

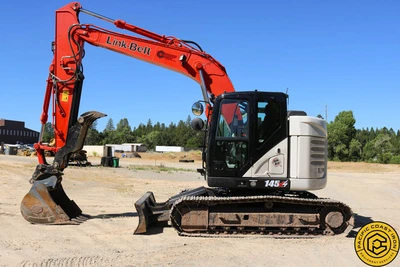

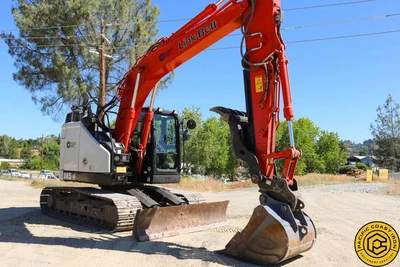

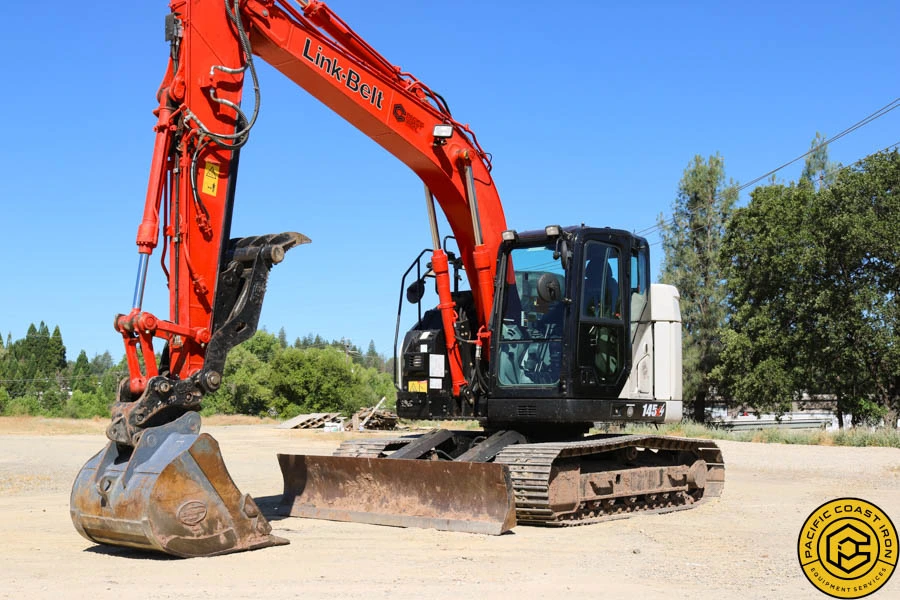

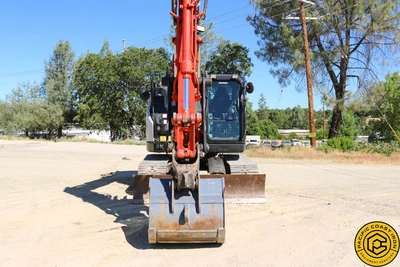

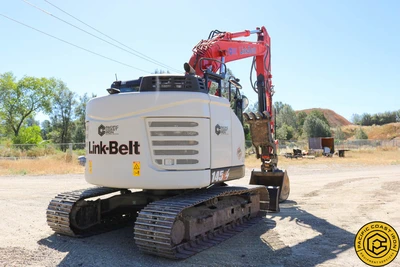

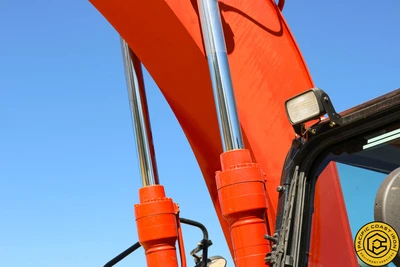

USED 2021 LINK-BELT 145X4

SAE Net Horsepower: 102 HP (76.4 kW)
Operating Weight: 33,600 lbs. (15,200 kg)
Digging Depth: 18 ft 1 in (5.51 m)

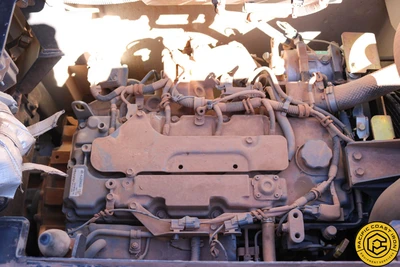

Engine Model: Isuzu AR-4JJ1X
Displacement: 183 cu in (3.0 L)
Maximum Torque: 257 lbf-ft (349 Nm) @ 1,800 rpm
Starter: 24V-4.0 kW
Alternator: 50 amp
Battery: (2) 12-volt 72 amp hours
Fuel Tank Capacity: 53 Gallons (200 Liters)
Hydraulic System Capacity: 42 Gallons (158 Liters)
Hydraulic Tank Capacity: 20 Gallons (75 Liters)
Final Drive Capacity (per side): 0.6 Gallons (2.1 Liters)
Swing Drive Capacity: 0.6 Gallons (2.1 Liters)
Engine Oil Capacity: 4.5 Gallons (17.0 Liters)
DEF Tank Capacity: 11.4 Gallons (43.1 Liters)
Coolant System Capacity: 4.4 Gallons (16.5 Liters)

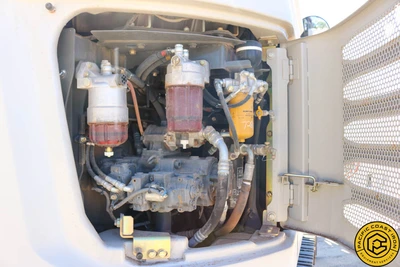

Pump Output: 2 x 34.1 gpm (129 L/min)
Pilot Pump Maximum Flow: 5.3 gpm (20 L/min)
Boom / Arm / Bucket Relief Valve Settings: 4,970 psi (34.3 MPa)
Swing Circuit Relief Valve Setting: 4,050 psi (27.9 MPa)
Travel Circuit Relief Valve Setting: 4,970 psi (34.3 MPa)
Swing Speed: 12.5 rpm
Tail Swing: 5′ 0″ (1.53 m)
Swing Torque: 27,400 lbf-ft (37 kNm)
Travel Speeds: 2.1 – 3.5 mph (3.4 – 5.6 km/h)
Drawbar Pull: 26,100 lbf (116 kN)
Gradeability: 70% (35°)
Boom Length: 15′ 2″ (4.63 m)
Arm Length Options: 8′ 2″ (2.50 m), 9′ 11″ (3.01 m), 6′ 11″ (2.11 m)
Ground Pressure: 5.22 psi (0.036 MPa)
