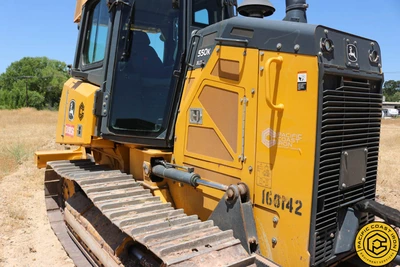

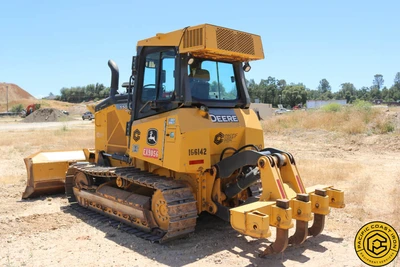

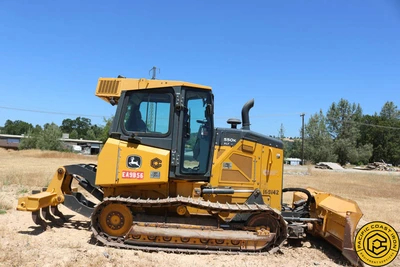

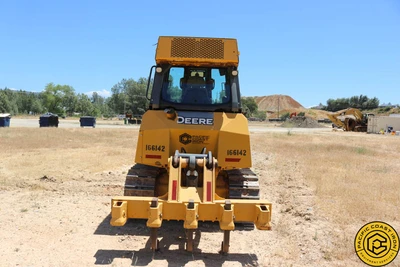

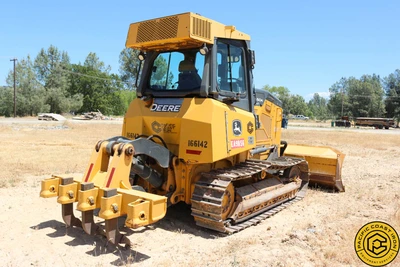

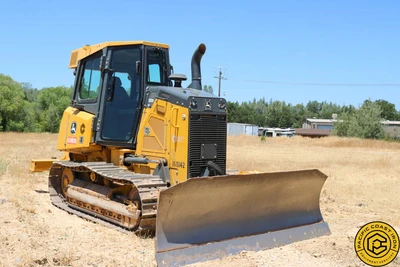

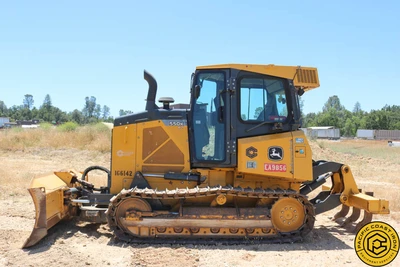

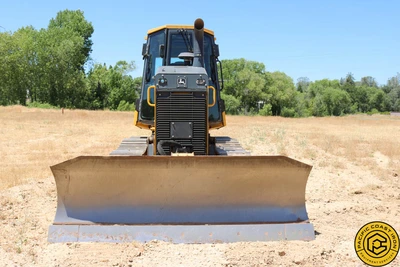

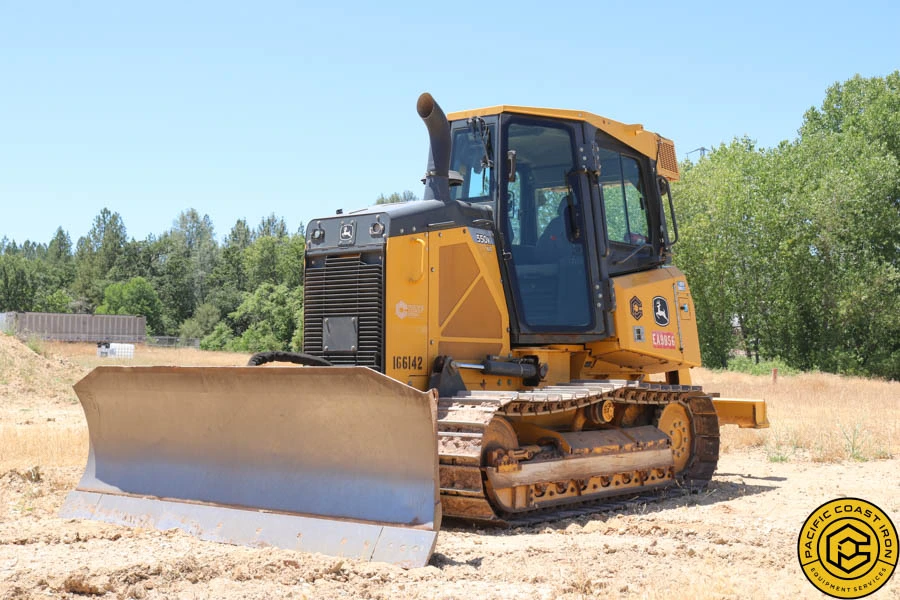

USED 2017 JOHN DEERE 550K

Model: John Deere 550K

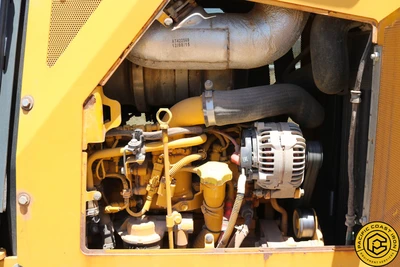

Engine Manufacturer and Model: John Deere PowerTech™ PWX 4045
Non-Road Emissions Standard: EPA Interim Tier 4/EU Stage IIIB
Displacement: 4.5 L (276 cu. in.)
SAE Net Rated Power: 69 kW (92 hp) at 2,200 rpm
Net Peak Torque: 375 Nm (276 lb.-ft.) at 1,200 rpm
Aspiration: Turbocharged with charge air cooler

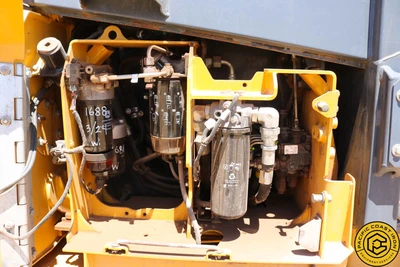

Air Cleaner: Vacuum-aspirated dual-element dry canister
Cooling Type: Variable-speed suction fan with optional reversing feature
Engine Coolant Rating: –37 deg. C (–34 deg. F)
Engine Radiator: 10 fins per in.
Transmission: Automatic, dual-path, hydrostatic drive
System Relief Pressure: 42,816 kPa (6,210 psi)
Travel Speeds (Forward and Reverse): 8.0 km/h (5.0 mph)
Maximum Travel Speed (optional): 9.7 km/h (6.0 mph)
Steering: Single-lever steering, speed, direction control, and counterrotation
Final Drives: Triple-reduction final drives mounted independently
Total Ratio: 48.4 to 1
Drawbar Pull Maximum: 134 kN (30,000 lb.)
Drawbar Pull at 1.9 km/h (1.2 mph): 80 kN (18,000 lb.)
Drawbar Pull at 3.2 km/h (2.0 mph): 49 kN (11,000 lb.)
Service Brakes: Hydrostatic (dynamic) braking
Parking Brakes: Spring-applied, hydraulically released park brake
Hydraulic System Type: Open-center hydraulic system with fixed-displacement gear pump
Pump Displacement: 26 cc
System Relief Pressure: 20,684 kPa (3,000 psi)
Maximum Flow at Unloaded High Idle: 57 L/min (15 gpm)

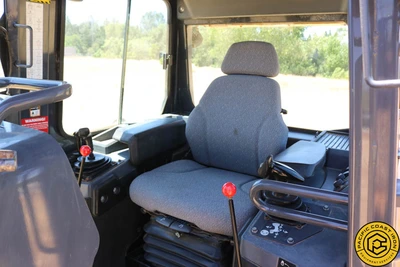

Control: 3-function direct-acting T-bar joystick

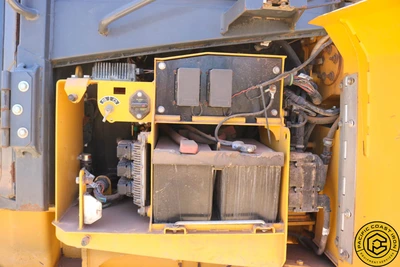

Voltage: 24 volts
Battery Capacity: 950 CCA
Reserve Capacity: 190 min.
Alternator Rating: 100 amp
Lights: Grille mounted (2), rear mounted (2), and rear reflectors (2)

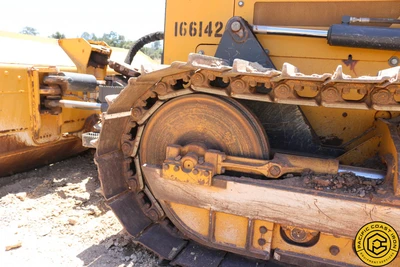

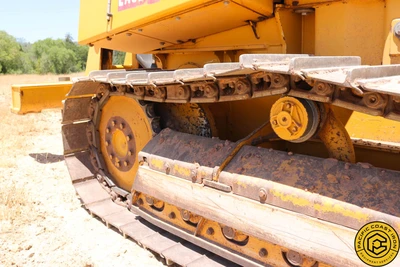

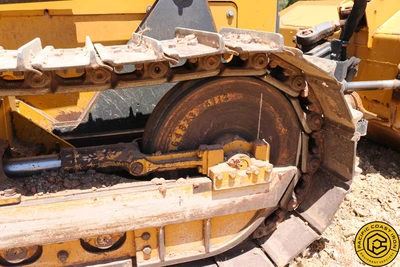

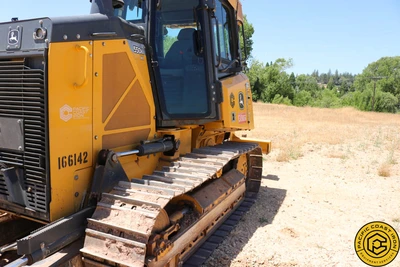

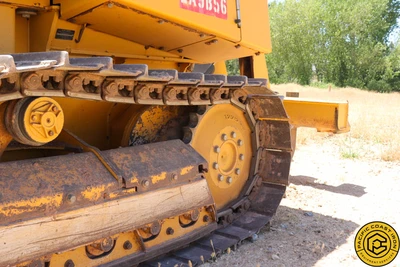

Track Gauge: 1549 mm (61 in.)
Grouser Width: 457 mm (18 in.)
Chain: Sealed and lubricated
Shoes, Each Side: 42 standard; 39 Maximum Life
Track Rollers, Each Side: 7
Track Length on Ground: 2337 mm (92 in.)
Ground Contact Area: 21,479 cm² (3,329 sq. in.)
Ground Pressure: 39.9 kPa (5.79 psi)
Track Pitch: 160 mm (6.3 in.)
Fuel Tank Capacity: 237 L (62.5 gal.)
Cooling System Capacity: 22.6 L (6.0 gal.)
Engine Oil Capacity: 19 L (20 qt.)
Transmission Reservoir Capacity: 55.6 L (14.7 gal.)
Hydraulic Reservoir Capacity: 34 L (9.0 gal.)
Operating Weight: 8750 kg (19,290 lb.)
Cab with Pressurizer and Heater/Air Conditioner: 306 kg (675 lb.)
Heater (ROPS canopy): 39 kg (85 lb.)
Screens (Front and Door): 81 kg (179 lb.)
Rear Screen: 34 kg (76 lb.)
Side Screen: 43 kg (94 lb.)
Limb Risers (ROPS canopy and cab): 104 kg (229 lb.)
Front Counterweight: 109 kg (240 lb.)
Rear Counterweight: 150 kg (330 lb.)
Retrieval Hitch: 23 kg (50 lb.)
Drawbar, Extended Rigid: 33 kg (72 lb.)
Winch: 652 kg (1,437 lb.)
Fairlead, 4 Roller: 85 kg (187 lb.)
Center Chain Guides: 40 kg (88 lb.)
Full-Length Rock Guards: 128 kg (282 lb.)
Maximum Life Undercarriage: 258 kg (569 lb.)
Track Shoes (457 mm/18 in.): In base
Track Shoes (610 mm/24 in.): —
