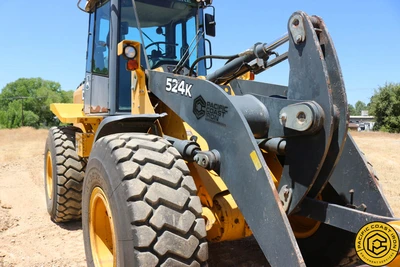

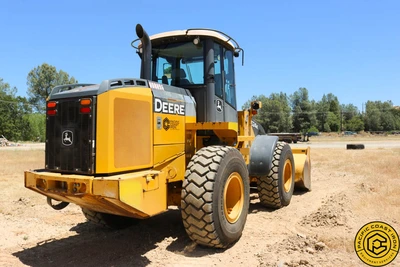

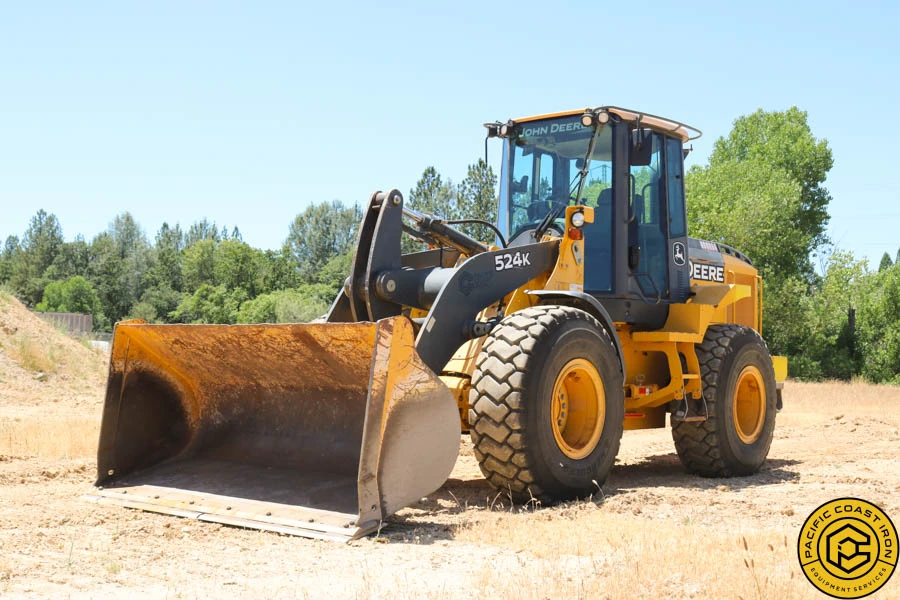

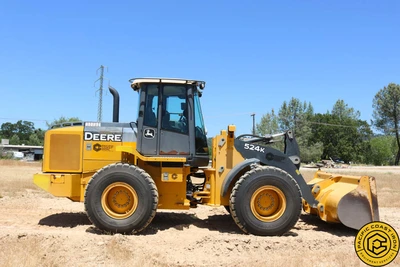

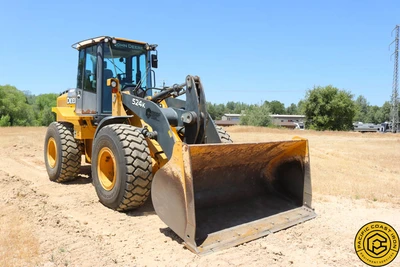

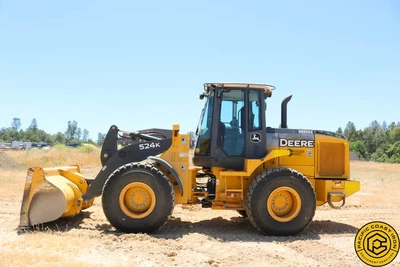

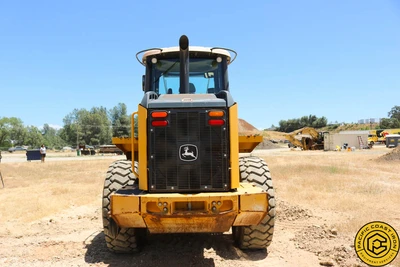

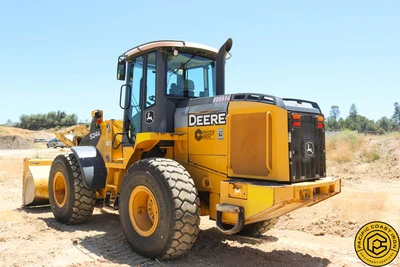

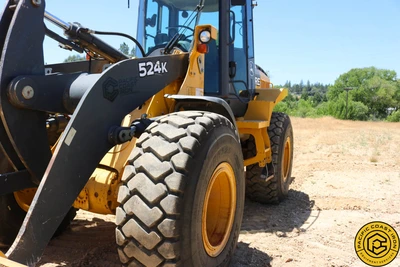

USED 2017 JOHN DEERE 524K

Model: John Deere 524K-II

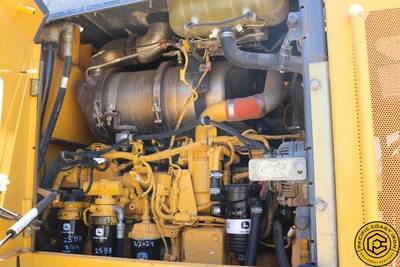

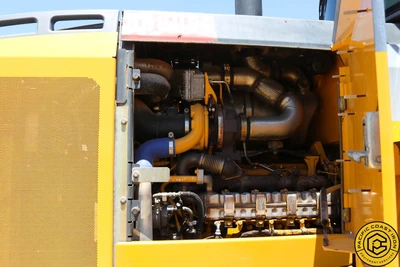

Engine Manufacturer and Model: John Deere PowerTech™ PVS 6068
Non-Road Emissions Standard: EPA Final Tier 4/EU Stage IV
Cylinders: 6
Valves Per Cylinder: 4
Displacement: 6.8 L (414 cu. in.)
Net Peak Power (ISO 9249): 104 kW (140 hp) at 1,900 rpm
Net Peak Torque (ISO 9249): 640 Nm (472 lb.-ft.) at 1,100 rpm
Net Torque Rise: 66%
Fuel System: High-pressure common rail
Lubrication: Full-flow spin-on filter and internal cooler
Aspiration: Turbocharged, charge air cooled
Air Cleaner: Under-hood, dual-element dry type, restriction indicator in cab monitor for service
Cooling: Hydraulically driven, proportionally controlled fan
Electrical System: 24 volt with 100-amp alternator
Batteries: (2) 12-volt, 950 CCA each
Transmission Type: Countershaft-type PowerShift™
Torque Converter: Single stage, single phase
Shift Control: Electronically modulated, adaptive, load and speed dependent
Operator Interface: Steering-column or joystick-mounted F-N-R and gear-select lever; Quick-Shift button on hydraulic lever
Shift Modes: Manual/auto (1st–D or 2nd–D); Quick-Shift button with 2 selectable modes: kick-down or kick-up/down; adaptive clutch cutoff
Maximum Travel Speeds: Forward: 38.5 km/h (23.9 mph), Reverse: 12.3 km/h (7.6 mph)
Final Drives: Heavy-duty inboard-mounted planetary
Differentials: Hydraulic locking front with conventional rear – standard; dual locking front and rear – optional
Rear Axle Oscillation: 24 deg. (12 deg. each direction)
Service Brakes: Hydraulically actuated, spring-retracted, self-adjusting inboard sun-shaft mounted, oil cooled, single disc
Parking Brakes: Automatic spring applied, hydraulically released, driveline mounted, sealed wet multi disc
Tires/Wheels: Michelin 20.5 R 25, 1 Star L-3
Refill Capacities: Fuel Tank: 220 L (58 gal.), Cooling System: 23.5 L (24.8 qt.), Diesel Exhaust Fluid (DEF): 19 L (20 qt.), Engine Oil with Vertical Spin-On Filter: 19.5 L (20.6 qt.), Transmission Reservoir with Vertical Filter: 21.5 L (22.7 qt.), Axle Oil (front and rear, each): 18 L (19 qt.), Hydraulic Reservoir and Filter: 118.7 L (31.35 gal.), Park Brake Oil (wet disc): 0.3 L (10 oz.)
Hydraulic System: Variable-displacement, axial-piston pump; closed-center, pressure-compensating system
Maximum Rated Flow: 165 L/m (44 gpm)
System Relief Pressure: 24 994 kPa (3,625 psi)
Loader Controls: 2-function valve; joystick control or fingertip controls; hydraulic-function enable/disable; optional 3rd- and 4th-function valve with auxiliary lever
Steering: Power, fully hydraulic, Articulation Angle: 80-deg. arc (40 deg. each direction)
Turning Radius: 5.0 m (16 ft. 5 in.)
Operating Weight: 12 668 kg (27,928 lb.)
Height to Top of Cab: 3.25 m (10 ft. 8 in.)
Hood Height: 2.375 m (7 ft. 9 in.)
Ground Clearance: 0.40 m (15.7 in.)
Wheelbase: 2.93 m (9 ft. 7 in.)
Overall Length, Bucket on Ground: 7.34 m (24 ft. 1 in.)
Height to Hinge Pin, Fully Raised: 3.77 m (12 ft. 5 in.)
Dump Clearance, 45 deg., Full Height: 2.77 m (9 ft. 1 in.)
Reach, 45-deg. Dump, Full Height: 0.98 m (3 ft. 2 in.)
Maximum Digging Depth: 97 mm (3.8 in.)
Maximum Rollback at Ground Level: 41 deg.
Maximum Rollback, Boom Fully Raised: 55 deg.
Maximum Bucket Dump Angle, Fully Raised: 51 deg.
Loader Clearance Circle, Bucket Carry Position: 11.60 m (38 ft. 1 in.)

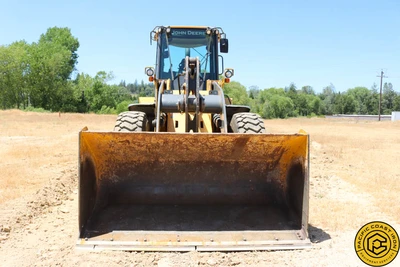

Bucket Capacity: Heaped: 2.1 m³ (2.75 cu. yd.), Struck: 1.7 m³ (2.27 cu. yd.)
Breakout Force: 9060 kg (19,974 lb.)
Tipping Load, 40-deg. Full Turn, No Tire Deflection: 9168 kg (20,212 lb.)
Rated Operating Load, 50% Full-Turn Tipping Load: 4584 kg (10,106 lb.)
Operating Weight: 12 668 kg (27,928 lb.)
