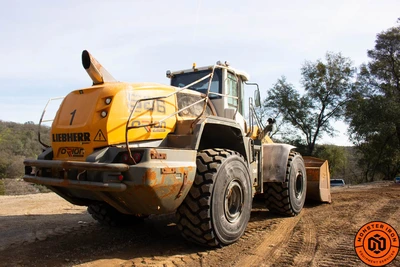

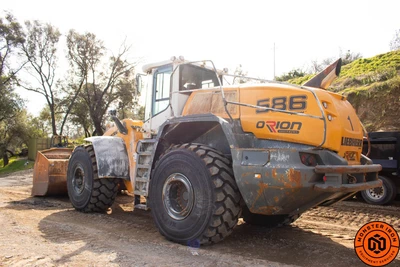

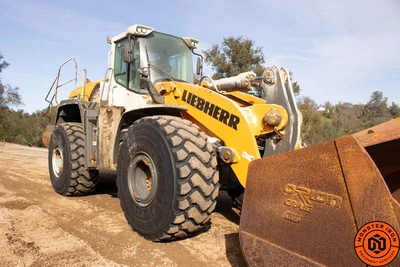

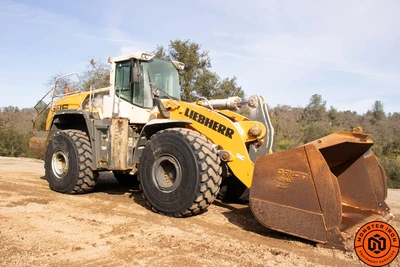

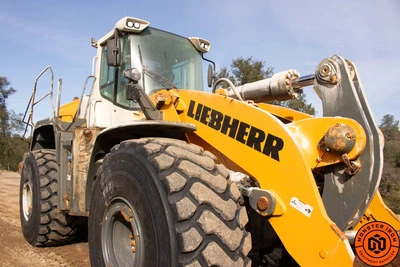

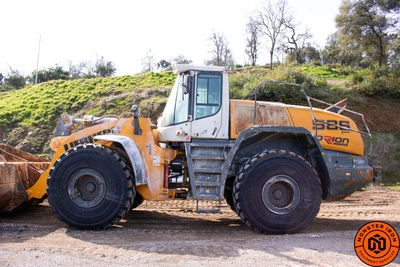

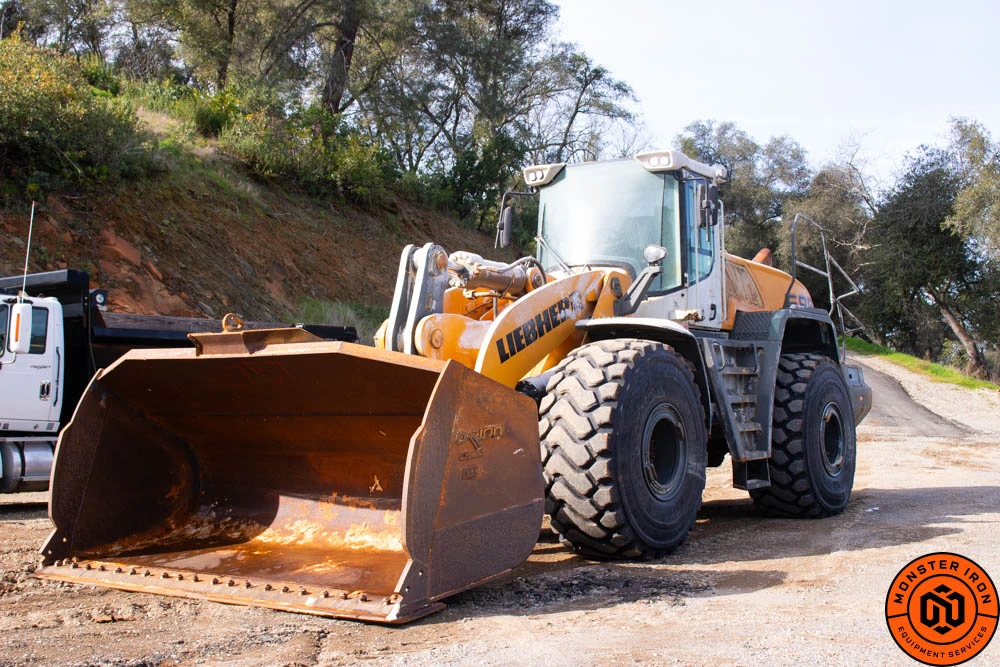

USED 2017 LIEBHERR L586

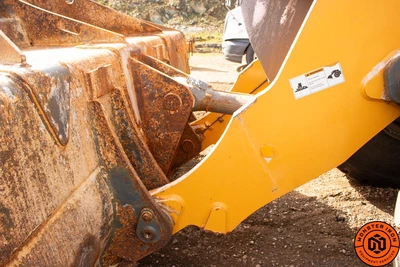

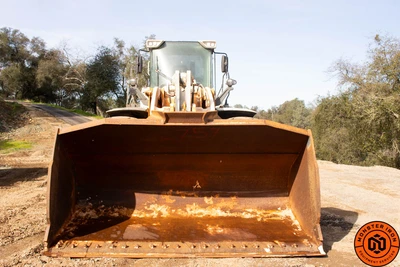

Bucket
G Dump Clearance At Max Raise: 10.8ft in
Arm Length: 10.4ft in
Breakout Force: 53954.15lb
Bucket Capacity – Heaped: 7.8yd3
Bucket Width: 11.3ft in
Digging Depth: 4ft in
Dimensions
E Ground Clearance: 1.12ft in
A Length With Bucket On Ground: 32.9ft in
C Height To Top Of Cab: 12.3ft in
D Wheelbase: 12.1ft in
F Hinge Pin – Max Height: 15.3ft in
H Reach At Max Lift And Dump: 4.8ft in
Electrical System
Alternator: 28/180 (V/A)
Voltage: 24 VV
Starter: 24/10.5 (V/HP)
Battery: 2 x 180 Ah
Engine
Fuel Injection: Electronic Common Rail high-pressure injection
Number Of Cylinders: 6
Engine Model: D936 A7
Net Power: 349hp
Air Cleaner: Dry type filter with main and safety element, pre-cleaner, service indicator on the Liebherr display
Gross Power: 353hp
Power Measured @: 1800rpm
Max Torque: 1450 lb ft
Displacement: 642cu in
Torque Measured @: 1100rpm
Aspiration: Water-cooled in-line engine with charge-air cooling, exhaust after-treatment through Liebherr-SCR technology
Bore: 4.8in
Stroke: 6in
Operational
Operating Weight: 71870lb
Fuel Capacity: 132gal
Hydraulic System Fluid Capacity: 55.5gal
Engine Oil Fluid Capacity: 10.6gal
Cooling System Fluid Capacity: 19.3gal
Hydraulic Fluid Capacity: 25.1gal
Front Axle/Diff Fluid Capacity: 15.9gal
Rear Axle/Diff Fluid Capacity: 15.9gal
Static Tipping Weight: 47620lb
Turning Radius: 27.5ft in

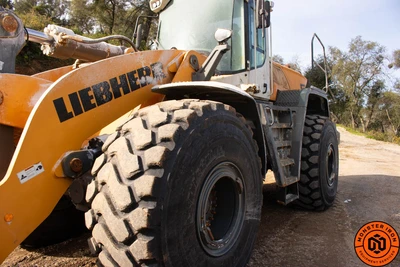

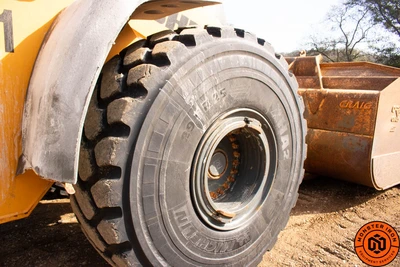

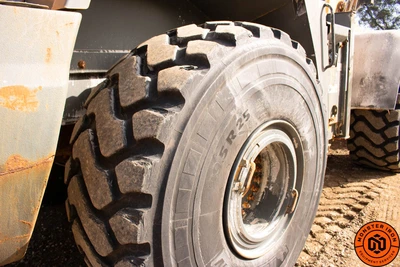

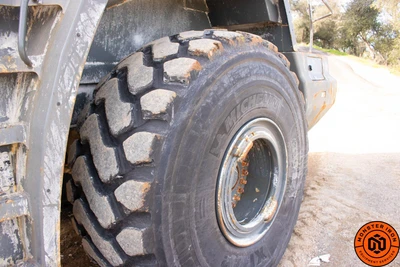

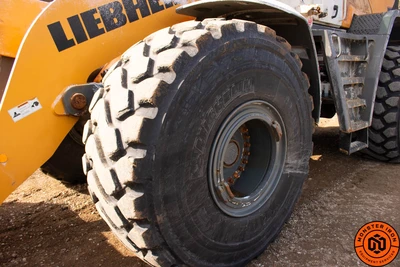

Tire Size: 29.5R25 L3
Transmission
Max Speed – Forward: 20.5mph
Max Speed – Reverse: 20.5mph
Hydraulic System
Max Operating Pressure: 4786 psi
Relief Valve Setting: 4351.2psi
Pump Flow Capacity: 108gal/min
Raise Time: 6.5sec
Dump Time: 3sec
Lower Time: 4sec
Pump Type: “Load-sensing” variable axial piston pump with output and flow control, and pressure cut-off in the control block
