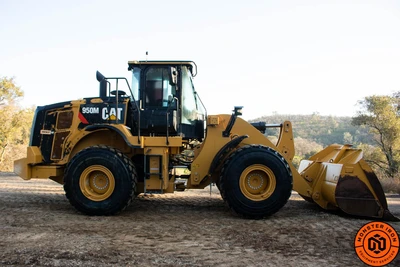

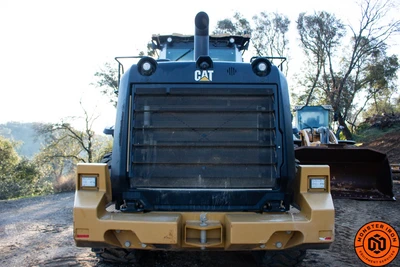

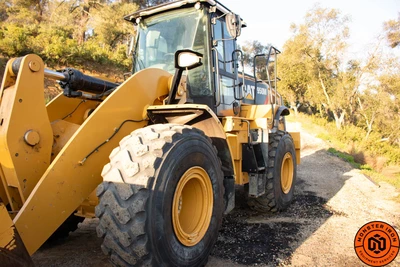

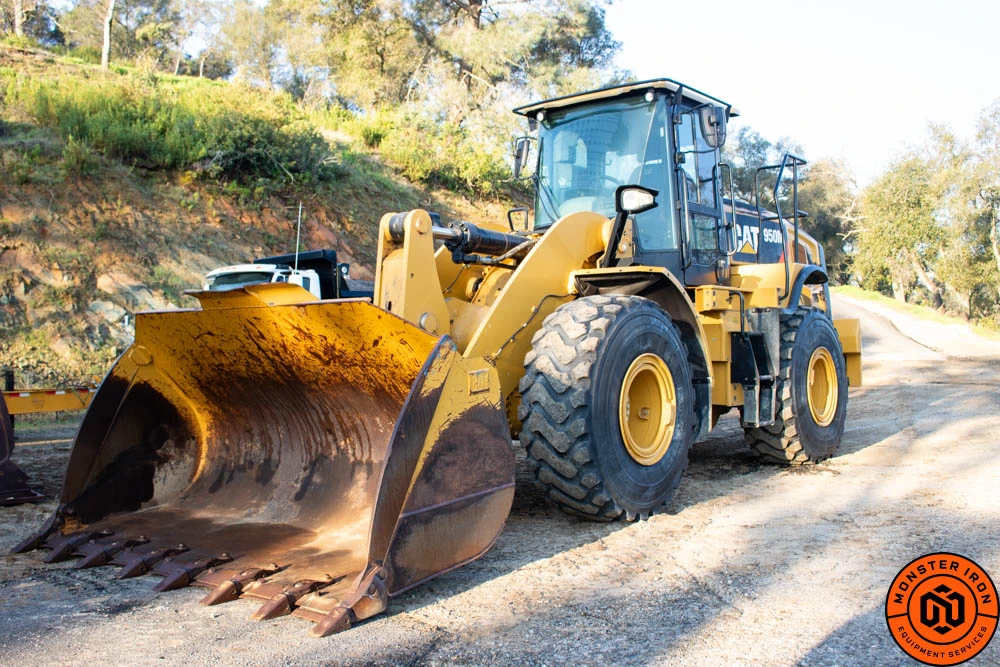

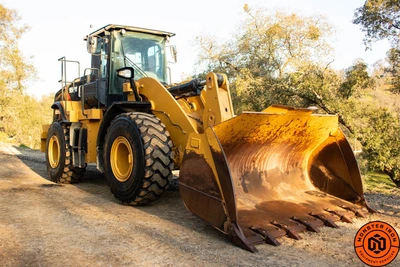

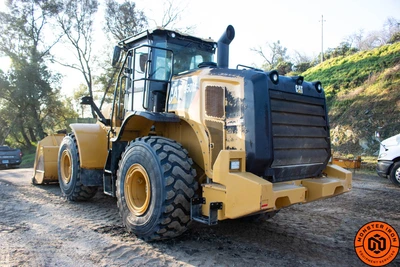

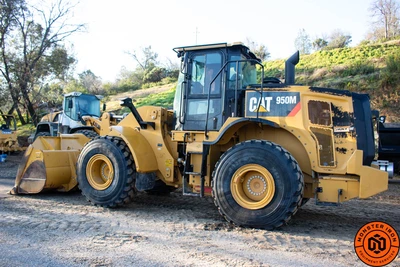

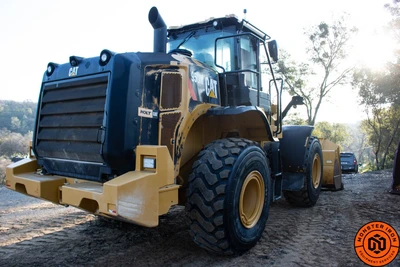

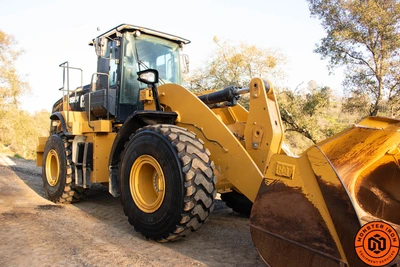

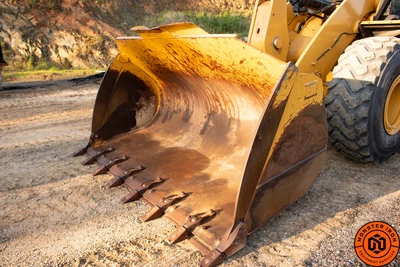

USED 2019 CATERPILLAR 950M

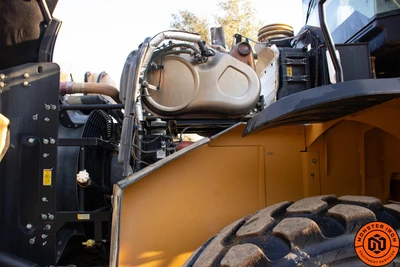

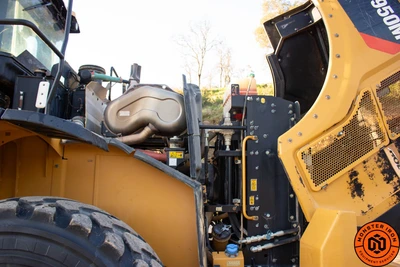

[Engine]
Engine Model: Cat C7.1 ACERT
Displacement: 428 cu in
Bore: 4.2 in
Stroke: 5.4 in
Net Power (ISO 9249): 230 hp
Maximum Net Power (SAE J1349): 230 hp
Maximum Gross Power (SAE J1995): 250 hp
Maximum Gross Power @ 2,100 rpm (SAE J1995): 250 hp
Maximum Net Power @ 2,100 rpm (SAE J1349): 230 hp
Maximum Net Power @ 2,000 rpm (ISO 9249): 248 hp
Maximum Net Power @ 2,000 rpm (ISO 9249, Metric): 252 hp
Maximum Power @ 2,000 rpm (SAE J1995): 263 hp
Maximum Power @ 2,000 rpm (ISO 14396): 261 hp
Maximum Power @ 2,000 rpm (ISO 14396, Metric): 265 hp
Maximum Power @ 2,100 rpm (SAE J1995): 250 hp
Maximum Power @ 2,100 rpm (ISO 14396): 249 hp
Maximum Power @ 2,100 rpm (ISO 14396, Metric): 253 hp
Peak Gross Torque @ 1,400 rpm (SAE J1995): 777 lb-ft
Peak Gross Torque @ 1,400 rpm (ISO 14396): 774 lb-ft
Maximum Net Torque @ 1,400 rpm: 726 lb-ft
Peak Gross Torque @ 1,300 rpm (SAE J1995): 911 lb-ft
Peak Gross Torque @ 1,300 rpm (ISO 14396): 908 lb-ft
Maximum Net Torque @ 1,300 rpm (SAE J1349): 858 lb-ft
Maximum Net Torque @ 1,300 rpm: 858 lb-ft
A/C Refrigerant Note: Contains R134a (GWP 1430). Refrigerant: 1.6 kg (CO₂ equivalent: 2.288 metric tonnes).
[Emissions]
Emissions Standard: Tier 4 Final / Stage IV
[Operating / Weights]
Operating Weight: 42,360 lb
Operating Weight (Alt. Listing): 42,357 lb
Breakout Force: 40,690 lb
Static Tipping Load (40° Turn, With Tire Deflection): 24,262 lb
Static Tipping Load (40° Turn, No Tire Deflection): 25,926 lb
Operating Specs Note: (1) For machine configuration as defined under “Weight.” (2) ISO 14397-1:2007 Sections 1–6, requiring 2% verification between calculations and testing.
[Transmission (Travel Speeds)]
Forward – 1: 4.3 mph
Forward – 2: 7.5 mph
Forward – 3: 12 mph
Forward – 4: 16 mph
Forward – 5: 24.5 mph
Reverse – 1: 4.3 mph
Reverse – 2: 7.5 mph
Reverse – 3: 16 mph
Travel Speed Note: Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 787 mm (31 in) roll radius.

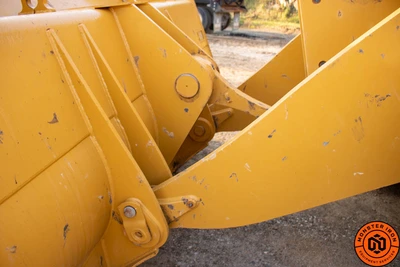

[Buckets]
Bucket Capacity Range: 2.5–9.2 m³ (3.3–12.0 yd³)

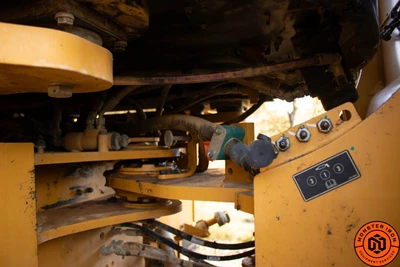

[Axles]
Front Axle: Fixed
Rear Axle: Oscillating ±13°
Max Single-Wheel Rise & Fall: 19.2 in

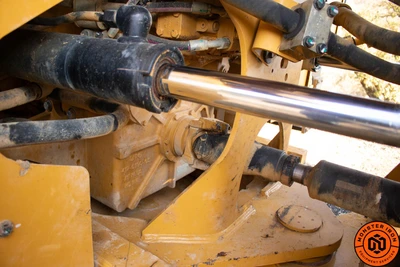

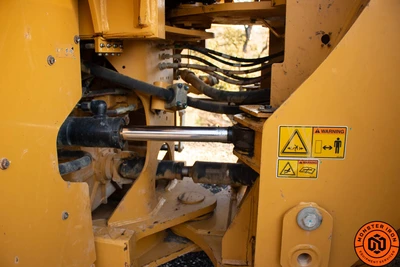

[Hydraulic System]
Implement Pump Type: Variable Axial Piston
Max Operating Pressure: 4,250 psi
Max Pump Output @ 2,150 rpm: 76 gal/min
Optional 3rd Function Max Flow: 63 gal/min
Optional 3rd Function Max Pressure: 3,220 psi
Hydraulic Cycle Time (Total): 8.9 s
Cycle Time – Raise (Rated Payload, Carry Position): 5.1 s
Cycle Time – Dump (Rated Payload, Max Raise): 1.5 s
Cycle Time – Lower (Empty, Float Down): 2.3 s
Cycle Time – Total (Rated Payload): 8.9 s
[Brakes]
Brakes: Brakes meet ISO 3450 standards
[Service Refill Capacities]
Fuel Tank: 72.6 gal
Cooling System: 15.6 gal
Crankcase: 5.8 gal
DEF Tank: 4.2 gal
Hydraulic Tank: 33 gal
Transmission: 11.4 gal
Differential / Final Drives – Front: 11.4 gal
Differential / Final Drives – Rear: 11.4 gal
DEF Note: *Must meet the requirements outlined in ISO 22241-1.
[Sound Levels]
Operator Sound Pressure (ISO 6396:2008): 70 dB(A)
Exterior Sound Power (ISO 6395:2008): 108 dB(A)
Exterior Sound Pressure (SAE J88:2013): 75 dB(A)
Cooling Fan @ Max – Operator (ISO 6396:2008): 70 dB(A)
Cooling Fan @ Max – Exterior Sound Power (ISO 6395:2008): 107 dB(A)
Cooling Fan @ Max – Exterior Sound Pressure (SAE J88:2013): 75 dB(A)*
Cooling Fan @ 70% – Operator (ISO 6396:2008)**: 69 dB(A)
Cooling Fan @ 70% – Exterior Sound Power (ISO 6395:2008)**: 104 LWA***
Sound Notes: *Measured at 15 m (49.2 ft), moving forward in 2nd gear ratio. **Applies to EU/directive-adopting countries. ***EU Directive 2000/14/EC as amended by 2005/88/EC.

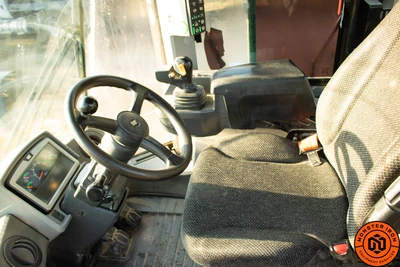

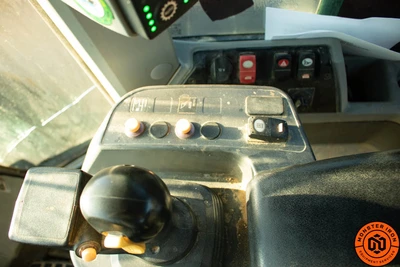

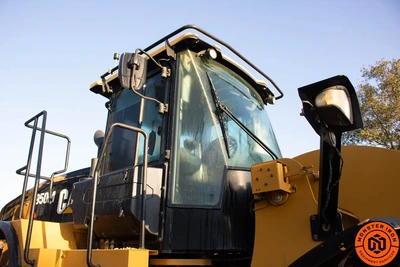

[Cab / Safety]
ROPS / FOPS: Meets ISO 3471 and ISO 3449 Level II
