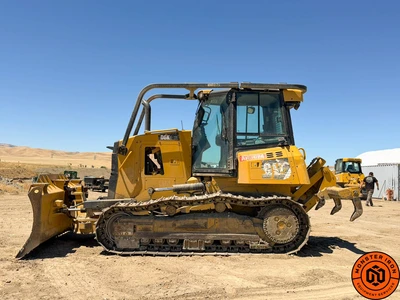

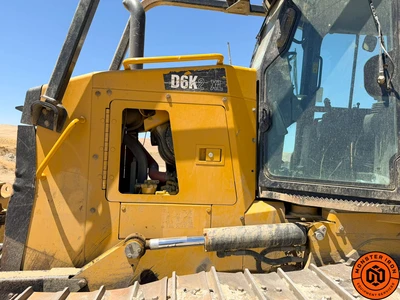

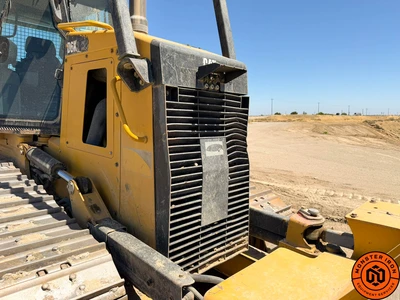

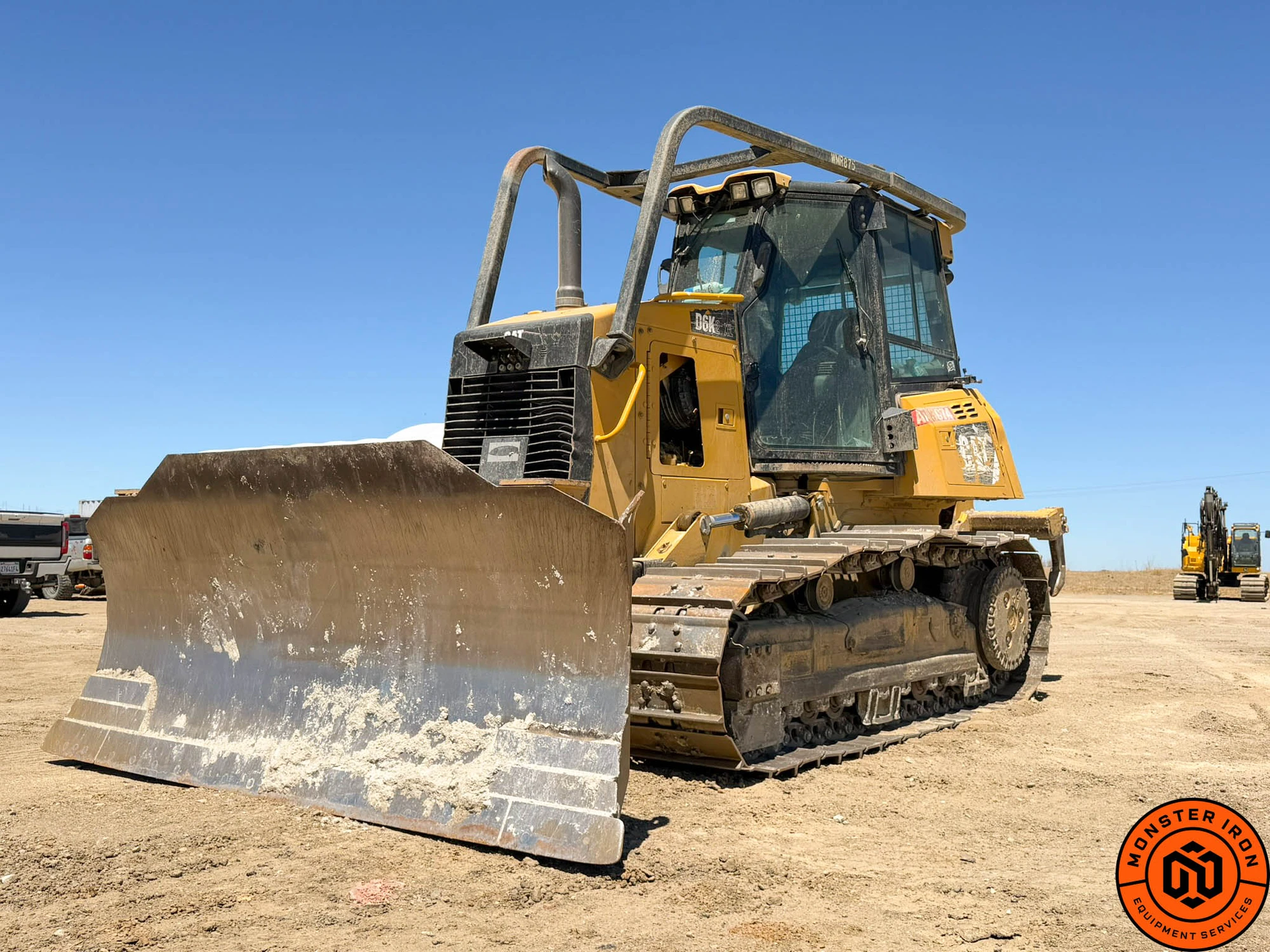

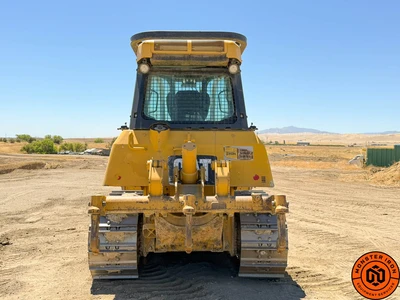

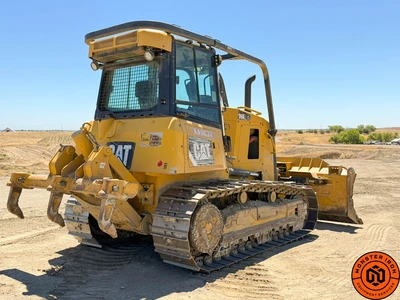

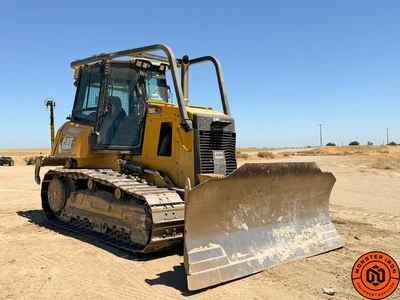

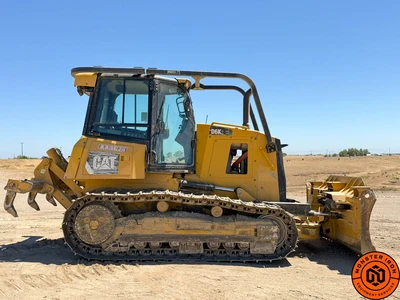

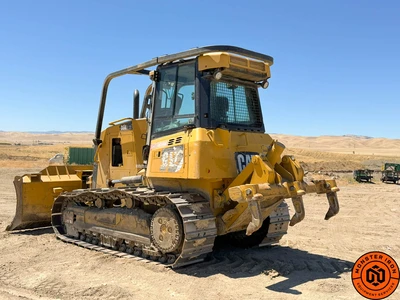

USED 2017 CATERPILLAR D6K2XL

[Engine]
Engine Model: Cat C4.4 with twin turbochargers
Emissions: U.S. EPA Tier 4 Final / EU Stage IV / Japan 2014 (Tier 4 Final) / Korea Tier 4
Maximum Engine Power – SAE J1995: 119 kW
Maximum Engine Power – ISO 14396: 117 kW
Maximum Engine Power – ISO 14396 DIN: 159 hp
Net Power – SAE J1349: 95 kW
Net Power – ISO 9249: 97 kW
Net Power – ISO 9249 DIN: 132 hp
Bore: 105 mm
Stroke: 127 mm
Displacement: 4.4 L
Rated Engine Speed: 2,200 rpm
Maximum Altitude Without Derating: 3,000 m
[Transmission and Travel Speed]
Transmission Type: Hydrostatic
Forward Travel Speed: 0–10 km/h
Reverse Travel Speed: 0–10 km/h
[Operating and Shipping Weight]
Operating Weight – XL: 13,271 kg
Shipping Weight – XL: 12,996 kg
[Service Refill Capacities]
Fuel Tank: 260 L
Diesel Exhaust Fluid Tank: 19 L
Cooling System: 30 L
Engine Crankcase: 11 L
Final Drives – Each: 18.5 L
Hydraulic Tank: 64 L

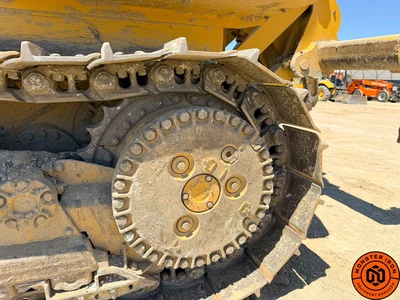

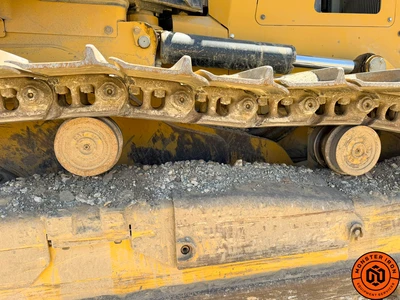

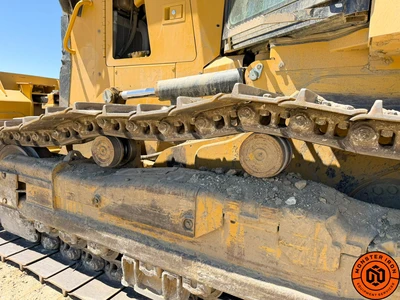

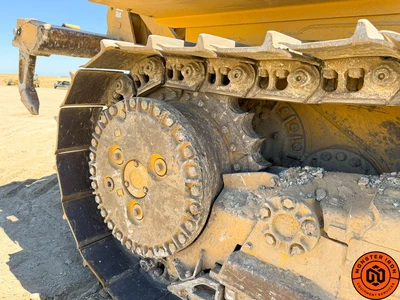

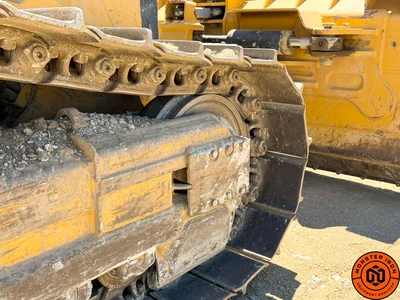

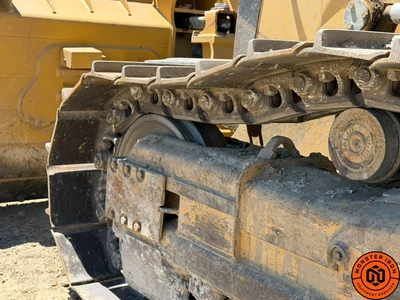

[XL Undercarriage]
Standard Shoe Width: 560 mm
Shoes per Side: 40
Moderate Service Grouser Height: 48 mm
Extreme Service Grouser Height: 57 mm
Track Gauge: 1,770 mm
Track on Ground: 2,645 mm
Ground Contact Area: 3.27 m²
Ground Pressure: 39.8 kPa
Track Rollers per Side: 8

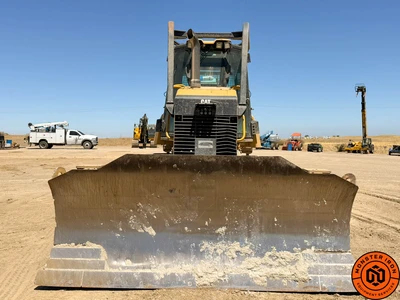

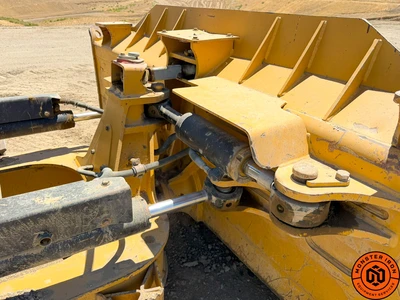

[Blade]
Blade Type: VPAT or VPAT Foldable
Blade Capacity – XL VPAT: 3.26 m³
Blade Width Over End Bits – XL VPAT: 3,196 mm
[XL Dimensions]
Track Gauge: 1,770 mm
Width – Standard Shoes, No Blade: 2,330 mm
Width – VPAT Blade Angled 25°: 2,896 mm
Width – Foldable Blade in Transport Position: 2,364 mm
Machine Height to Top of ROPS Cab: 2,965 mm
Drawbar Height: 517 mm
Length of Track on Ground: 2,645 mm
Basic Tractor Length with C-Frame/Drawbar: 4,618 mm
Additional Length with Ripper: 815 mm
Additional Length with PA50 Winch: 354 mm
Additional Length with VPAT Blade Straight: 382 mm
Additional Length with VPAT Blade Angled 25°: 1,012 mm
Height Over Exhaust Stack: 2,840 mm
Ground Clearance: 350 mm

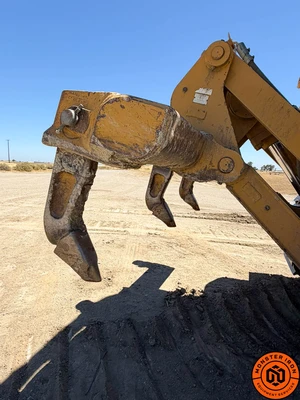

[Ripper]
Type: Fixed parallelogram
Number of Pockets: 3
Maximum Penetration Force – XL: 42.2 kN
Maximum Pry-Out Force – XL: 166.7 kN
Maximum Penetration: 360 mm
Weight with One Shank: 845 kg
[Standards and Sound]
ROPS Standard: ISO 3471:2008
FOPS Standard: ISO 3449:2005 Level II
Brake Standard: ISO 10265:2008
Operator Sound Pressure Level: 76 dB(A)
Guaranteed Exterior Sound Power Level: 109 dB(A)
