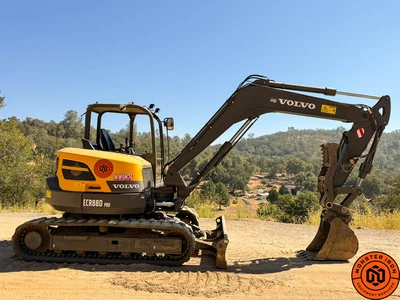

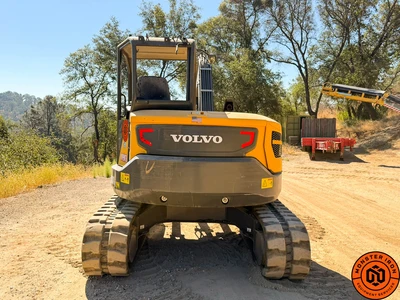

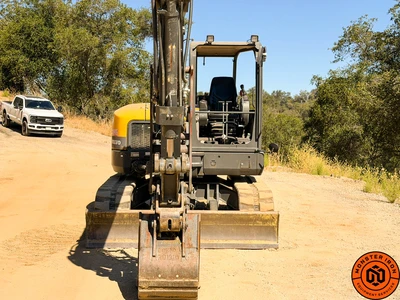

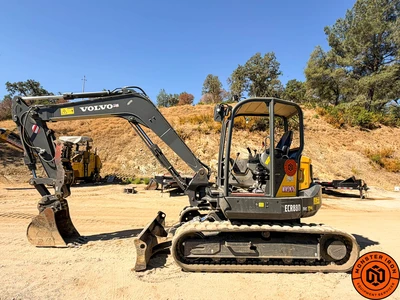

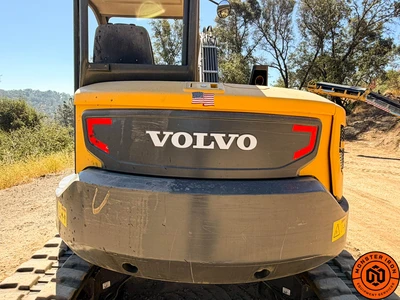

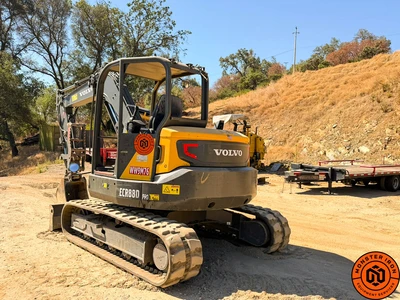

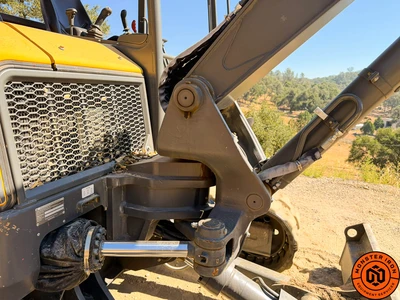

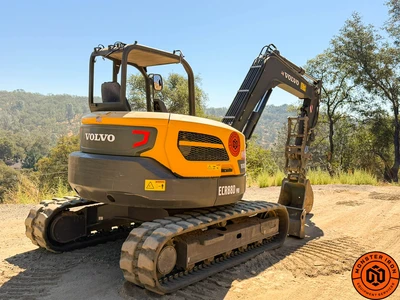

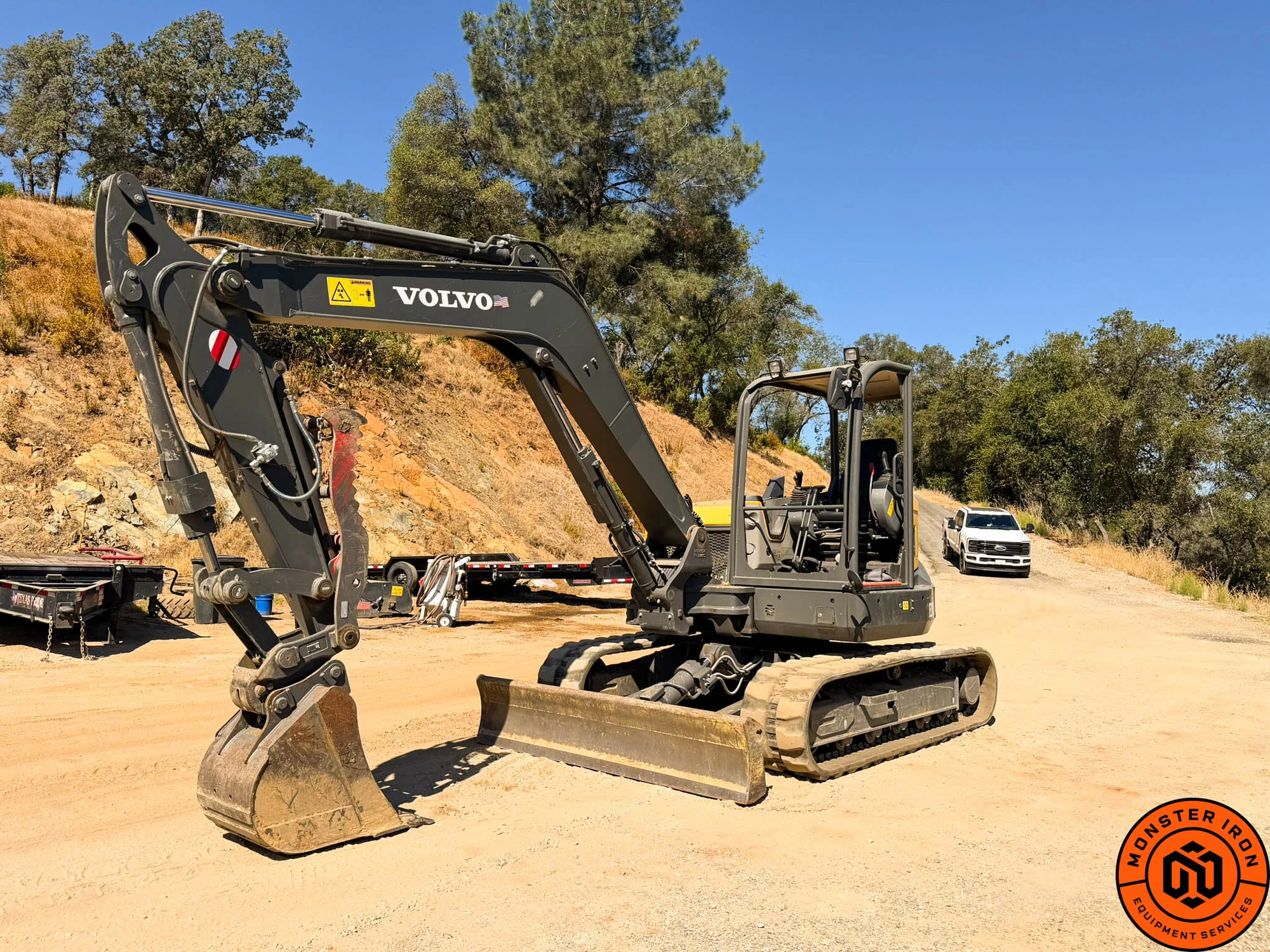

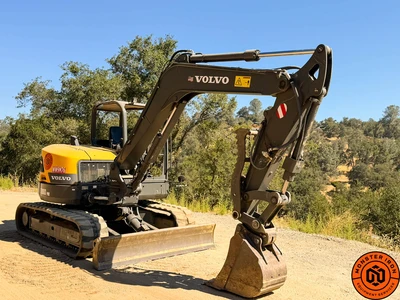

USED 2020 VOLVO ECR88D

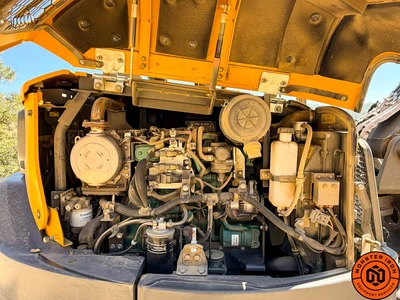

[Engine]
Engine Model: Volvo D2.6H
Net Power: 41 kW / 55 hp
Gross Power: 42.4 kW / 57 hp
Max Torque: 220 Nm / 162 ft-lbf
Displacement: 2.62 L / 160 in³
Bore x Stroke: 87 × 110 mm / 3.4 × 4.3 in
[Hydraulic System]
System Type: Open-center, negative hydraulic system
Main Pump: Variable-displacement pump
Maximum Flow: 2 × 68 + 54 L/min / 2 × 18 + 14 gal/min
Pilot Pump Flow: 13 L/min / 3.4 gal/min
Implement Relief Pressure: 29.4 MPa / 4,264 psi
Travel Relief Pressure: 29.4 MPa / 4,264 psi
Swing Relief Pressure: 24.5 MPa / 3,553 psi
Pilot Relief Pressure: 3.4 MPa / 493 psi
[Swing and Travel]
Swing Speed: 8.3 rpm
Swing Torque: 22.9 kNm / 16,890 ft-lbf
Travel Speed Low: 2.6 km/h / 1.6 mph
Travel Speed High: 5.2 km/h / 3.2 mph
Max Drawbar Pull: 65 kN / 14,613 lbf
Gradeability: 35°
[Service Refill Capacities]
Fuel Tank: 110 L / 29 gal
Hydraulic System Total: 140 L / 37 gal
Hydraulic Tank: 84 L / 22 gal
Engine Oil: 10.2 L / 2.7 gal
Engine Coolant: 9.3 L / 2.5 gal
Travel Reduction Unit: 2 × 1.6 L / 2 × 0.4 gal

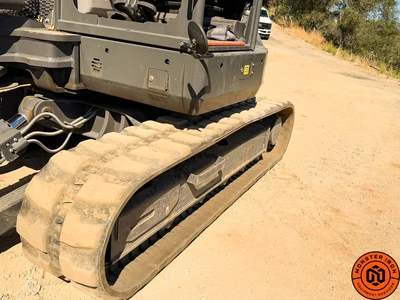

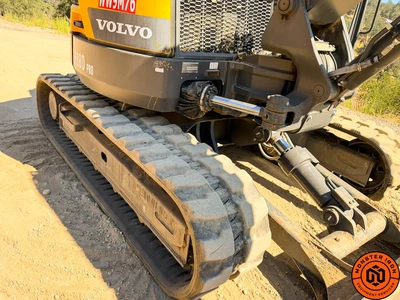

[Undercarriage]
Frame: Robust X-shaped frame
Track Shoes: 2 × 39
Link Pitch: 154 mm / 6.1 in
Steel Shoe Width: 450 / 600 mm — 17.7 / 23.6 in
Rubber Shoe Width: 450 mm / 17.7 in
Bottom / Top Rollers: 2 × 5 / 2 × 1
[Weights and Ground Pressure]
Machine Class: 8.6–10.0 t / 19,010–22,050 lb
Operating Weight Range: 8,752–9,376 kg / 19,300–20,671 lb
Counterweight Options: 1,400 / 1,610 kg — 3,086 / 3,549 lb
Ground Pressure Range: 30.7–41.4 kPa / 4.45–6.0 psi
[Main Dimensions]

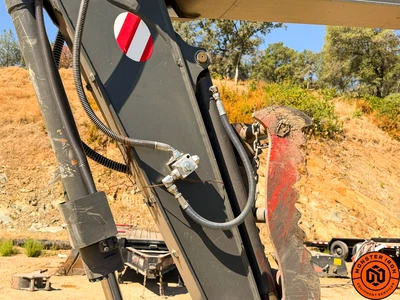

Boom Length: 3.55 m / 11 ft 8 in
Arm Options: 1.7 m / 5 ft 7 in or 2.1 m / 6 ft 11 in
Overall Width: 2,300 / 2,450 mm — 7 ft 7 in / 8 ft 0 in
Cab Height: 2,715 mm / 8 ft 11 in
Tail Swing Radius: 1,290 mm / 4 ft 3 in
Track Length: 2,830 mm / 9 ft 3 in
Track Gauge: 1,850 mm / 6 ft 1 in
Ground Clearance: 405 mm / 1 ft 4 in
Overall Length: 6,370 / 6,420 mm — 20 ft 11 in / 21 ft 1 in

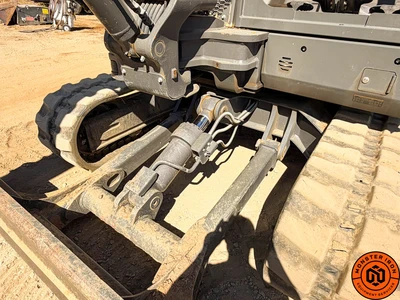

[Dozer Blade]
Blade Height: 470 mm / 1 ft 7 in
Blade Width: 2,300 mm / 7 ft 7 in
Lifting Height: 518 mm / 1 ft 8 in
Digging Depth: 433 mm / 1 ft 5 in
Blade Float: Optional
[Working Ranges]
Max Digging Reach: 6,970 / 7,350 mm — 22 ft 10 in / 24 ft 1 in
Max Digging Depth: 4,130 / 4,530 mm — 13 ft 7 in / 14 ft 10 in
Max Cutting Height: 6,790 / 7,050 mm — 22 ft 3 in / 23 ft 2 in
Max Dumping Height: 4,960 / 5,220 mm — 16 ft 3 in / 17 ft 2 in
Min Front Swing Radius: 2,560 / 2,640 mm — 8 ft 5 in / 8 ft 8 in
[Digging Forces]
Bucket Breakout Force: Up to 57.2 kN / 12,860 lb
Arm Tearout Force: Up to 39.8 kN / 8,950 lb
Bucket Rotation Angle: 190°

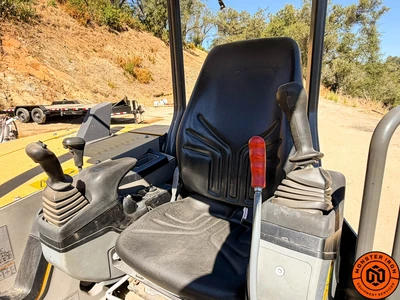

[Cab and Sound]
Cab Sound Level: 74 dB(A)
External Sound Level: 98 dB(A)
A/C Refrigerant: R134a
