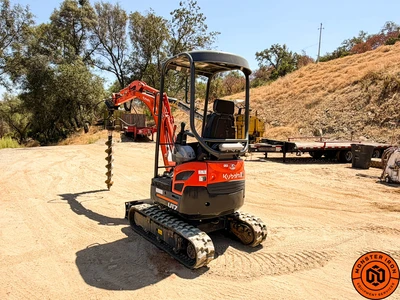

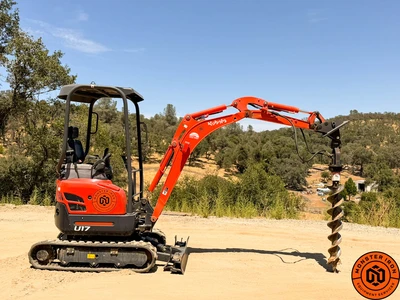

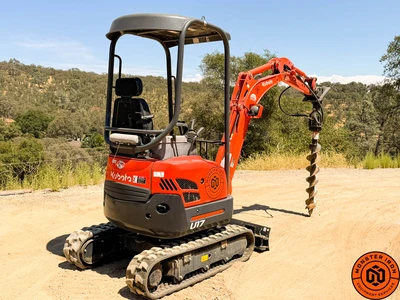

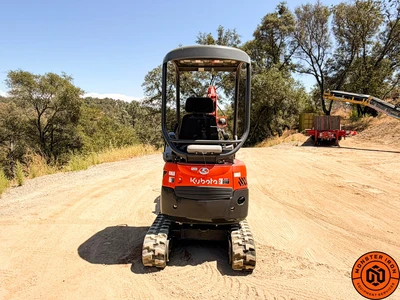

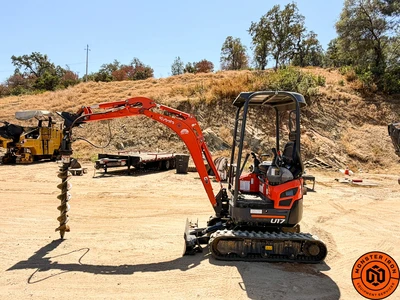

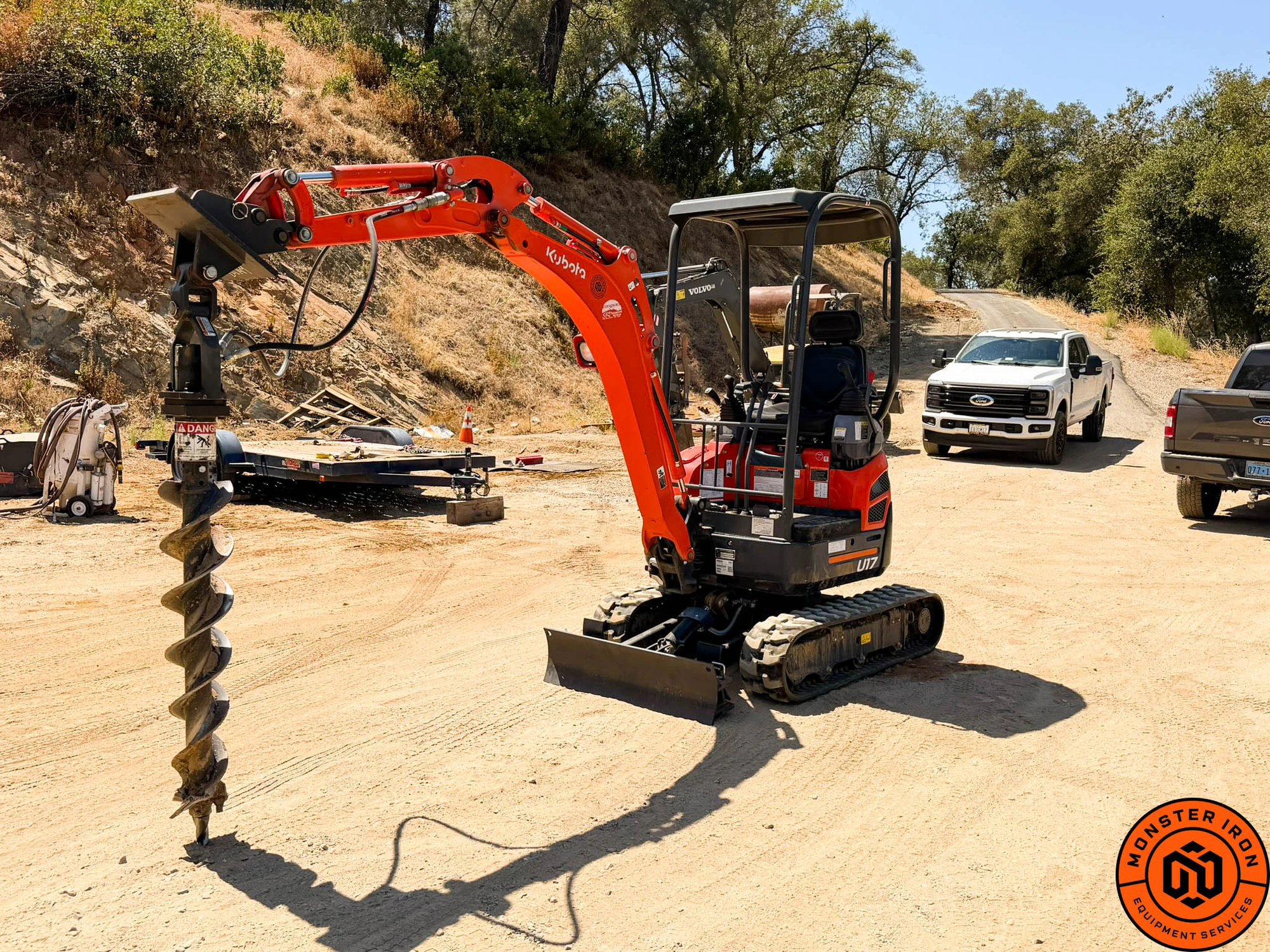

USED 2022 KUBOTA U17

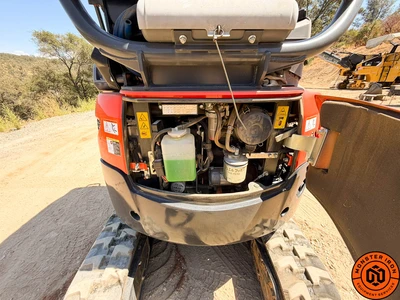

[Engine]

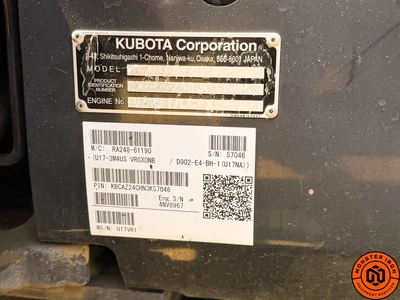

Model: Kubota D902-E4
Gross Output: 16.1 hp / 12.0 kW @ 2,300 rpm
Net Output: 15.1 hp / 11.3 kW @ 2,300 rpm
Displacement: 54.8 cu in / 898 cc
[Dimensions]
Overall Length: 11 ft 7 in / 3,545 mm
Overall Height: 7 ft 8 in / 2,340 mm
Overall Width: 3 ft 3 in / 990 mm to 4 ft 1 in / 1,240 mm
Minimum Ground Clearance: 5.9 in / 150 mm
[Hydraulic System]
Pump Capacity: 4.57 GPM / 17.3 L/min × 2 + 2.75 GPM / 10.4 L/min × 1
Auxiliary Hydraulic Flow: 7.32 GPM / 27.7 L/min
Hydraulic Oil: 3.4 gal reservoir / 6.1 gal system — 13 L / 23 L
[Performance]
Max Breakout Force – Bucket: 3,417.2 lb / 1,550 kgf
Max Breakout Force – Arm: 1,918 lb / 870 kgf
Travel Speed – Low / High: 1.4 / 2.6 mph — 2.1 / 4.1 km/h
Max Drawbar Pull: 4,865 lb / 2,207 kgf
Unit Swing Speed: 9.1 rpm
Boom Swing Angle – Left / Right: 65° / 58°

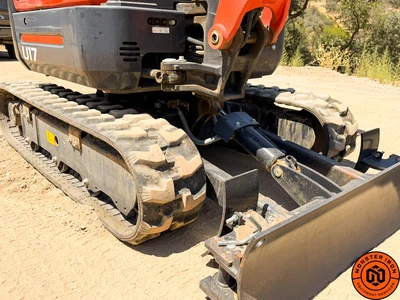

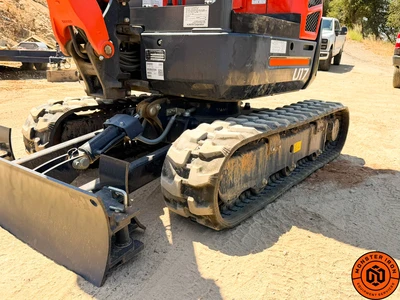

[Undercarriage]
Track Type: Rubber crawler
Tumbler Distance: 4 ft 0 in / 1,230 mm
Crawler Length: 5 ft 2 in / 1,585 mm
Shoe Width: 9.1 in / 230 mm
Ground Contact Pressure: 3.8 psi / 0.27 kgf/cm²

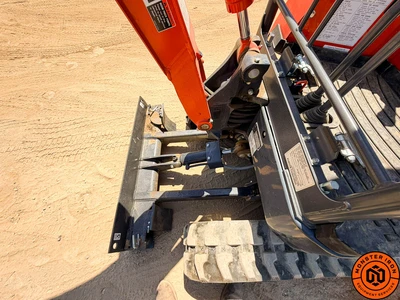

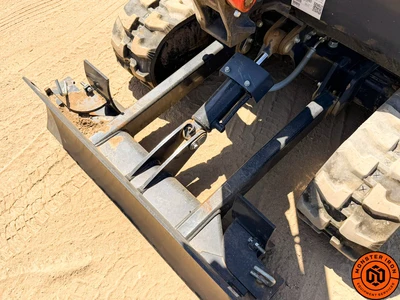

[Blade]
Blade Width: 4 ft 1 in / 1,240 mm to 3 ft 3 in / 990 mm
Blade Height: 10.3 in / 260 mm
Max Lift Above Ground: 11.0 in / 280 mm
Max Drop Below Ground: 7.5 in / 190 mm
[Working Range]
Max Digging Height: 11 ft 7 in / 3,540 mm
Max Dumping Height: 8 ft 0 in / 2,440 mm
Max Digging Depth: 7 ft 7 in / 2,310 mm
Max Vertical Digging Depth: 6 ft 3 in / 1,910 mm
Max Digging Radius at Ground: 12 ft 7 in / 3,840 mm
Max Digging Radius: 13 ft 9 in / 3,900 mm
Min. Turning Radius without Swing: 4 ft 8 in / 1,440 mm
Min. Turning Radius with Swing: 3 ft 12 in / 1,215 mm
[Capacities and Weight]
Fuel Reservoir: 5.02 gal / 19 L
Operating Weight: 3,703 lb / 1,680 kg

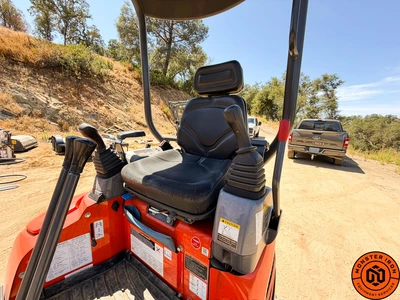

[Operator Station and Safety]

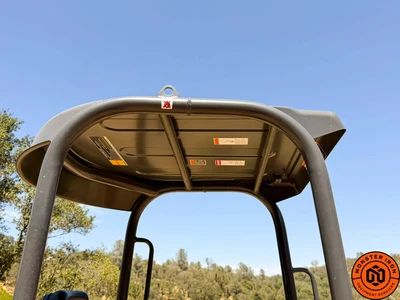

ROPS / OPG: Canopy, TOP Guard Level I
Control Pattern: Two-pattern selection system
[Options and Attachments]

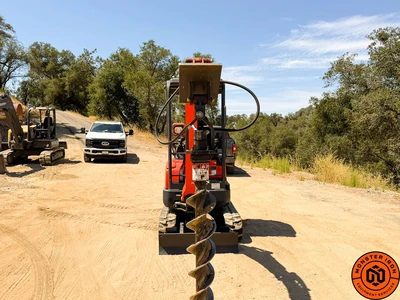

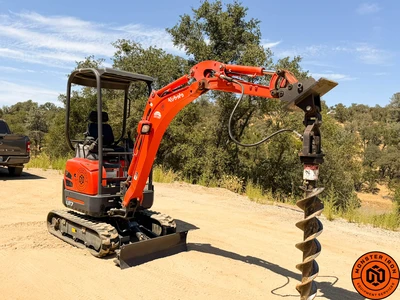

Available Options: Buckets, hydraulic auger, hydraulic hammer, quick coupler, spark arrest muffler, canopy lights and travel alarm
